Skid Control Sensor

SKID CONTROL SENSOR
REPLACEMENT

HINT: Overhaul the RH following the same procedures as for the LH.

1. REMOVE REAR WHEEL





2. DISCONNECT SKID CONTROL SENSOR WIRE

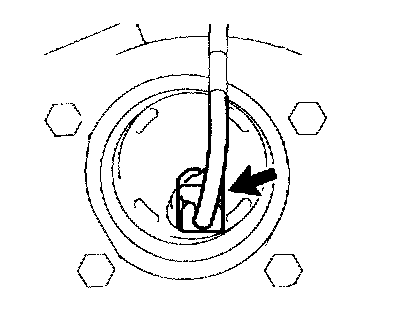

a. Disconnect the connector from the skid control sensor.
3. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
a. Put matchmarks on the rear brake drum sub-assembly and the axle hub.
b. Remove the rear brake drum sub-assembly.
4. REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH





5. REMOVE SKID CONTROL SENSOR
a. Mount the hub & bearing assembly in a soft jaw vise.

NOTICE: Replace the hub & bearing assembly if it is dropped or receives a strong shock.

b. Using a pin punch and a hammer, drive out the 2 pins, and remove the 2 attachments from SST.

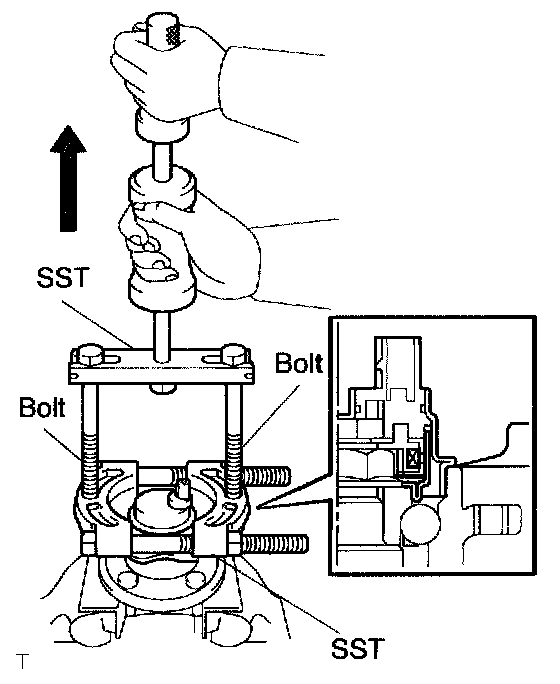

c. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the rear axle hub.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

NOTICE:
^ If the sensor rotor is damaged, replace the hub & bearing assembly.
^ Do not scratch the contacting surface of the axle hub and the speed sensor.

6. INSTALL SKID CONTROL SENSOR

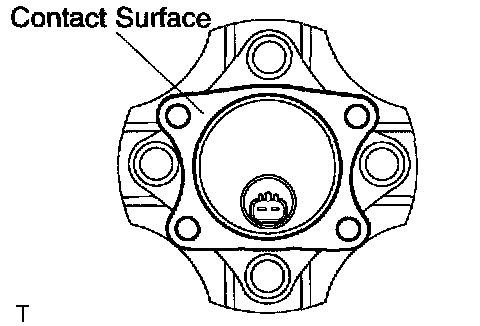

a. Clean the contacting surface of the rear axle hub and a new skid control sensor.

NOTICE: Keep the sensor rotor clean.

b. Place the skid control sensor on the rear axle hub so that the connector makes the lowest position under the on vehicle condition.

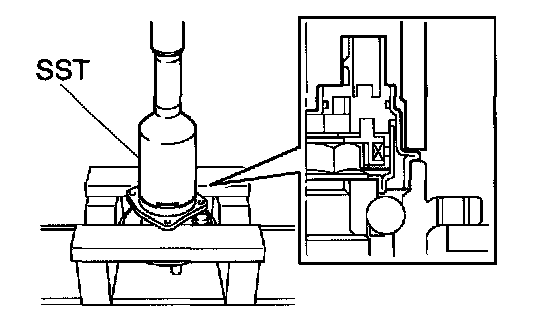

c. Using SST and a press, install the skid control sensor on the rear axle hub.
SST 09214-76011

NOTICE:
^ Do not tap the skid control sensor directly with a hammer.
^ Check that there is no foreign matter on the skid control sensor detection portion.
^ Press in the skid control sensor straight and slowly.

7. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
8. INSPECT REAR AXLE DEVIATION AND BACKLASH
9. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
a. Aligning the matchmarks, install the rear brake drum sub-assembly.





10. CONNECT SKID CONTROL SENSOR WIRE

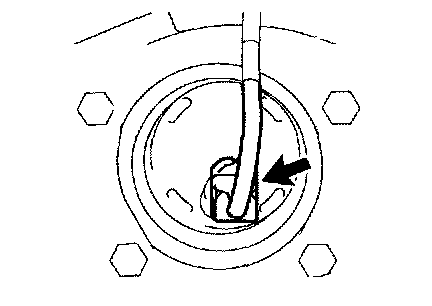

a. Connect the connector to the skid control sensor.
11. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
12. CHECK ABS SPEED SENSOR SIGNAL
Refer to Antilock Brakes / Traction Control Systems; Testing and Inspection.
