Airbag Assembly Connectors

DISCONNECTION

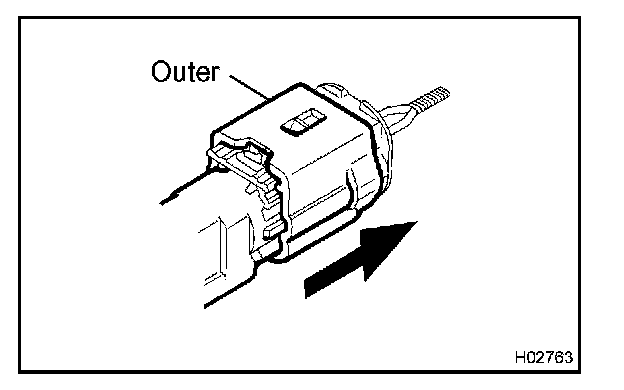

a. While holding both outer flank sides, slide the outer in the direction shown by the arrow.

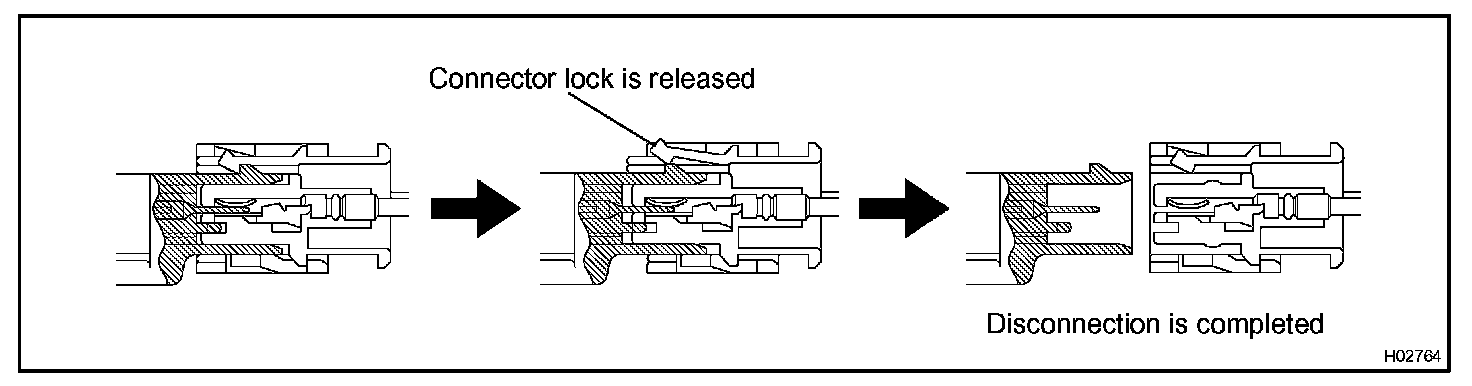

b. When the connector lock is released, the connectors are disconnected.

HINT: Be sure to hold both outer flank sides. If the top and bottom sides are held, it will obstruct disconnection.




CONNECTION

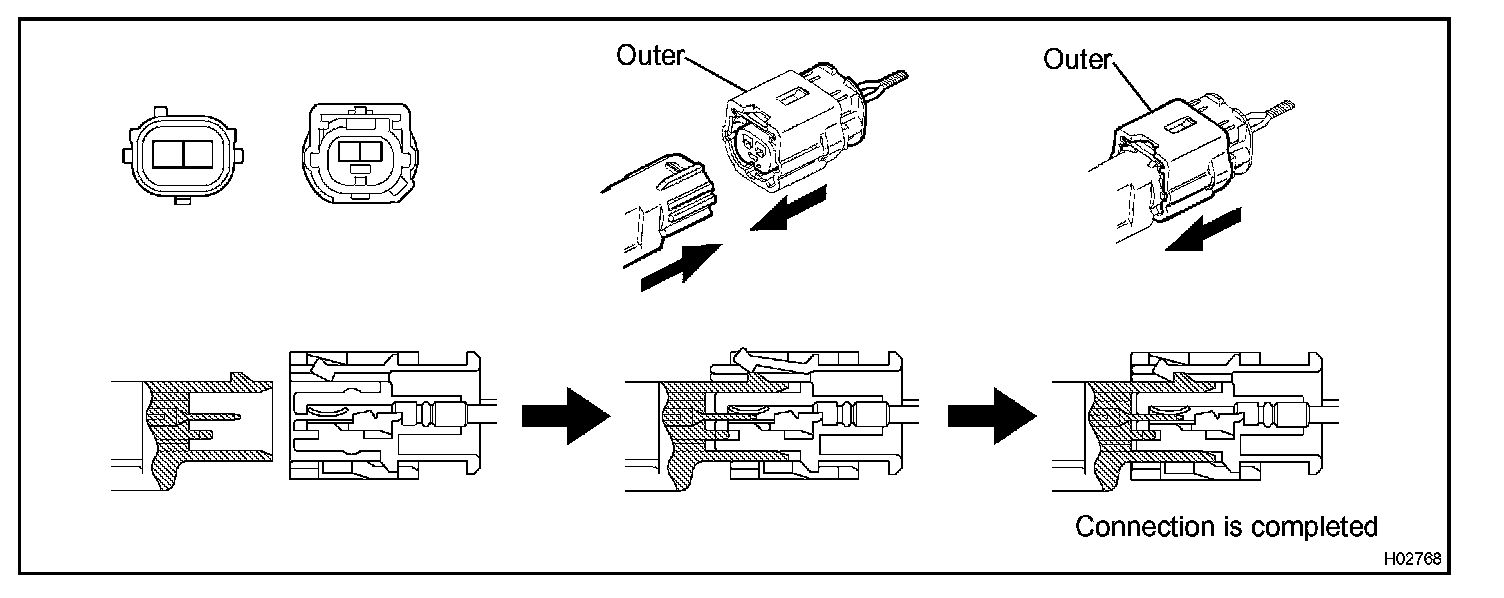

a. Connect the connector as shown in the illustration. (When locking, make sure that the slider returns to its original position and a click sound can be heard.)

HINT: When connecting them, the outer slides. Be sure not to hold the outer while connecting, as it may result in an insecure fit.
