Airbag Assembly Connectors

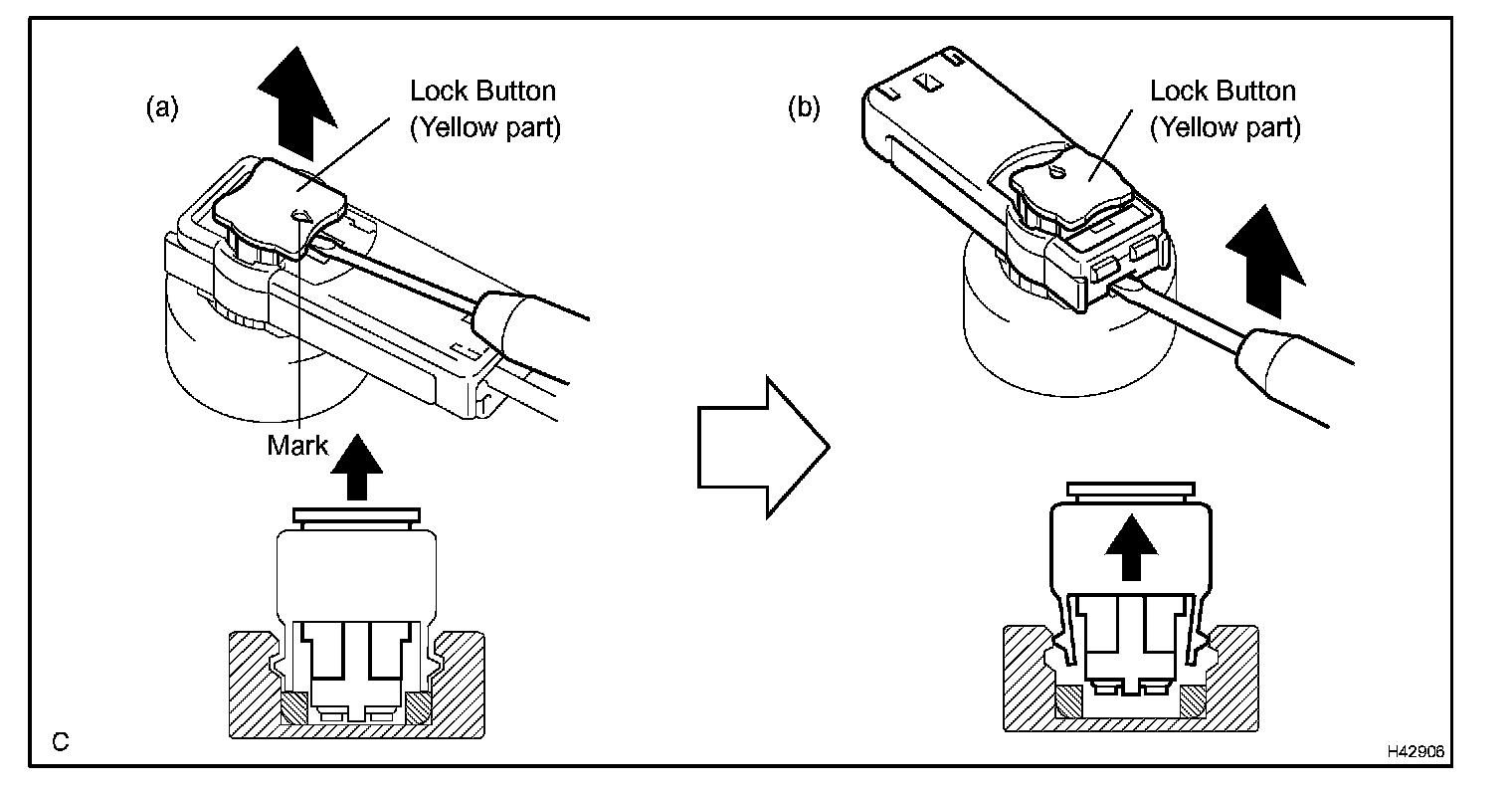

DISCONNECTION

HINT: Tape up the screwdriver tip before use.




a. Release the lock button (yellow part) of the connector using a screwdriver.
b. Insert the screwdriver tip between the connector and the base, and then raise the connector.

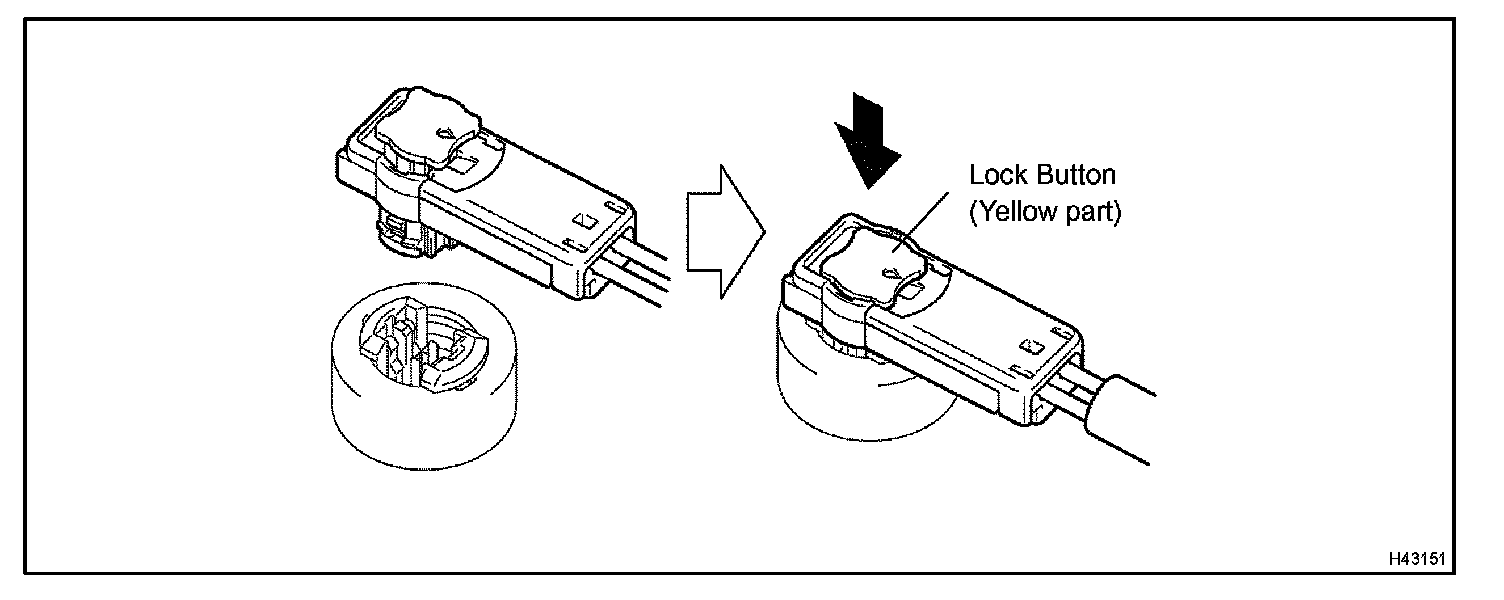

CONNECTION
a. Connect the connector as shown in the illustration.
b. Push down securely on the lock button (yellow part) of the connector.
