Replacement

Curtain Shield Airbag Assy LH:

REPLACEMENT

HINT: Replacement procedure of the RH side is the same as that for the LH side.

1. OBSERVE RESTRAINT SYSTEMS SERVICE PRECAUTIONS
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE ROOF HEADLINING ASSEMBLY




4. REMOVE CURTAIN SHIELD AIR BAG ASSEMBLY LH

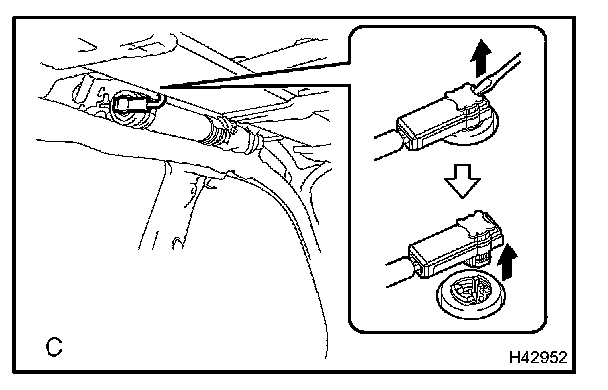

a. Using a screwdriver, disconnect the connector of the curtain shield airbag assembly LH.

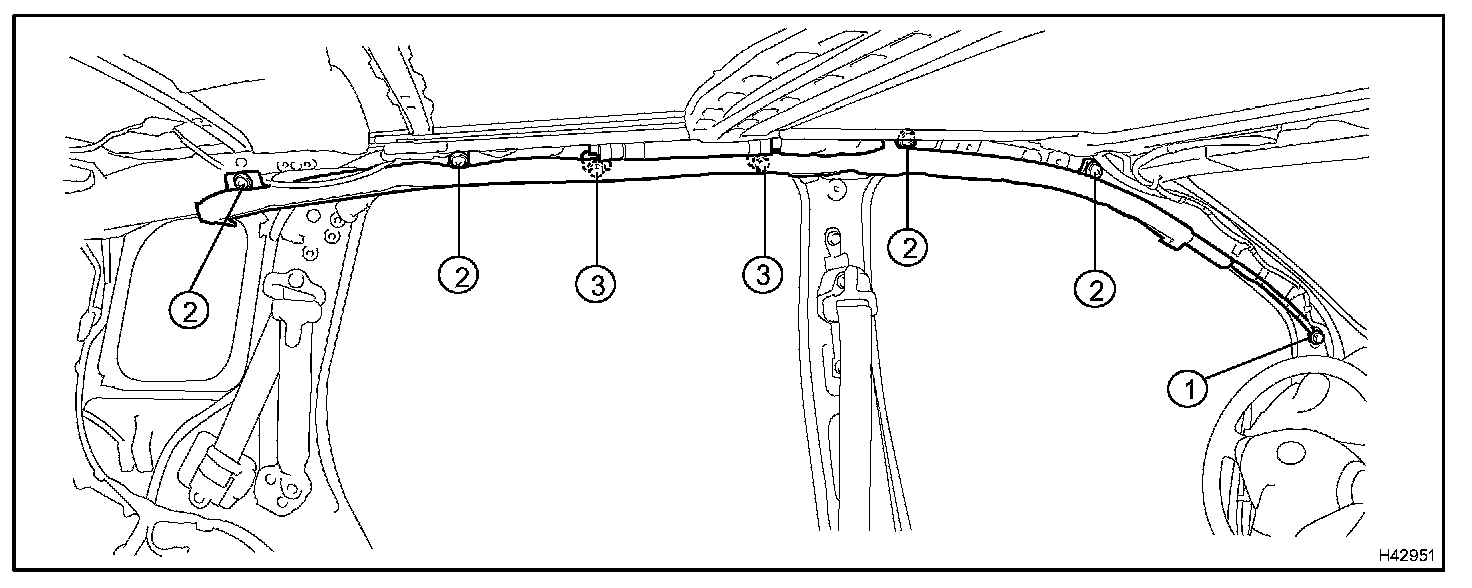

b. Remove the 3 bolts, 4 screws and the curtain shield air-bag assembly LH in the order shown in the illustration.

5. INSTALL CURTAIN SHIELD AIR BAG ASSEMBLY LH

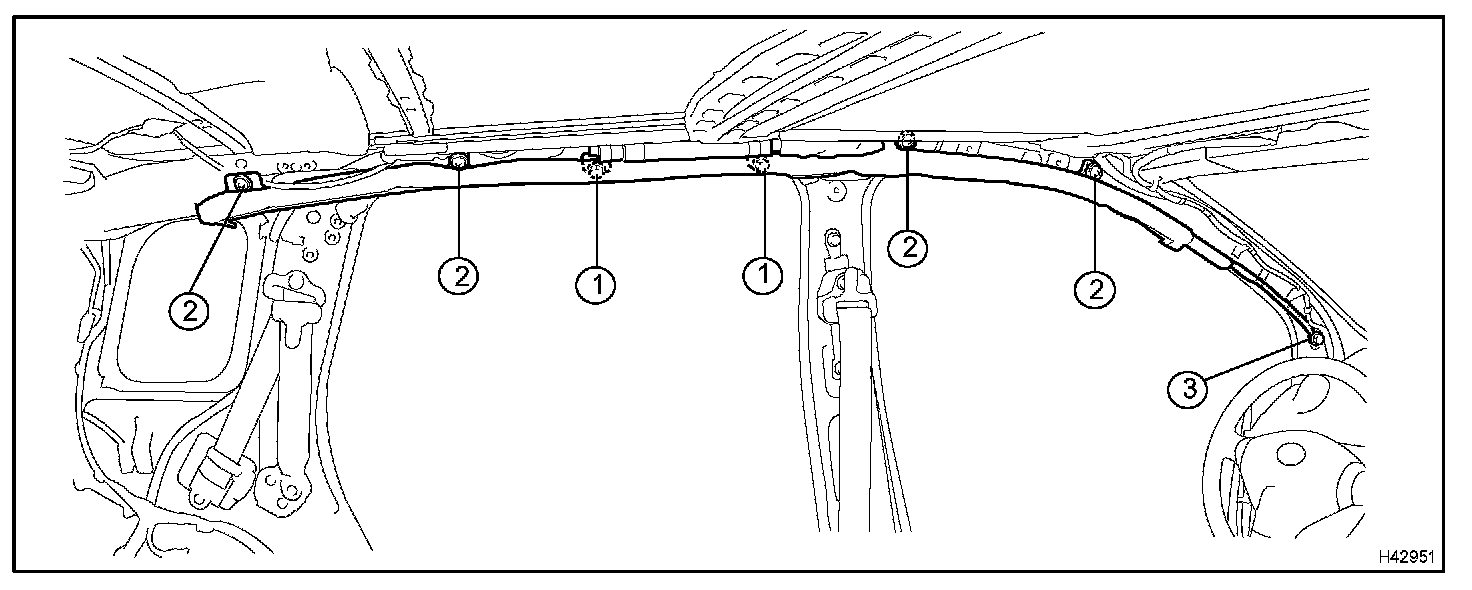

a. Install the curtain shield airbag assembly LH with the 3 bolts and 4 screws in the order shown in the illustration.

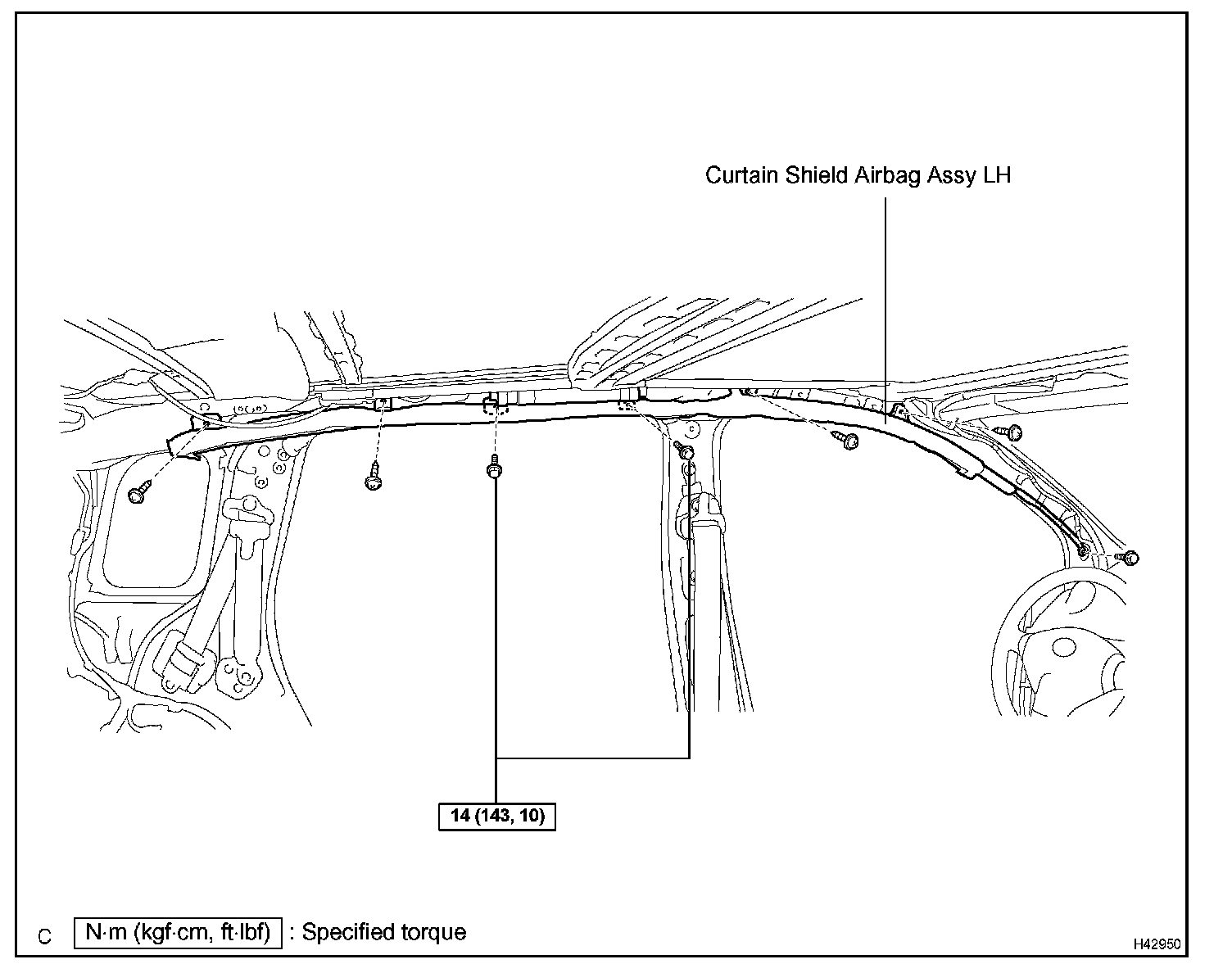

Torque: 14 Nm (143 kgf.cm, 10 ft.lbf)

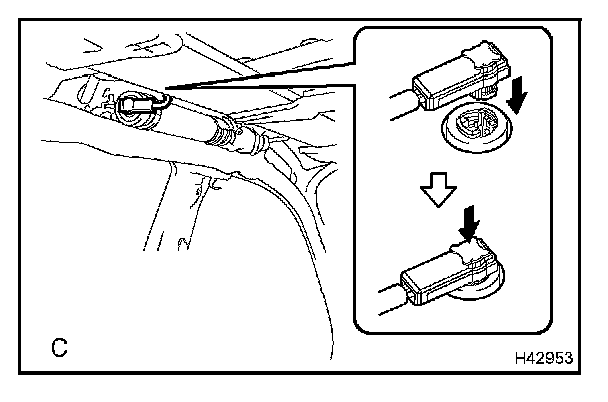

b. Connect the curtain shield airbag assembly LH connector.

6. INSPECT CURTAIN SHIELD AIR BAG ASSEMBLY LH
7. INSTALL ROOF HEADLINING ASSEMBLY
8. INSPECT SRS WARNING LIGHT
Refer to Air Bag Systems; Testing and Inspection.
