Check CAN Main Bus Line For Disconnection

CHECK CAN MAIN BUS LINE FOR DISCONNECTION

CIRCUIT DESCRIPTION

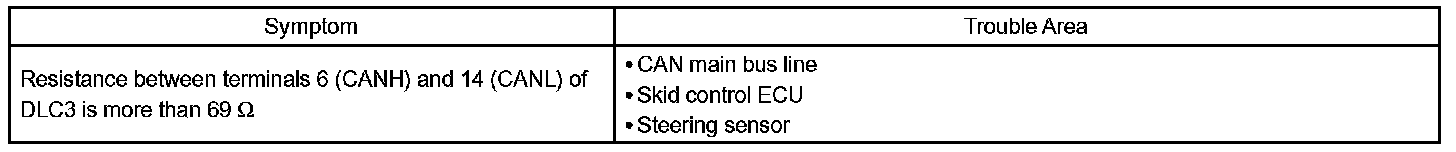

The CAN main bus line and DLC3 sub bus line may be disconnected when the resistance between terminals, 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 Ohms.

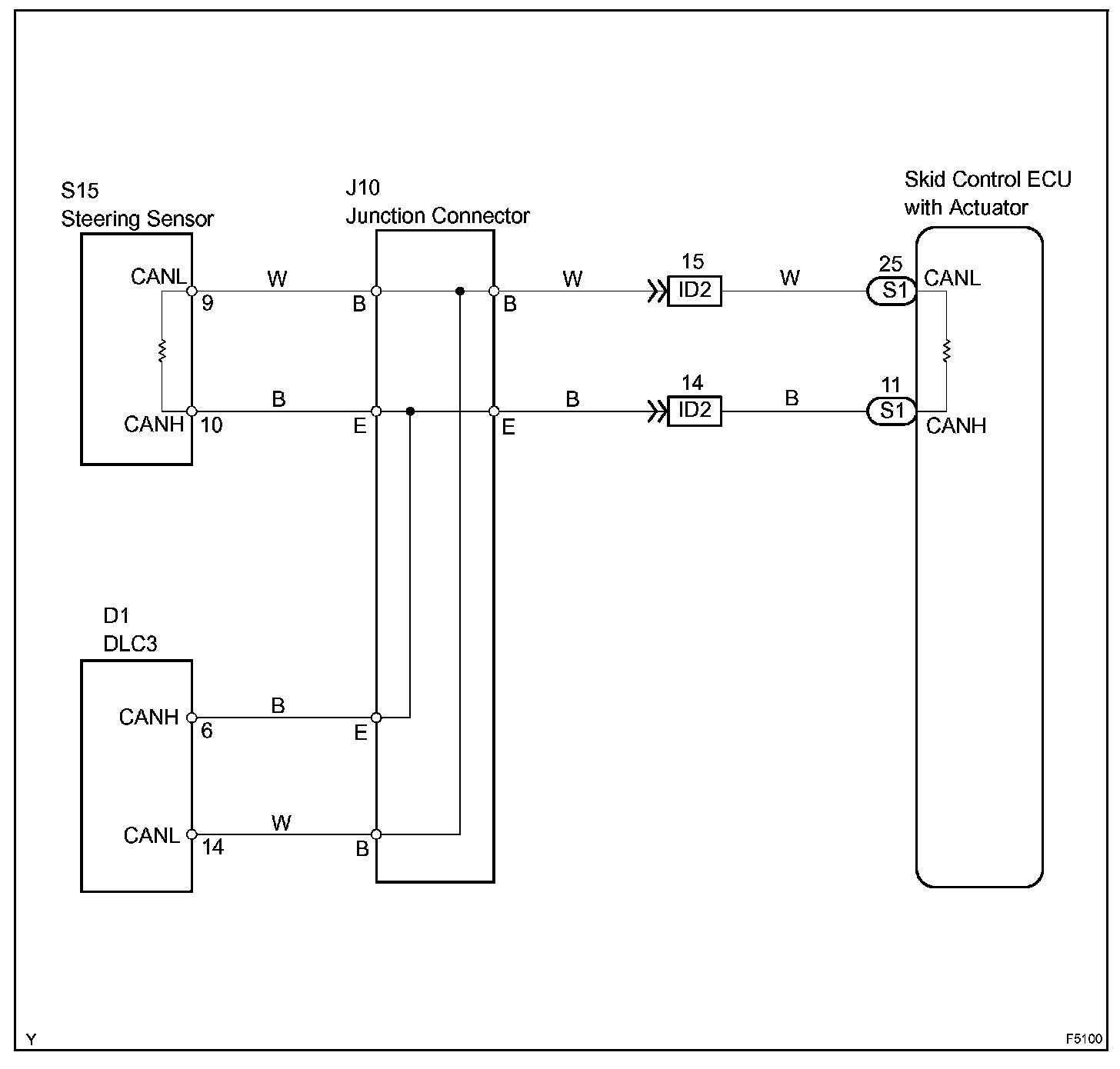

Wiring Diagram:

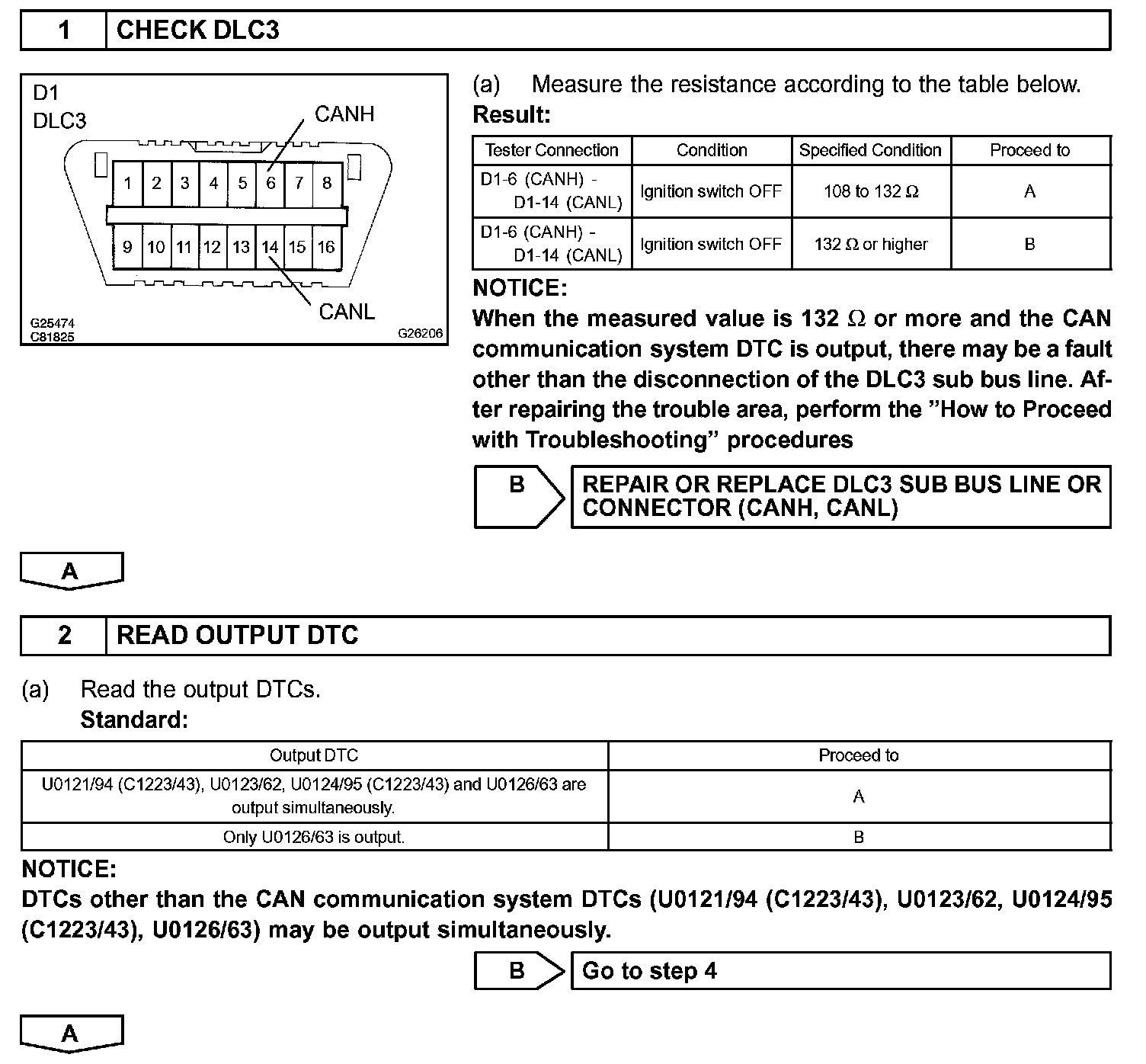

Step 1-2:

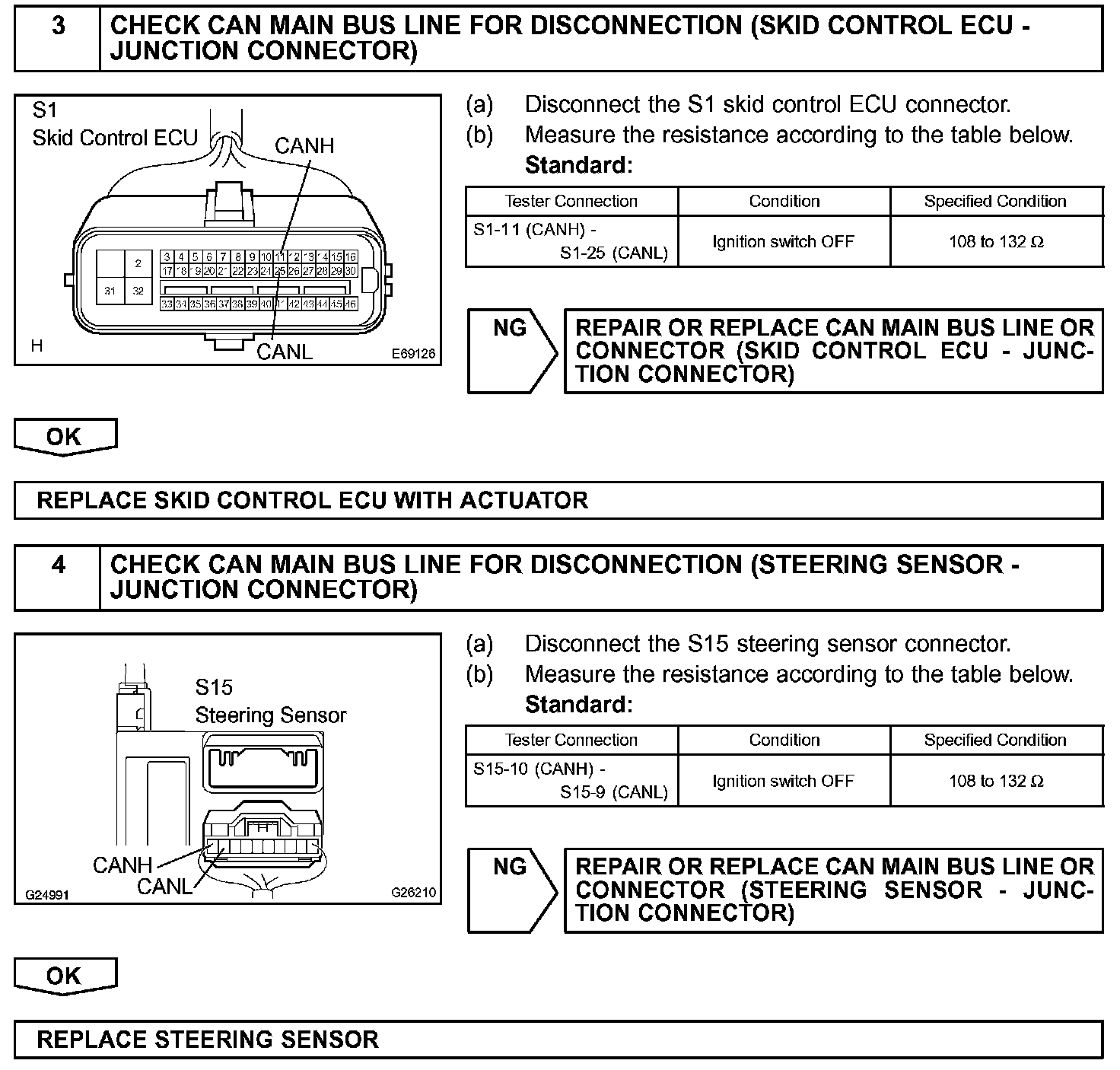

Step 3-4:

INSPECTION PROCEDURE
