Check CAN Bus Line (CAN-L) For Short to GND

CHECK CAN BUS LINE (CANL) FOR SHORT TO GND

CIRCUIT DESCRIPTION

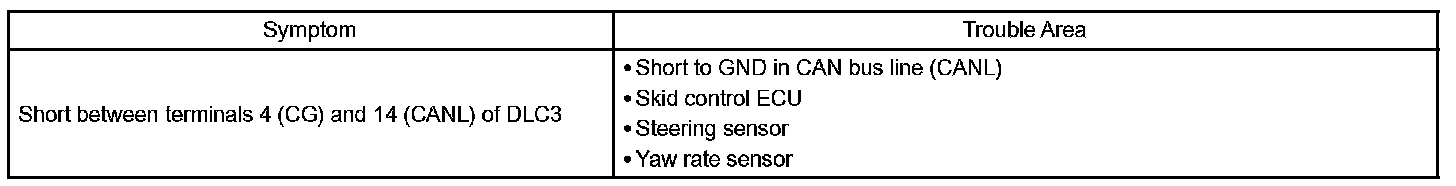

A short to GND may be occurring in the CAN bus line when there is a short between terminals 4 (CG) and 14 (CANL) of the DLC3.

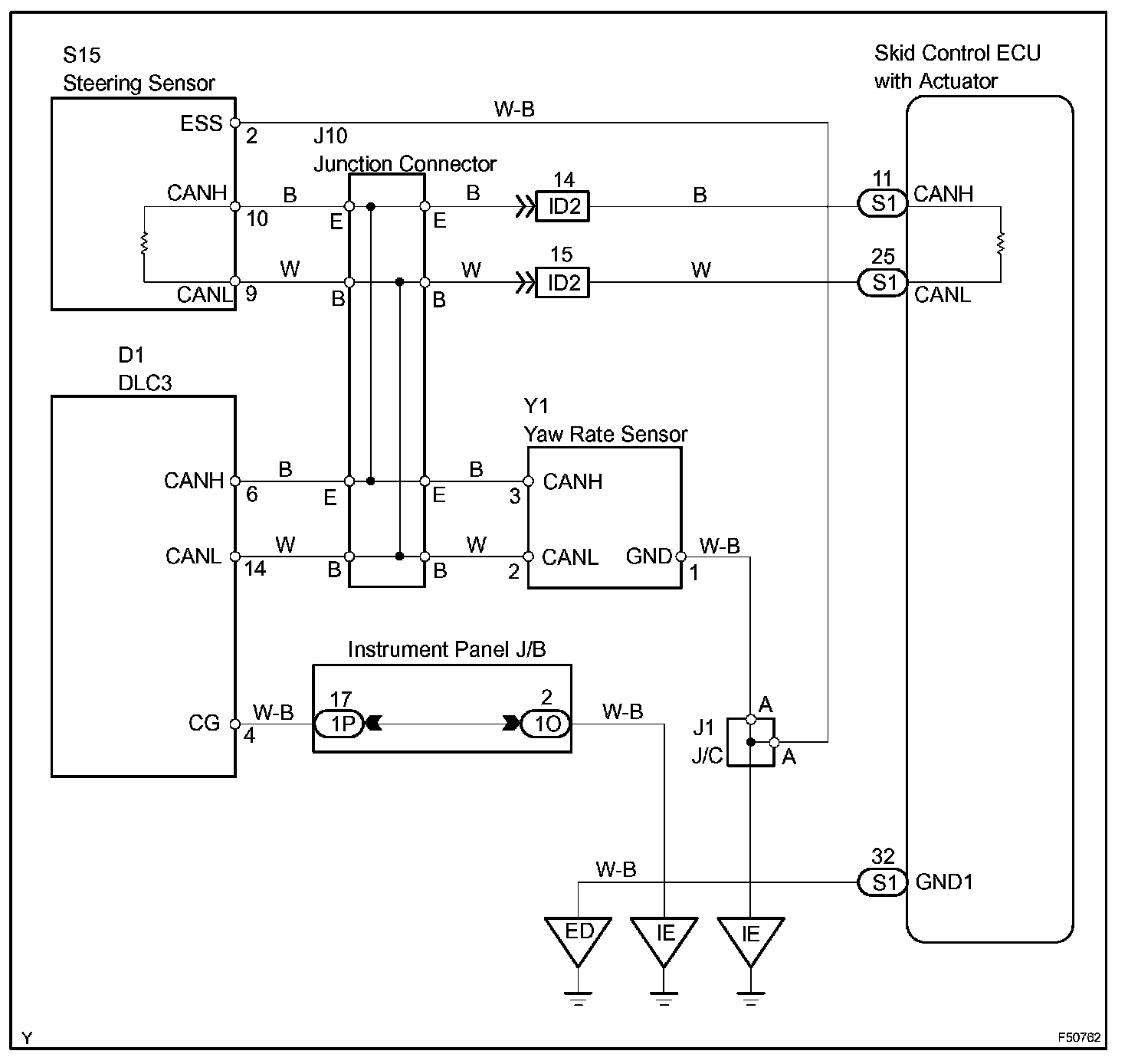

Wiring Diagram:

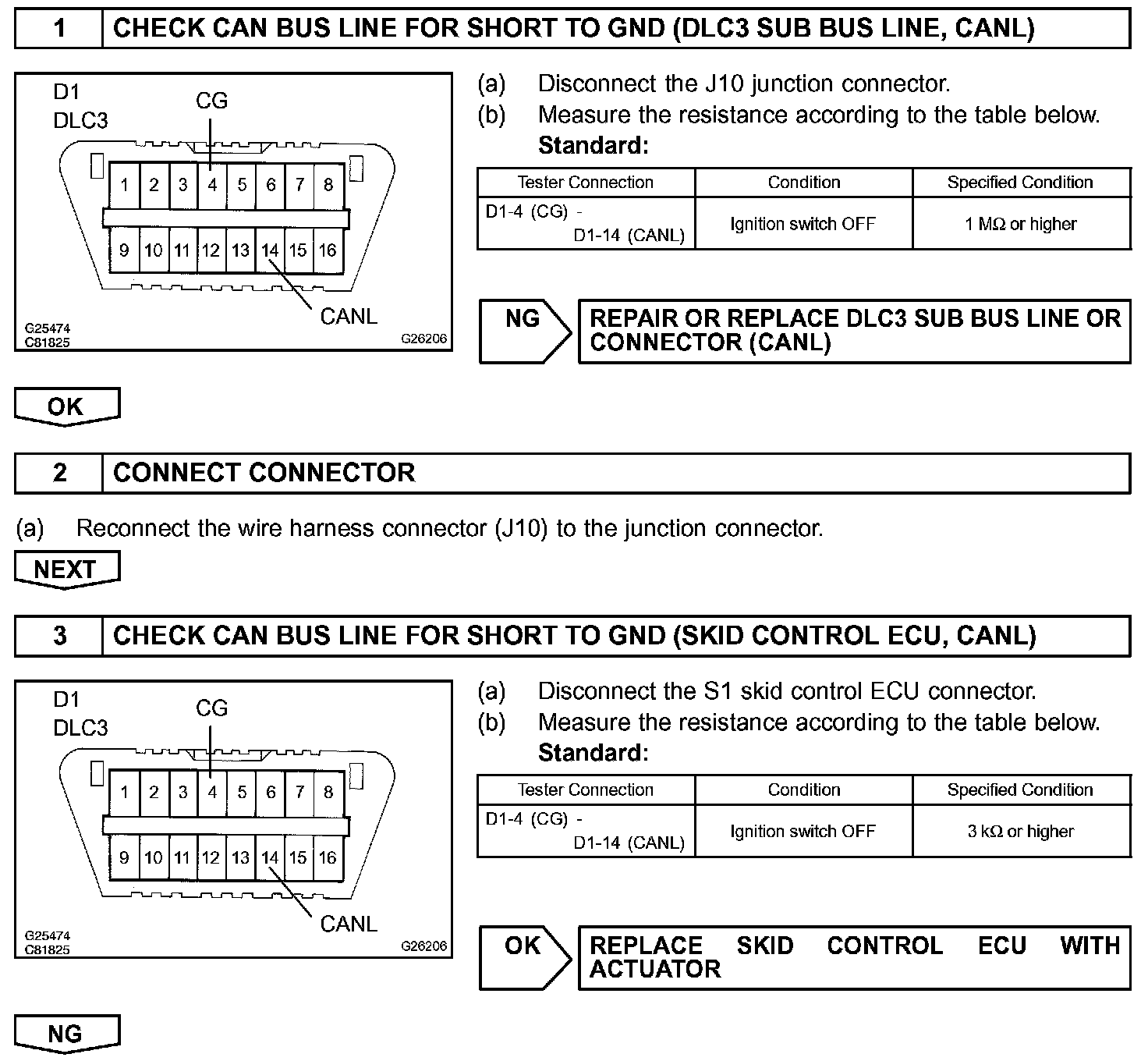

Step 1-3:

Step 4-6:

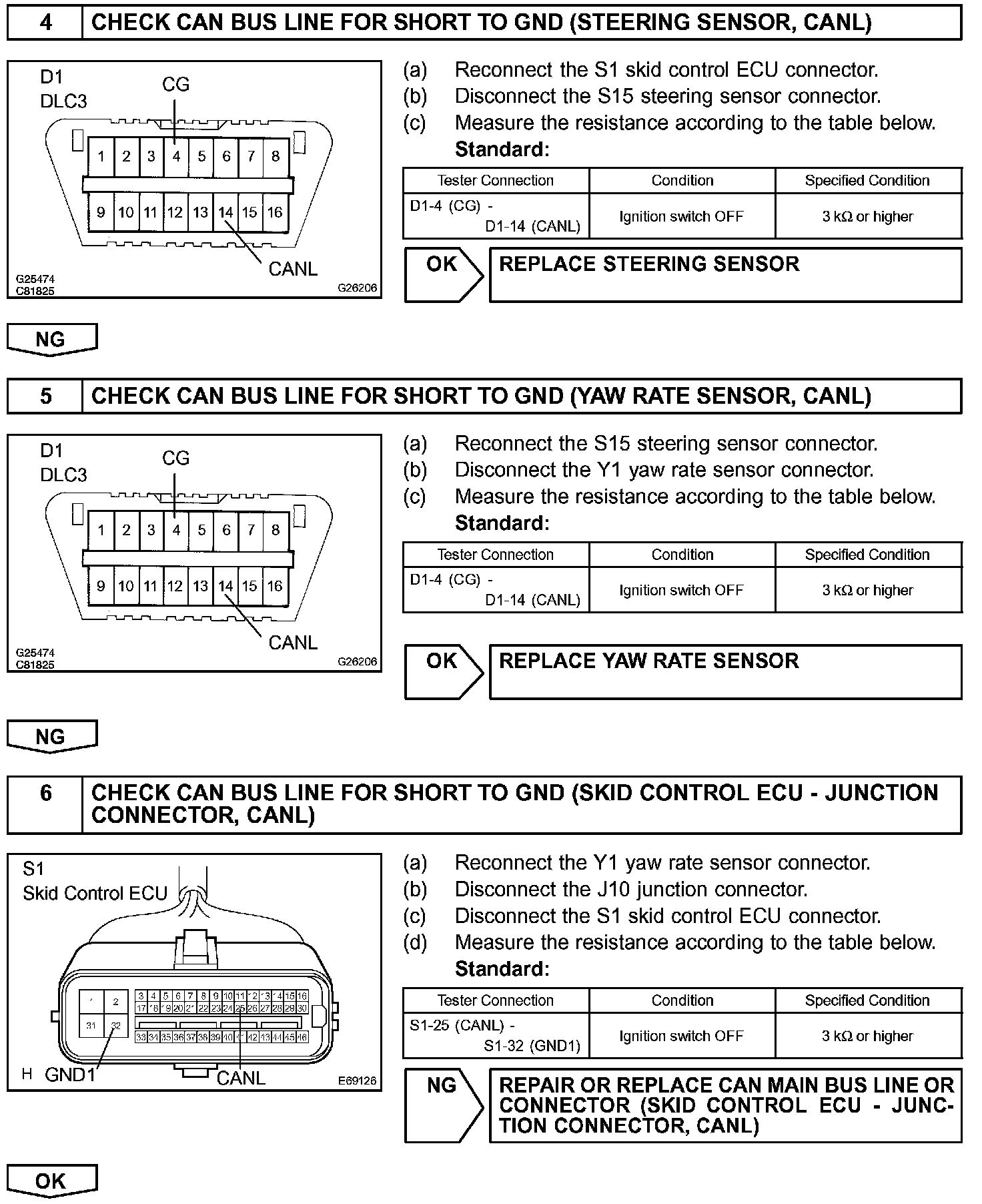

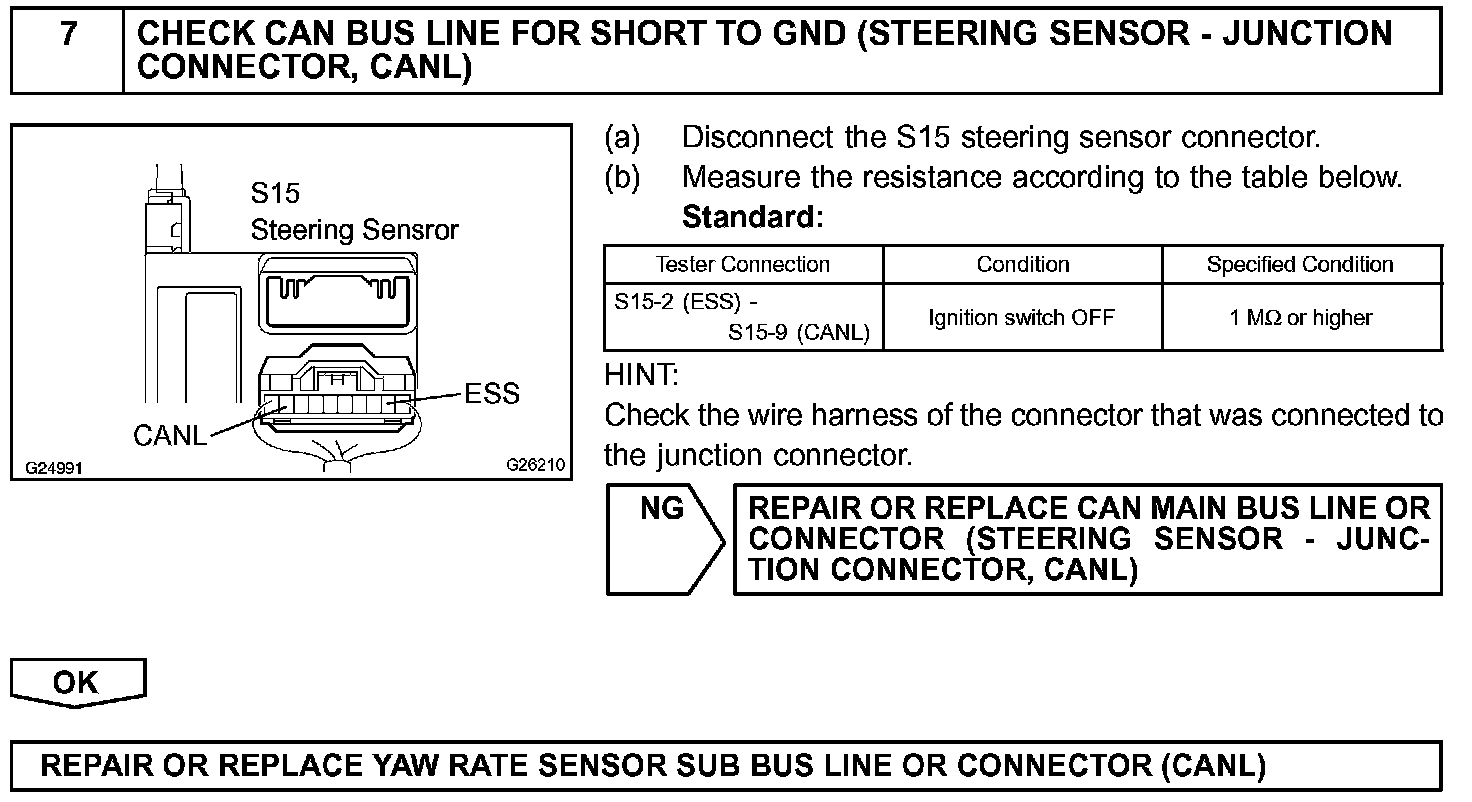

Step 7:

INSPECTION PROCEDURE
