Check CAN Bus Line (CAN-L) For Short to B+

CHECK CAN BUS LINE (CAN L) FOR SHORT TO B+

CIRCUIT DESCRIPTION

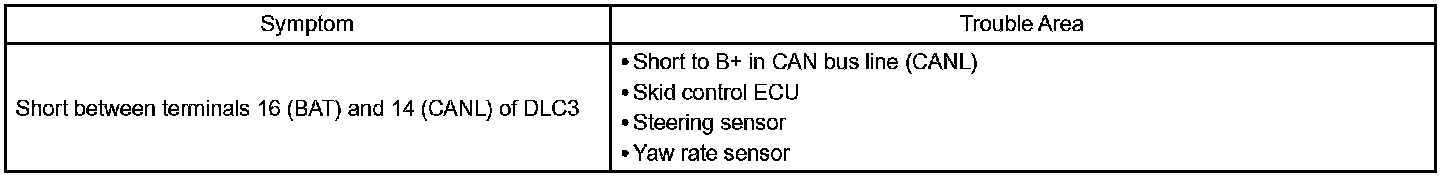

A short to B+ may be occurring in the CAN bus line when there is a short between terminals 16 (BAT) and 14 (CANL) of the DLC3.

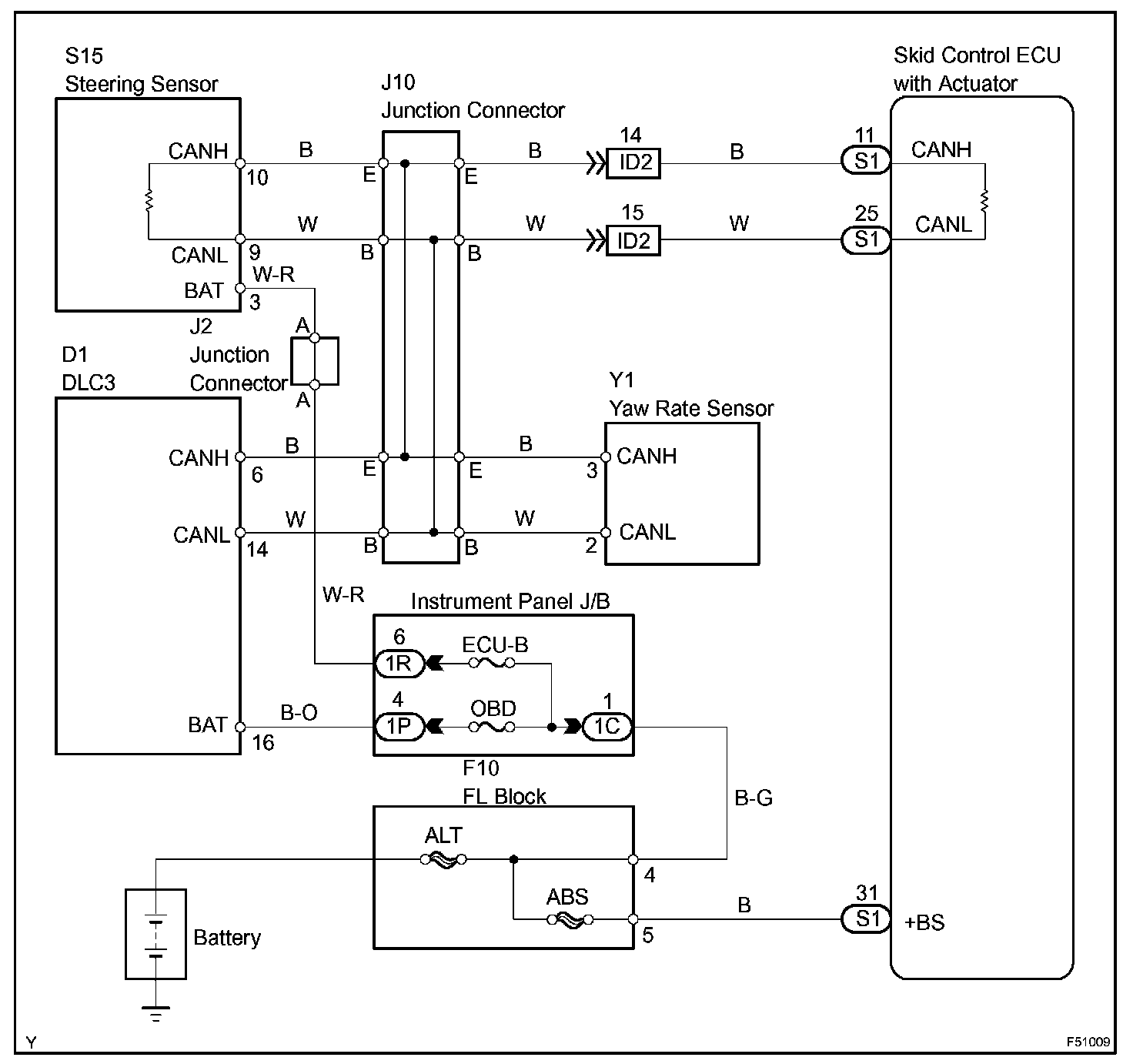

Wiring Diagram:

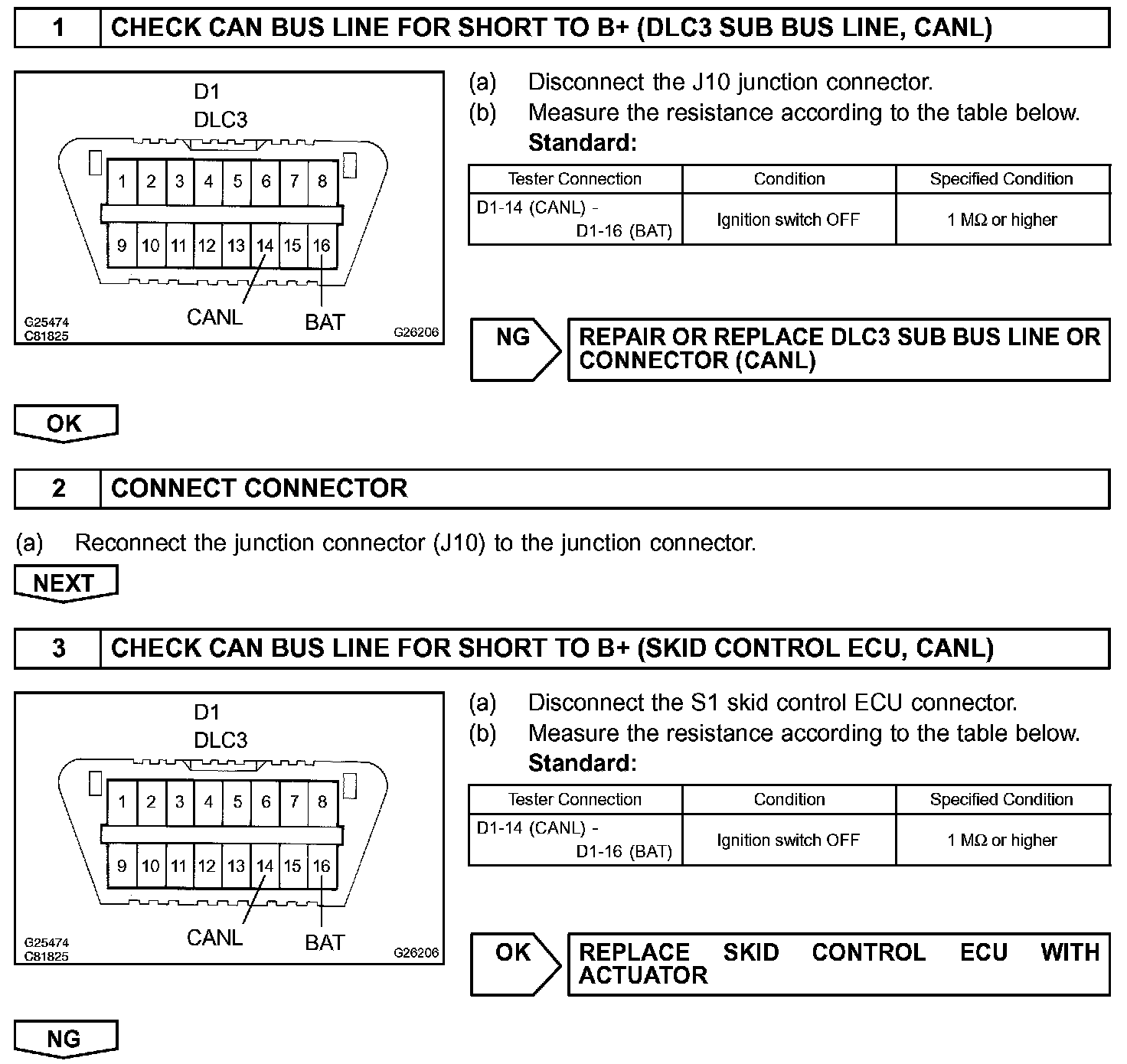

Step 1-3:

Step 4-6:

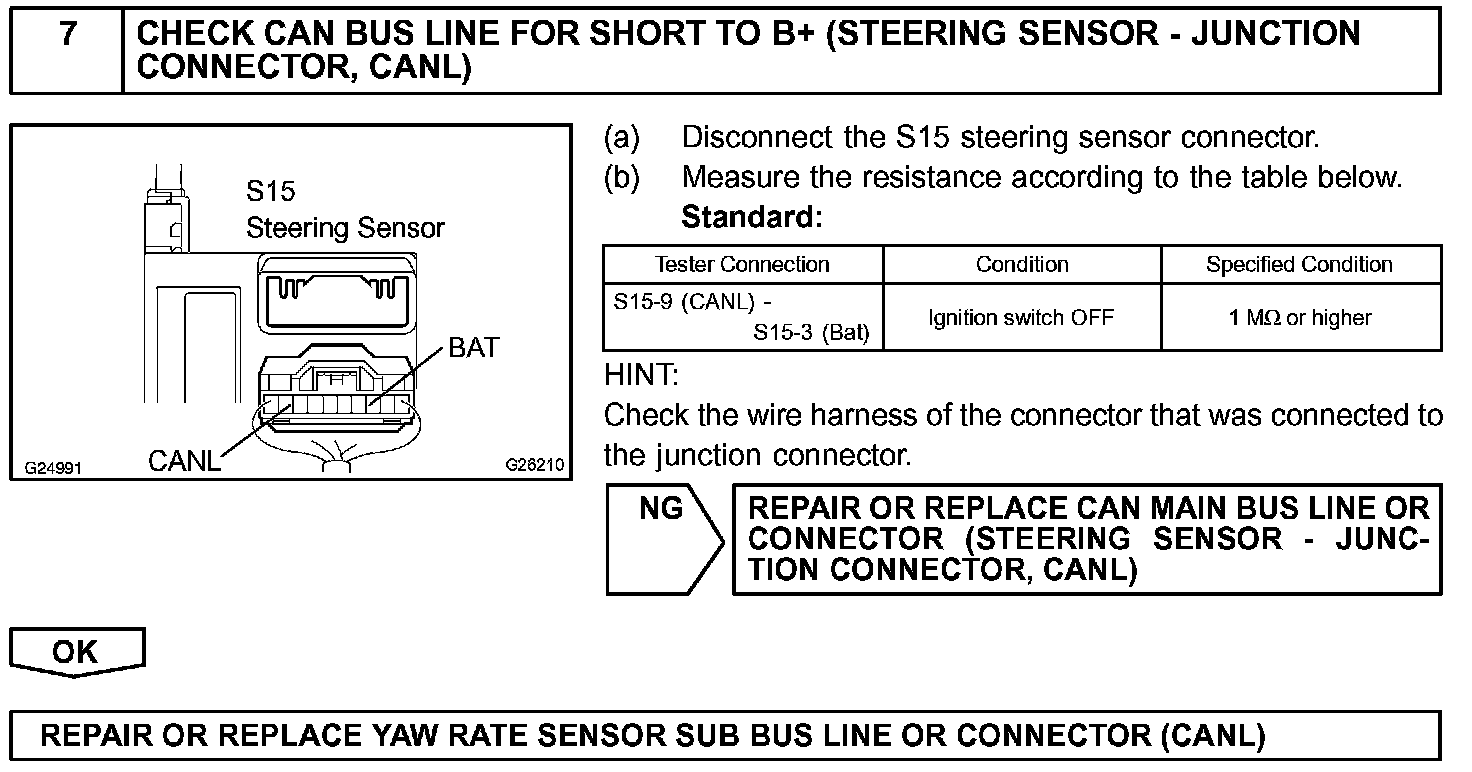

Step 7:

INSPECTION PROCEDURE
