Turn Signal Lamp: Service and Repair

SIDE TURN SIGNAL LAMP ASSEMBLY LH

OVERHAUL




1. REMOVE SIDE TURN SIGNAL LAMP ASSEMBLY LH

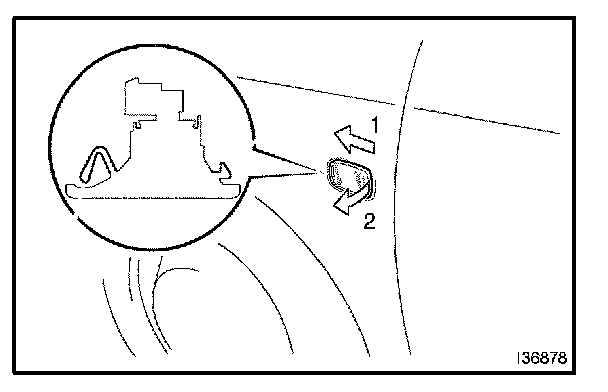

a. Pull the side turn signal lamp lens LH as shown in the illustration, and disengage the claw.
b. Disconnect the connector and the side turn signal lamp assembly LH.

2. REMOVE SIDE TURN SIGNAL LAMP BULB
3. REMOVE SIDE TURN SIGNAL LAMP SOCKET AND WIRE
4. REMOVE SIDE TURN SIGNAL LAMP LENS LH
