License Plate Lamp: Service and Repair

Back Door:

LICENSE PLATE LAMP ASSEMBLY

OVERHAUL
1. REMOVE BACK DOOR TRIM BOARD
2. REMOVE BACK DOOR OUTSIDE HANDLE
3. REMOVE BACK DOOR LOCK CYLINDER & KEY SET
4. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE




5. REMOVE LICENSE PLATE LAMP ASSEMBLY
a. Disconnect the connector.
b. Remove the license plate lamp assembly.

6. REMOVE LICENSE PLATE LAMP BULB
7. REMOVE LICENSE PLATE LAMP SOCKET AND WIRE

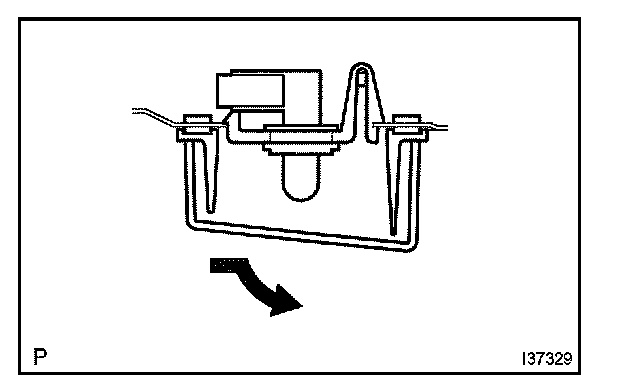

8. REMOVE LICENSE PLATE LAMP LENS
