Removal and Replacement

LH Headlamp Assy:

OVERHAUL

1. REMOVE RADIATOR GRILLE
2. REMOVE FRONT SPOILER PAD LH
3. REMOVE FRONT SPOILER PAD RH
4. REMOVE FRONT BUMPER COVER




5. REMOVE LH HEADLAMP ASSEMBLY

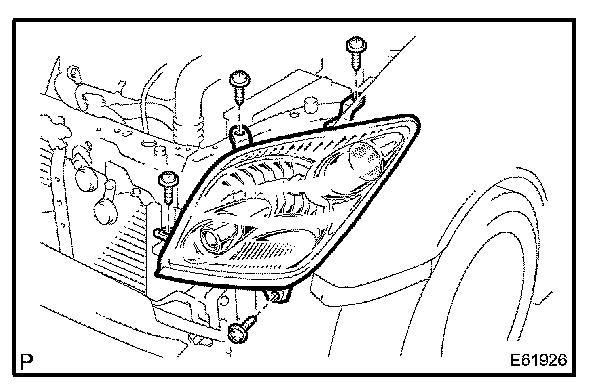

a. Remove the 4 screws.
b. Disconnect the connectors.
c. Remove the LH headlamp assembly.
6. REMOVE HEADLAMP SOCKET COVER




7. REMOVE HEADLAMP, NO.1 BULB

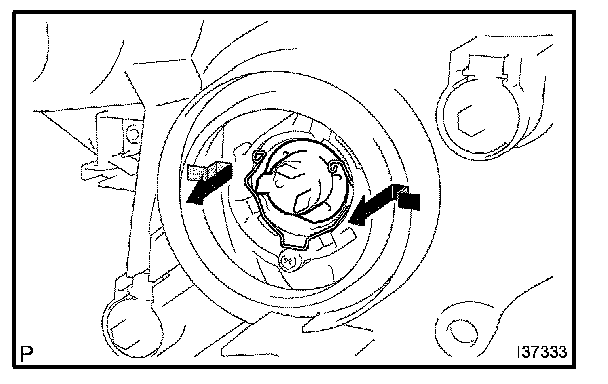

a. Release the lock of the set spring and remove the headlamp, No.1 bulb.




8. REMOVE FRONT TURN SIGNAL LAMP BULB

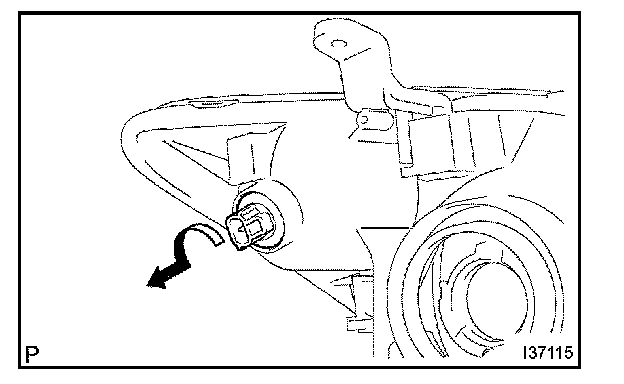

a. Remove the front turn signal lamp bulb as shown in the illustration.

9. REMOVE FRONT TURN SIGNAL LAMP SOCKET




10. REMOVE CLEARANCE LAMP BULB

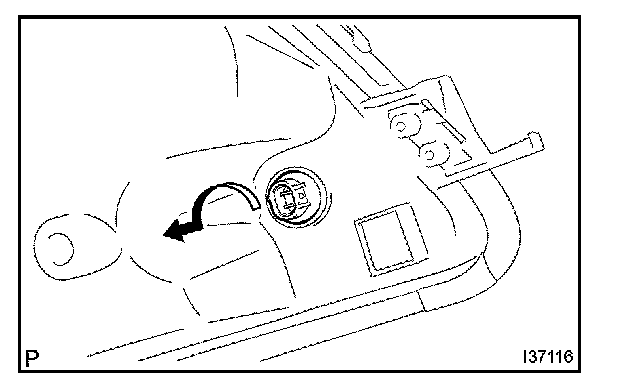

a. Remove the clearance lamp bulb as shown in the illustration.

11. REMOVE CLEARANCE LAMP SOCKET
12. REMOVE HEADLAMP HOUSING SUB-ASSEMBLY LH
13. INSTALL FRONT BUMPER COVER
14. ADJUST HEADLIGHT AIM ONLY
