Center Mounted Brake Lamp: Service and Repair

Back Door:

CENTER STOP LAMP ASSEMBLY

OVERHAUL




1. REMOVE CENTER STOP LAMP COVER

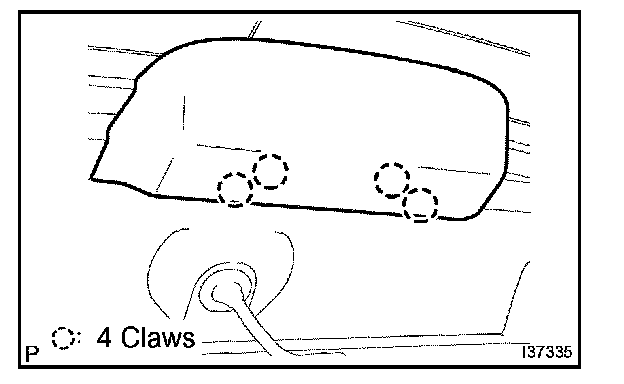

a. Disengage the 4 claws and remove the center stop lamp cover.




2. REMOVE CENTER STOP LAMP ASSEMBLY
a. Disconnect the connector.

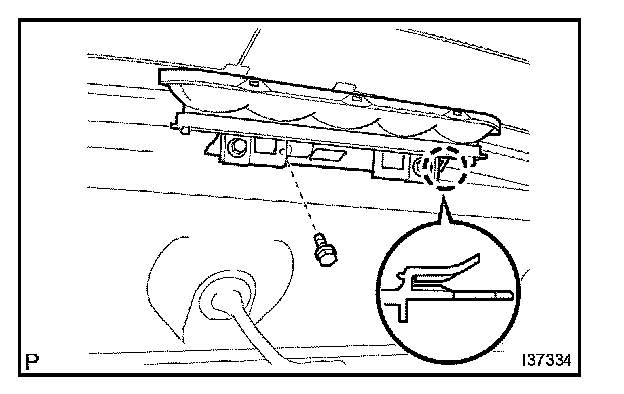

b. Disengage the claw, unscrew the bolt and remove the center stop lamp assembly.

3. REMOVE CENTER STOP LAMP BULB
