Warning Buzzer Does Not Sound

WARNING BUZZER DOES NOT SOUND

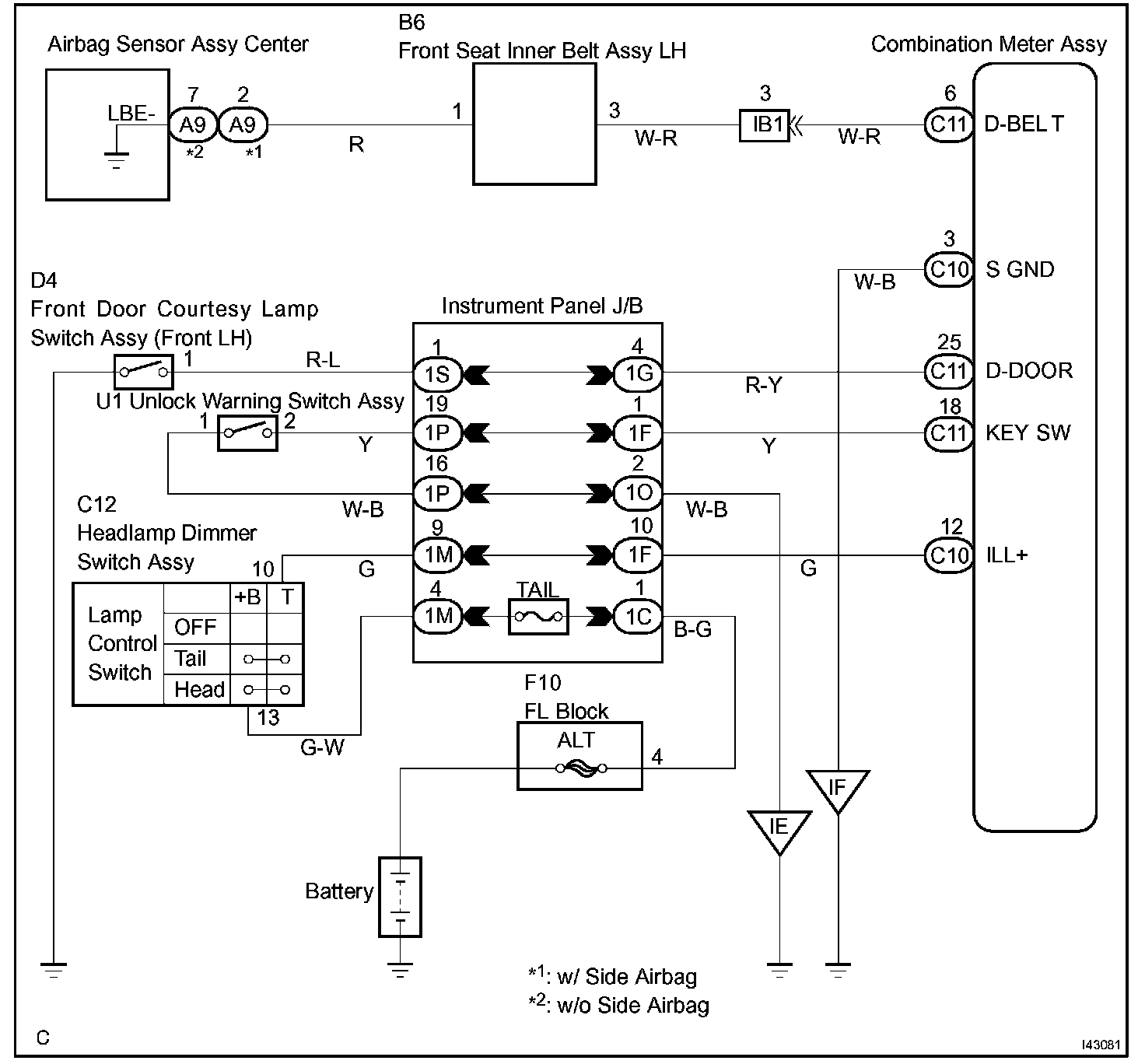

Wiring Diagram:

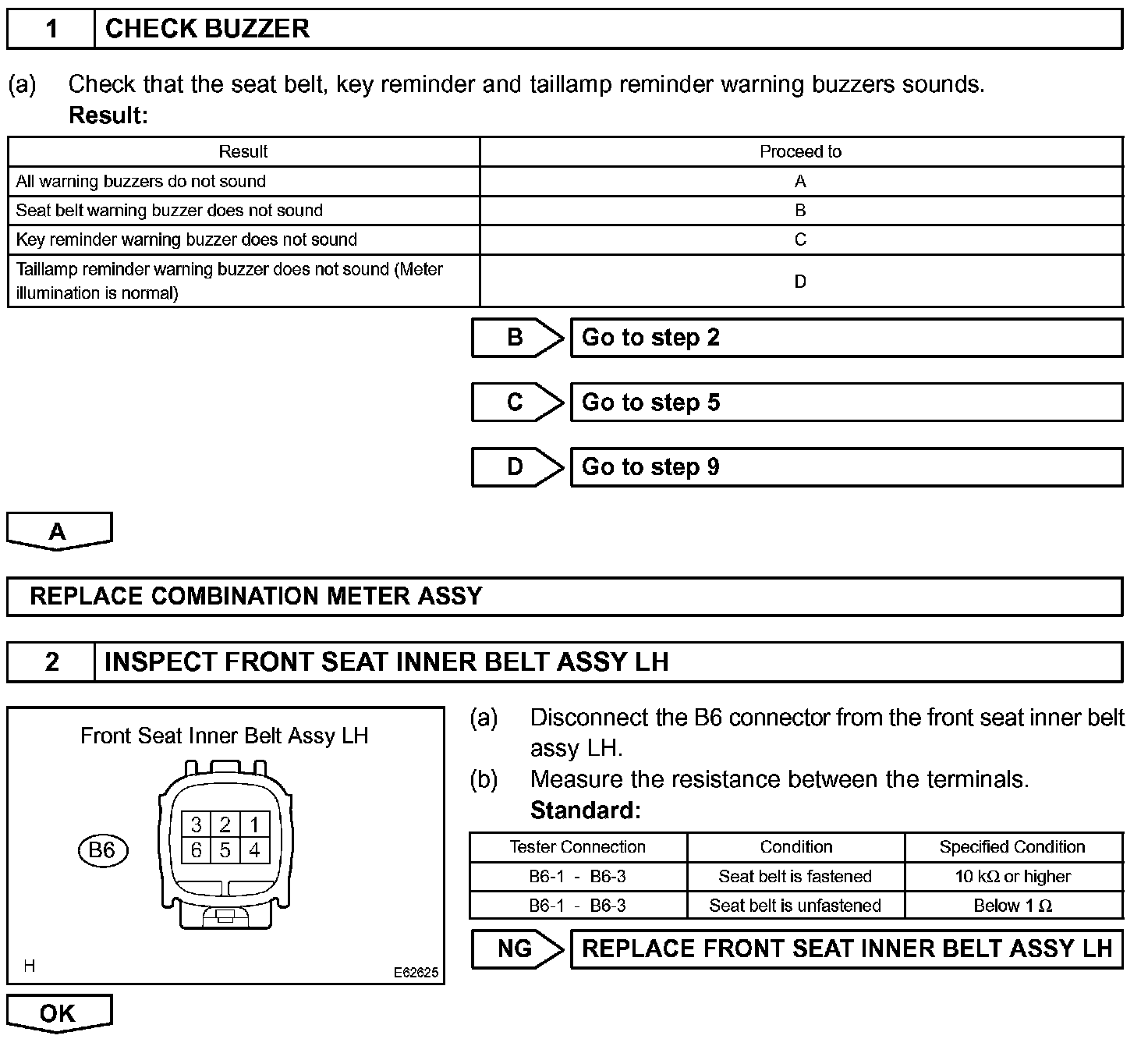

Step 1-2:

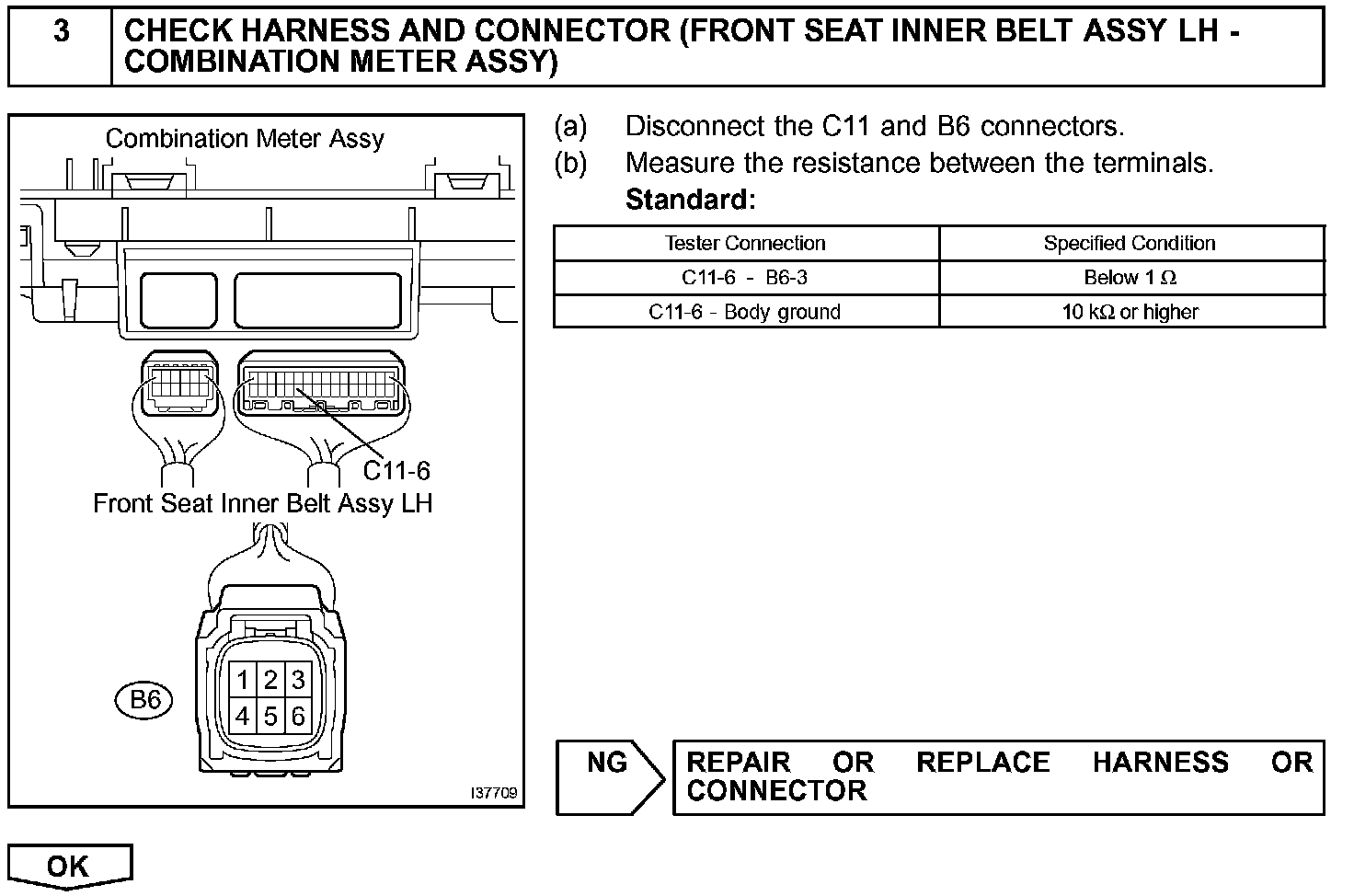

Step 3:

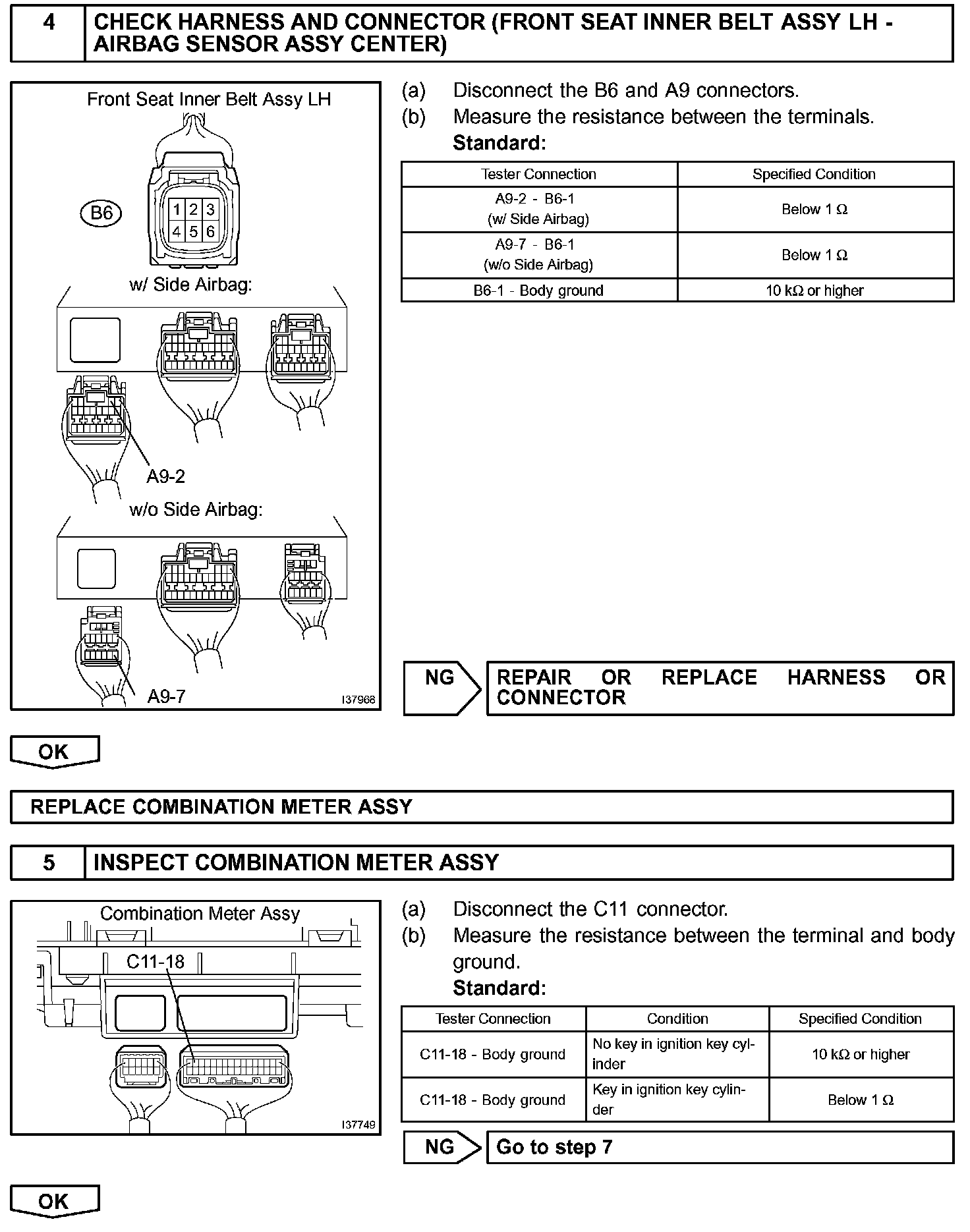

Step 4-5:

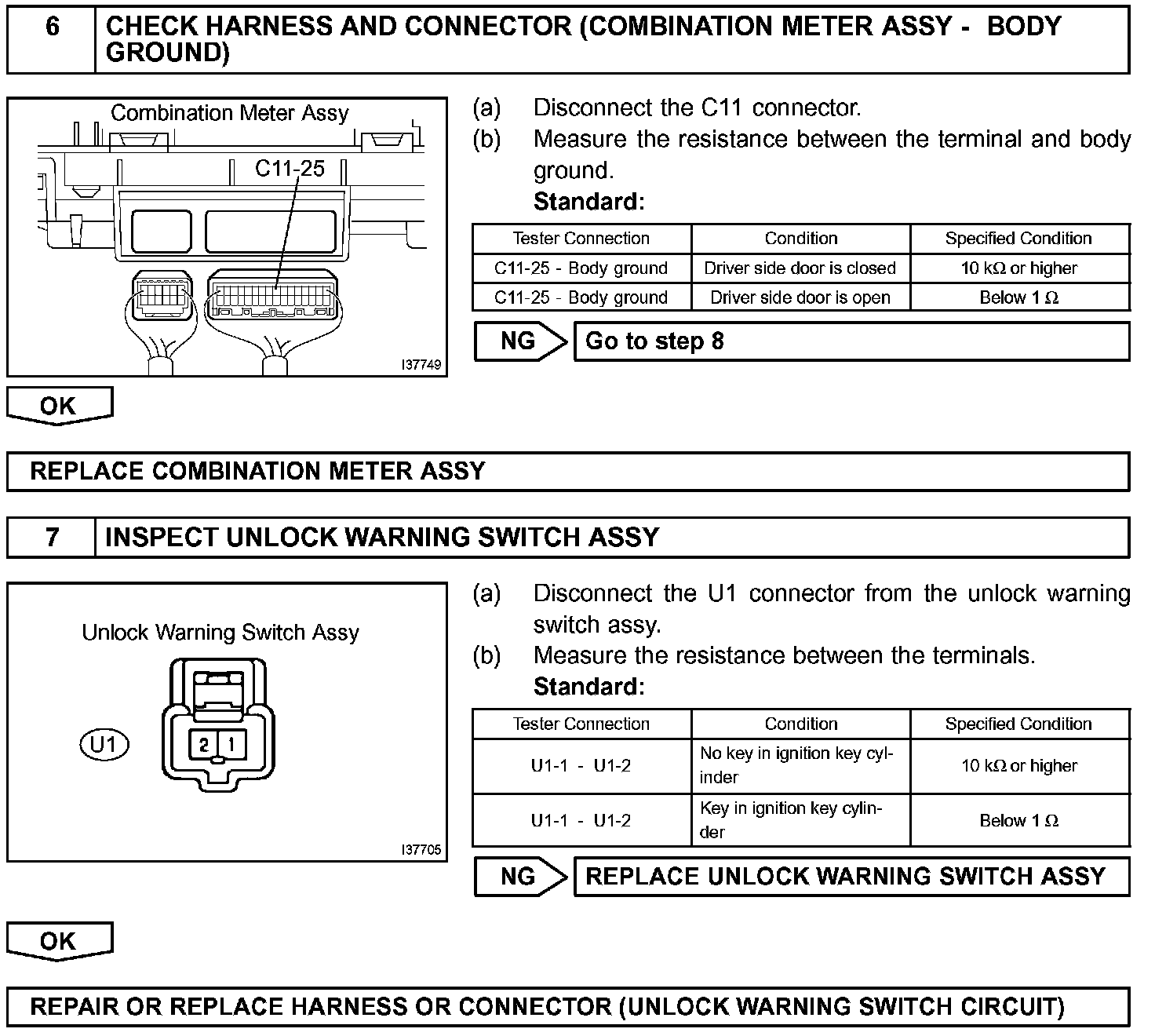

Step 6-7:

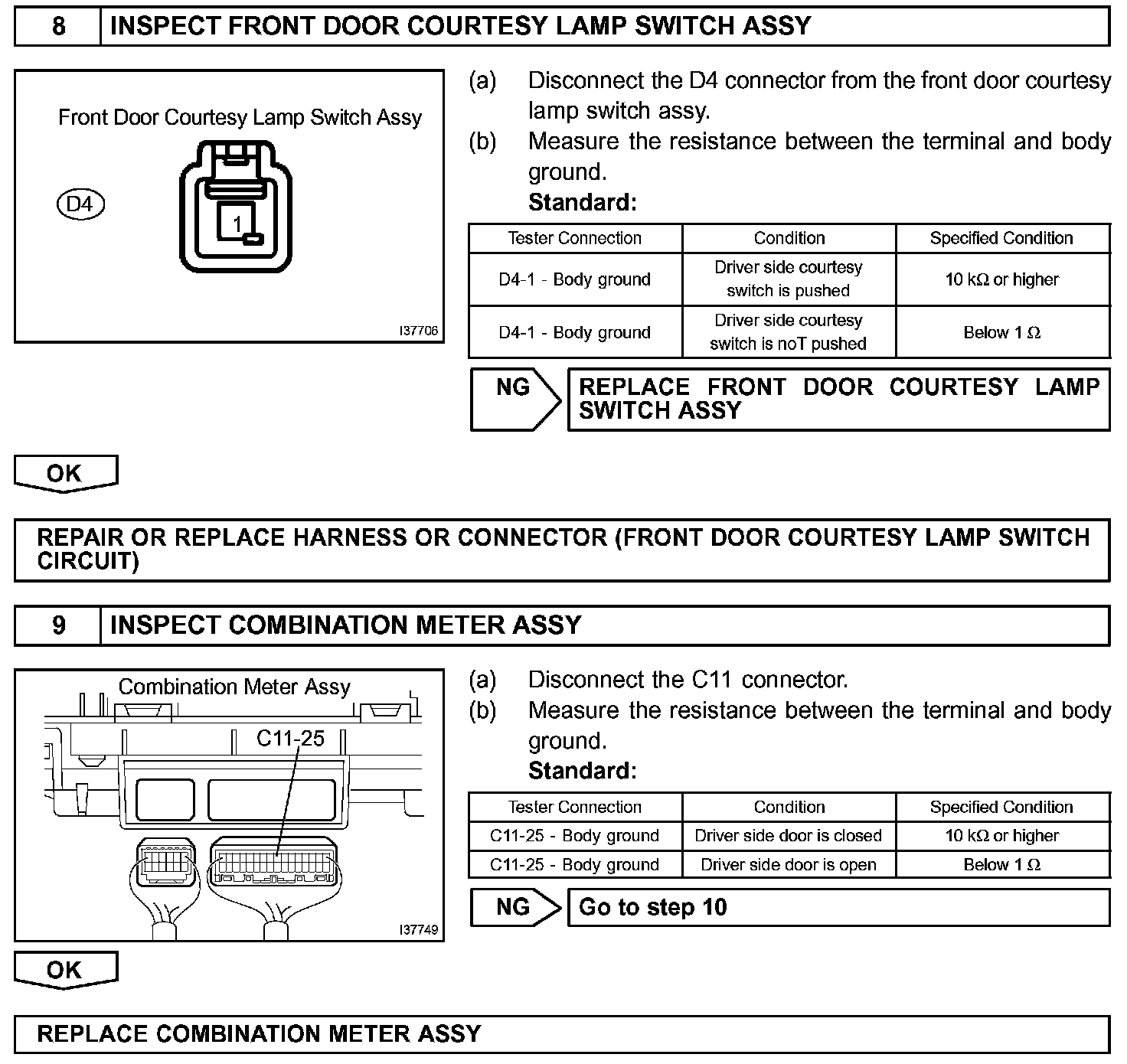

Step 8-9:

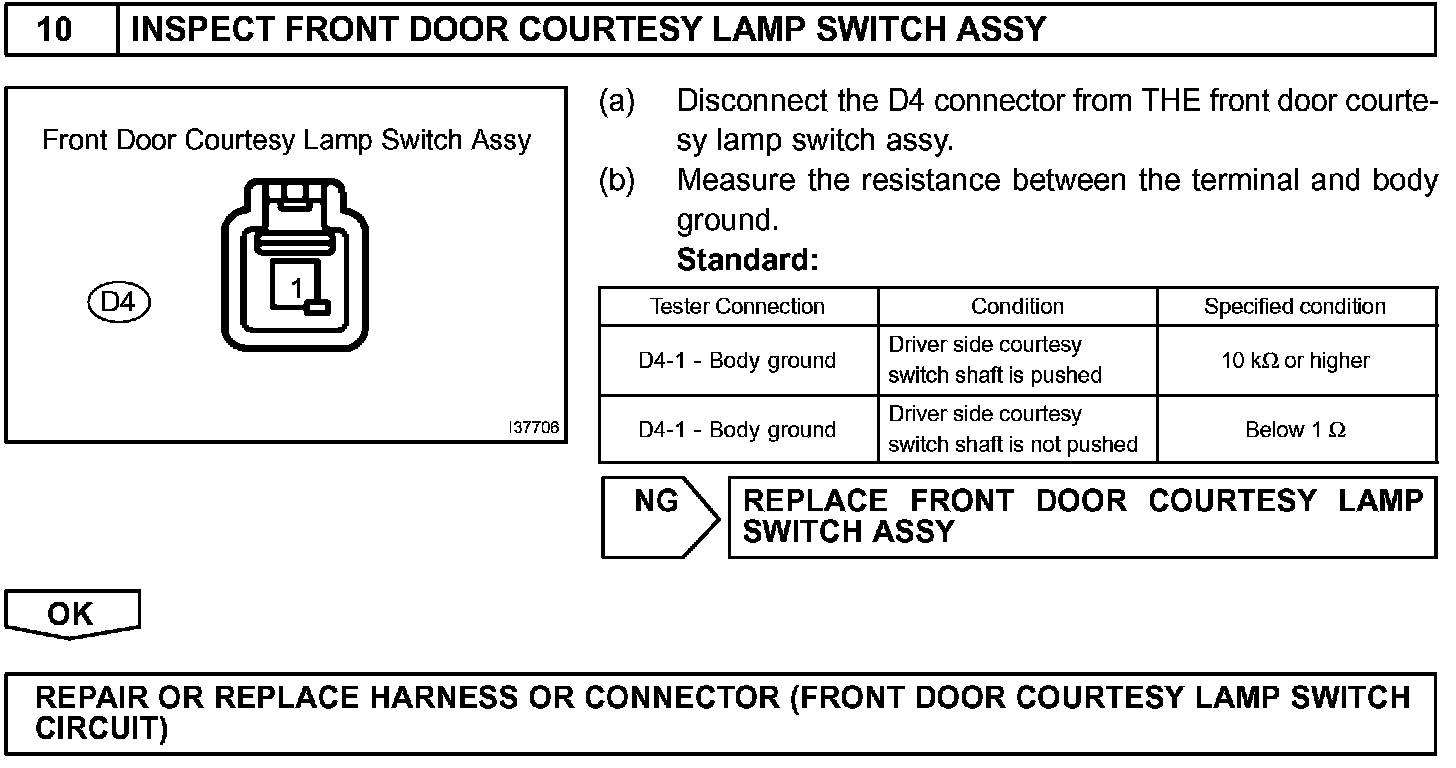

Step 10:




INSPECTION PROCEDURE
