Home >> Scion >> 2005 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index

Symptom Index

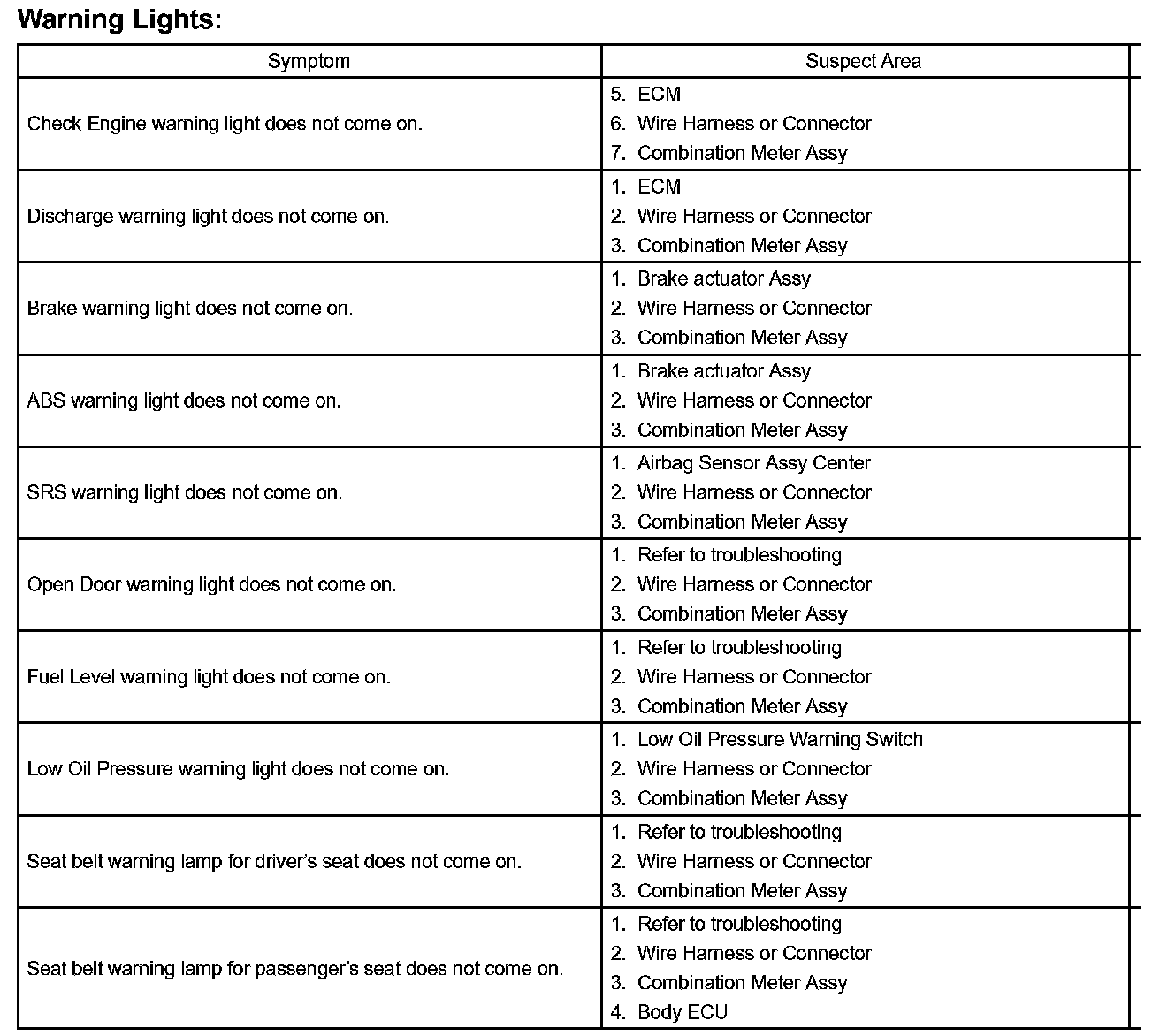

Problem Symptom Table - Warning Lights:

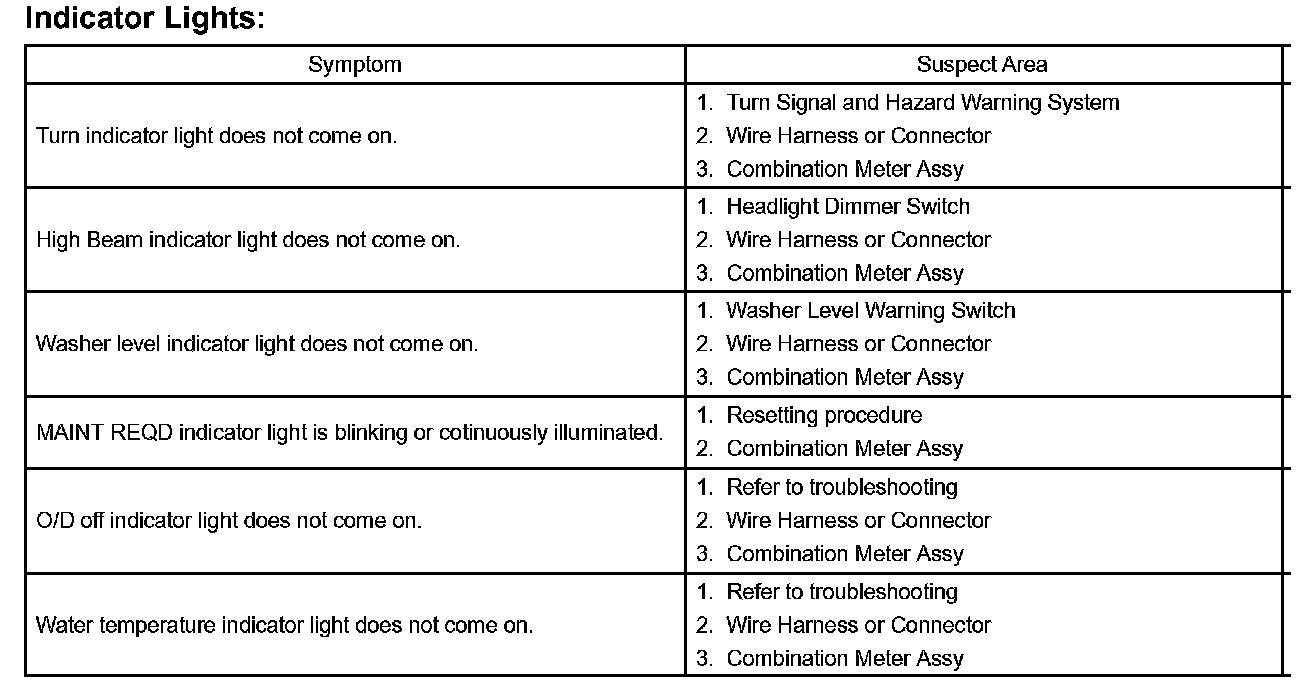

Problem Symptom Table - Indicator Lights:



Problem Symptom Table - Buzzer:
