Seat Belt Warning Lamp For Front Passenger Seat Does Not Flash

SEAT BELT WARNING LAMP FOR FRONT PASSENGER'S SEAT DOES NOT FLASH

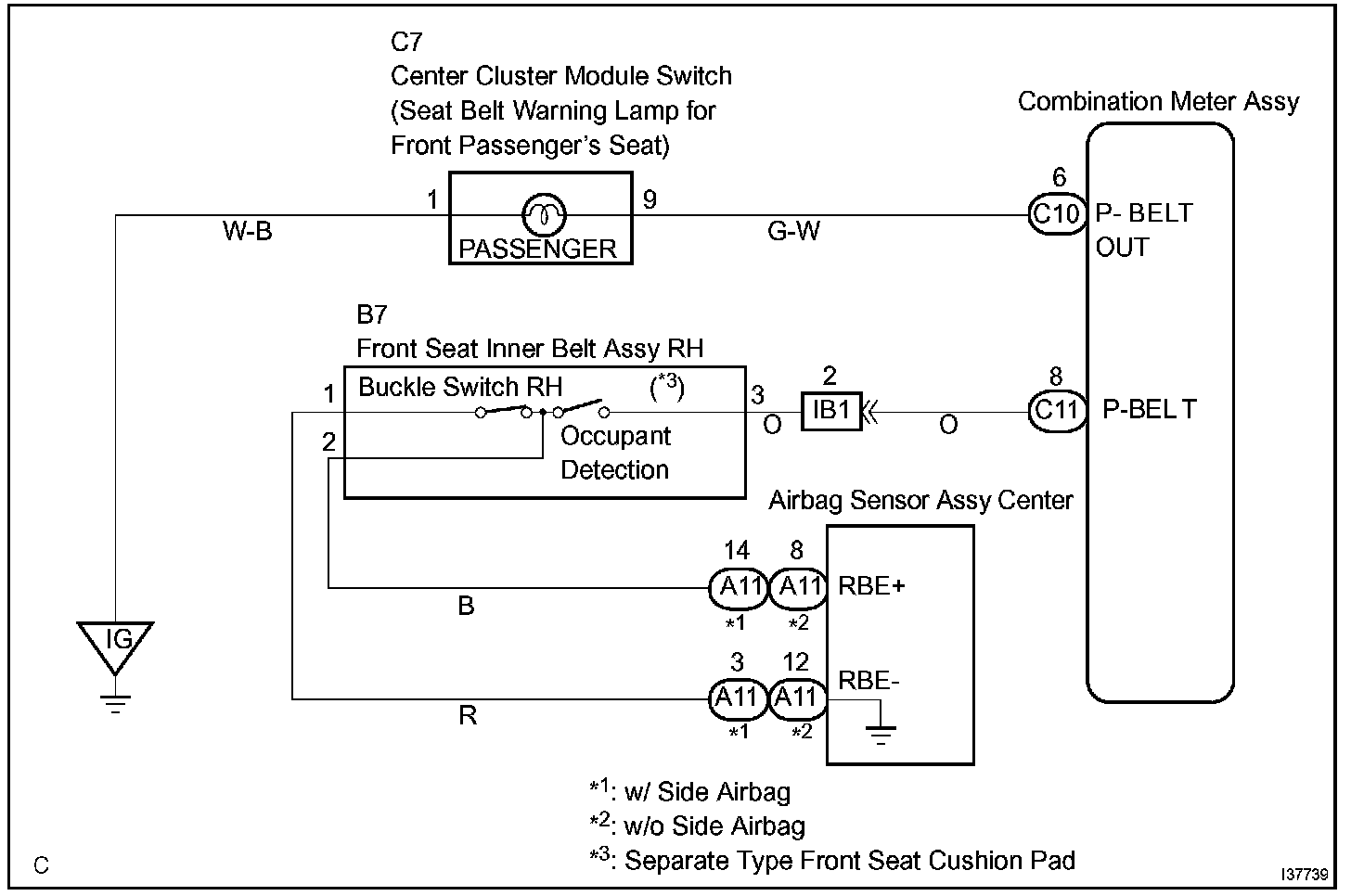

Wiring Diagram:

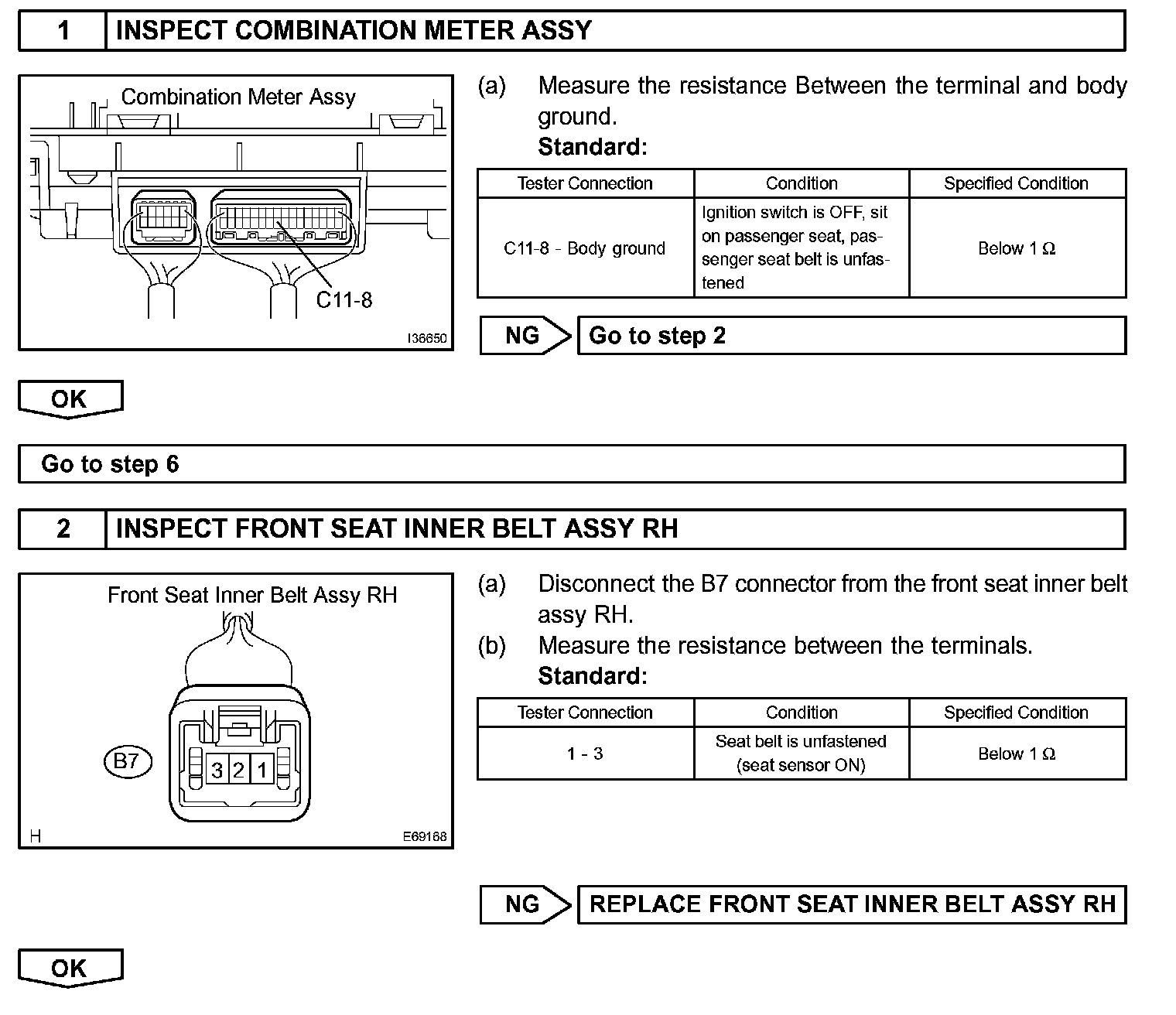

Step 1-2:

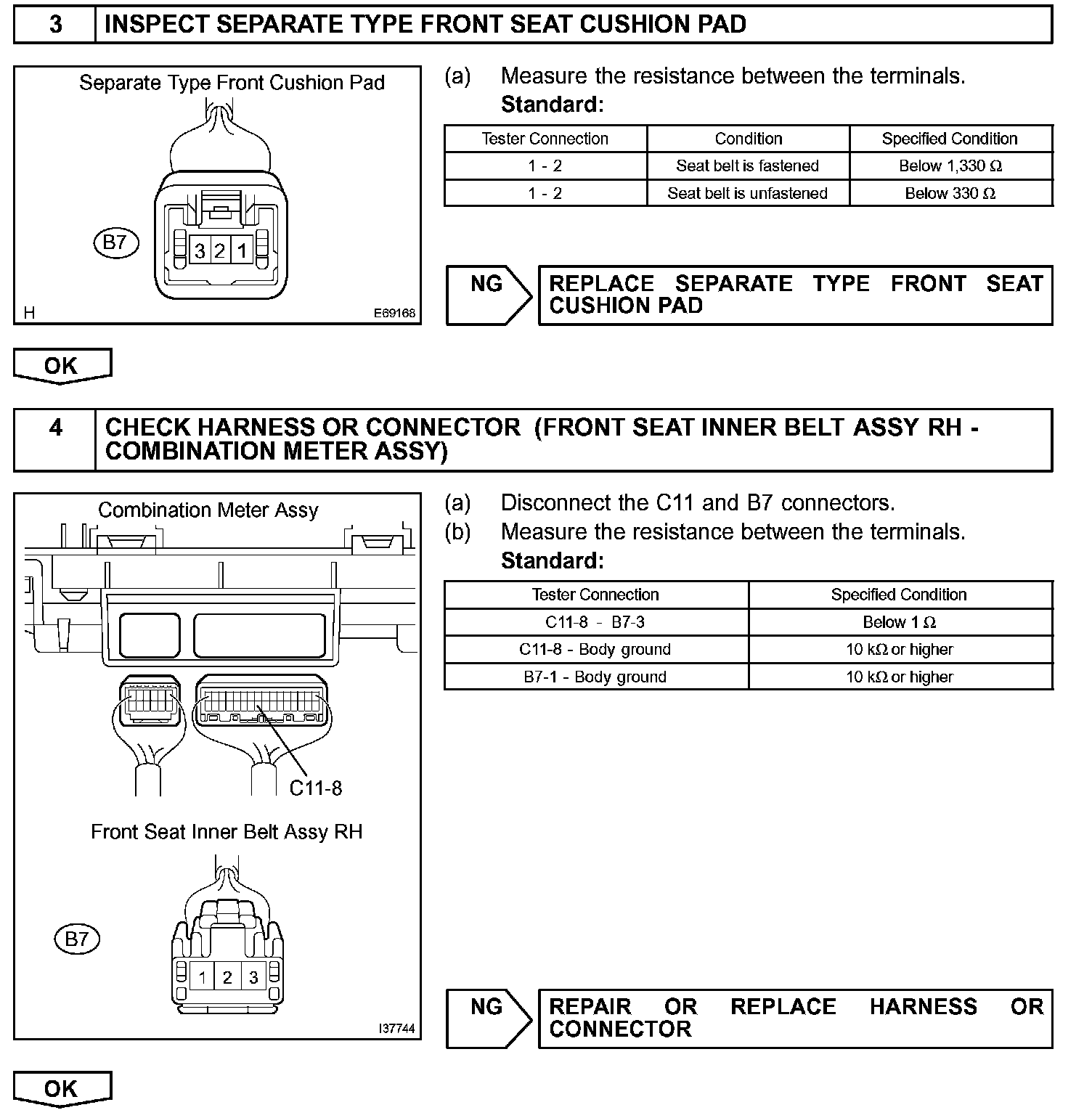

Step 3-4:

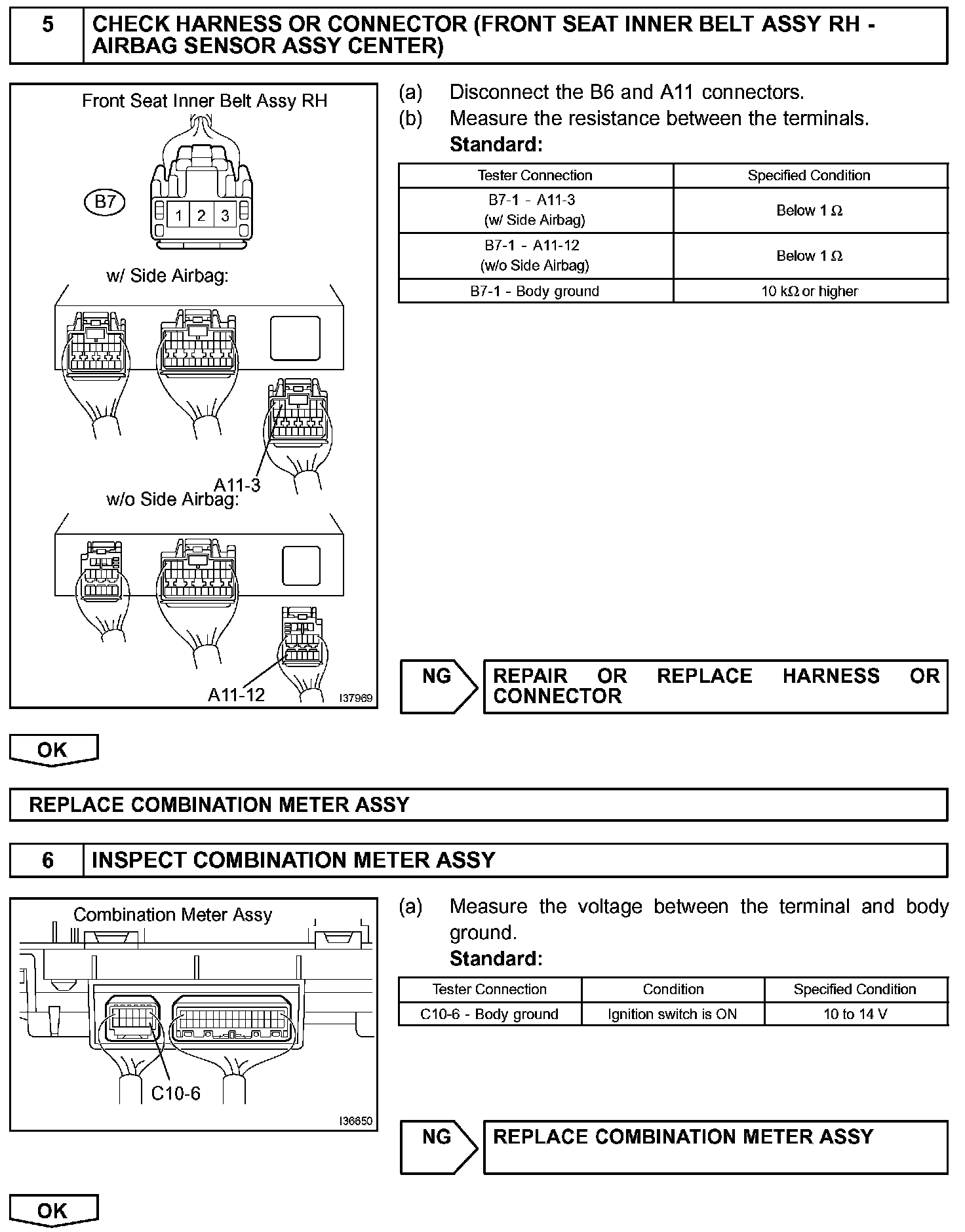

Step 5-6:

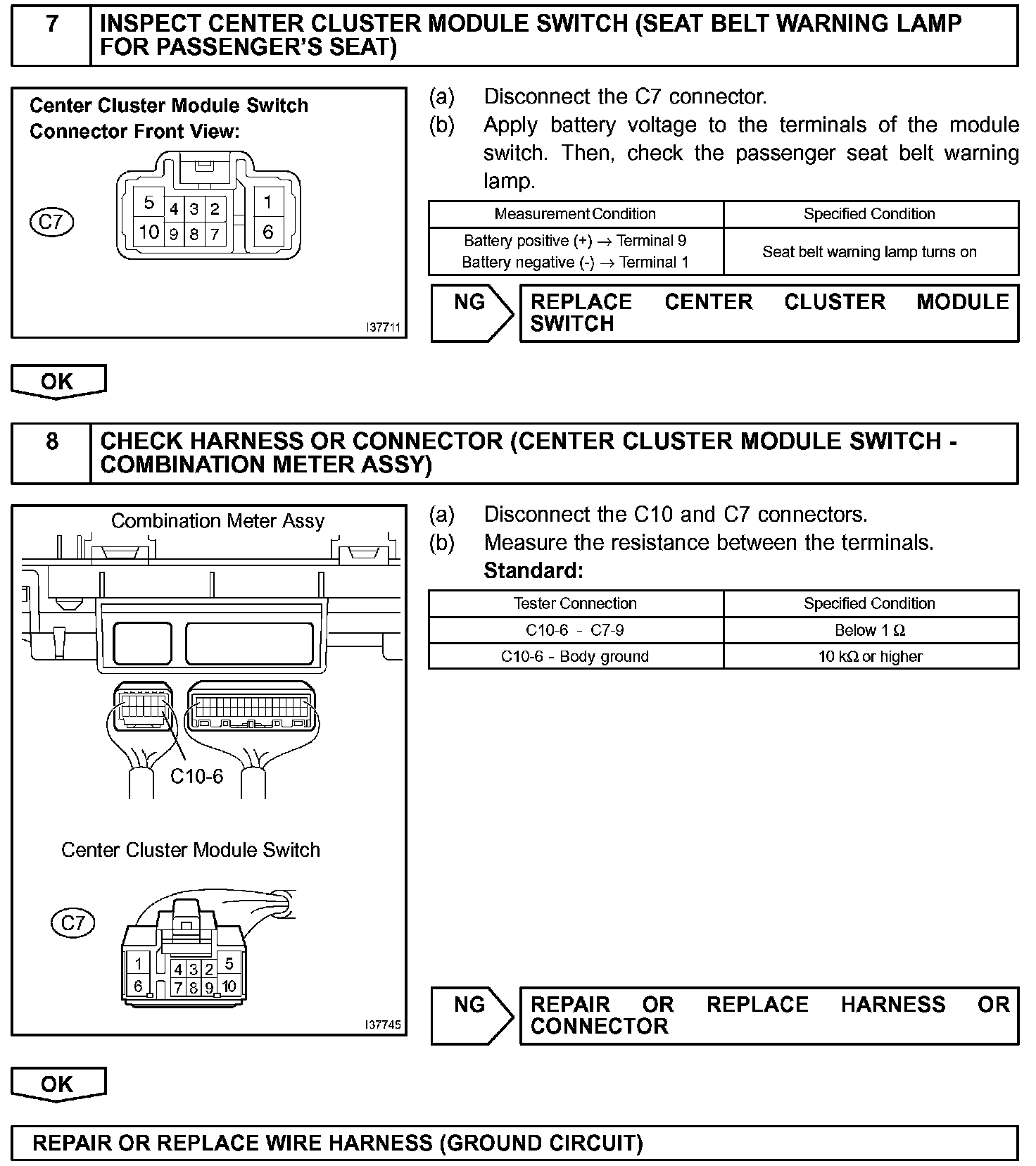

Step 7-8:




INSPECTION PROCEDURE
