Malfunction In Engine Coolant Temperature Receiver Gauge

MALFUNCTION IN ENGINE COOLANT TEMPERATURE RECEIVER GAUGE

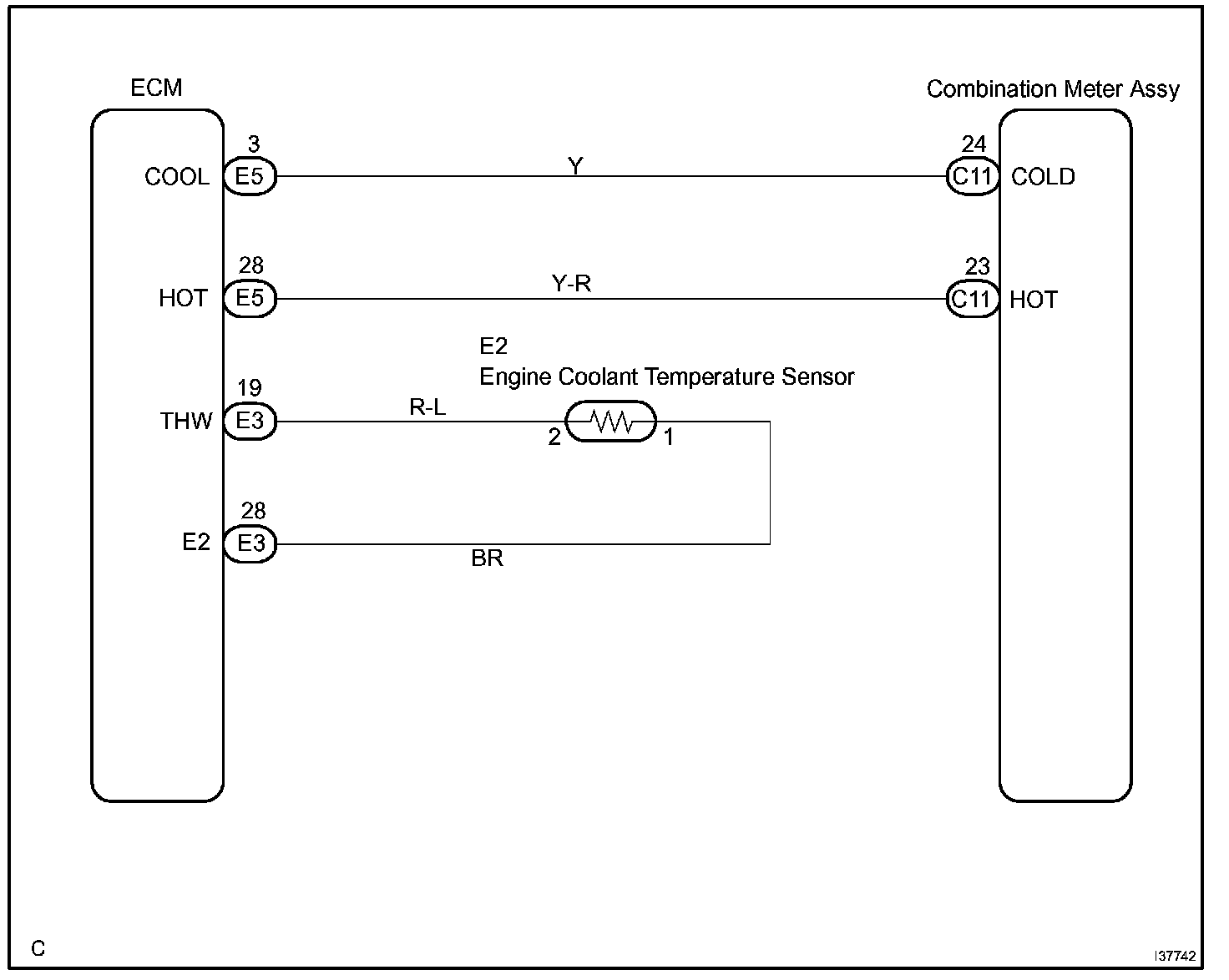

Wiring Diagram:

Step 1:

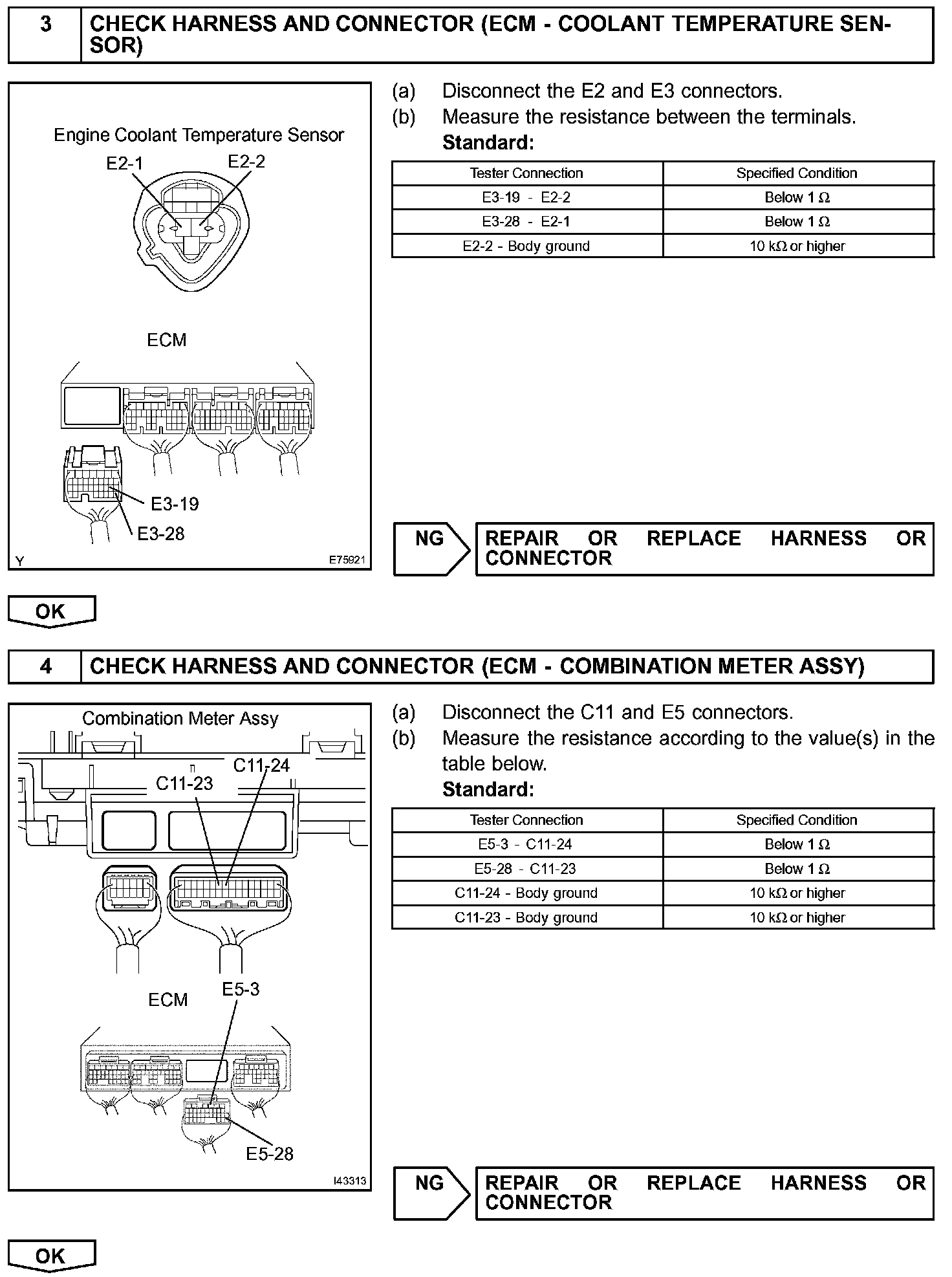

Step 3-4:

Step 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
