Center Cluster Module Switch
OVERHAUL1. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1
3. REMOVE HEATER CONTROL KNOB

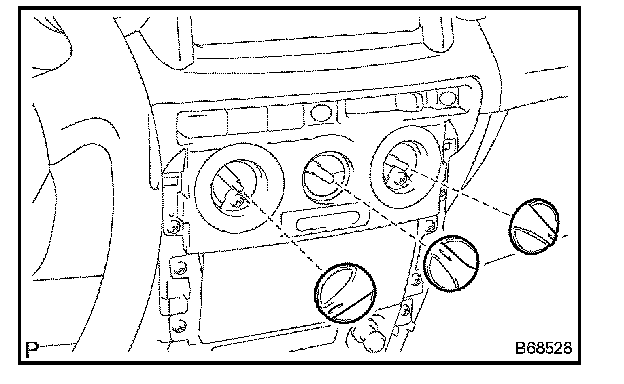

a. Remove the 3 heater control knobs.
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CTR

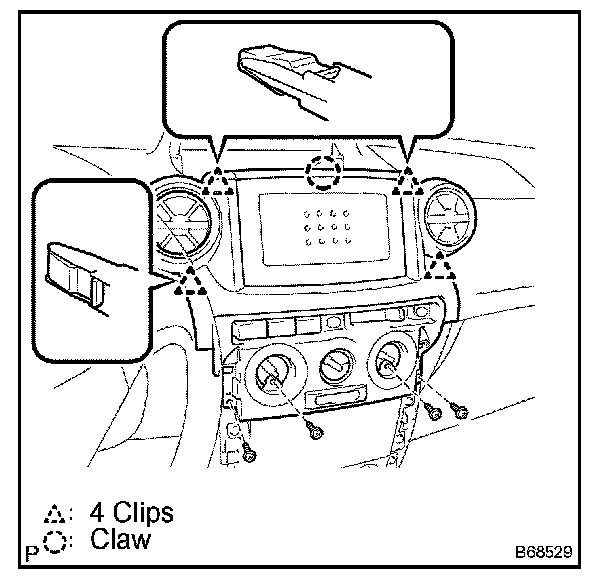

a. Remove the 4 screws.
b. Disengage the 4 clips and the claw, and then remove the instrument cluster finish panel sub assembly CTR.
c. Disconnect the connectors.
5. REMOVE CENTER CLUSTER MODULE SWITCH

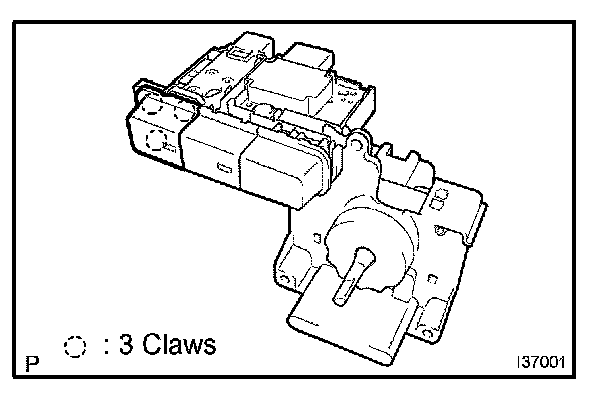

a. Remove the 2 screws.
b. Release the 3 claws and remove the center cluster module switch.
6. REMOVE CENTER CLUSTER MODULE KNOB NO.7
a. Disengage the 3 claws and remove the center cluster module knob No.7.

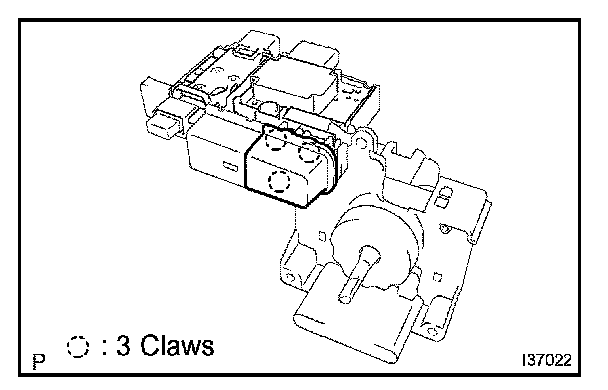

7. REMOVE CENTER CLUSTER MODULE KNOB NO.5
a. Disengage the 3 claws and remove the center cluster module knob No.5.

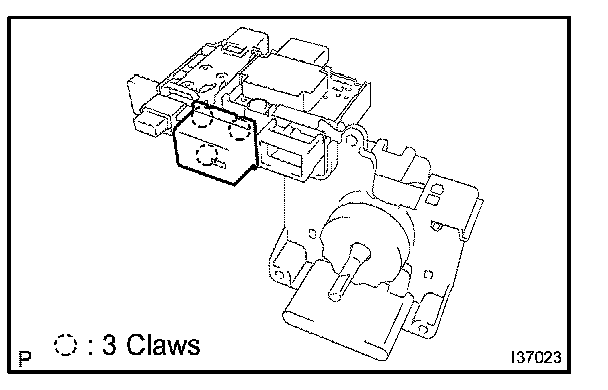

8. REMOVE CENTER CLUSTER MODULE KNOB NO.6
a. Disengage the 3 claws and remove the center cluster module knob No.6.
9. REMOVE CENTER CLUSTER MODULE INDICATOR LENS ASSEMBLY

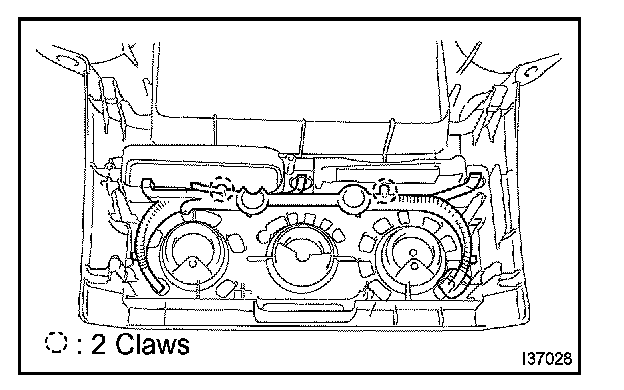

a. Release the 2 claws, and then remove the center cluster module indicator lens assembly.
