Home >> Scion >> 2005 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Tools and Equipment

Heating and Air Conditioning: Tools and Equipment

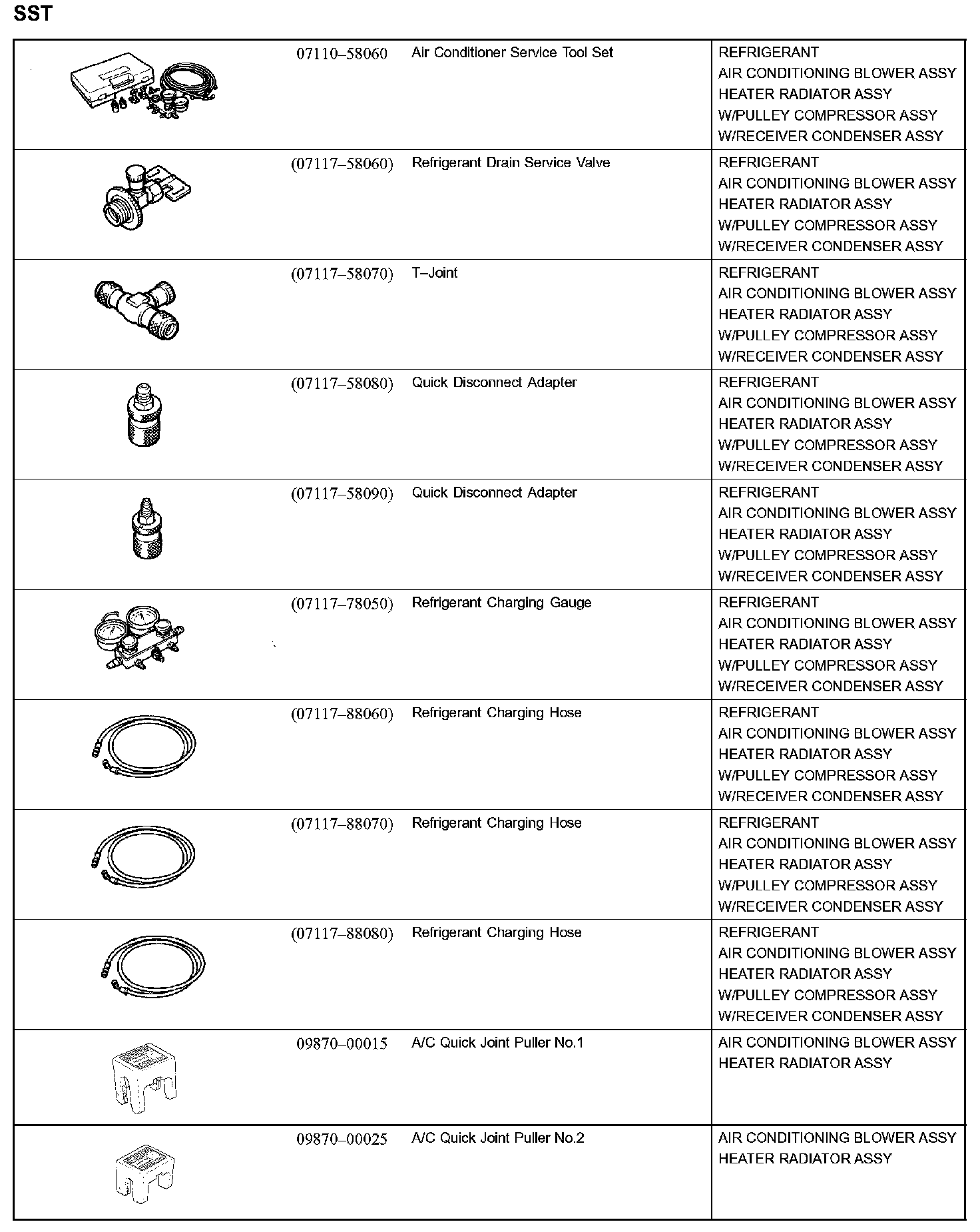

Heater & Air Conditioner - SST Part 1:



Heater & Air Conditioner - SST Part 2:

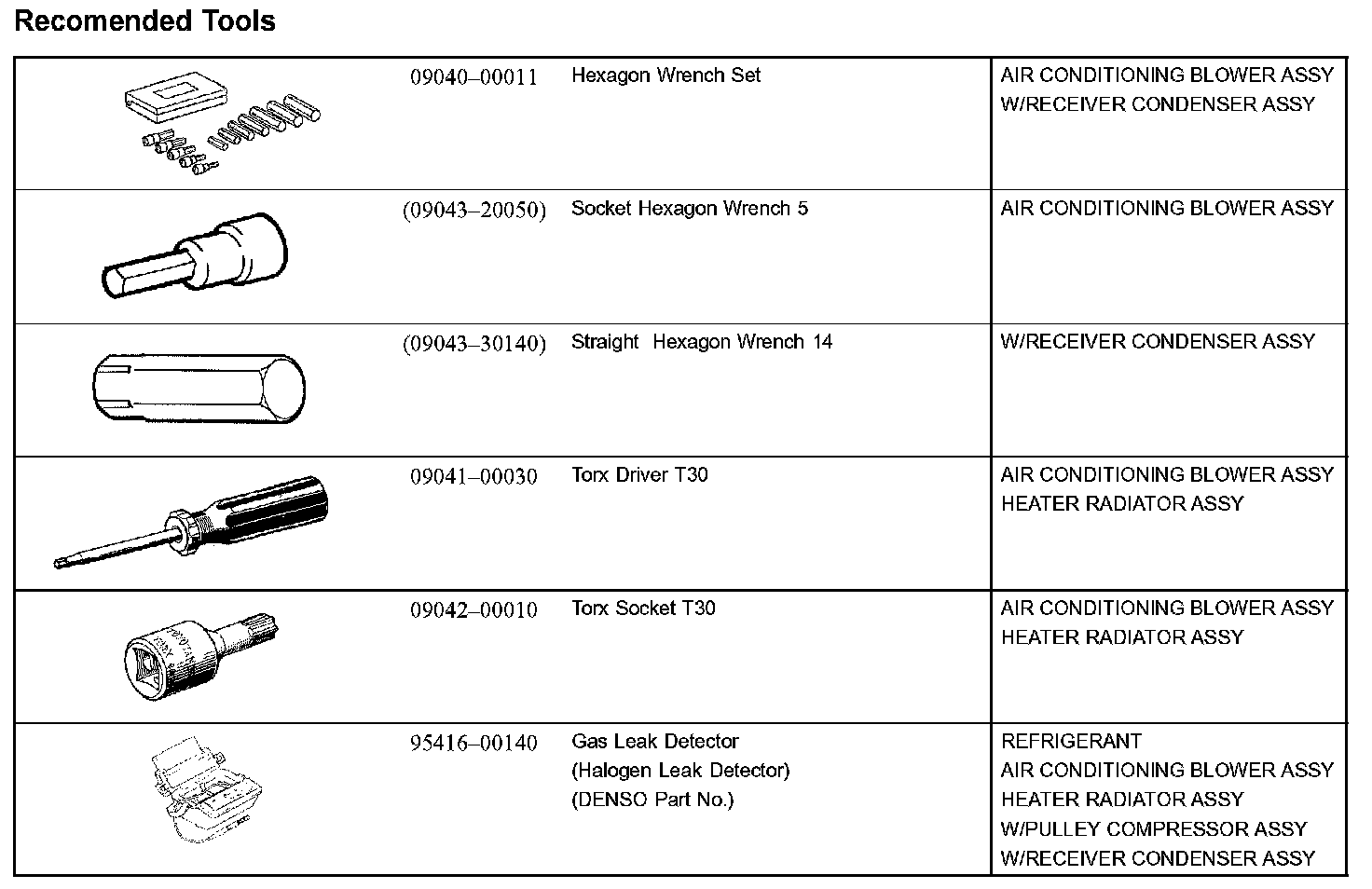

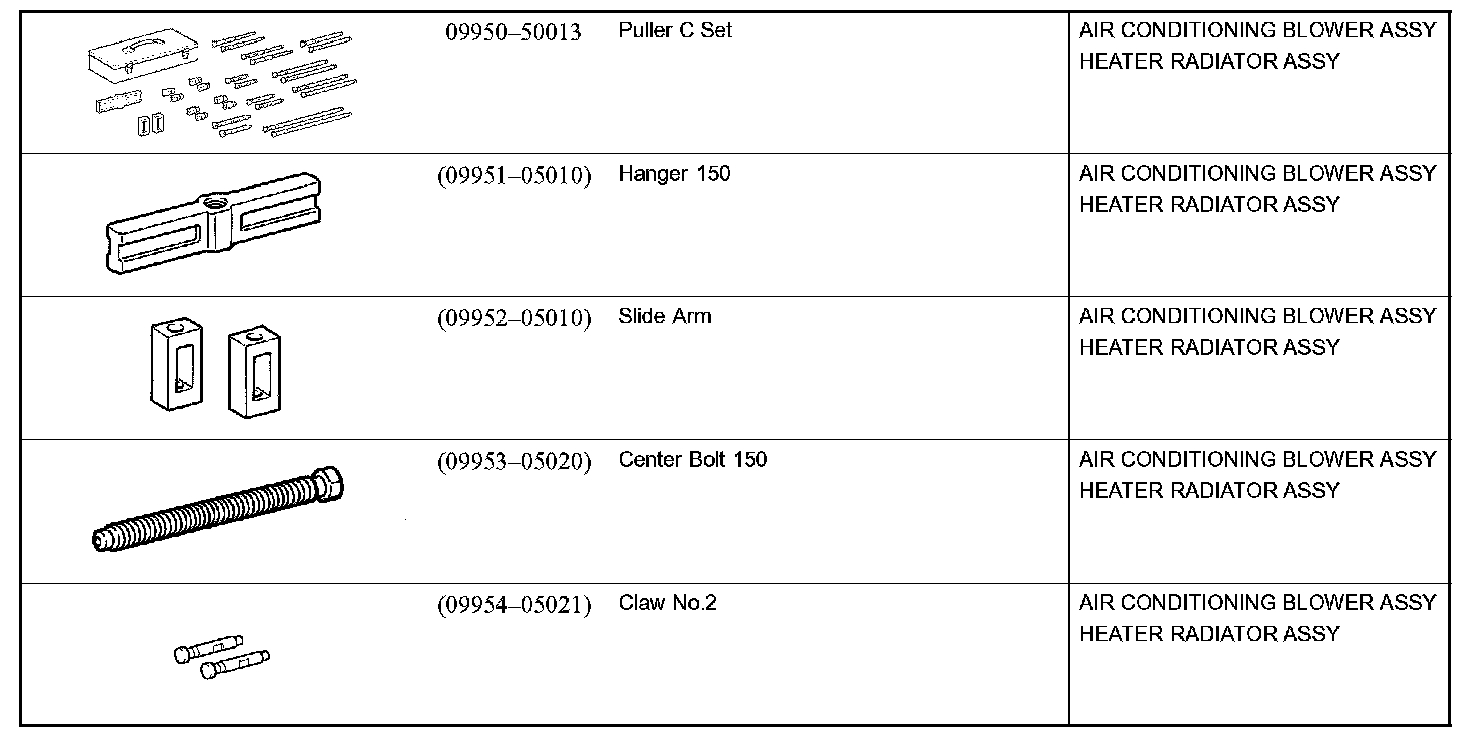

Heater & Air Conditioner - Recommended Tools:

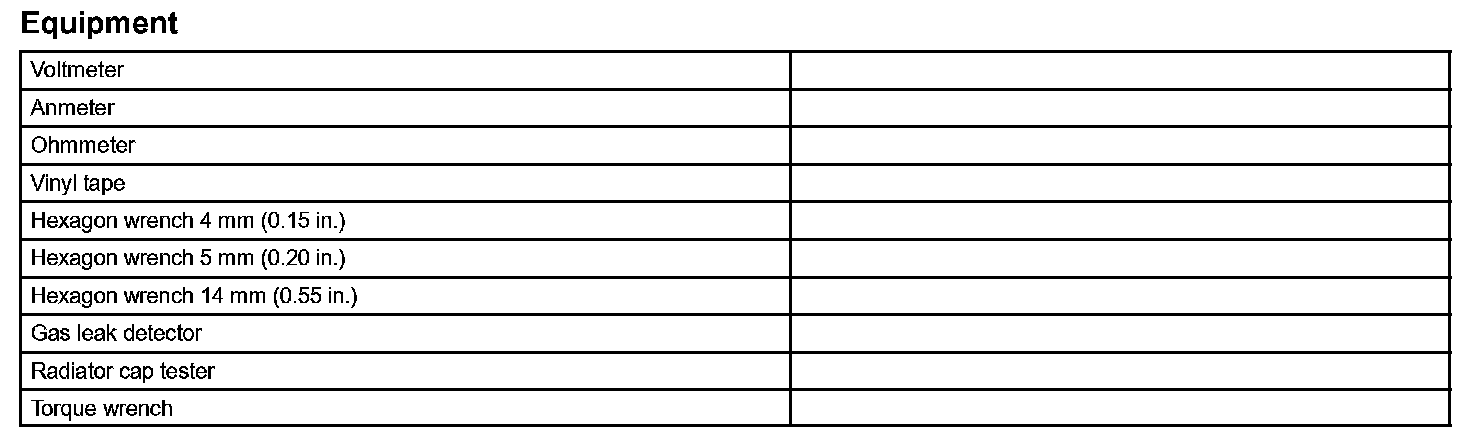

Heater & Air Conditioner - Equipment:
