Home >> Scion >> 2005 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> H4 - N1

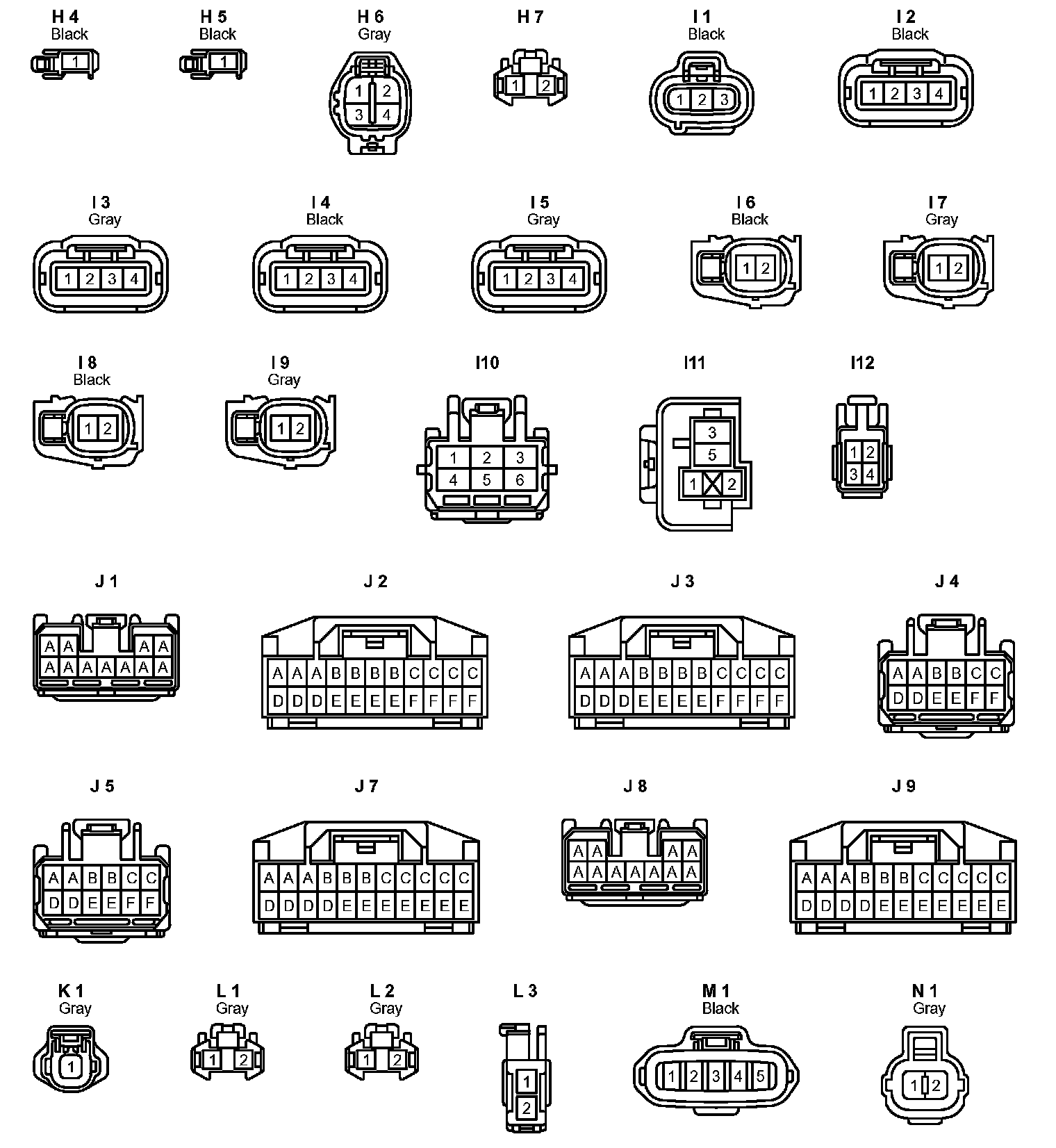

H4 - N1

H4 - N1:
