Symptom Diagnostic Procedures

ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

CIRCUIT DESCRIPTION
If the ECU detects trouble, it will prohibit ABS control, turn on ABS warning light, and store the DTC.

Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

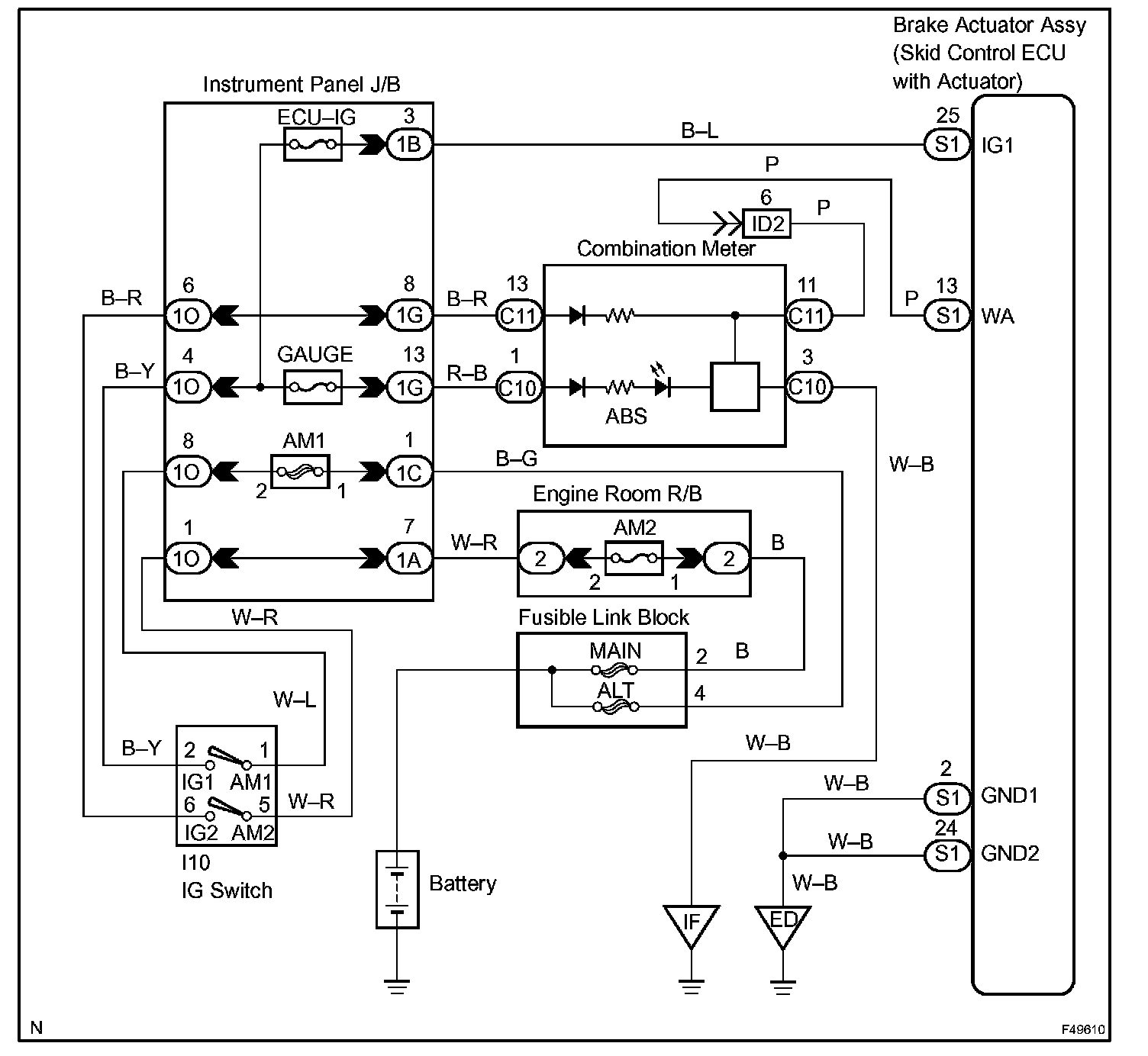

Wiring Diagram:

Step 1 - 2:

Step 3:

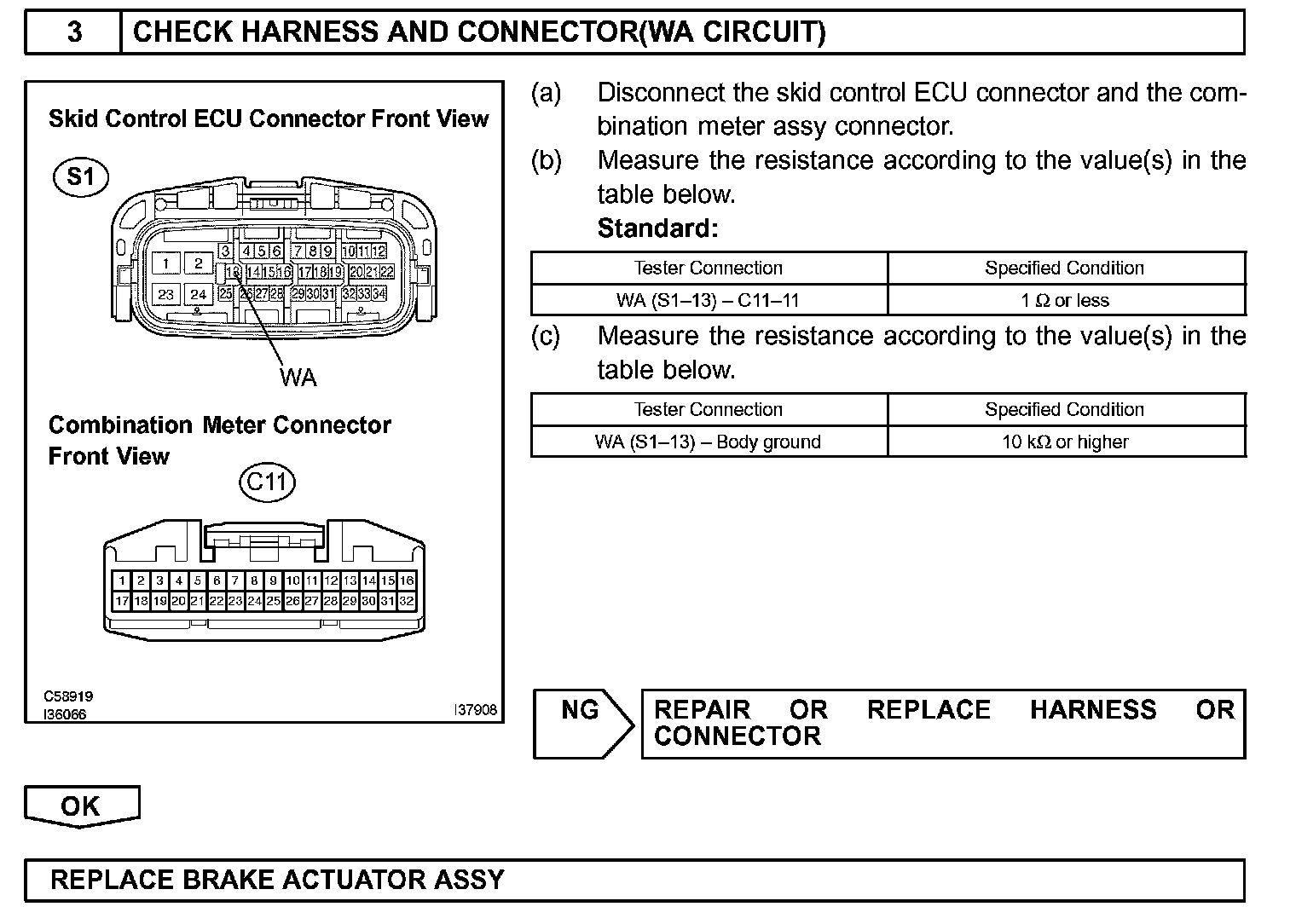

INSPECTION PROCEDURE

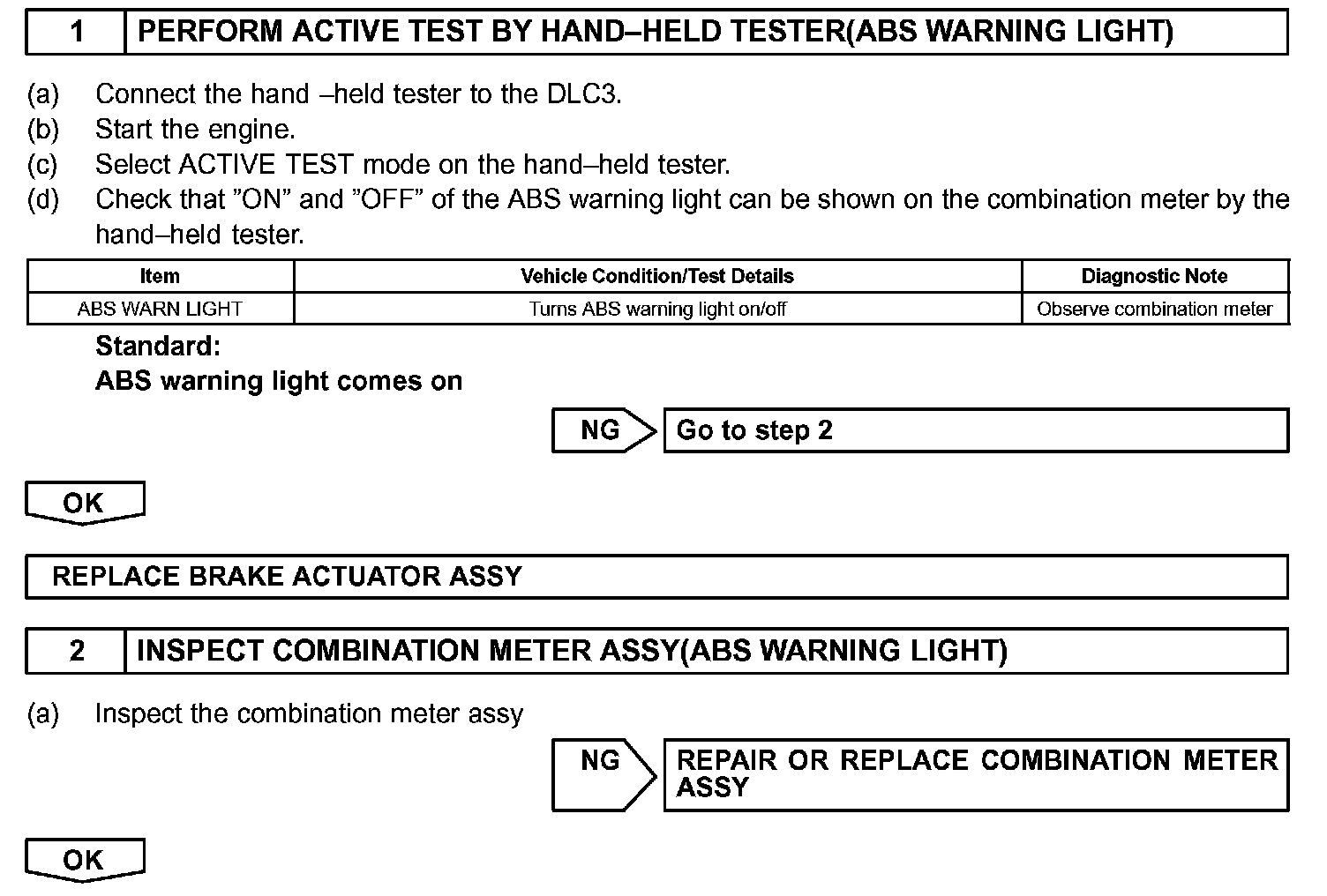

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
