Freeze Frame Data

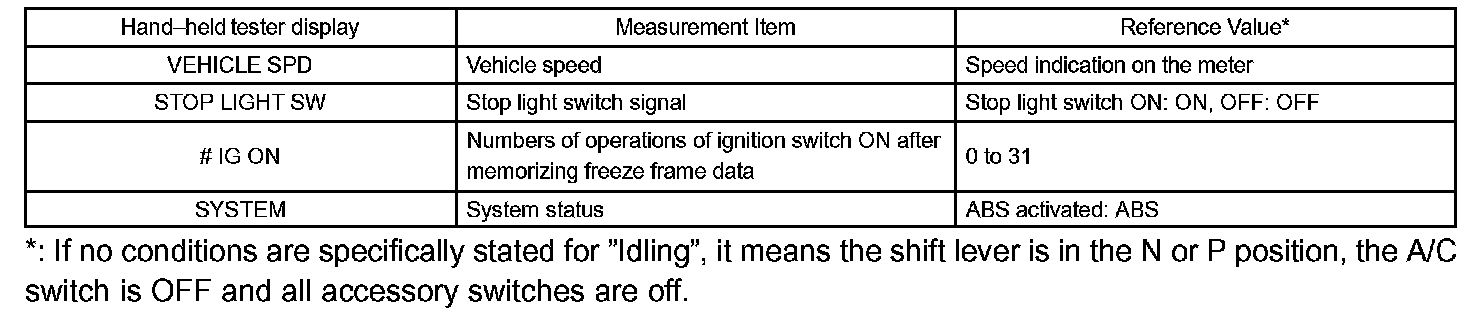

FREEZE FRAME DATA OF ABS




a. The vehicle (sensor) status stored during ABS operation or at the time of an error code detection can be displayed on the hand-held tester.
b. Only one record of freeze frame data is stored and the freeze frame data generated during ABS operation are constantly updated. Also, the number of the ignition switch is turned on after the freeze frame data is stored can be memorized up to 31 and can be displayed.

HINT: If the ignition switch "ON" operation exceeds 31 times, "31" appears on the display.

c. If the diagnosis code abnormality occurs, the freeze frame data at the occurrence of the abnormality is stored but the ABS actuation data is deleted.
