Data List

DATA LIST

HINT: According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method is to shorten labor time.







a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.

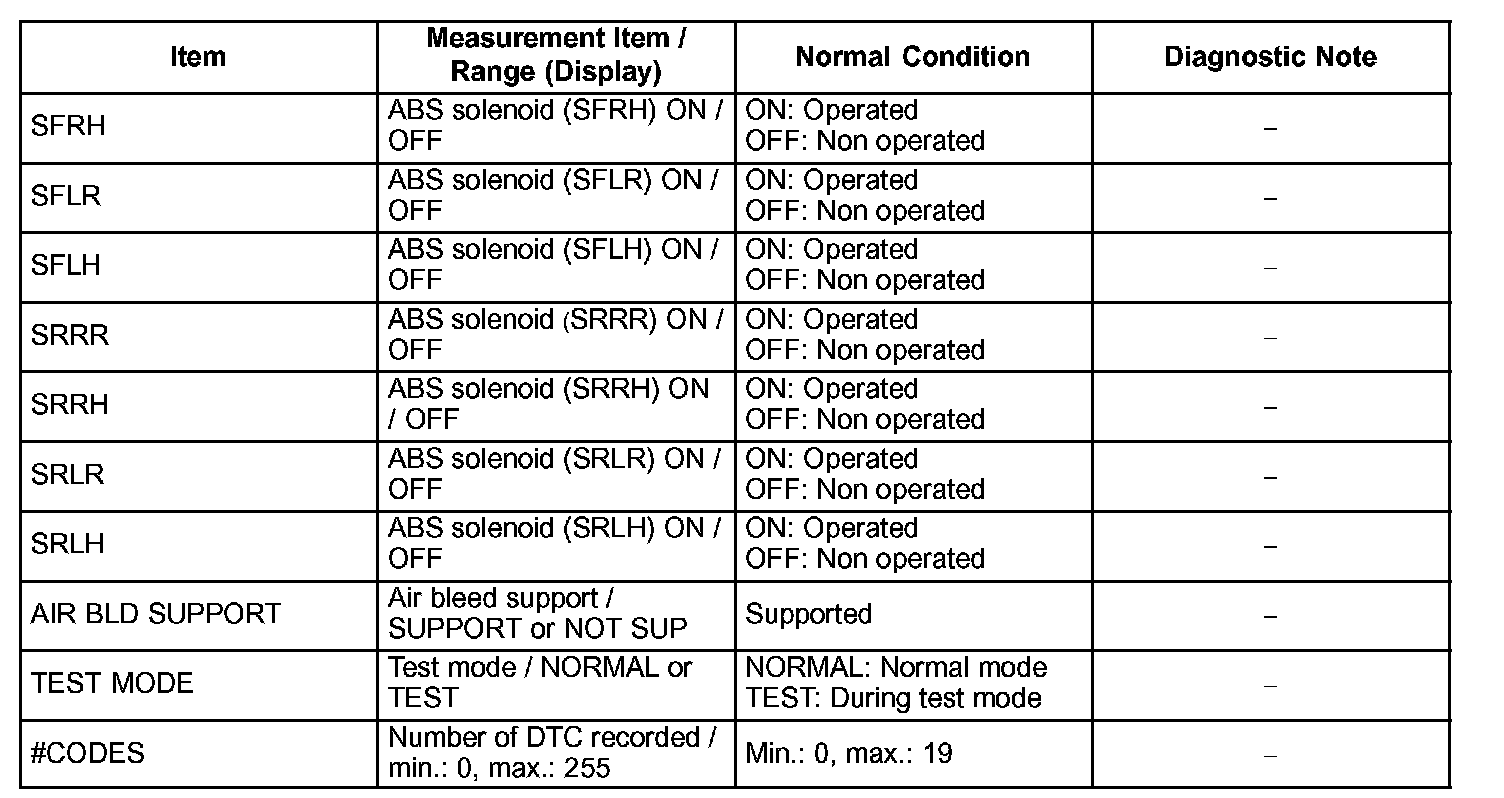

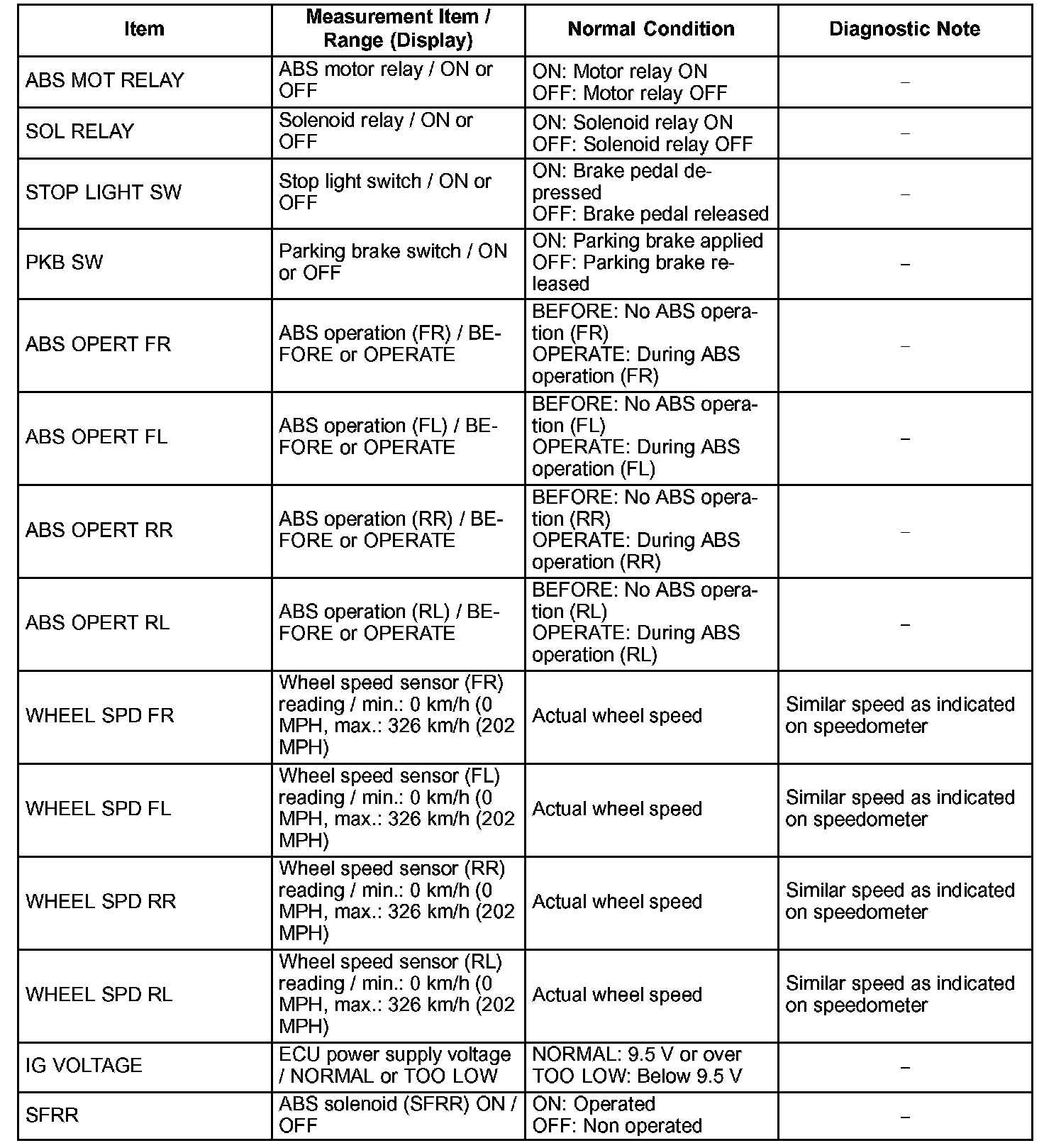

c. According to the display on the tester, read the DATA LIST.
