Brake Warning Light Circuit

BRAKE WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The BRAKE warning light turns on when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

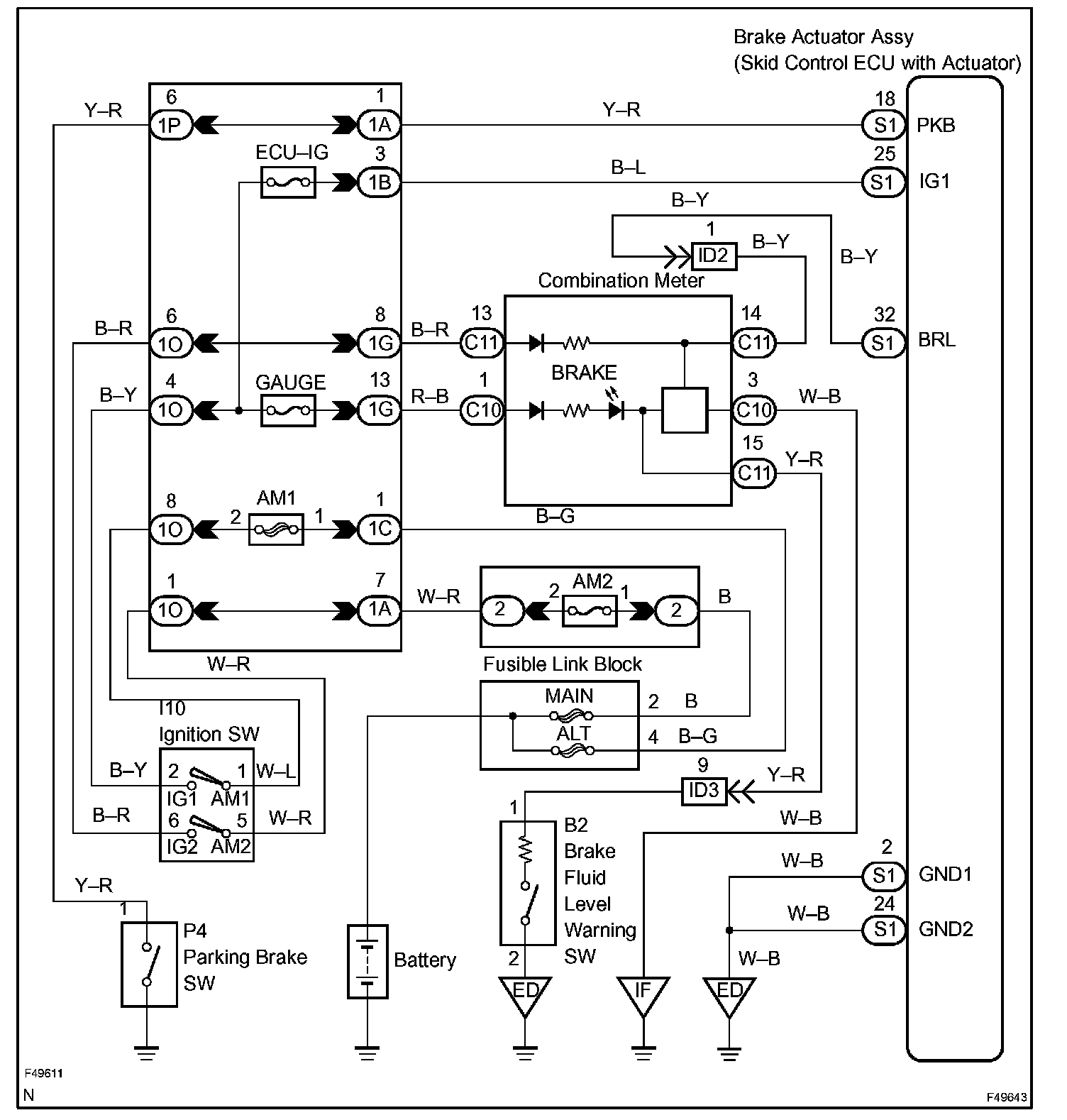

Wiring Diagram:

Step 1 - 3:

Step 3 (Contd.) - 4:

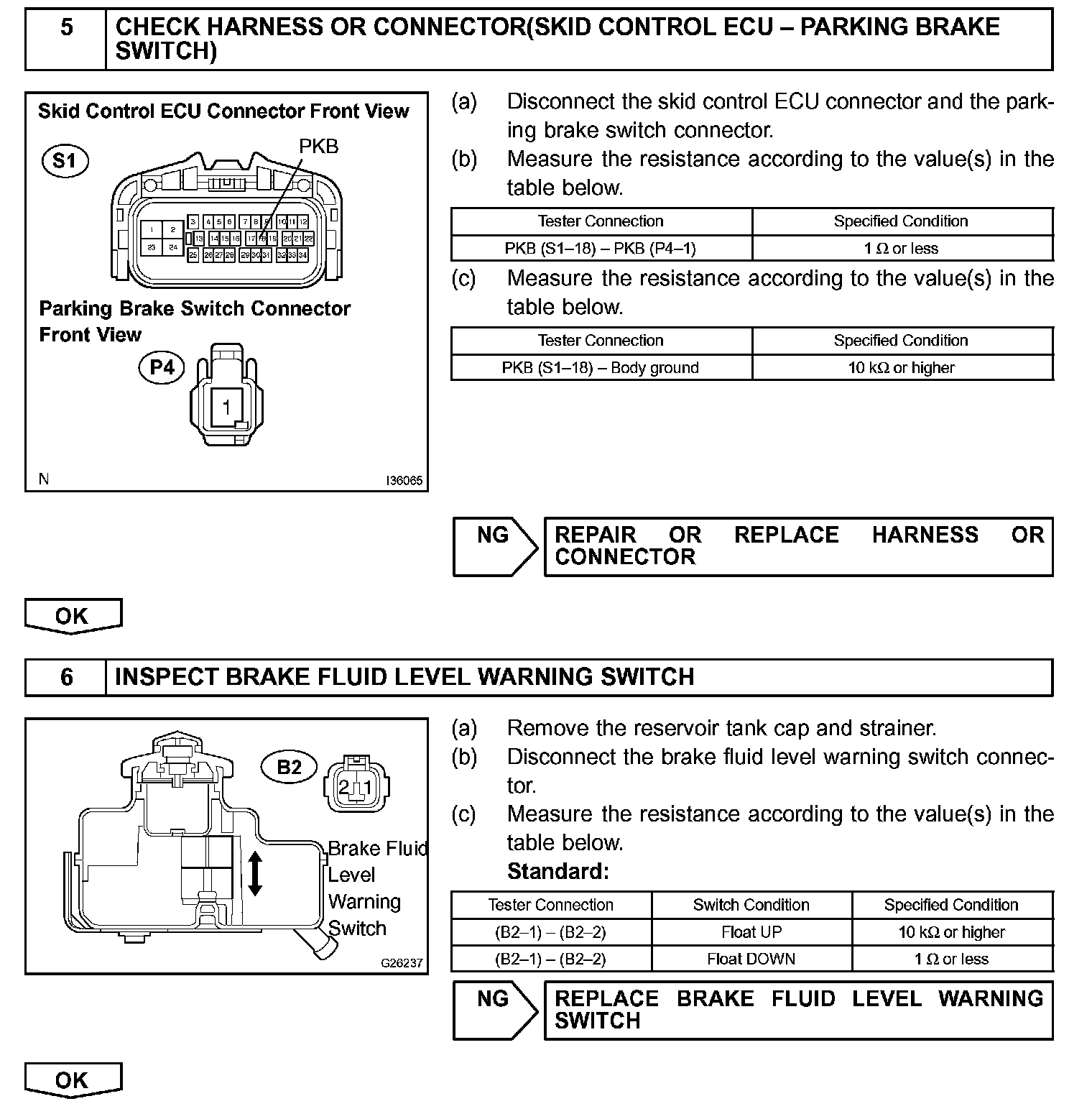

Step 5 - 6:

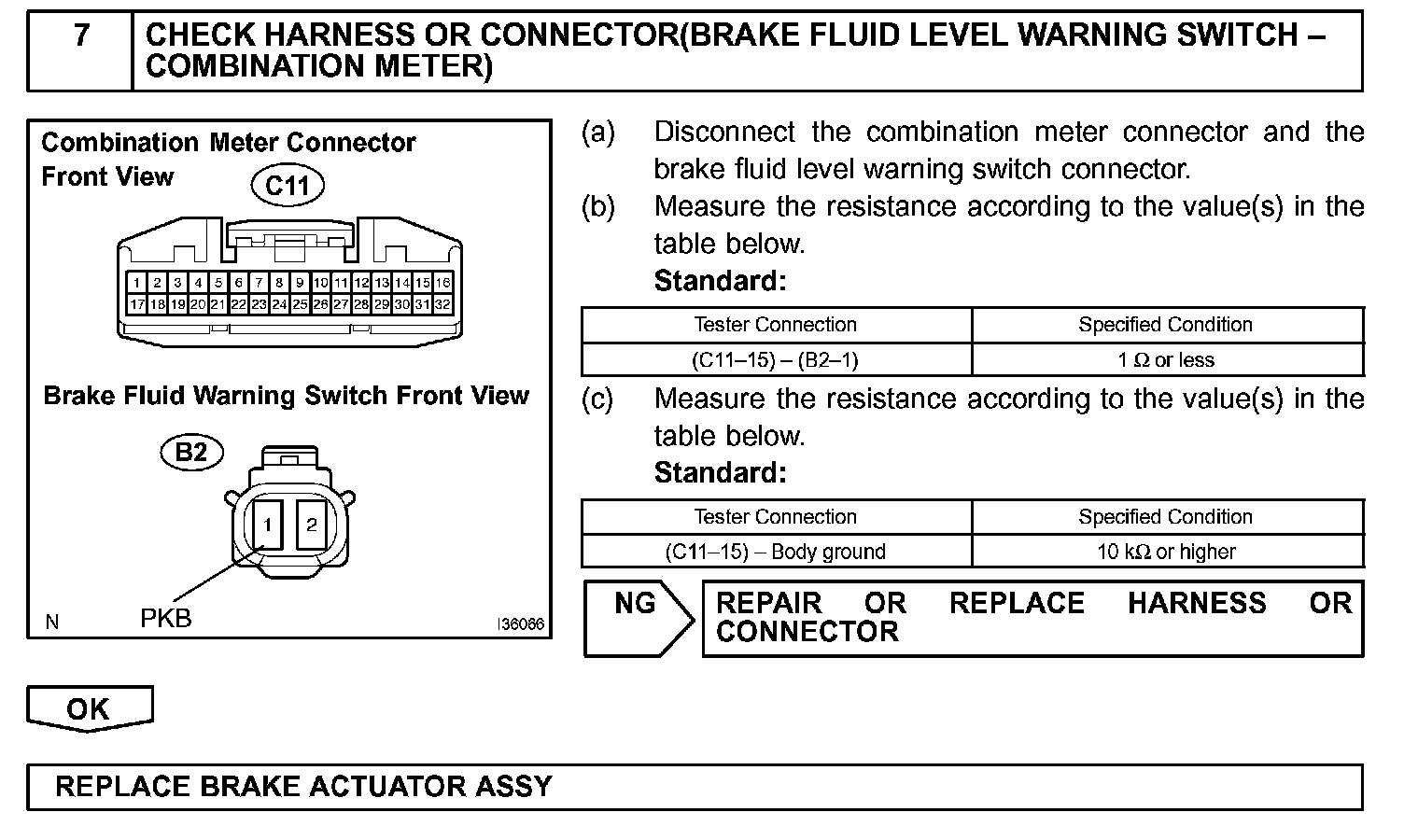

Step 7:

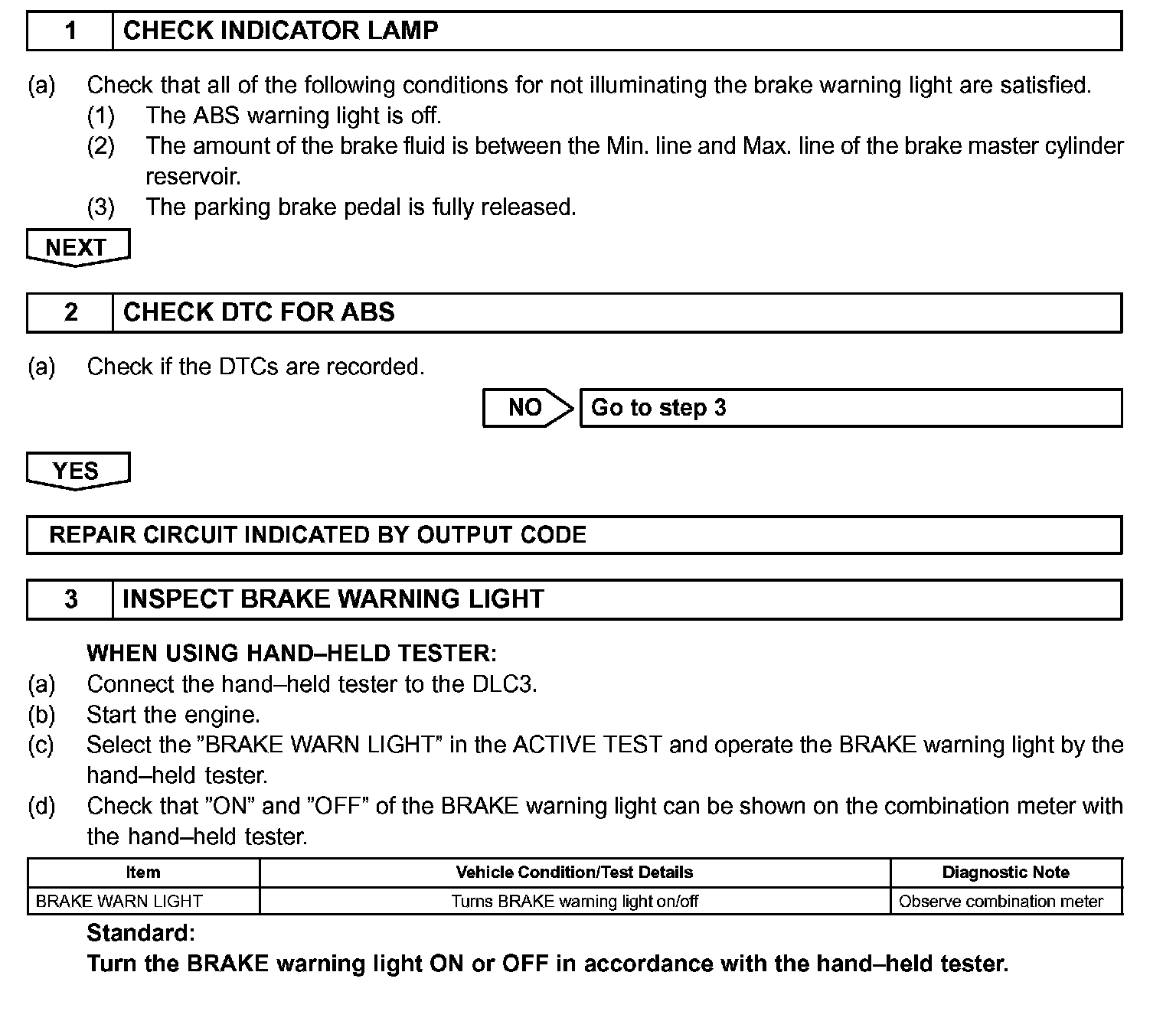

INSPECTION PROCEDURE
