Mud Flap: Service and Repair

FENDER PANEL MUDGUARD LH

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.

1. REMOVE SIDE MUDGUARD SUB-ASSY LH
2. REMOVE FRONT FENDER MUDGUARD SUB-ASSY LH

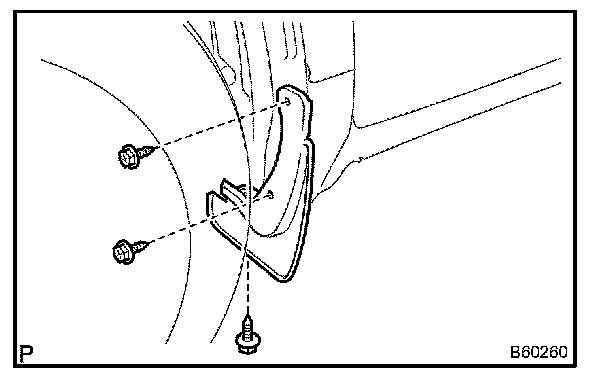

a. Remove the 3 screws and mudguard.

3. REMOVE FENDER PANEL MUDGUARD LH

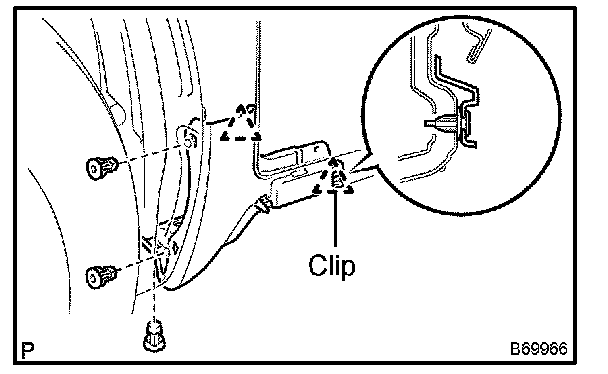

a. Using a clip remover, remove the 3 clips.
b. Disengage the 2 clips and remove the mudguard.
