Pinout Values and Diagnostic Parameters

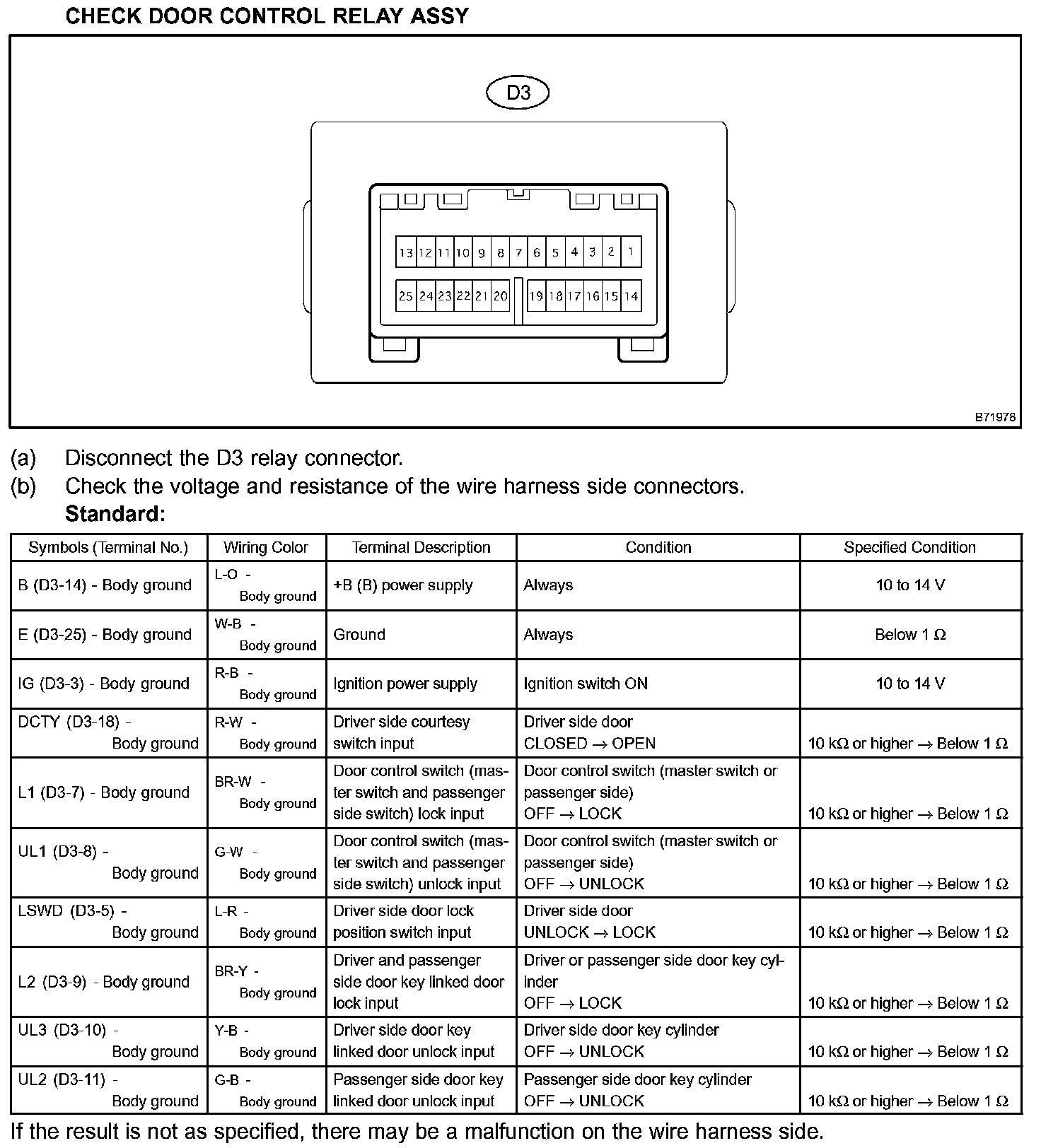

Terminals Of Control Module/Pinouts -Check Door Control Relay Assy (Part 1):

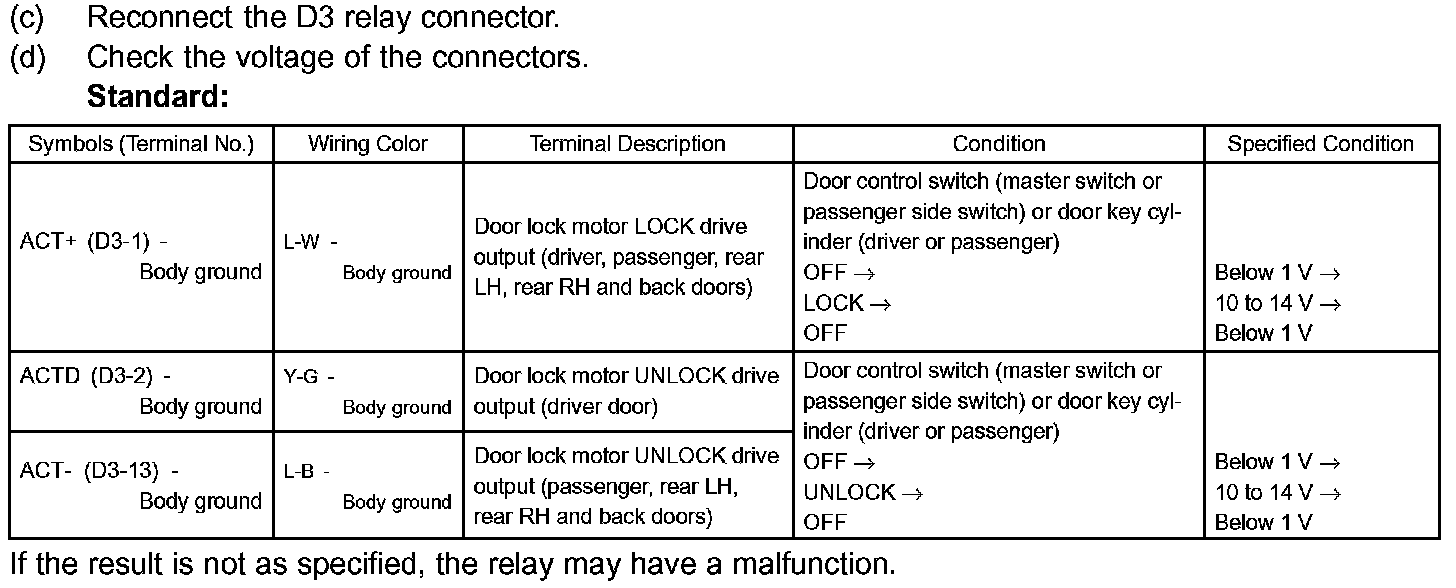

Terminals Of Control Module/pinouts -check Door Control Relay Assy (part 2):
