Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

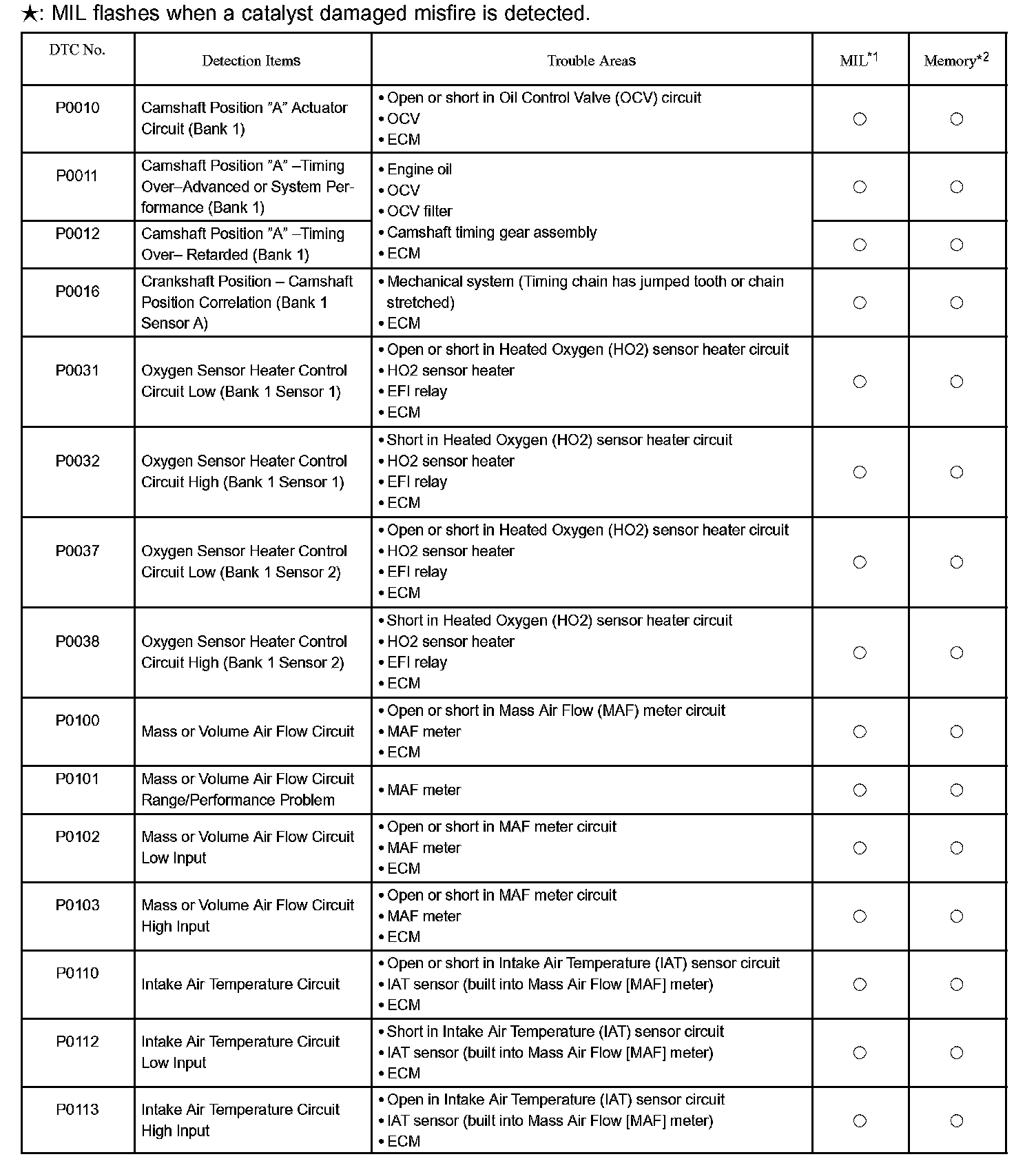

P0010 - P0113:

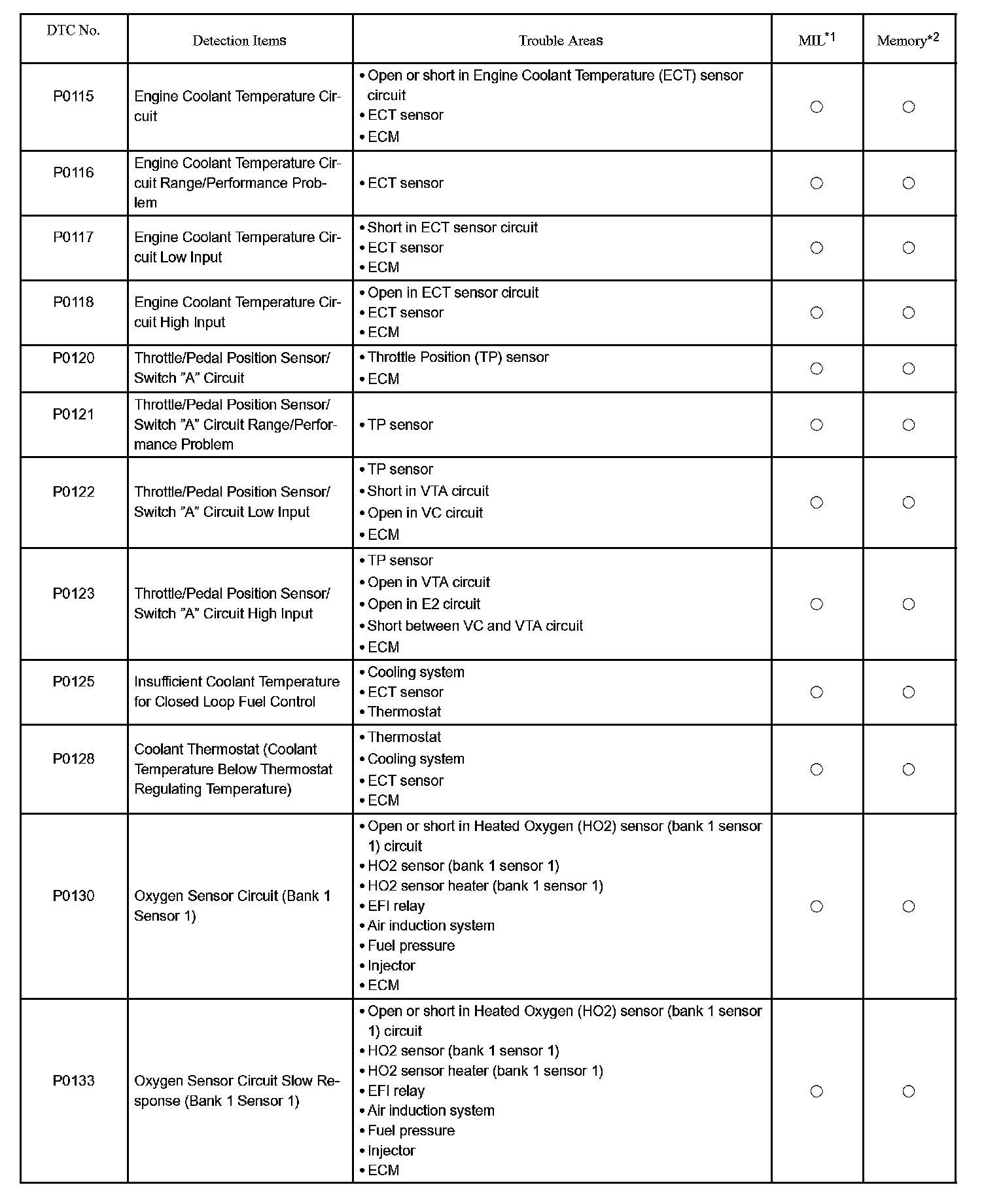

P0115 - P0133:

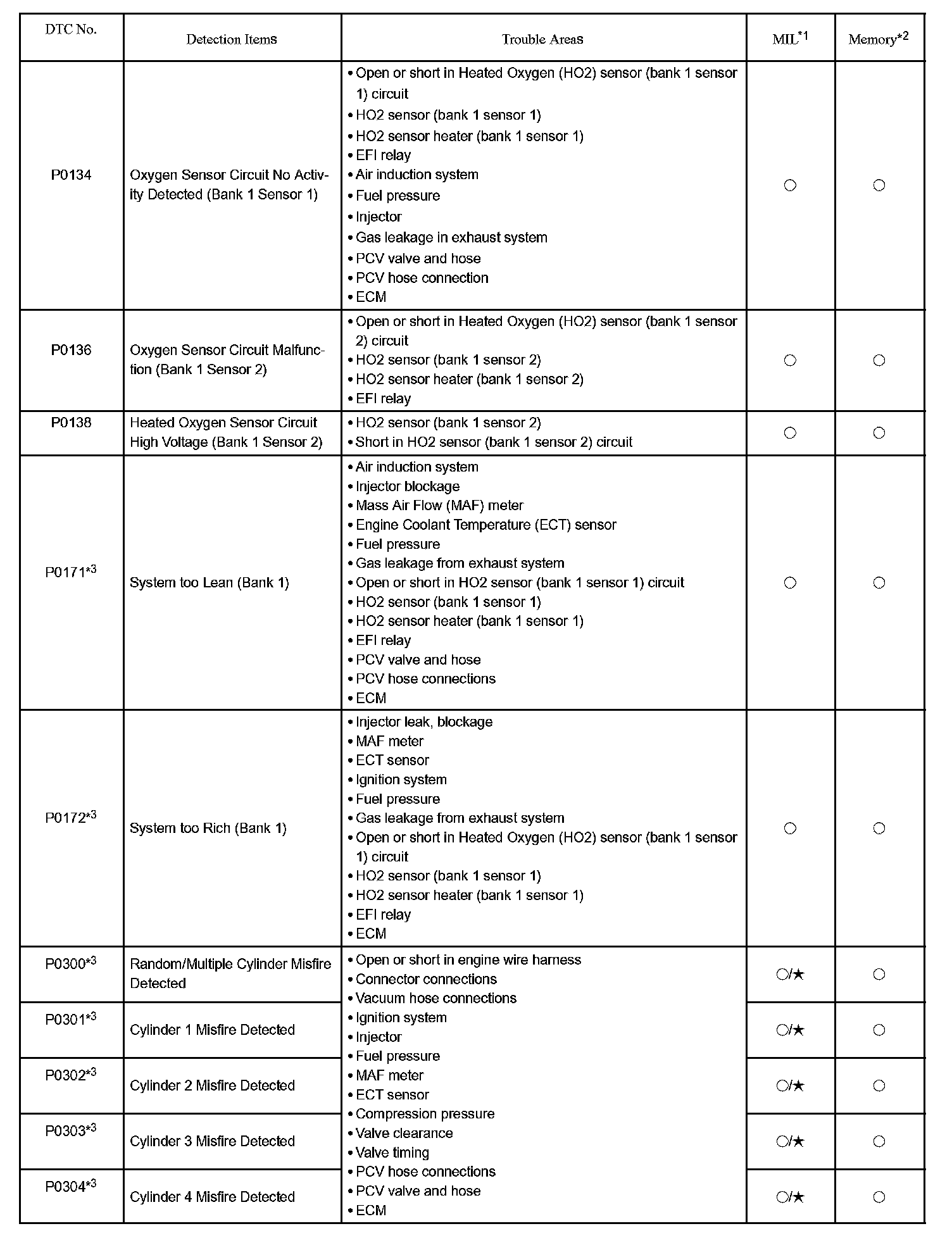

P0134 - P0304:

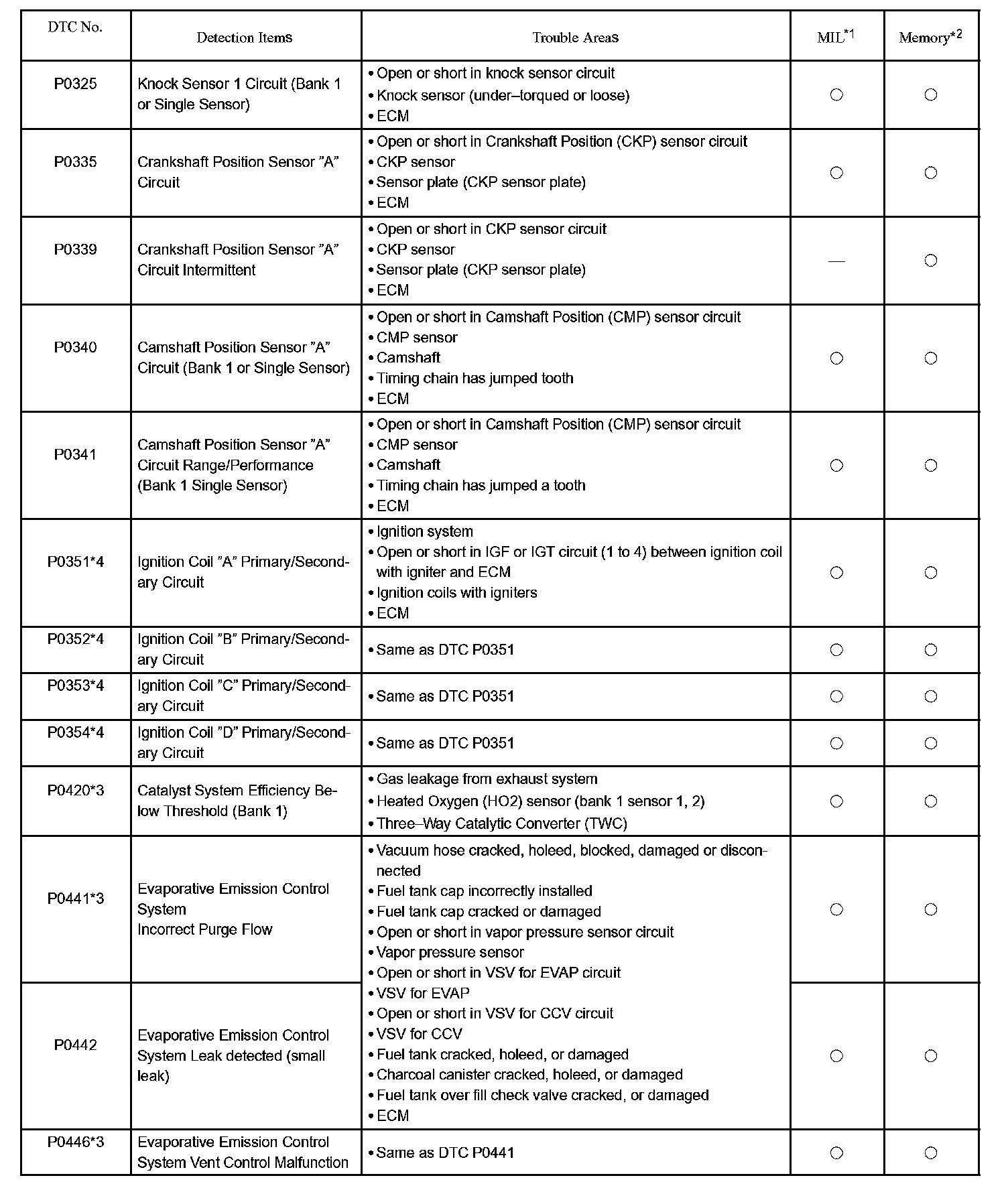

P0325 - P0446:

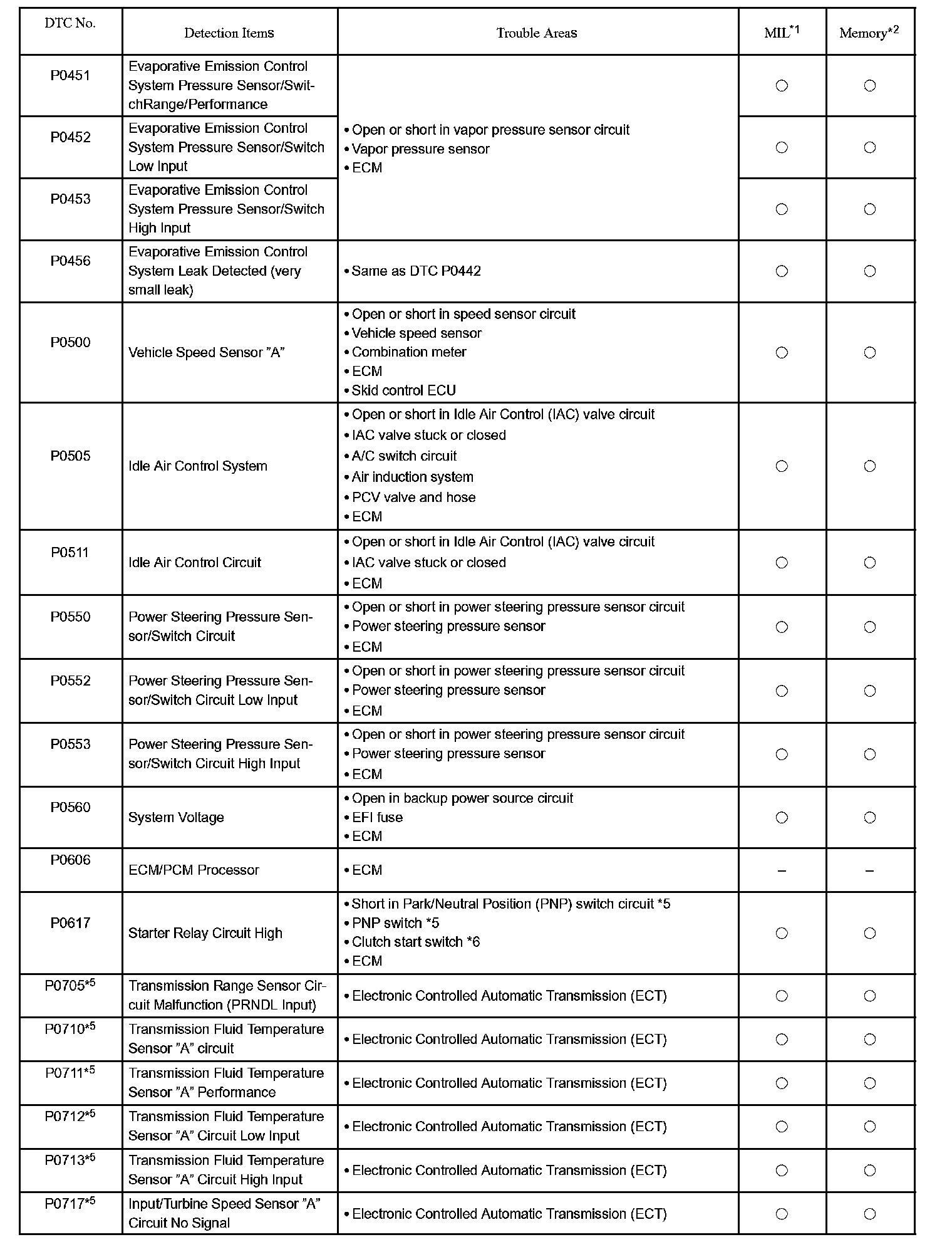

P0451 - P0717:

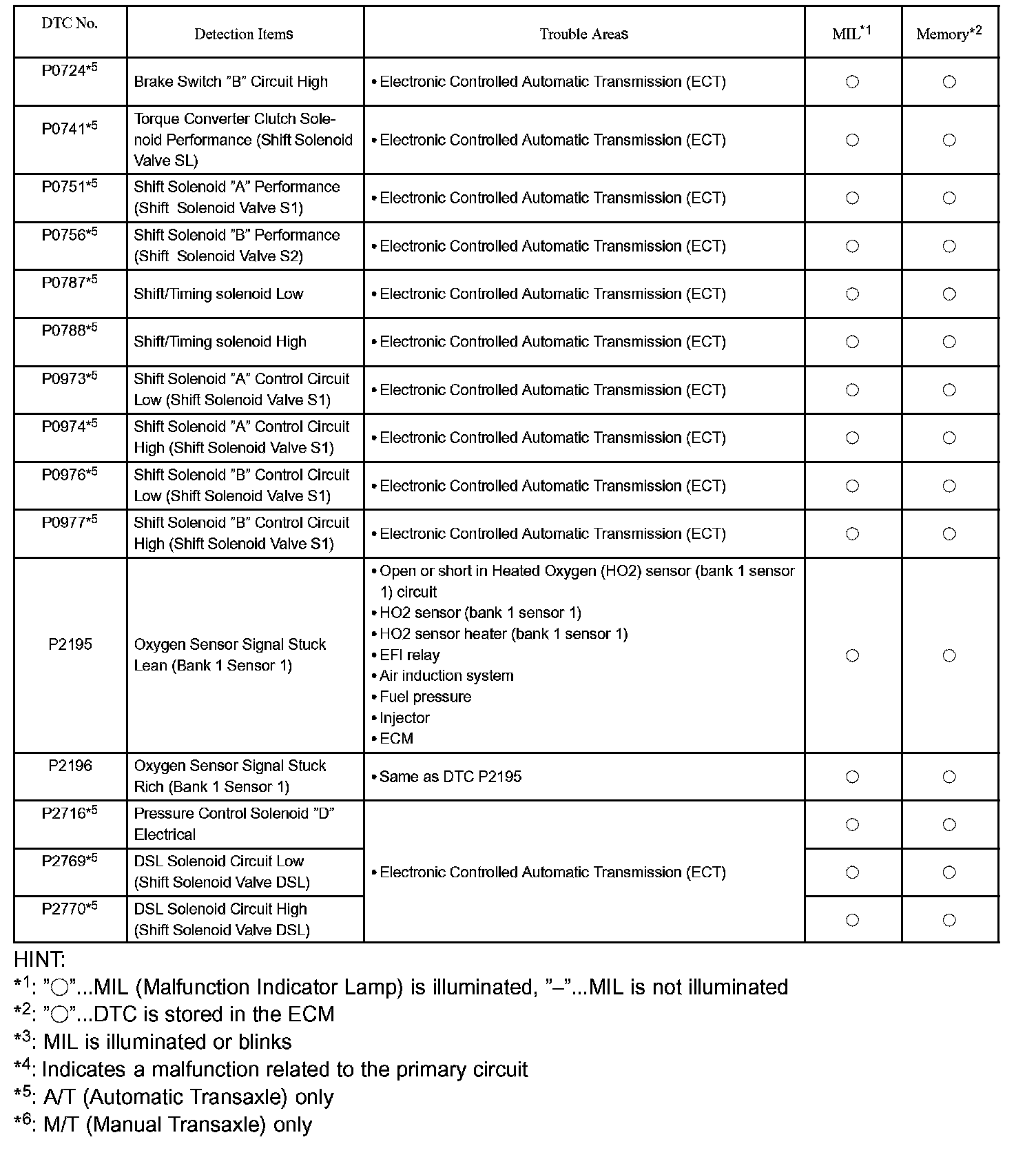

P0724 - P2770:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values.

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table.
