CAN Communication System

DIAGNOSTIC TROUBLE CODE CHART

1. DTC COMBINATION TABLE

NOTE: Complete the CHECK CAN BUS LINE inspection procedures. Confirm that the CAN main bus line does not have the following: 1) disconnections 2) short circuits 3) short to +B, or 4) short to ground.

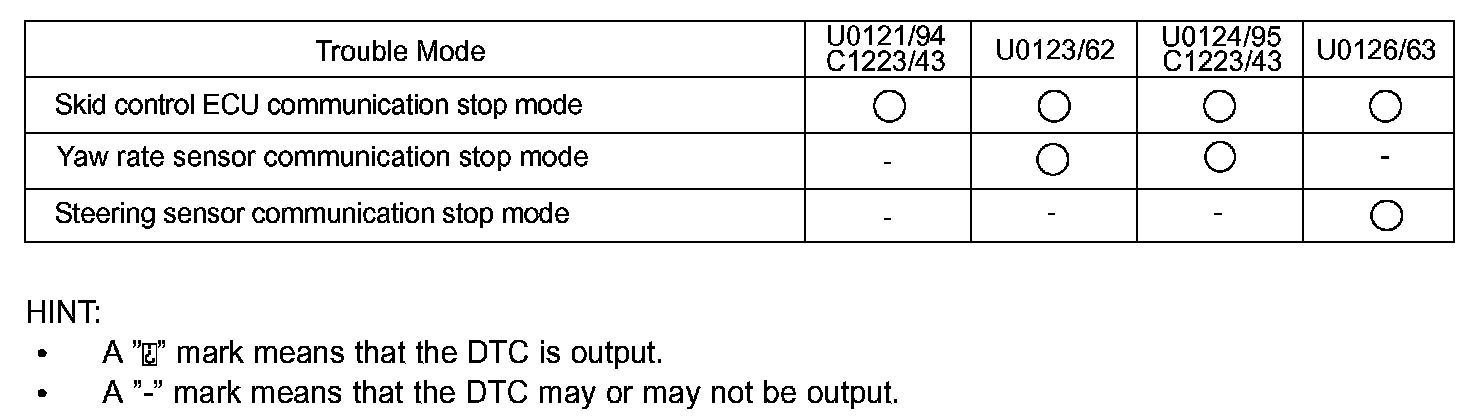

a. Confirm the trouble mode according to the combination of CAN communication system DTCs that are output.

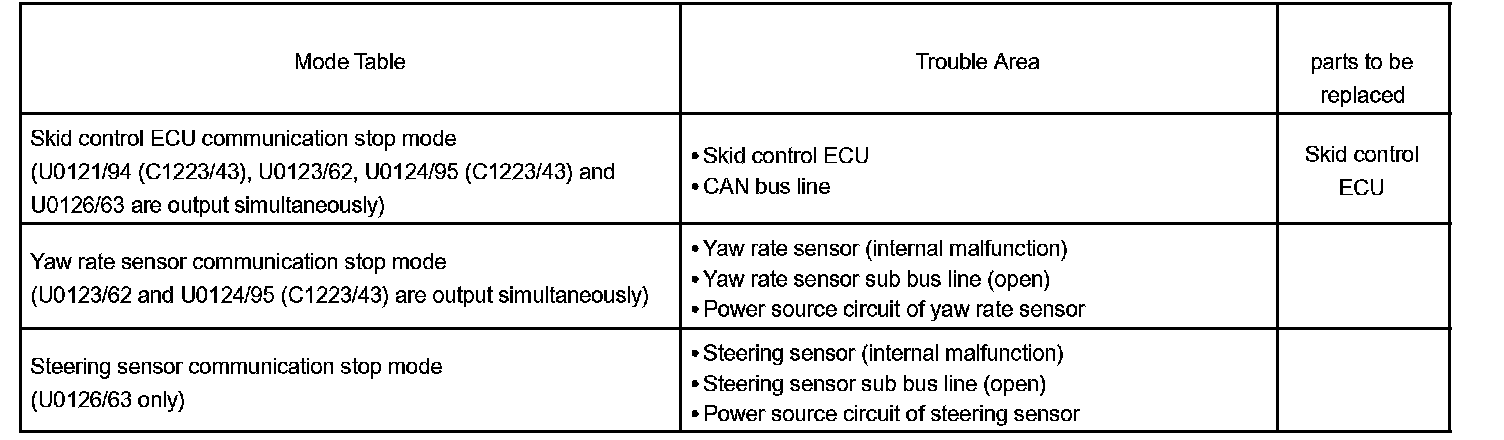

b. Depending on the trouble mode, check the trouble areas in the table given.
