B1167

DTC B1167 SHORT IN CURTAIN SHIELD SQUIB (LH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The curtain shield squib LH circuit consists of the airbag sensor assembly center and the curtain shield airbag assembly LH.
This circuit actuates the SRS to deploy when deployment conditions are met.
DTC B1167/85 is recorded when a short to ground is detected in the curtain shield squib LH circuit.

HINT: DTC B1167/85 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

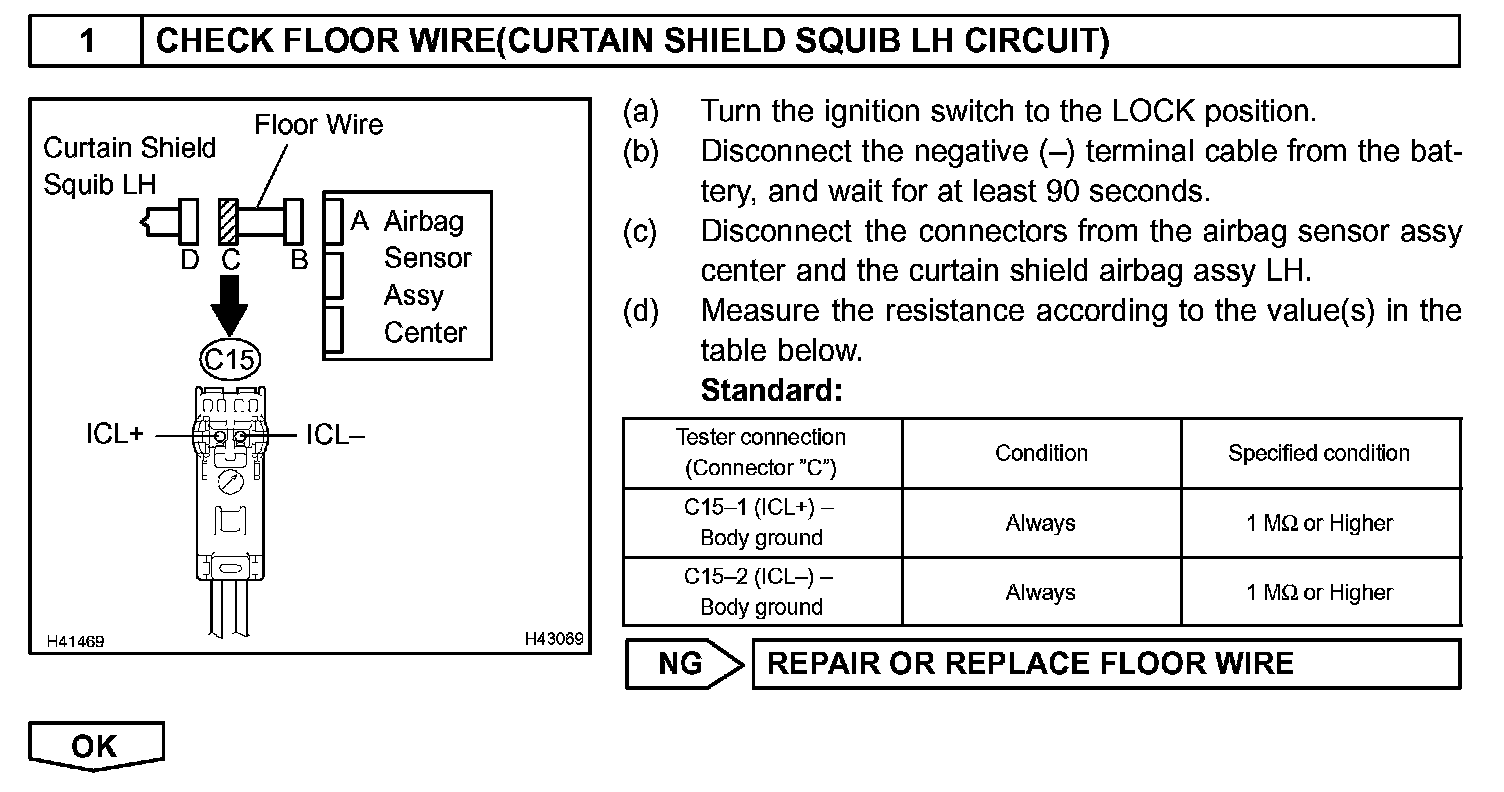

Step 1:

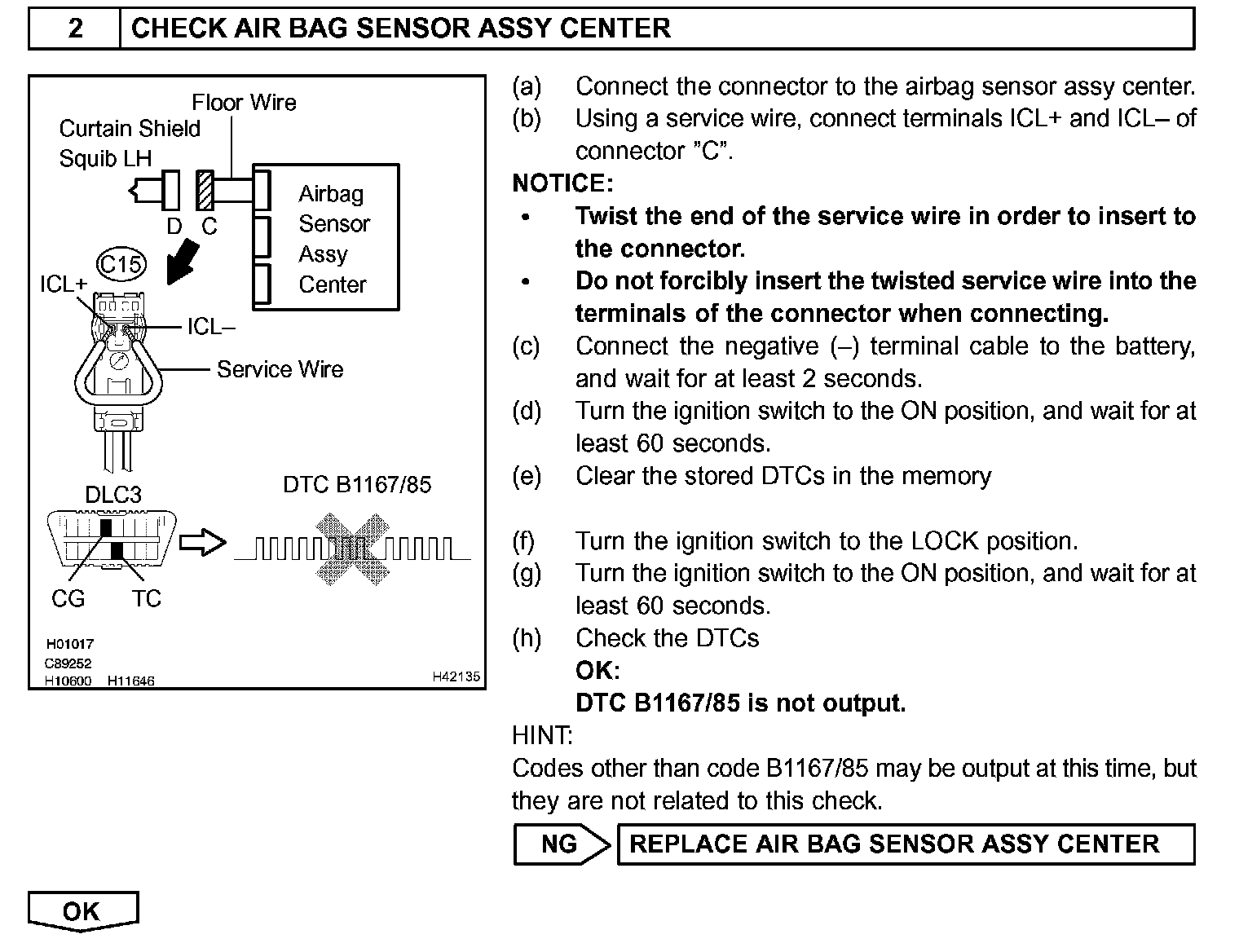

Step 2:

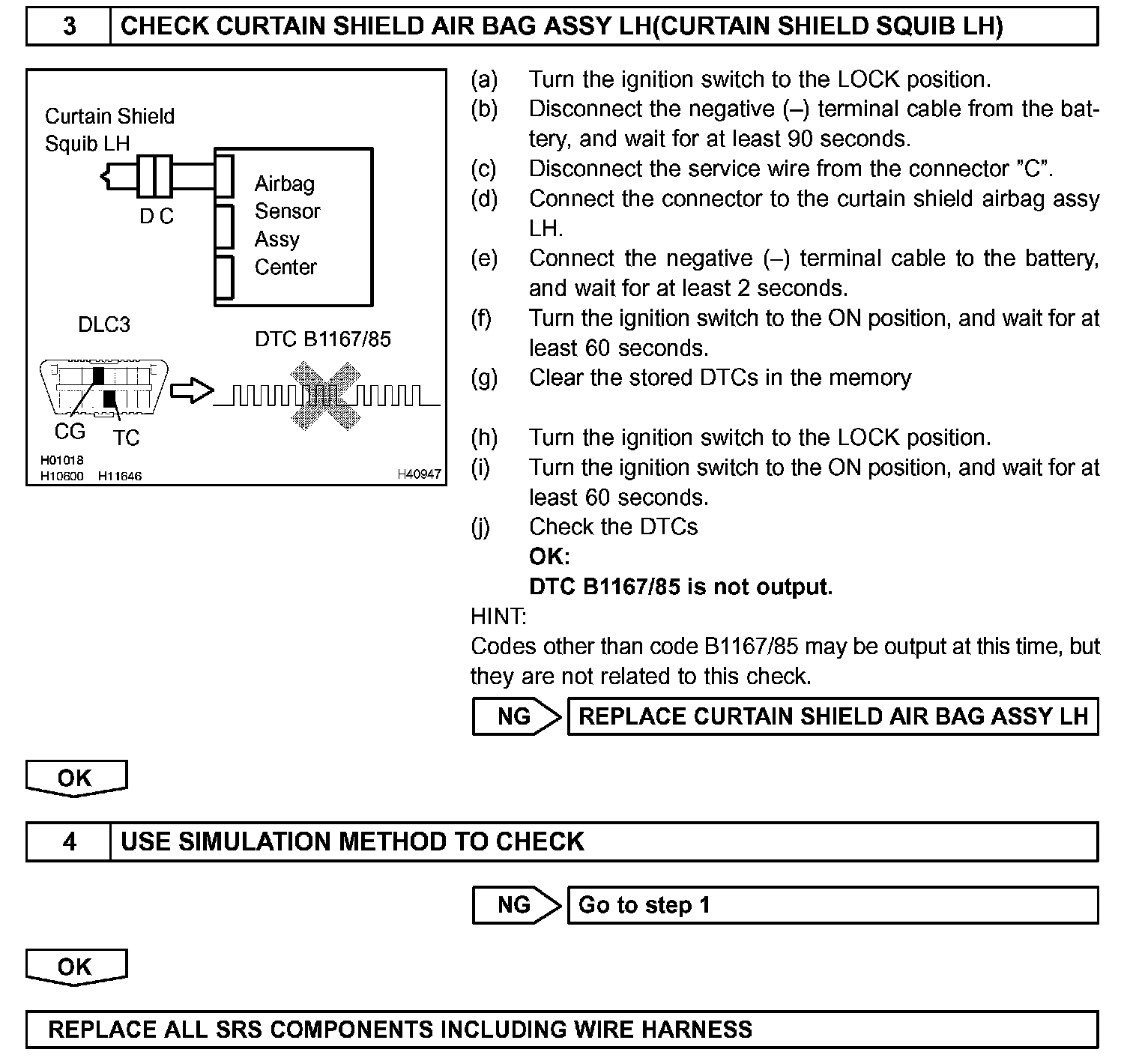

Step 3 - 4:

INSPECTION PROCEDURE
