B1163

DTC B1163 SHORT IN CURTAIN SHIELD SQUIB (RH) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The curtain shield squib RH circuit consists of the airbag sensor assembly center and the curtain shield airbag assembly RH.
This circuit actuates the SRS to deploy when deployment conditions are met.

DTC B1163/82 is recorded when a short to B+ is detected in the curtain shield squib RH circuit.

HINT: DTC B1163/82 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

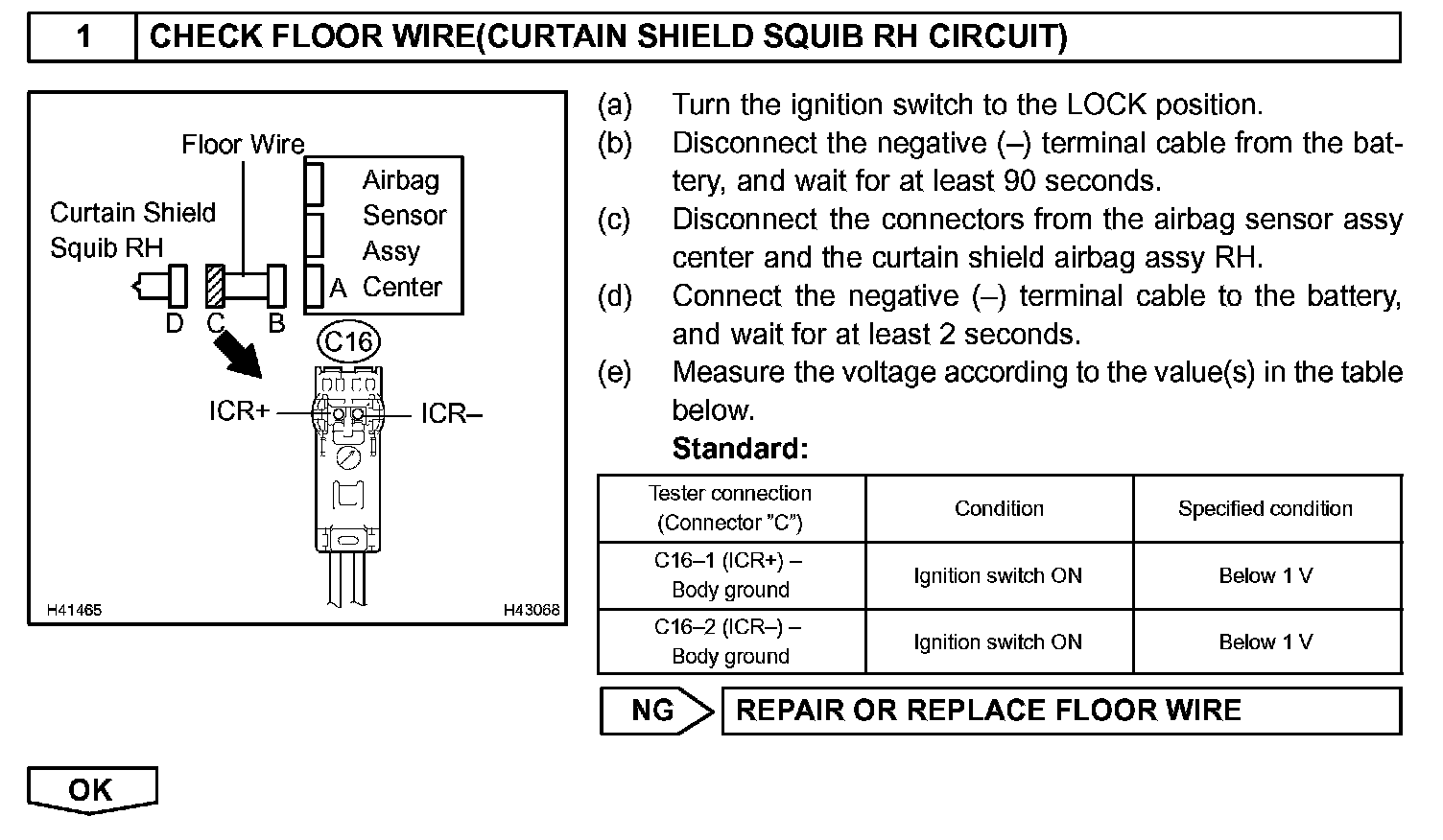

Step 1:

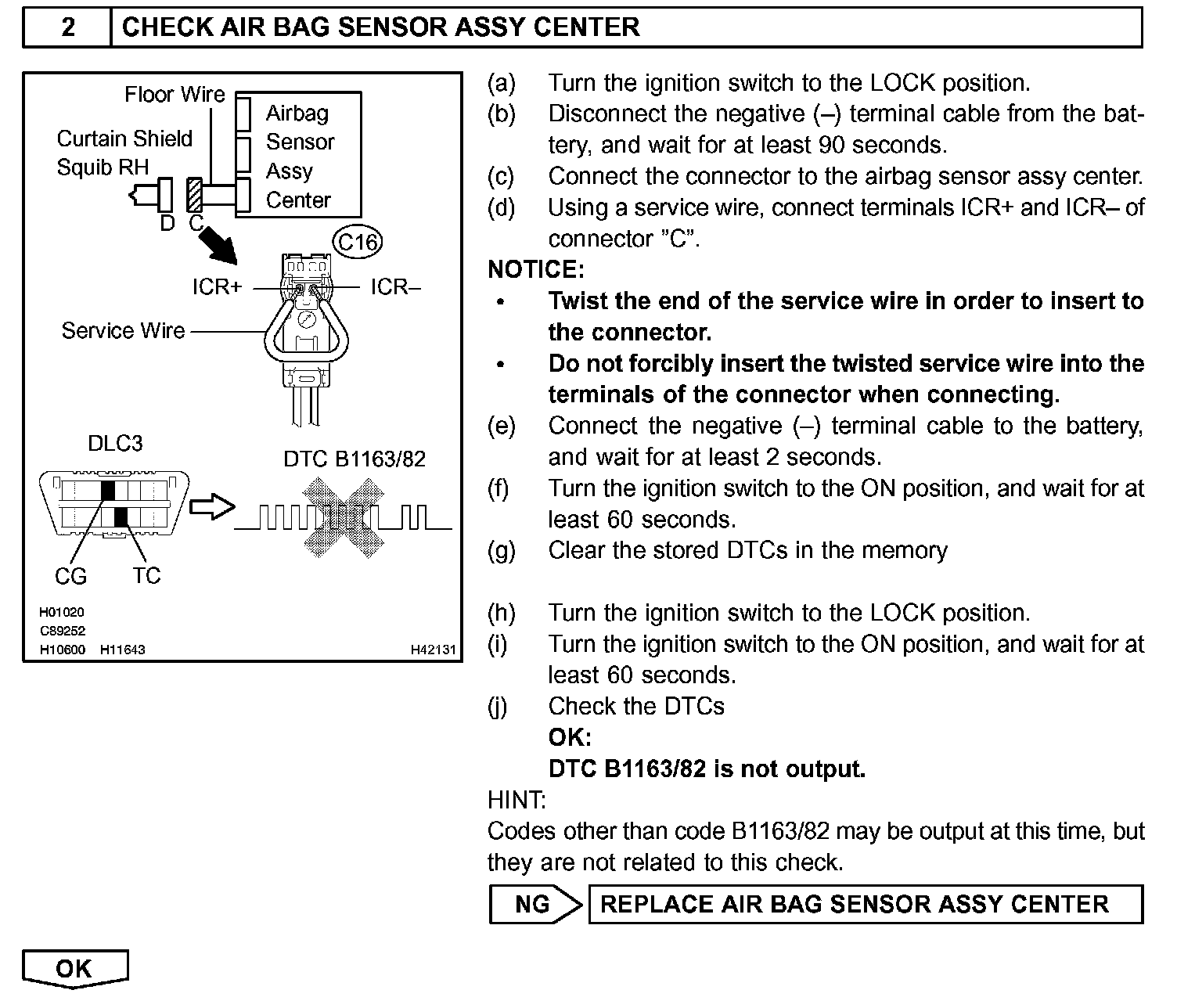

Step 2:

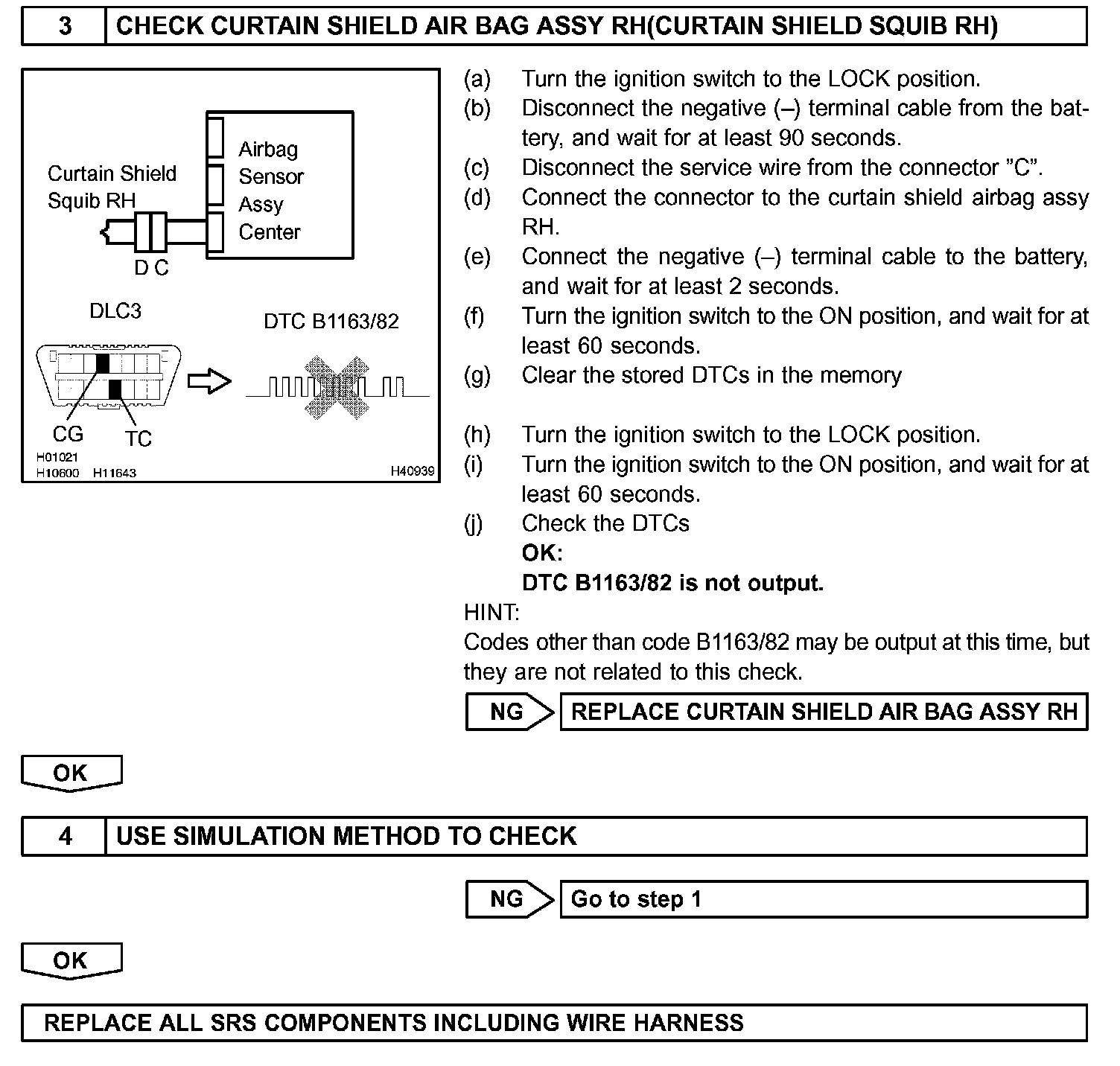

Step 3 - 4:

INSPECTION PROCEDURE
