B1161

DTC B1161 OPEN IN CURTAIN SHIELD SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The curtain shield squib RH circuit consists of the airbag sensor assembly center and the curtain shield airbag assembly RH.

This circuit actuates the SRS to deploy when deployment conditions are met.
DTC B1161/84 is recorded when an open circuit is detected in the curtain shield squib RH circuit.

HINT: DTC B1161/84 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

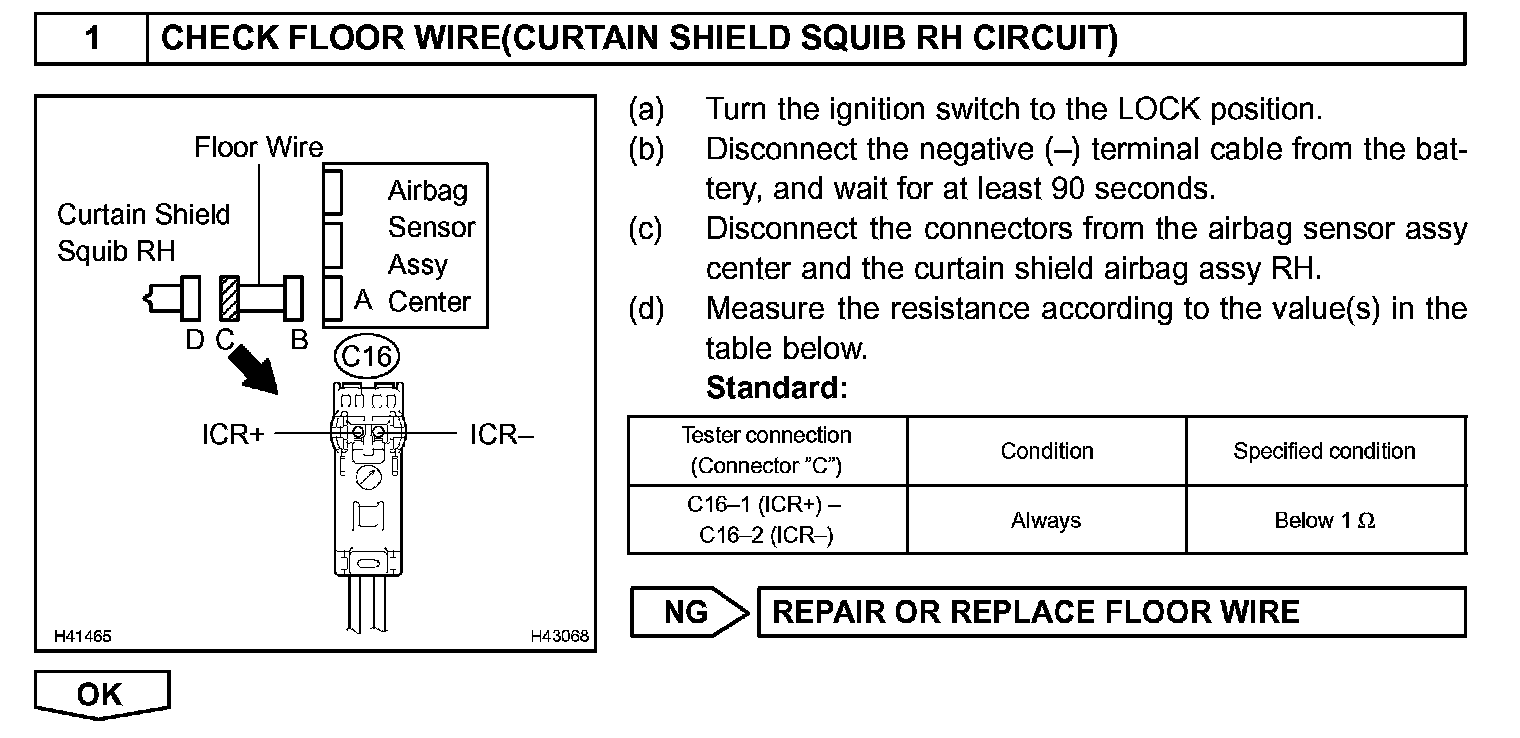

Step 1:

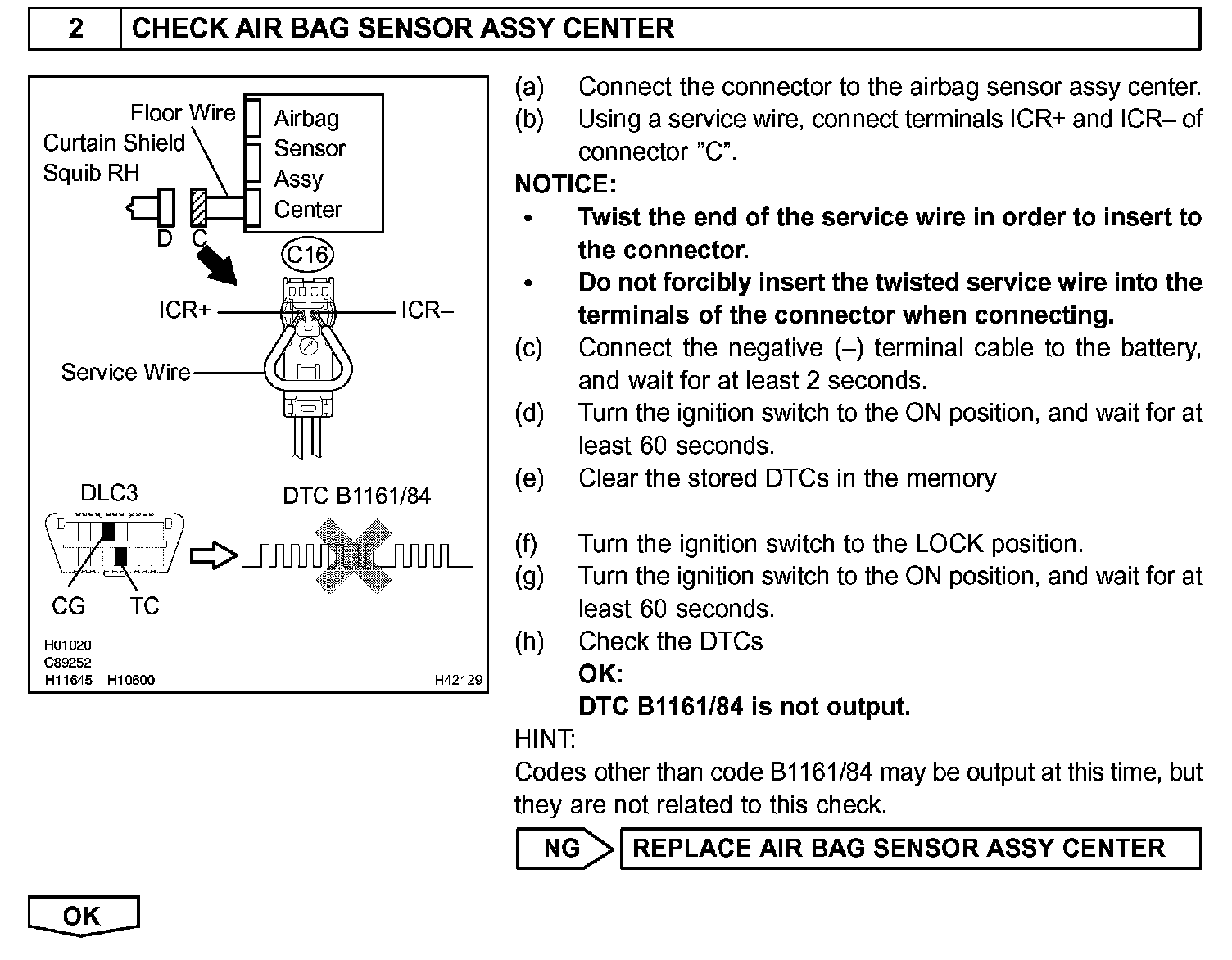

Step 2:

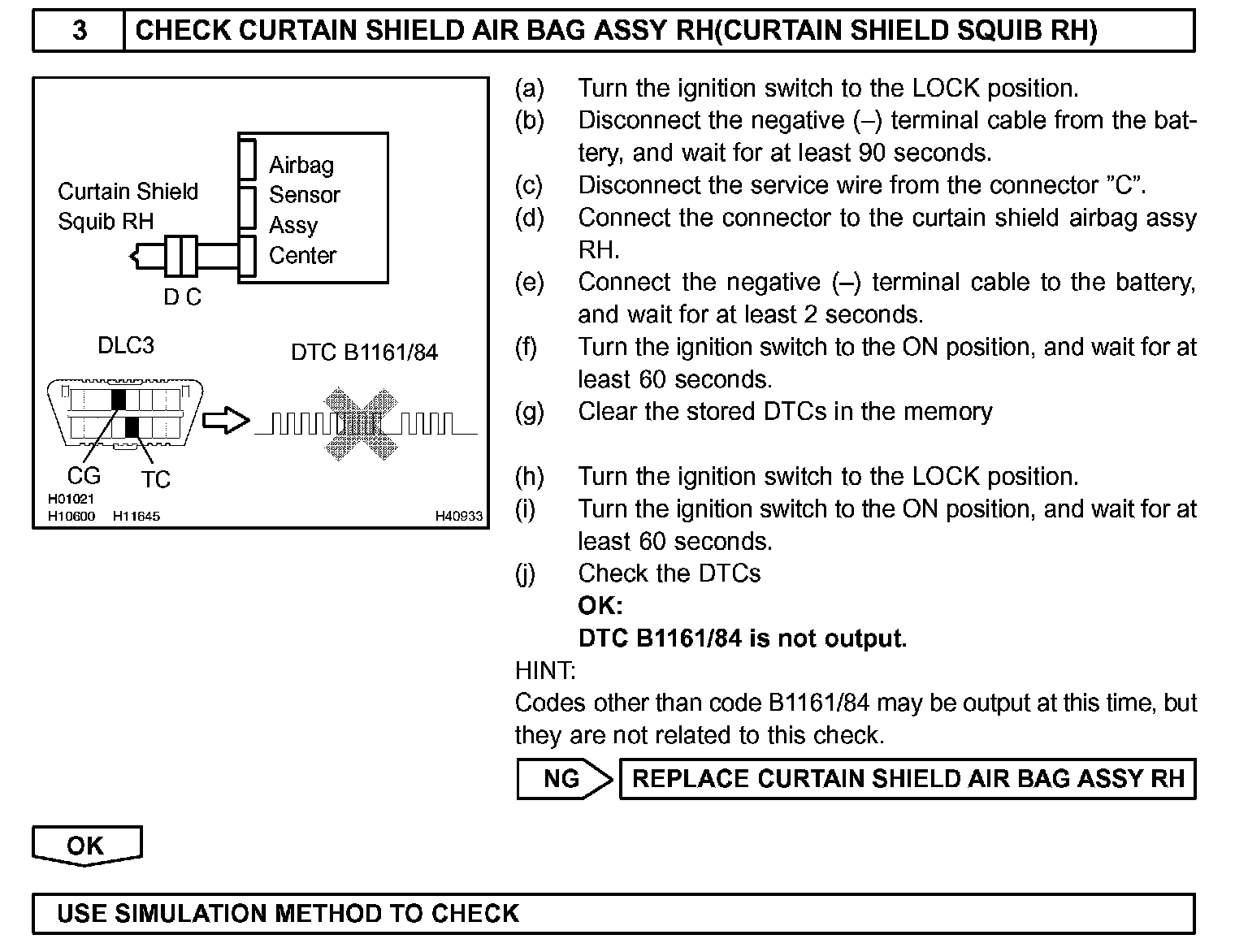

Step 3:

INSPECTION PROCEDURE
