B1153

DTC B1153 SEAT POSITION AIRBAG SENSOR MALFUNCTION

CIRCUIT DESCRIPTION

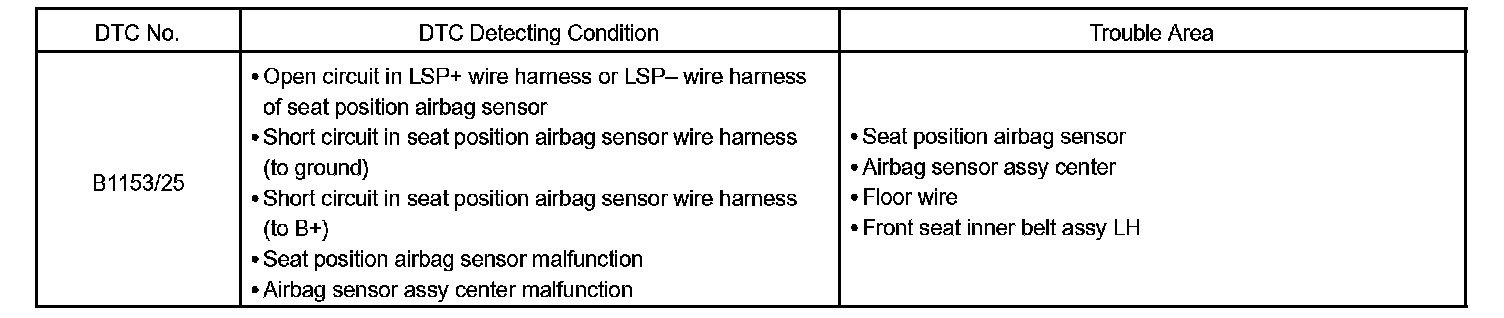

DTC Detecting Condition:

The seat position airbag sensor circuit consists of the airbag sensor assembly center and the seat position airbag sensor.

DTC B1153/25 is recorded when a malfunction is detected in the seat position airbag sensor circuit.

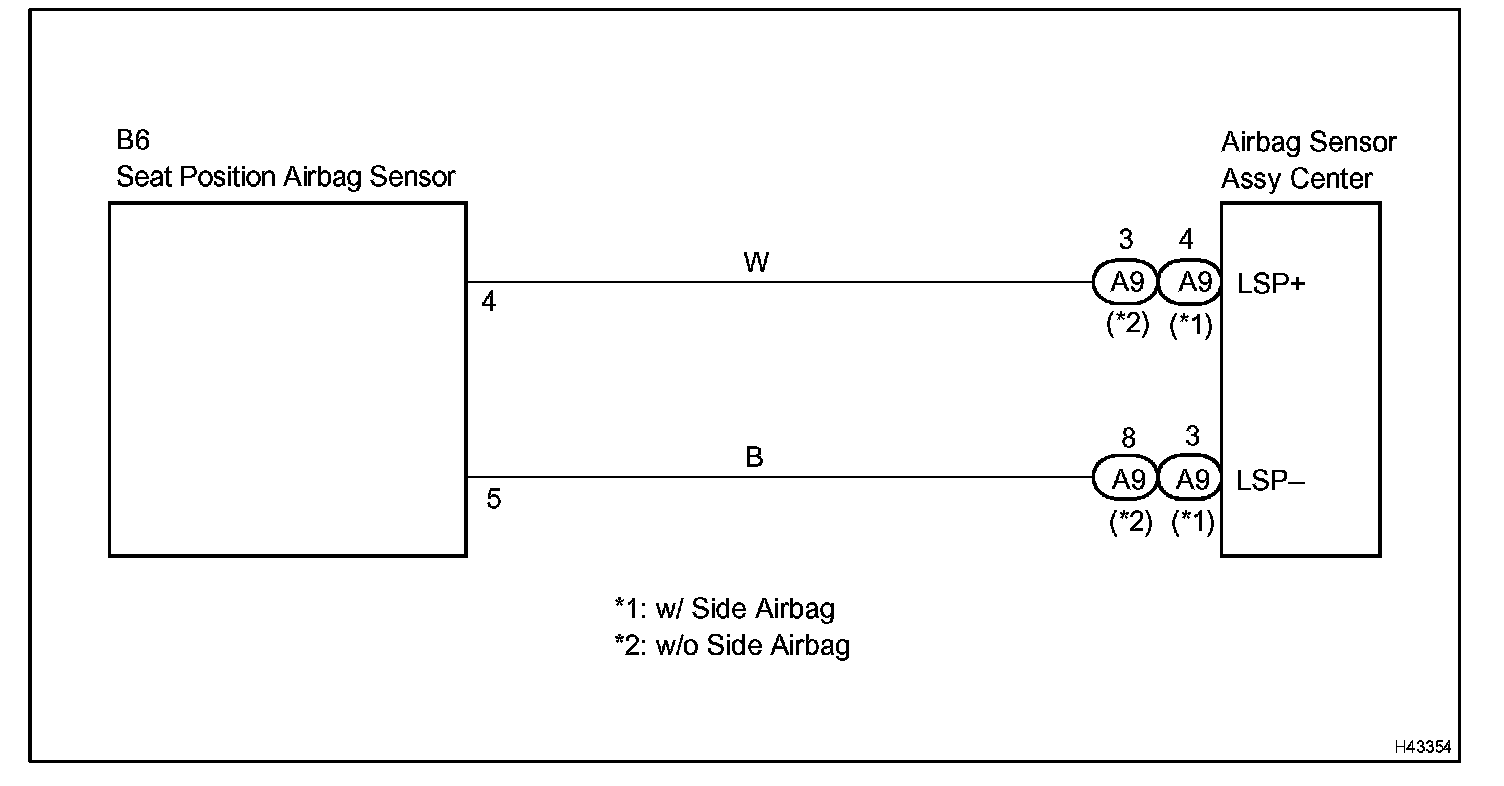

Wiring Diagram:

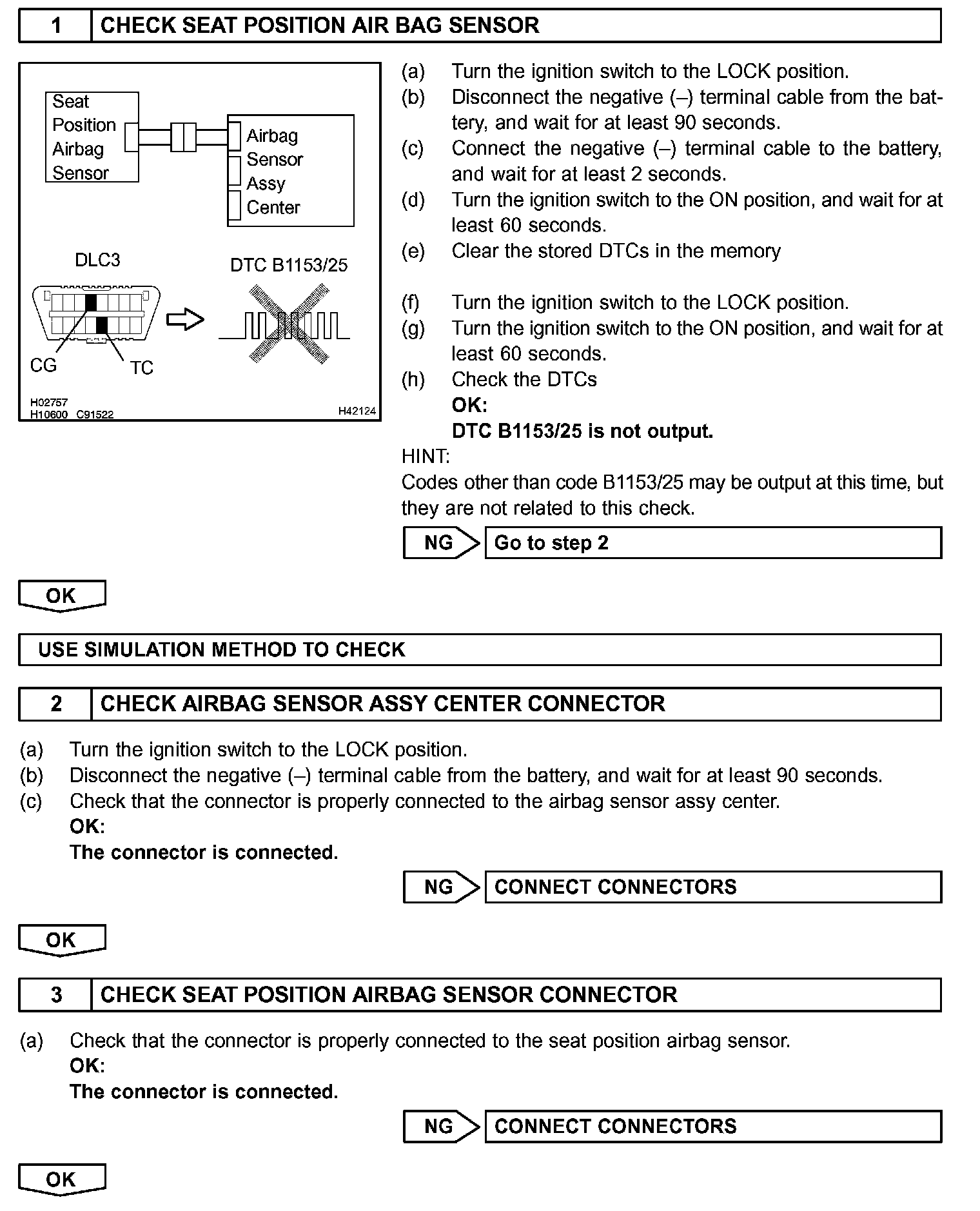

Step 1 - 3:

Step 4:

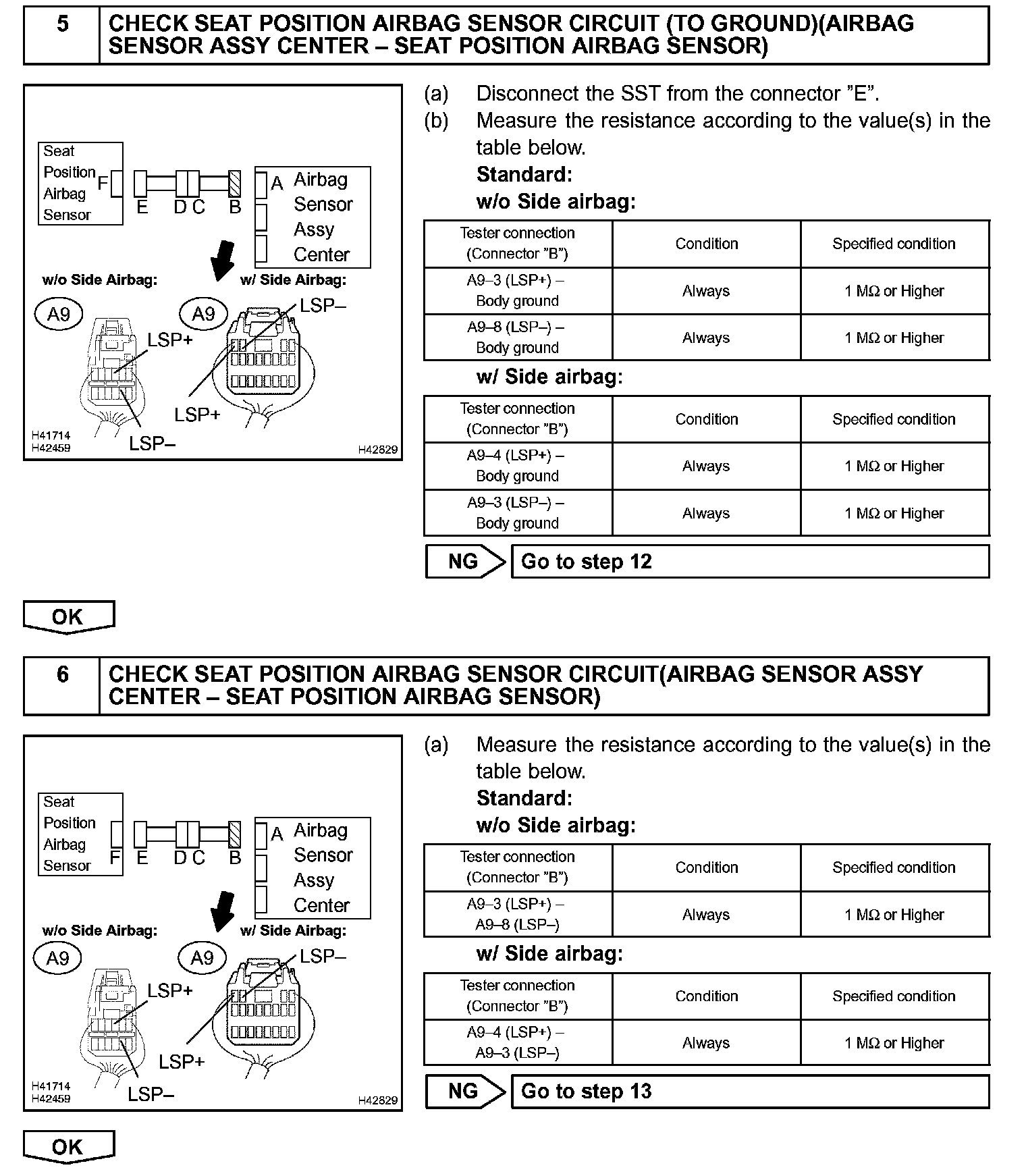

Step 5 - 6:

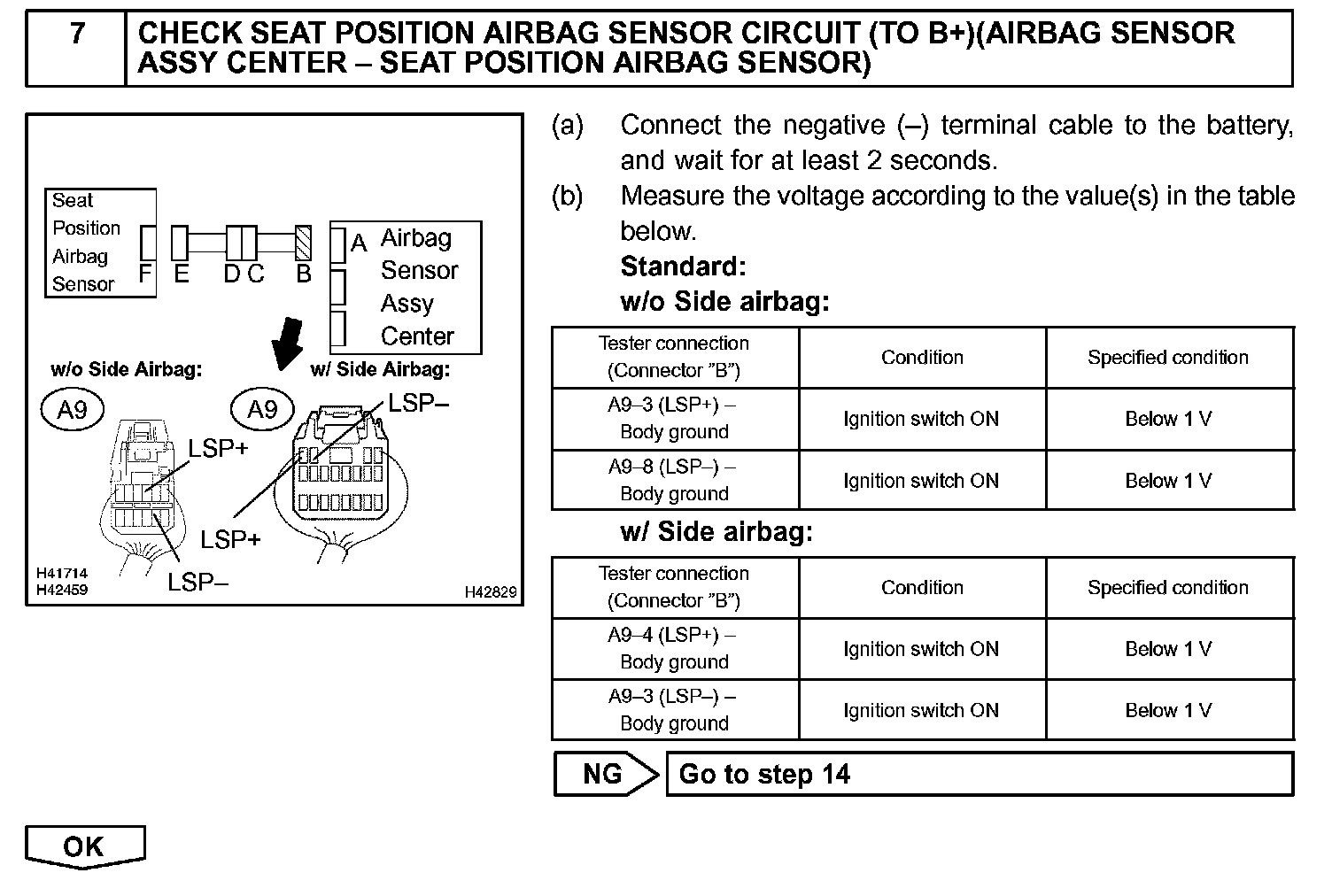

Step 7:

Step 8:

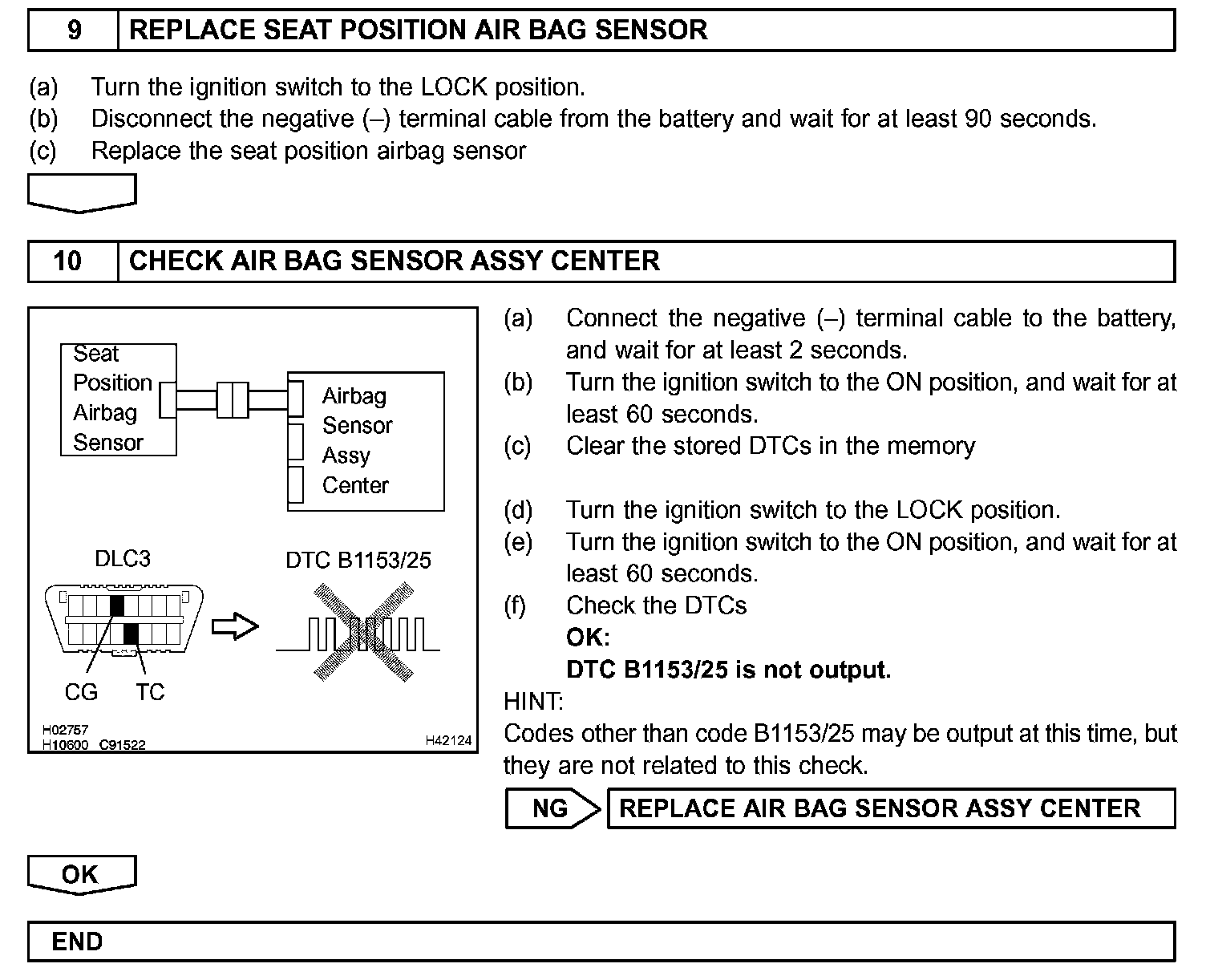

Step 9 - 10:

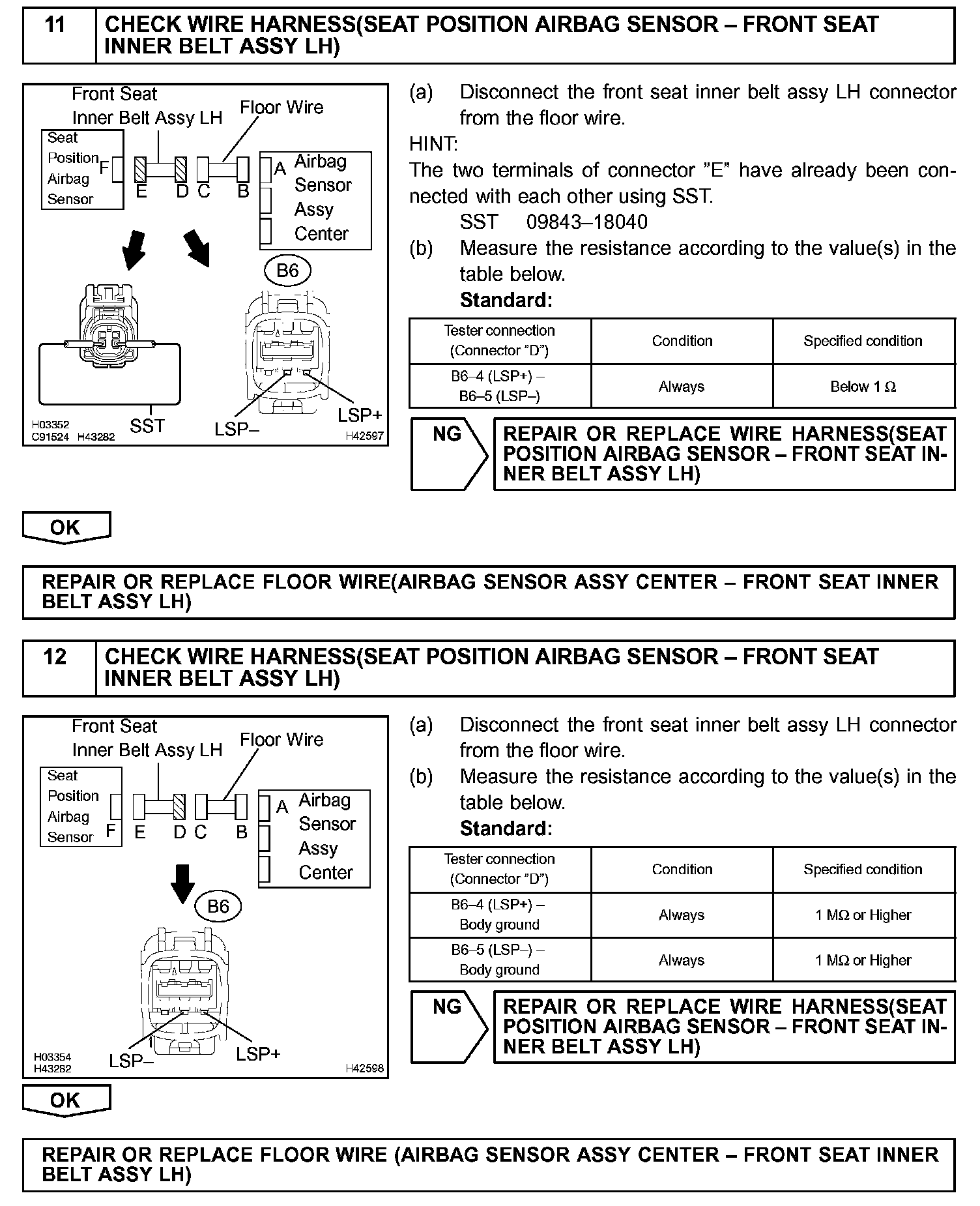

Step 11 - 12:

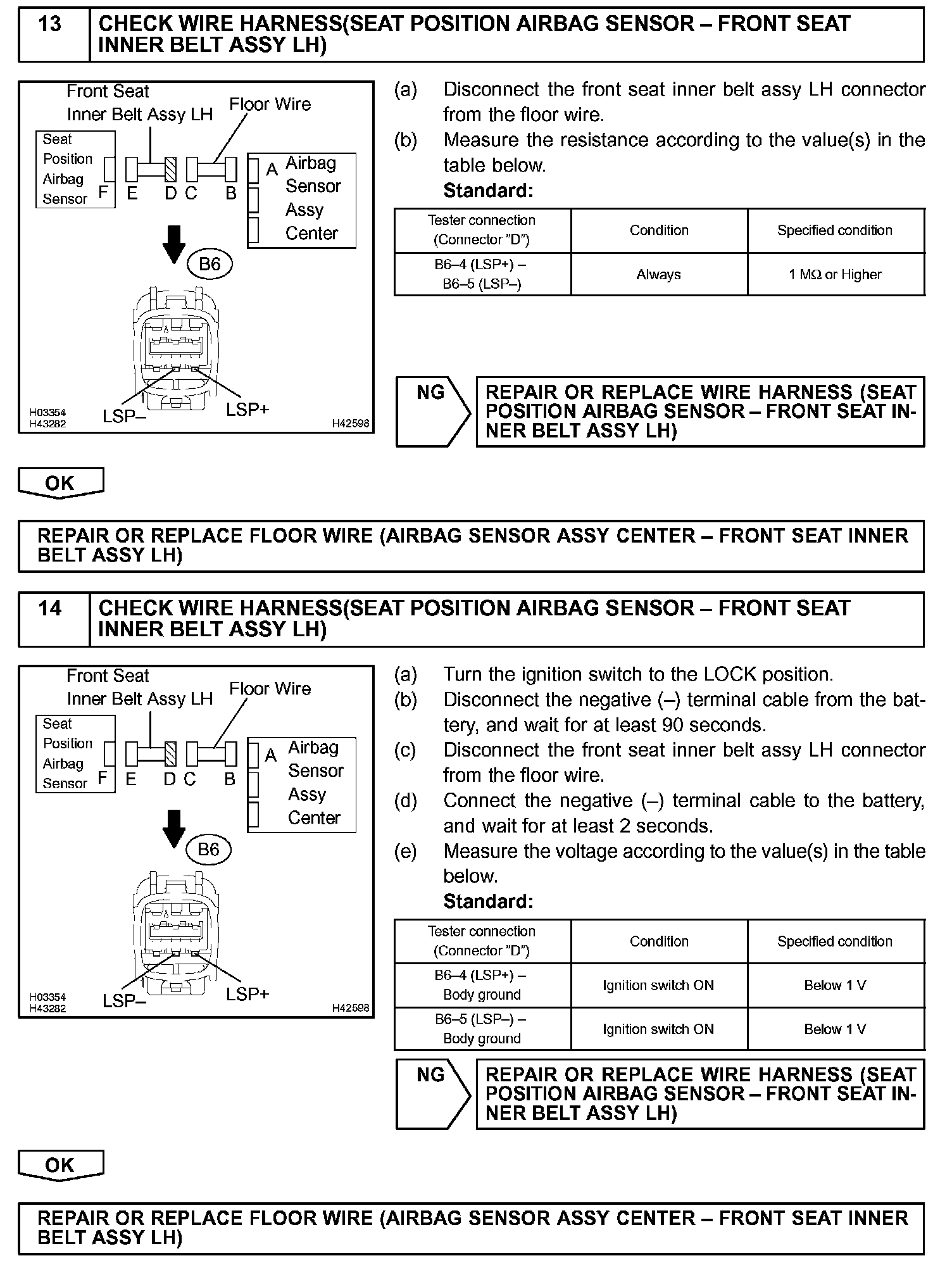

Step 13 - 14:

INSPECTION PROCEDURE
