B1140

DTC B1140 SIDE AIRBAG SENSOR ASSEMBLY (RH) MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side airbag sensor assembly RH consists of the diagnosis circuit and the lateral deceleration sensor, etc. If the airbag sensor assembly center receives signals from the lateral deceleration sensor, it judges whether or not the SRS should be activated.

DTC B1140/32 is recorded when a malfunction is detected in the side airbag sensor assembly RH circuit.

Wiring Diagram:

Step 1 - 2:

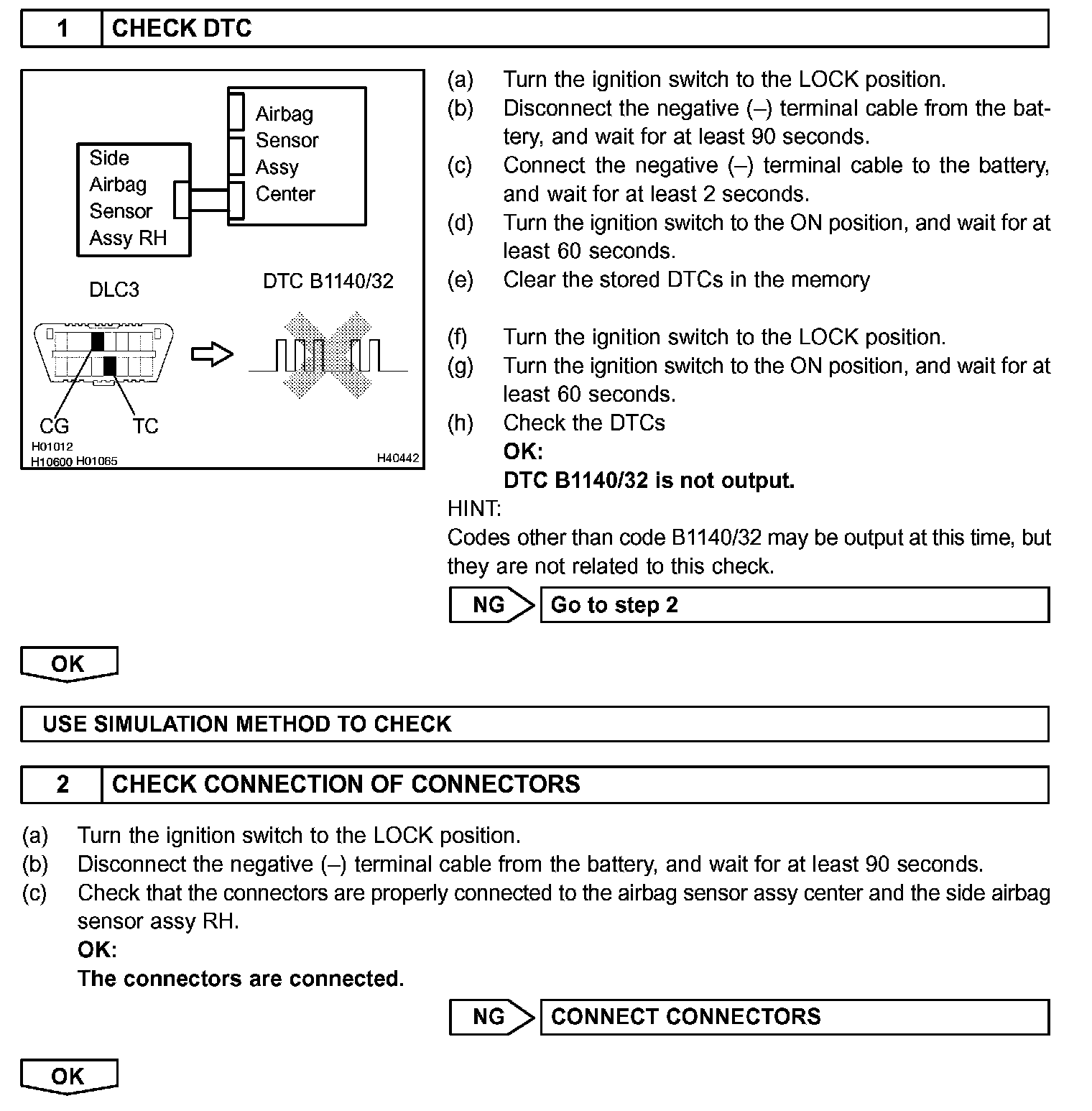

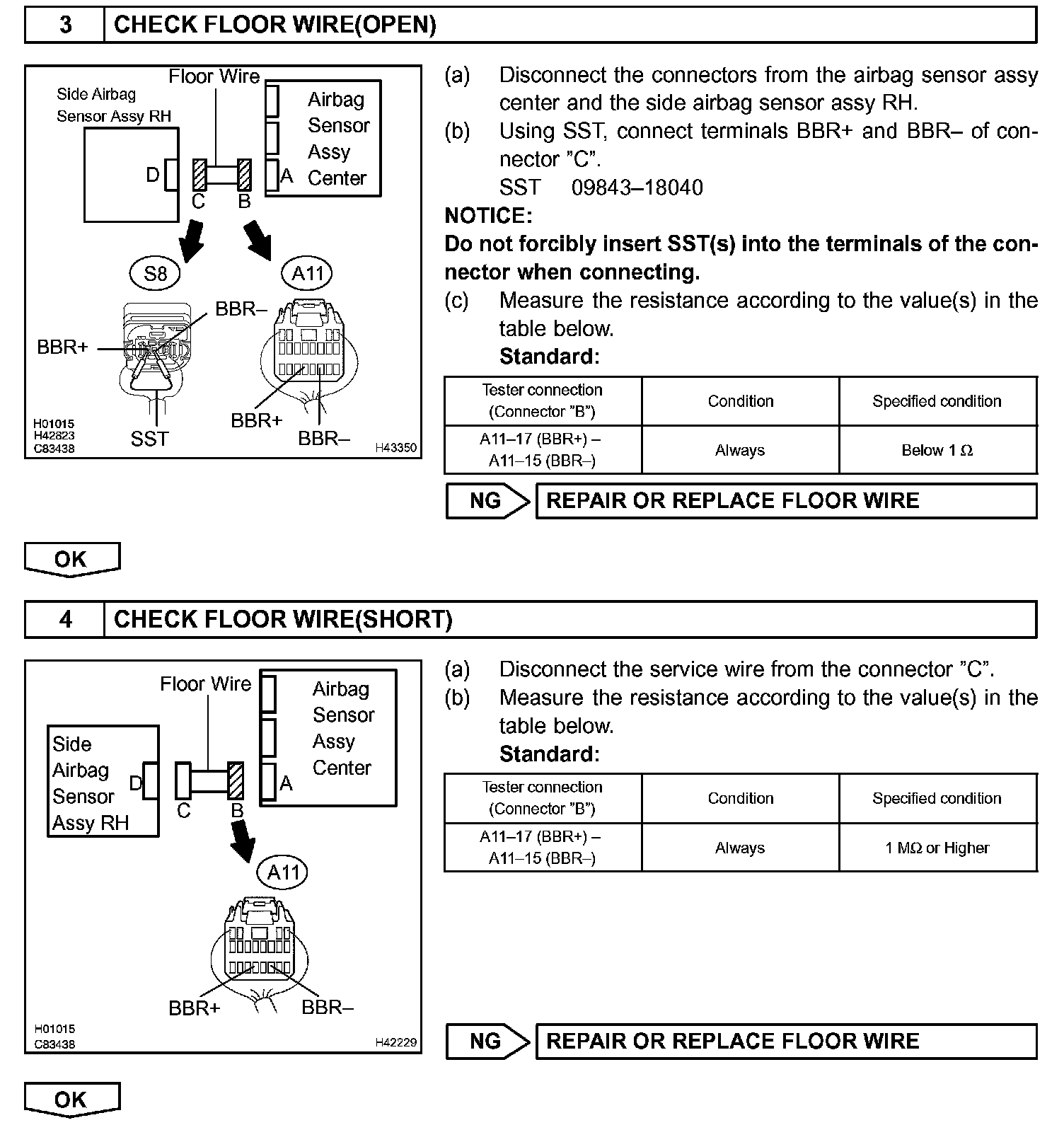

Step 3 - 4:

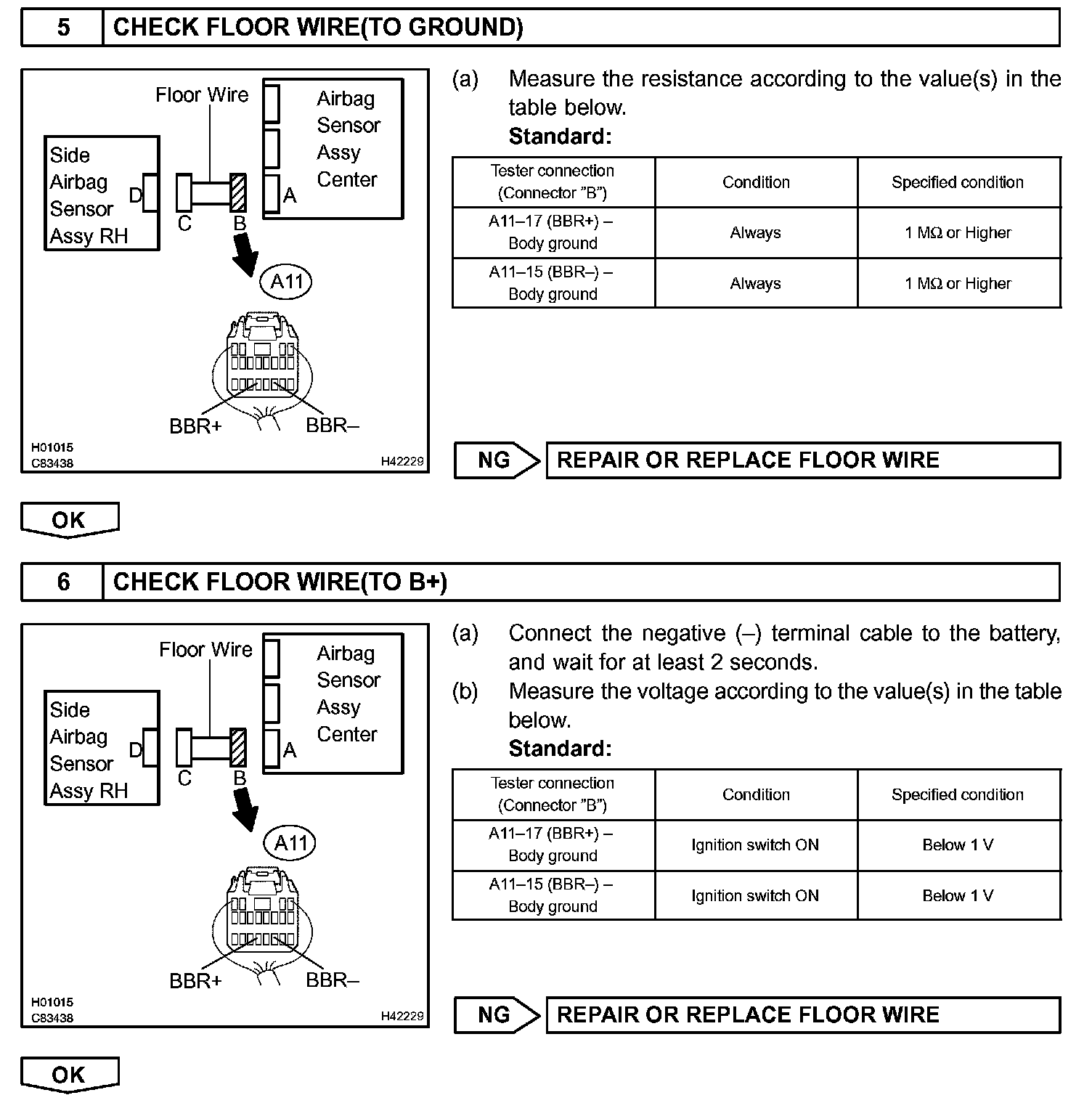

Step 5 - 6:

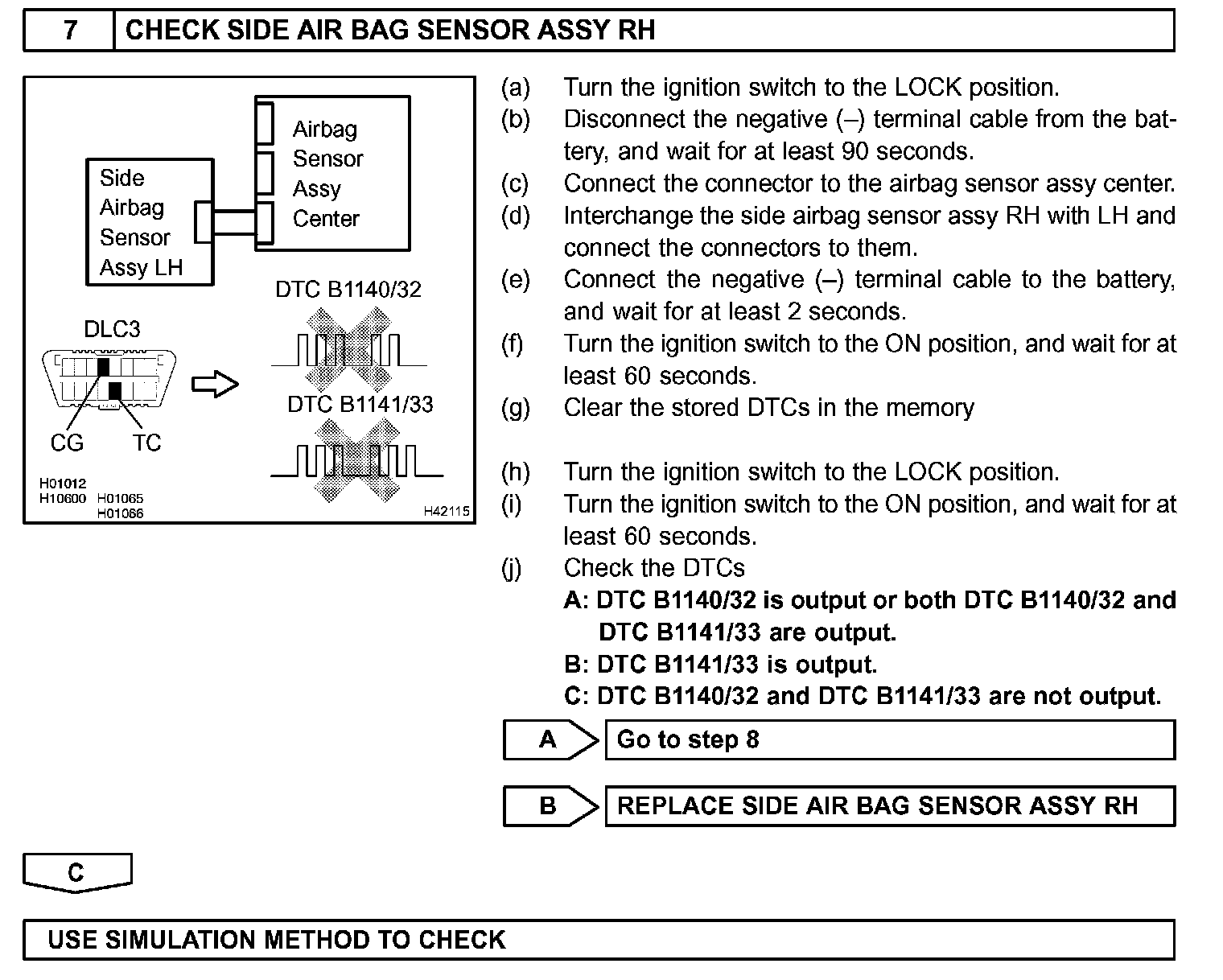

Step 7:

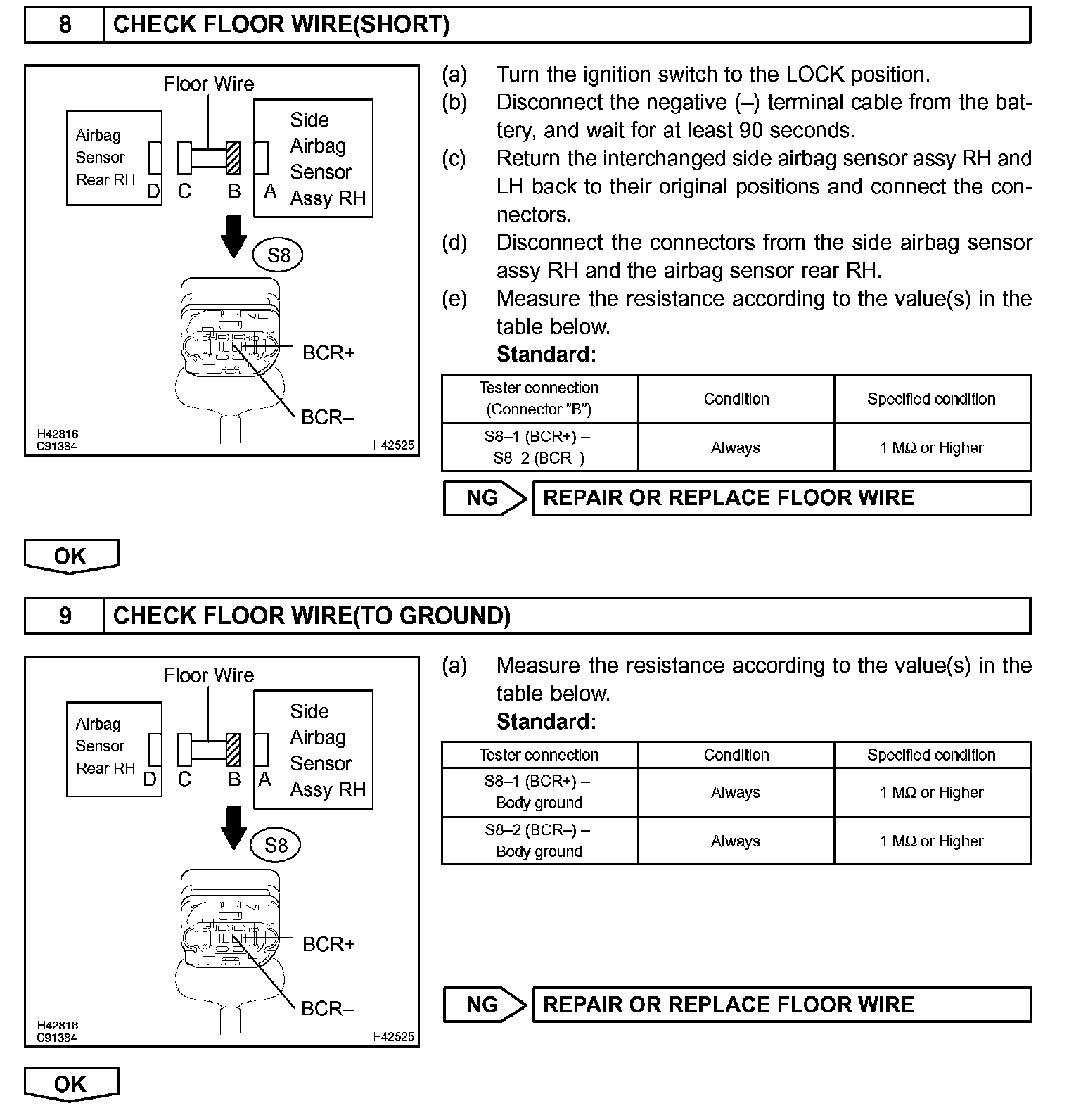

Step 8 - 9:

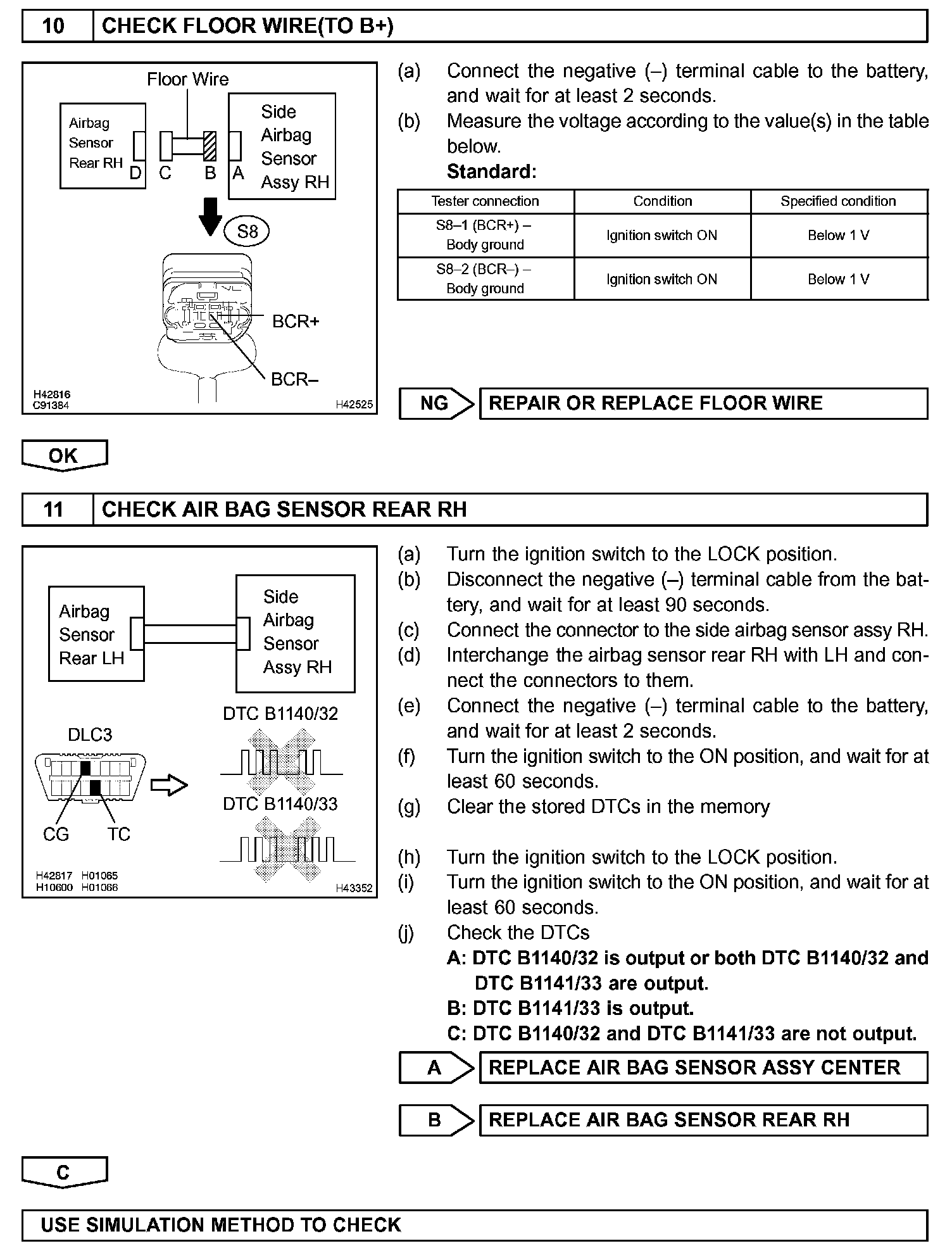

Step 10 - 11:

INSPECTION PROCEDURE
