B0118

DTC B0118 SHORT IN SIDE SQUIB (LH) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly center and the front seat airbag assembly LH (side squib LH).

This circuit actuates the SRS to deploy when deployment conditions are met.

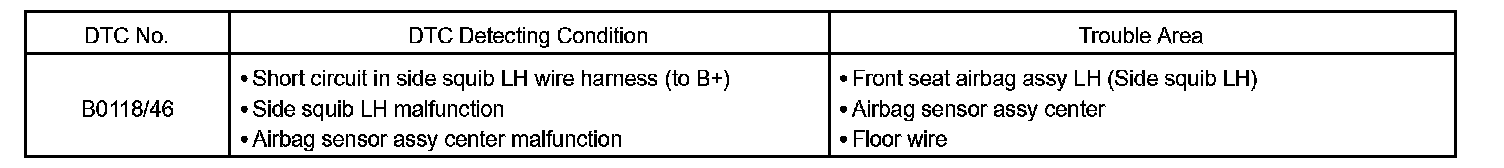

DTC B0118/46 is recorded when a short to B+ is detected in the side squib LH circuit.

HINT: DTC B0118/46 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

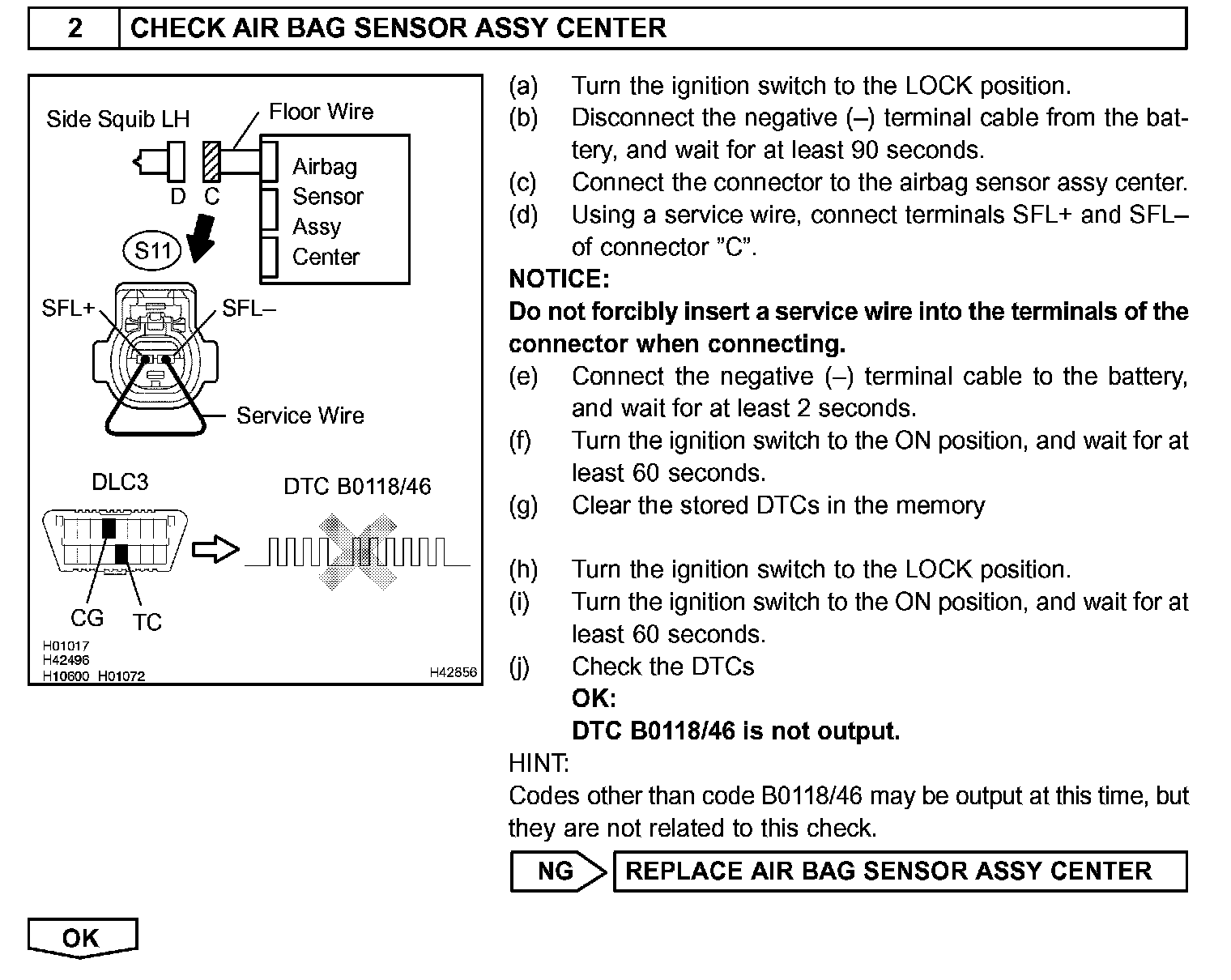

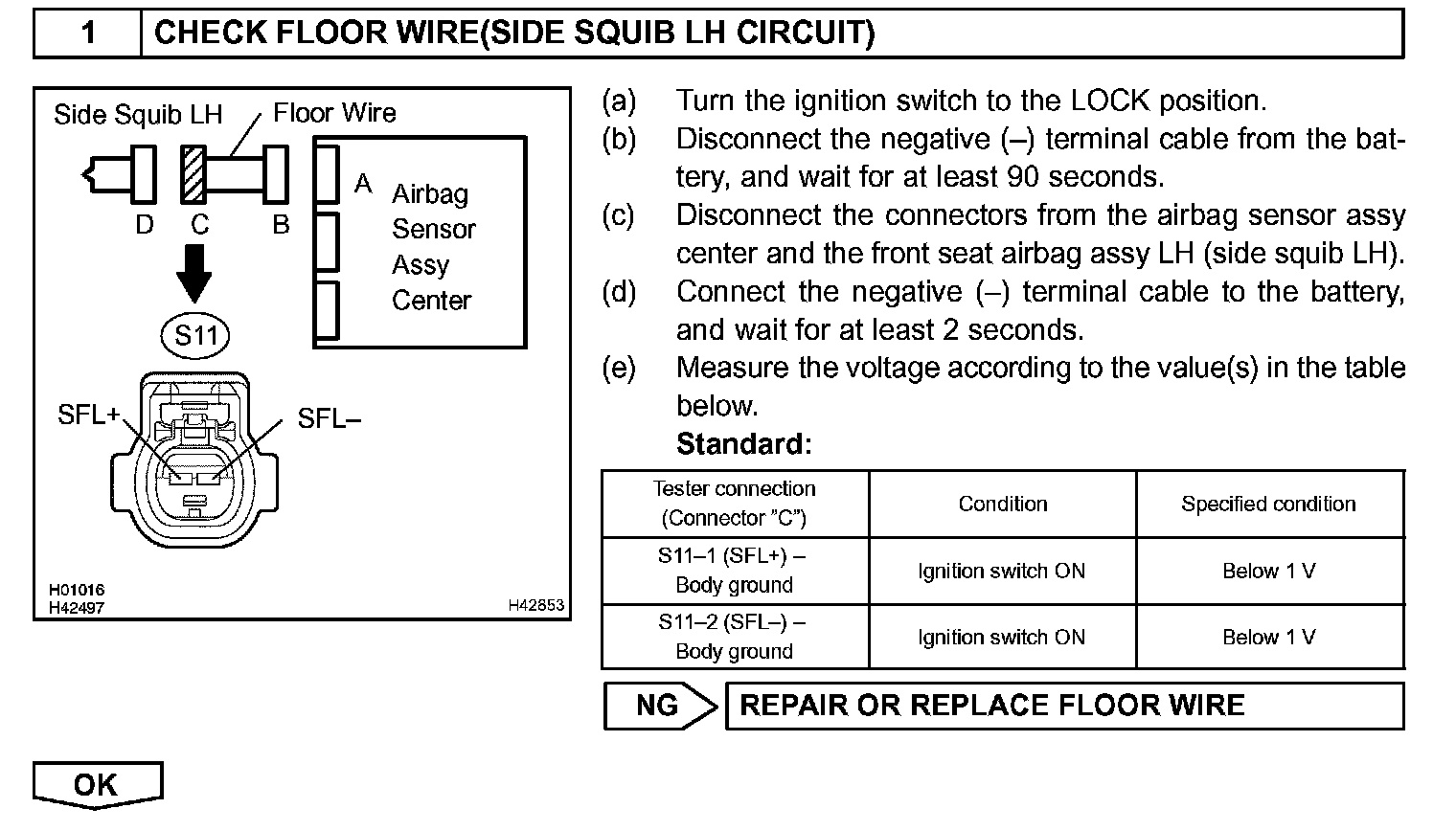

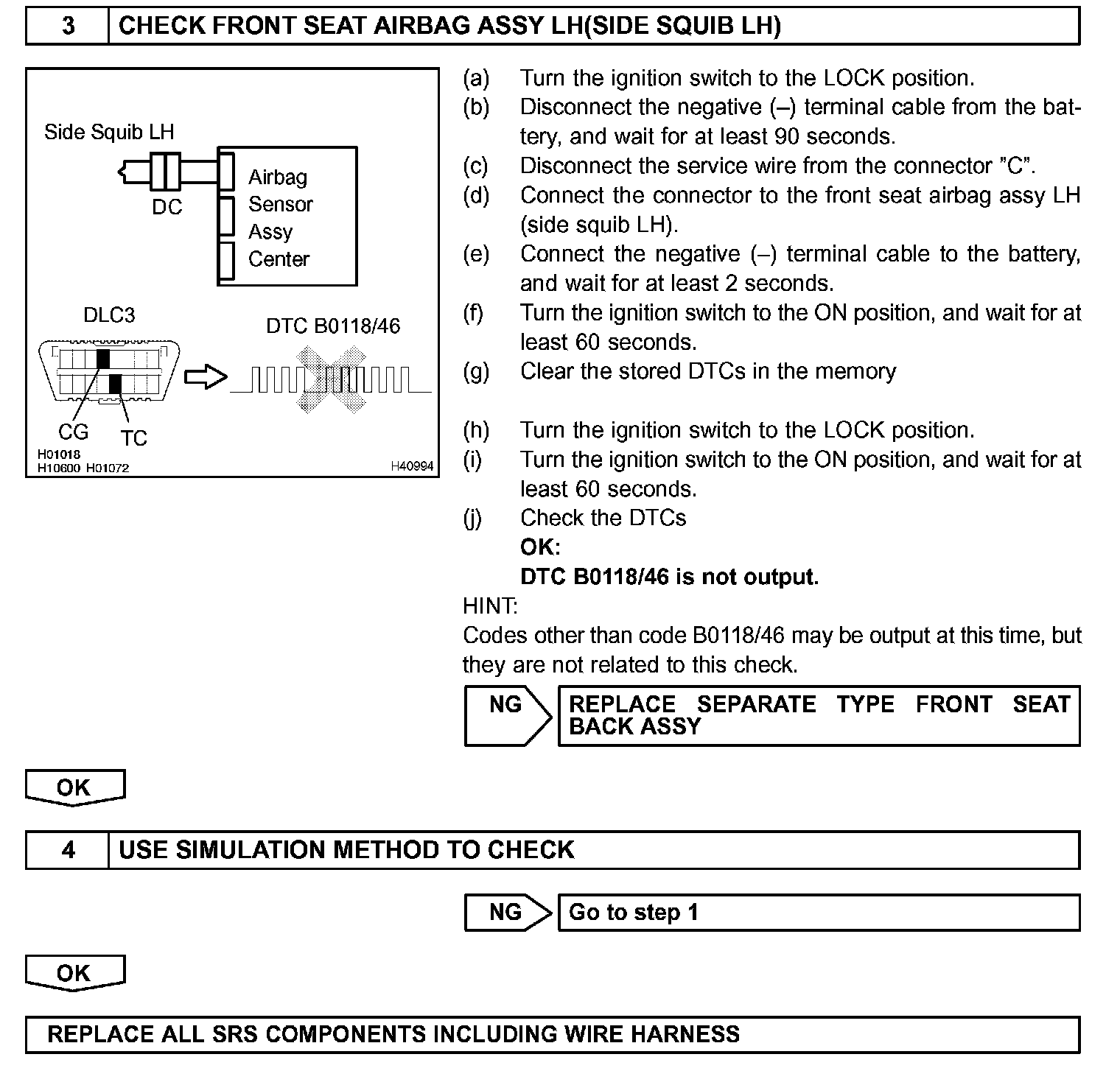

INSPECTION PROCEDURE
