B0115

DTC B0115 SHORT IN SIDE SQUIB (LH) CIRCUIT

CIRCUIT DESCRIPTION

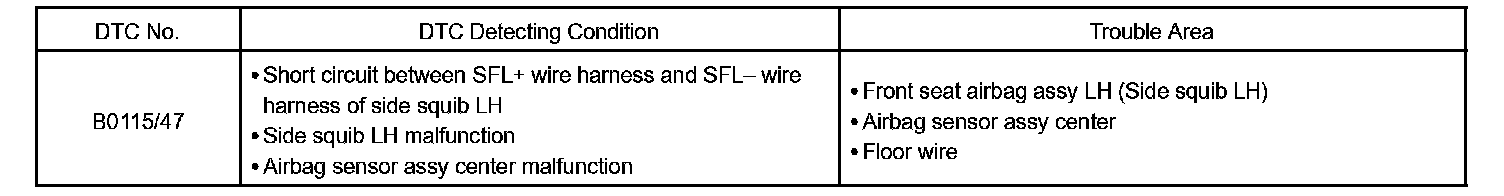

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly center and the front seat airbag assembly LH (side squib LH).

This circuit actuates the SRS to deploy when deployment conditions are met.
DTC B0115/47 is recorded when a short circuit is detected in the side squib LH circuit.

HINT: DTC B0115/47 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

Step 1 - 2:

Step 3:

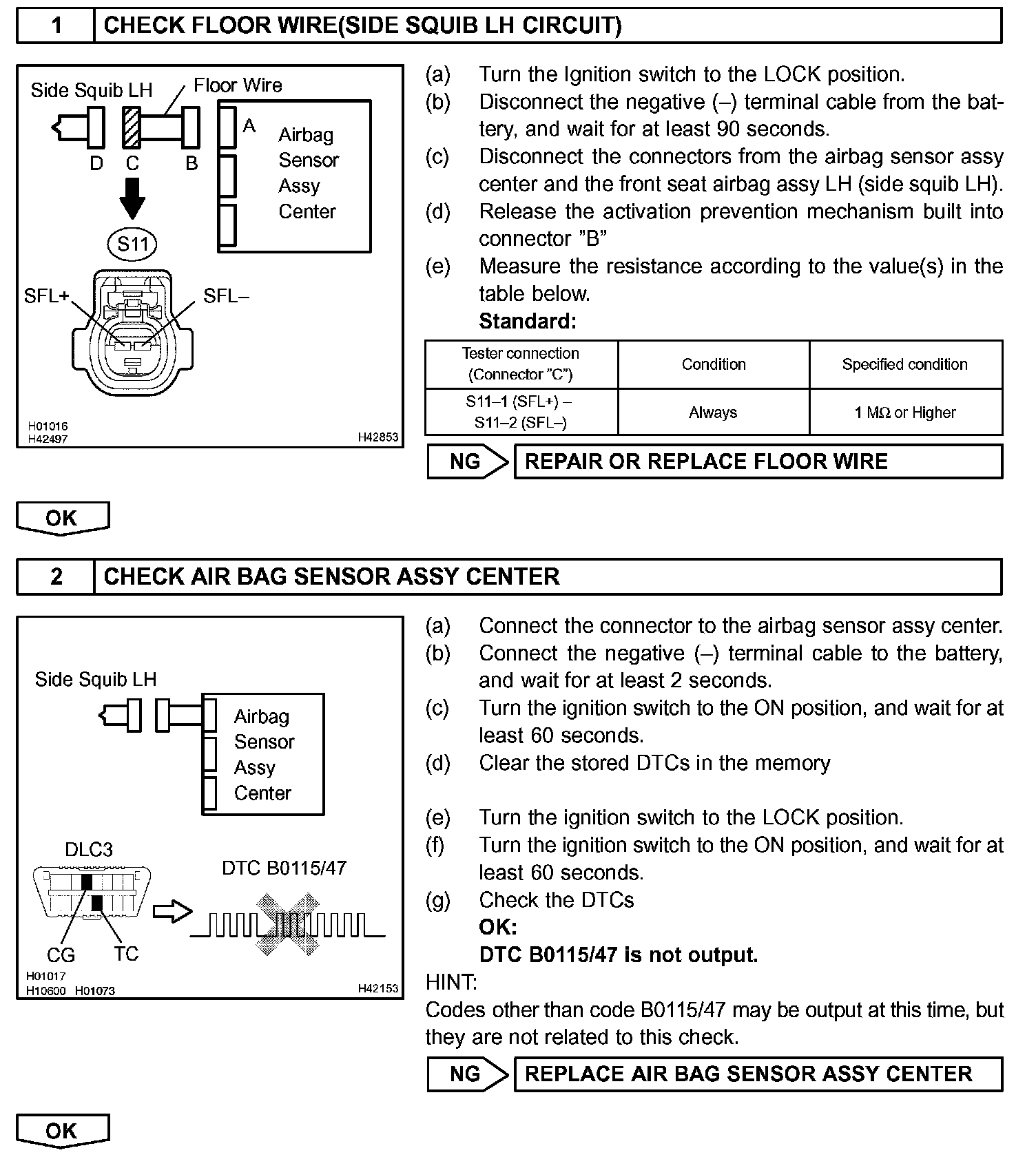

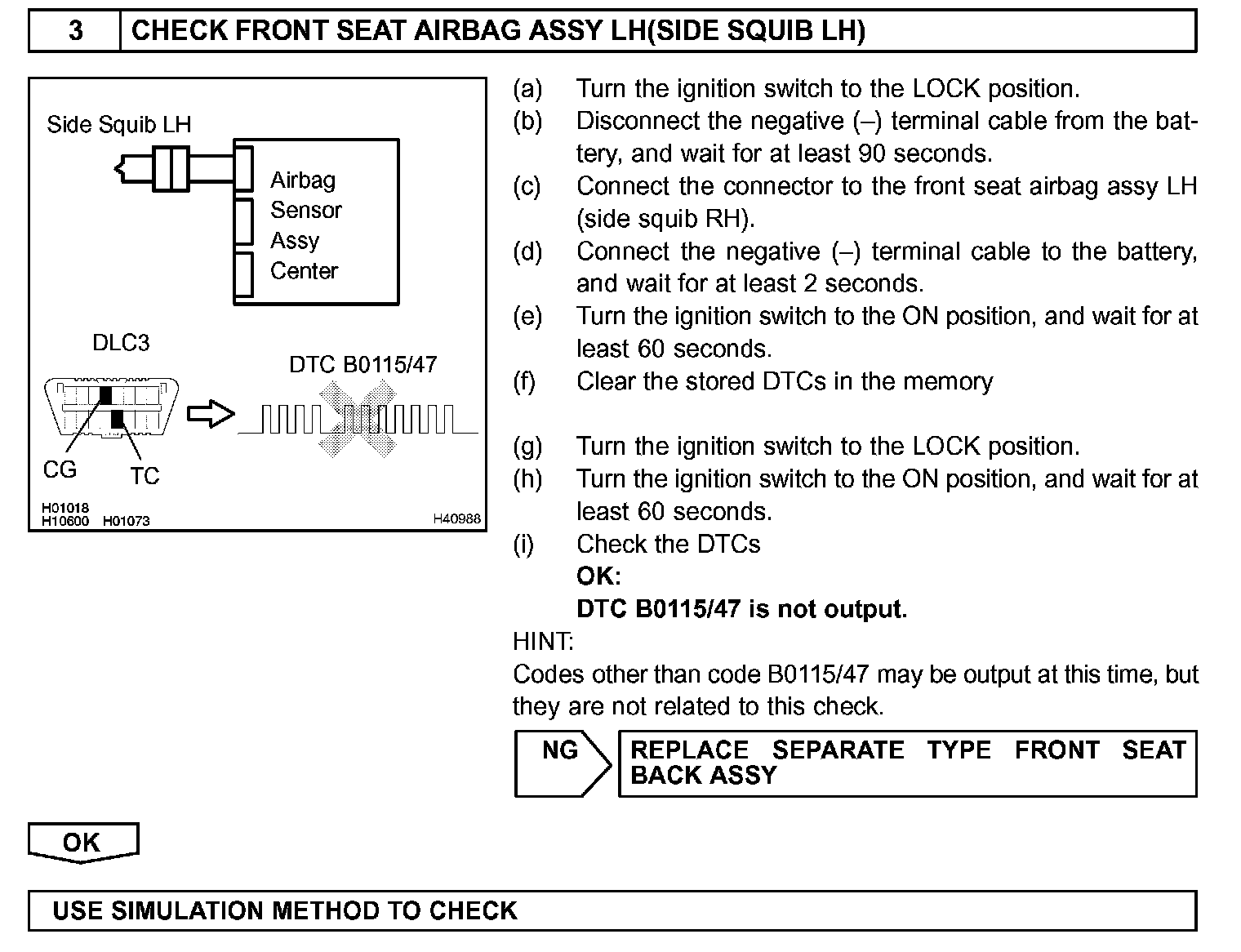

INSPECTION PROCEDURE
