B0113

DTC B0113 SHORT IN SIDE SQUIB (RH) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assembly center and the front seat airbag assembly RH (side squib RH).

This circuit actuates the SRS to deploy when deployment conditions are met.
DTC B0113/42 is recorded when a short to B+ is detected in the side squib RH circuit.

HINT: DTC B0113/42 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

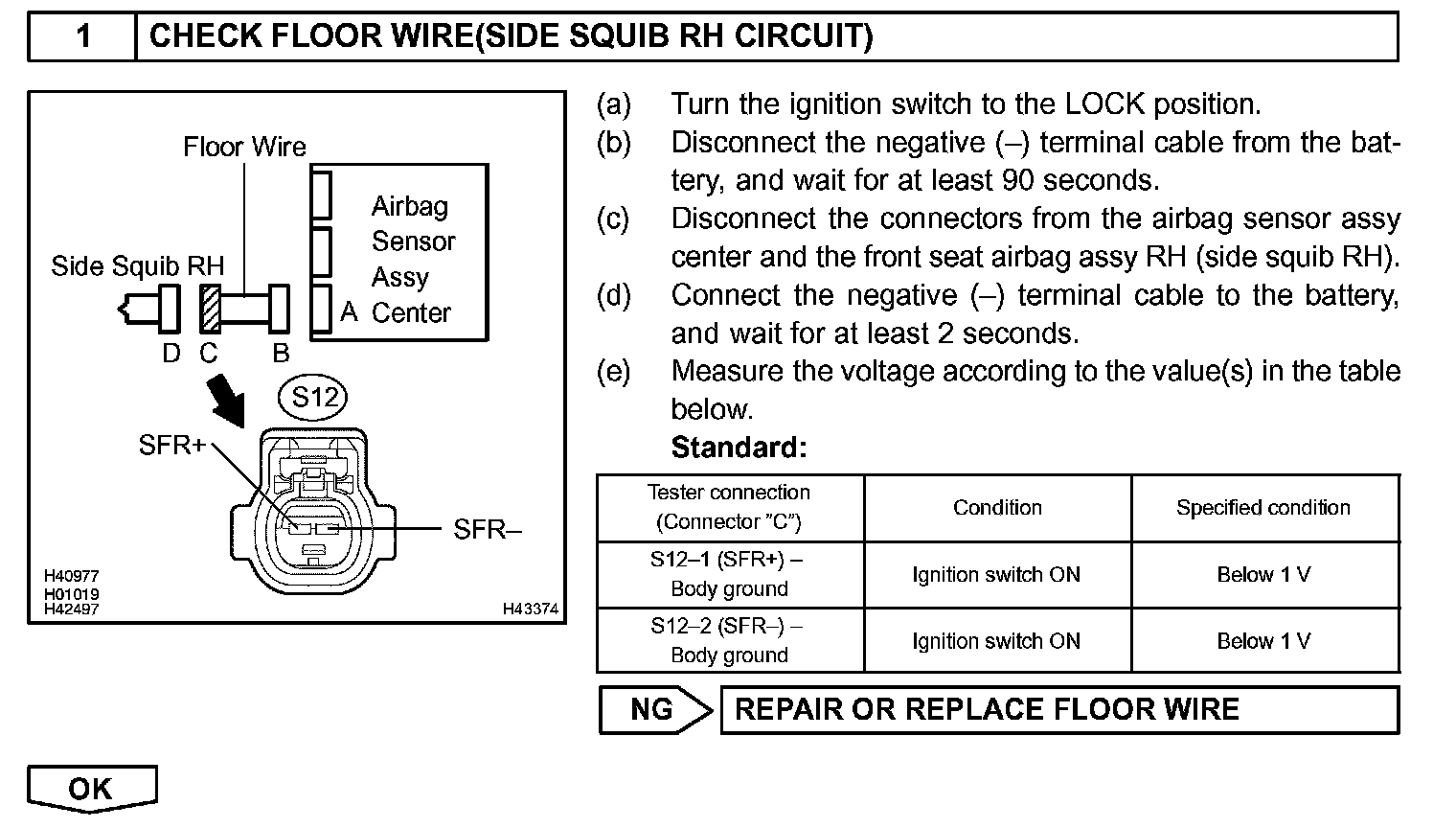

Step 1:

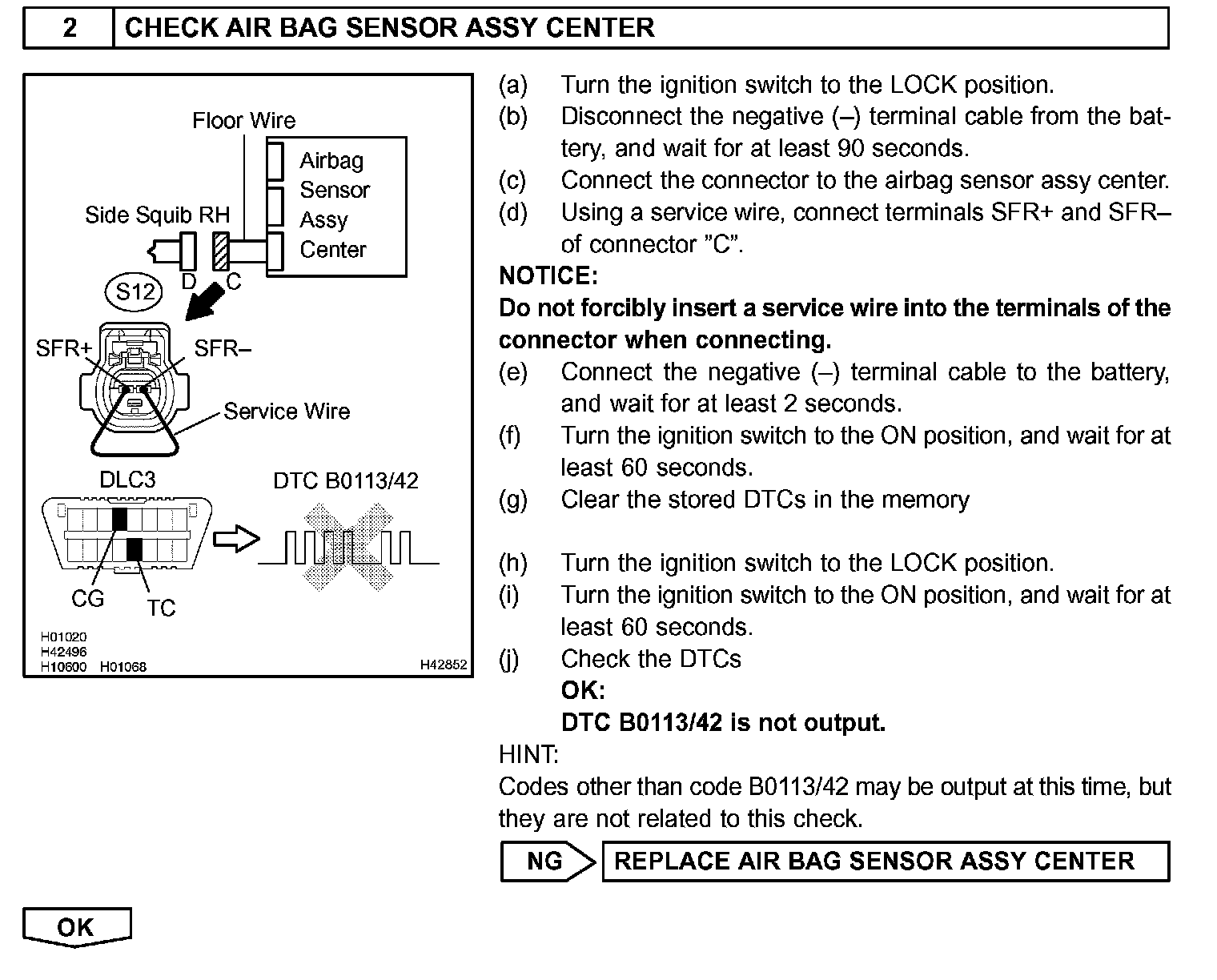

Step 2:

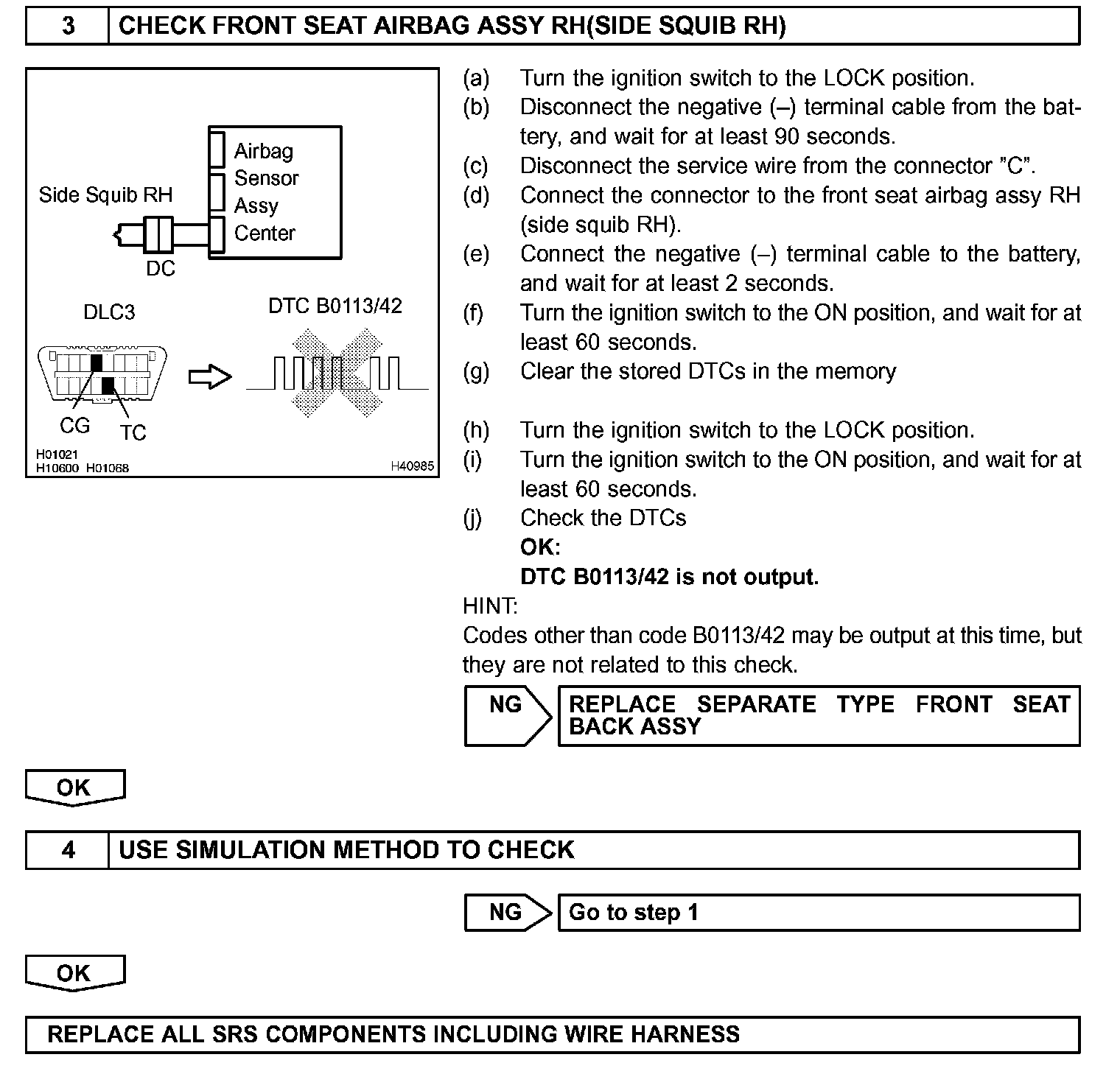

Step 3 - 4:

INSPECTION PROCEDURE
