B0110

DTC B0110 SHORT IN SIDE SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

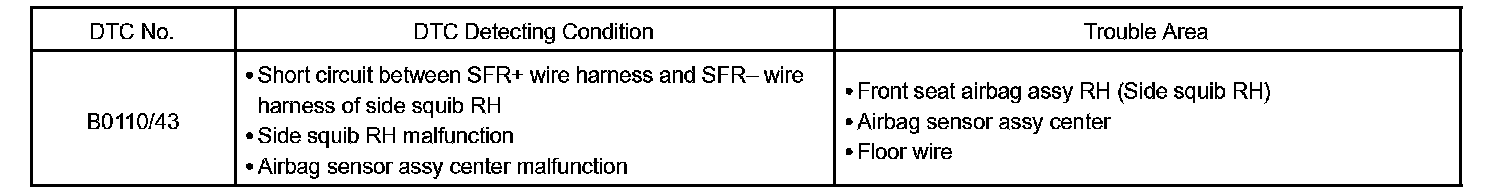

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assembly center and the front seat airbag assembly RH (side squib RH).

This circuit actuates the SRS to deploy when deployment conditions are met.
DTC B0110/43 is recorded when a short circuit is detected in the side squib RH circuit.

HINT: DTC B0110/43 is indicated only for the vehicle equipped with the side airbag.

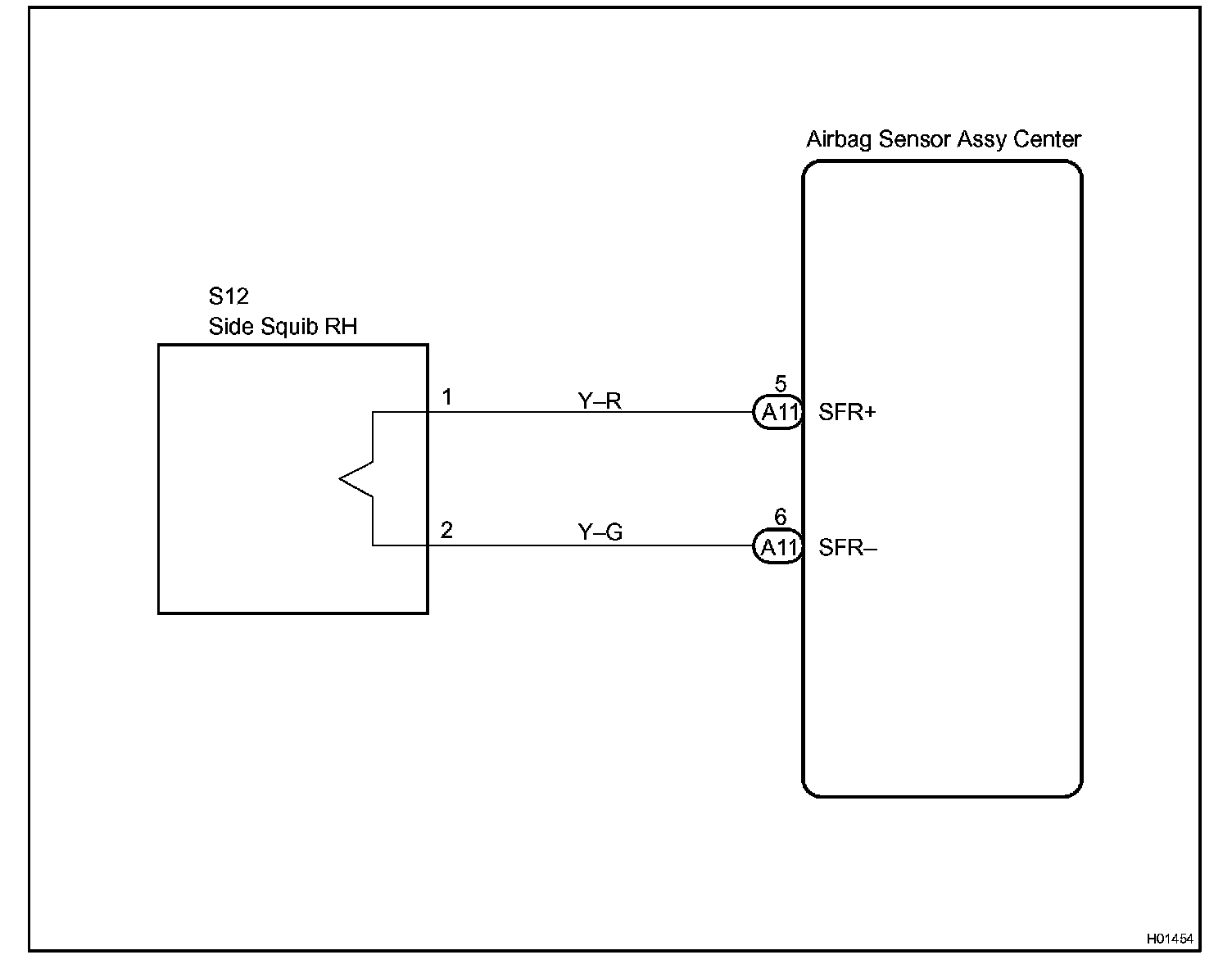

Wiring Diagram:

Step 1 - 2:

Step 3:

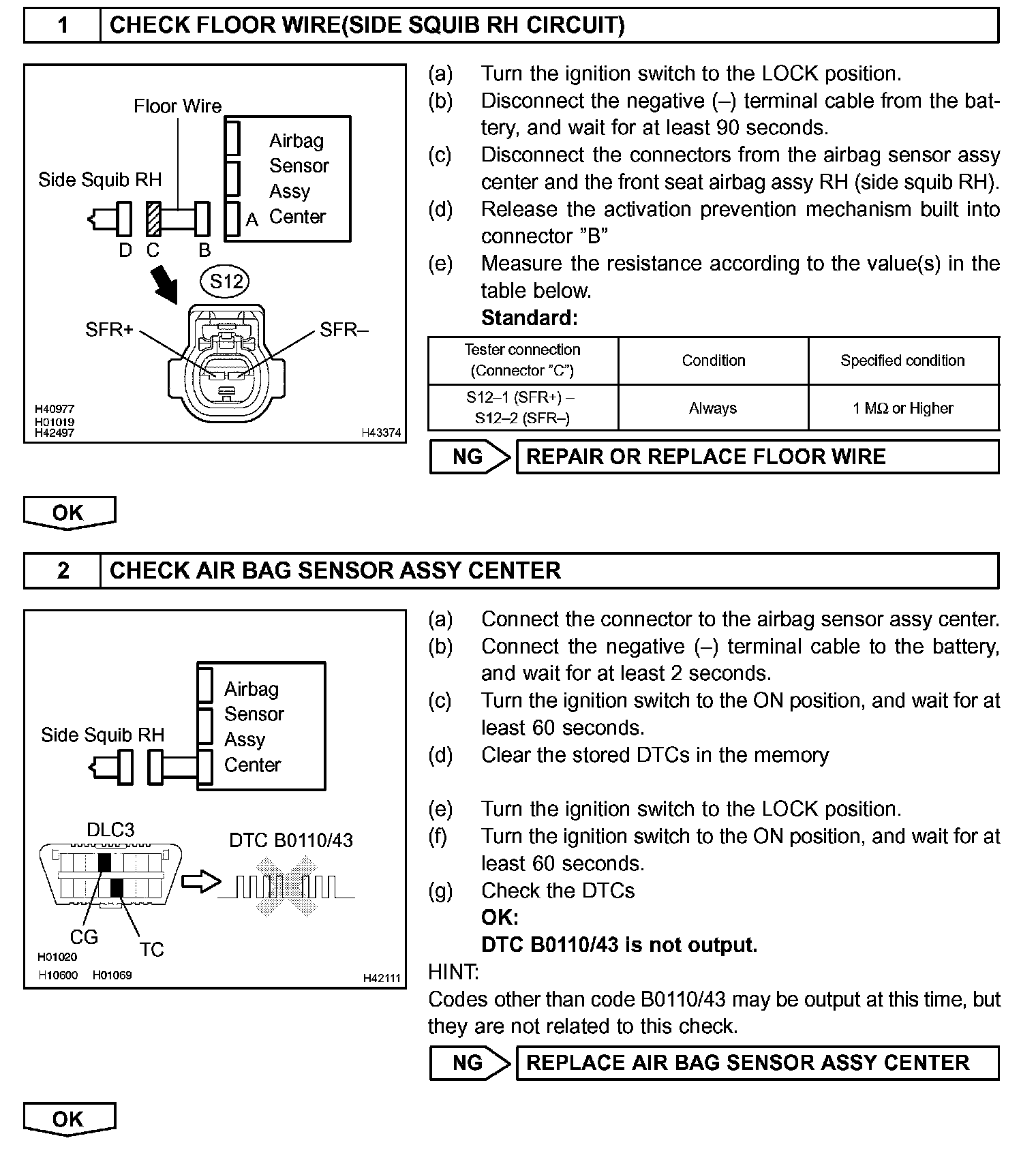

INSPECTION PROCEDURE
