B0102

DTC B0102 SHORT IN D SQUIB CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

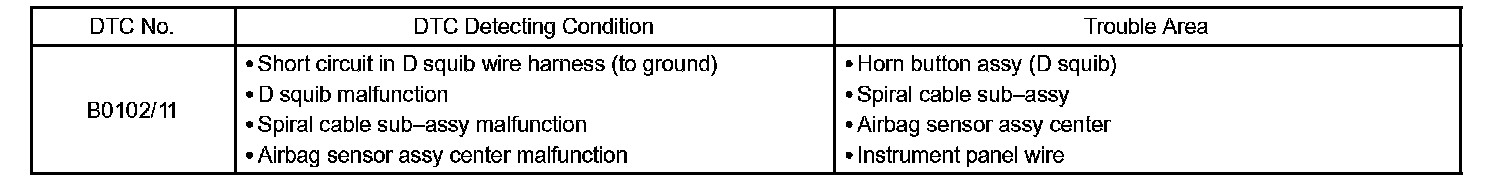

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly center, the spiral cable sub assembly and the horn button assembly.

This circuit actuates the SRS to deploy when deployment conditions are met.
DTC B0102/11 is recorded when a short to ground is detected in the D squib circuit.

Wiring Diagram:

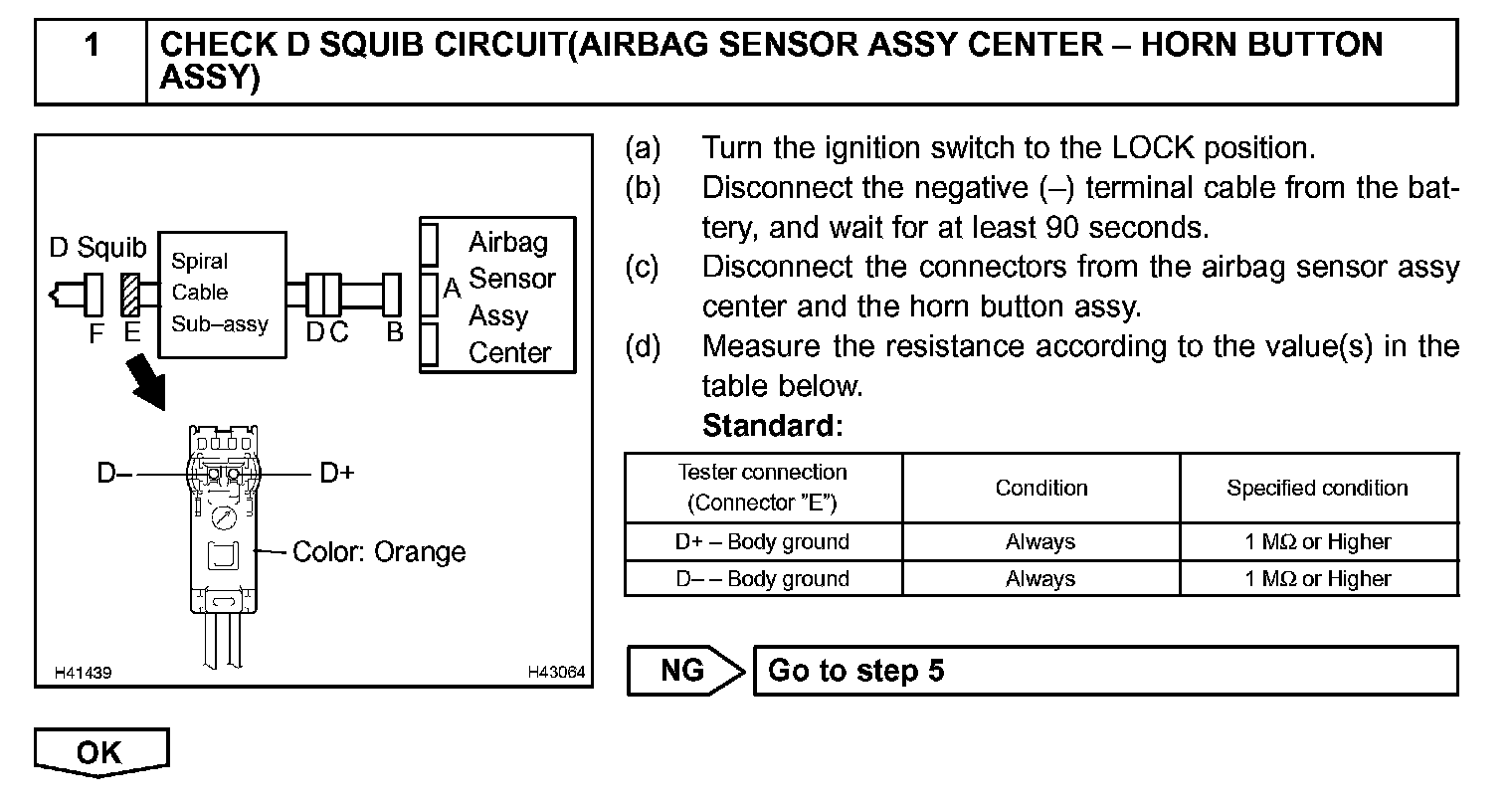

Step 1:

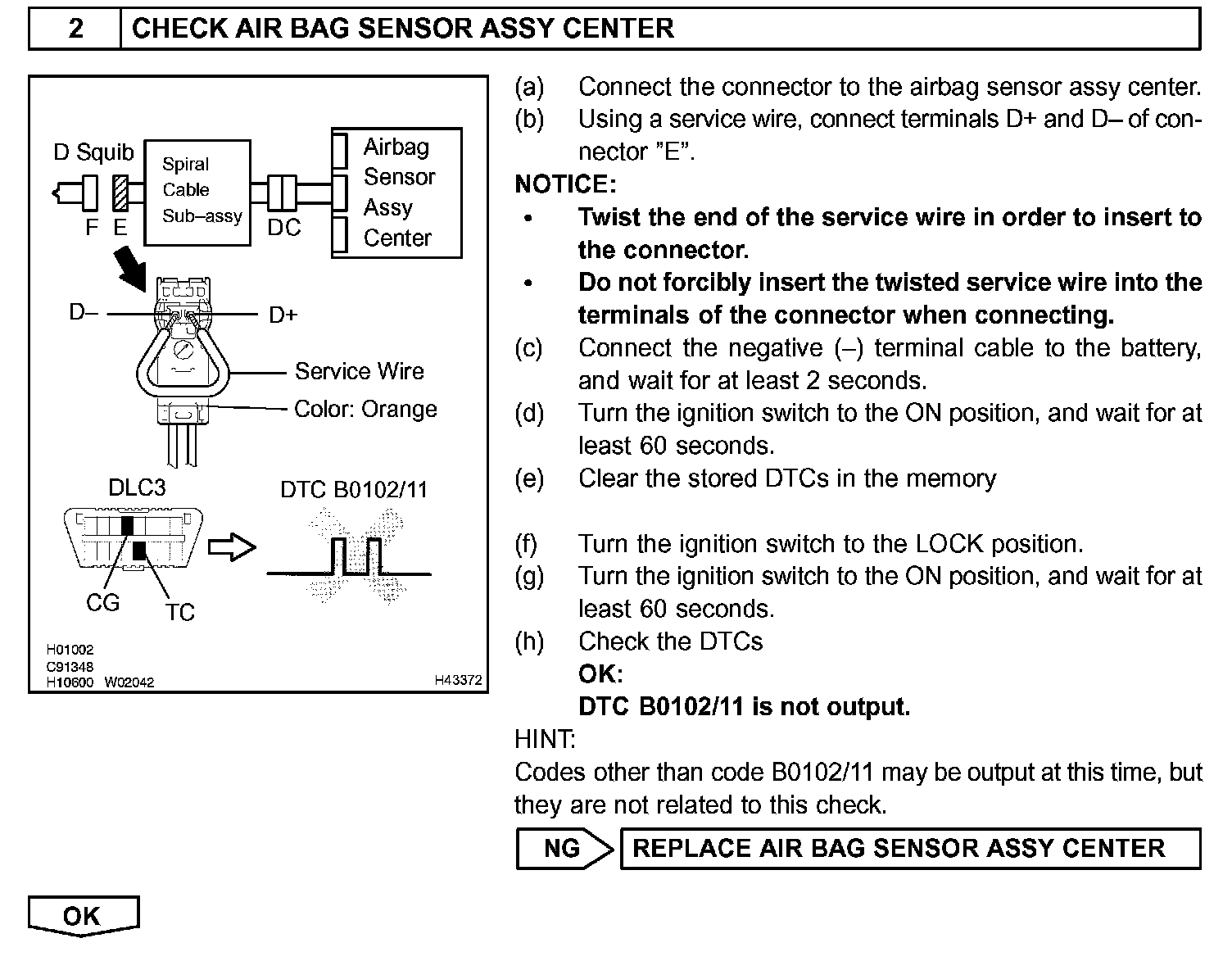

Step 2:

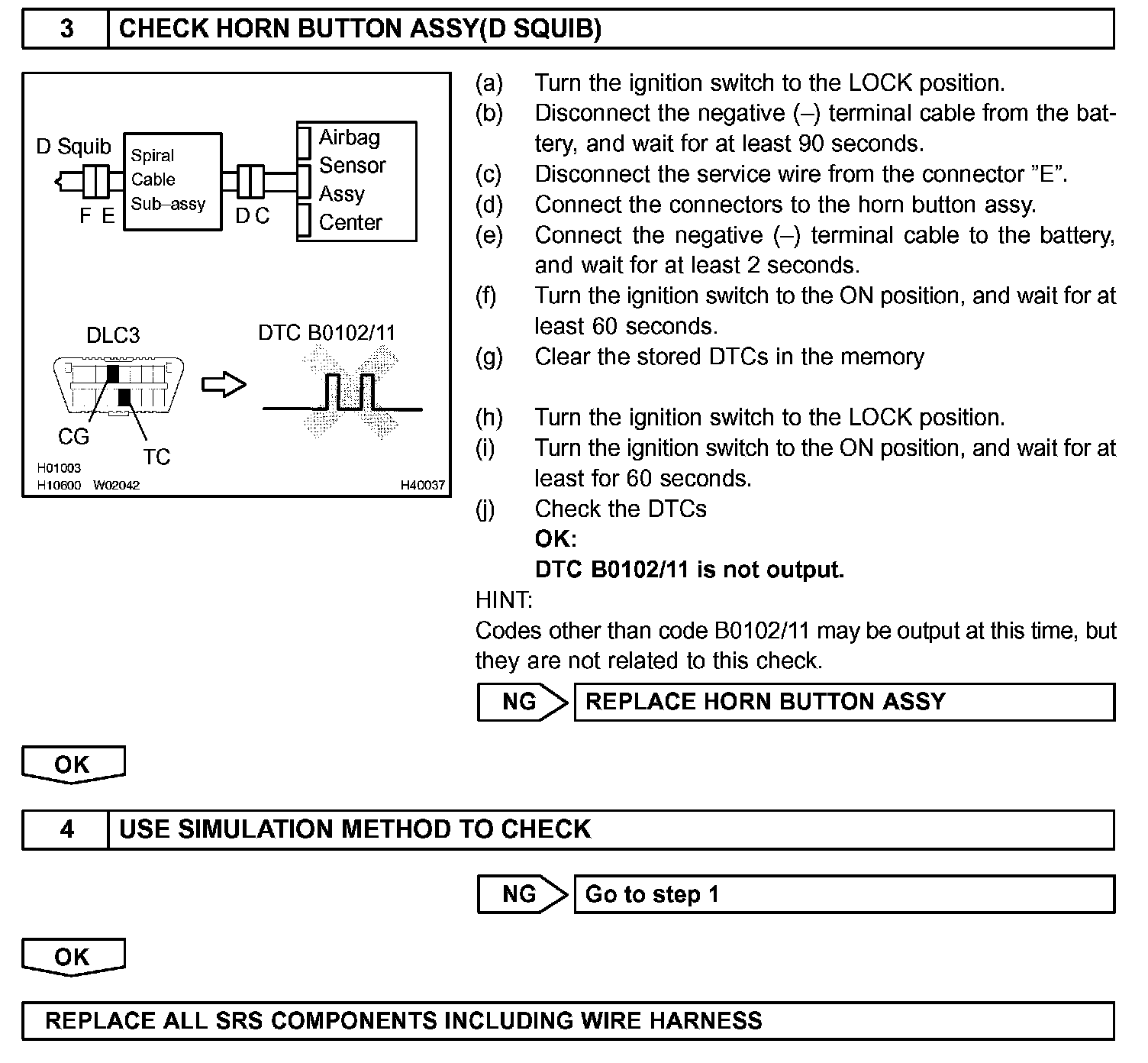

Step 3 - 4:

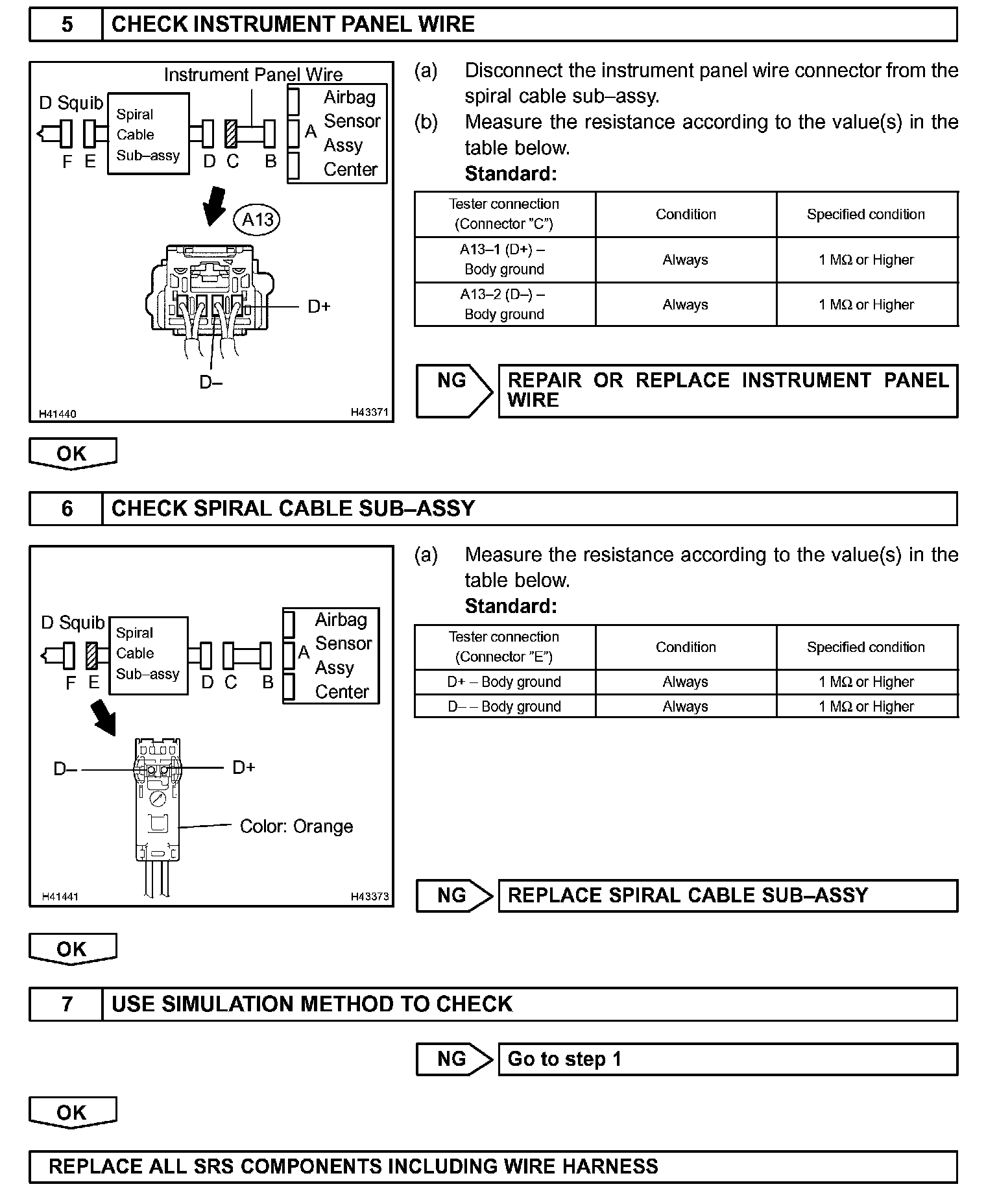

Step 5 - 7:

INSPECTION PROCEDURE
