On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. FRONT WASHER MOTOR
a. Operation Check
1. Fill the washer jar with washer fluid.

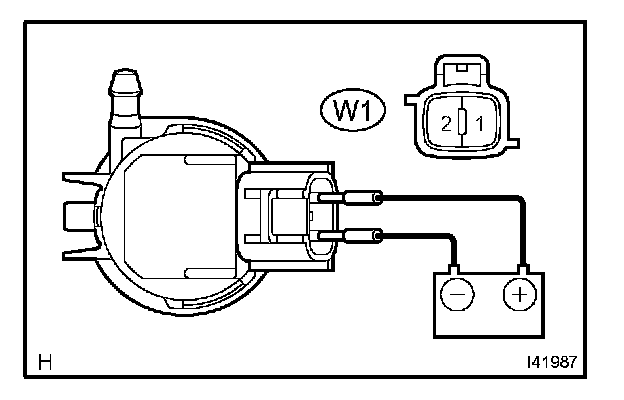

2. Connect the positive battery (+) lead to terminal 1 of the windshield washer motor and pump assembly, and the negative battery (-) lead to terminal 2.
3. Check that washer fluid flows from the washer jar.
