Manual Up/Down Function Does Not Operate On Passenger Side Only
MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON PASSENGER SIDE ONLYCIRCUIT DESCRIPTION
If the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor, the power window regulator switch or the wire harness.

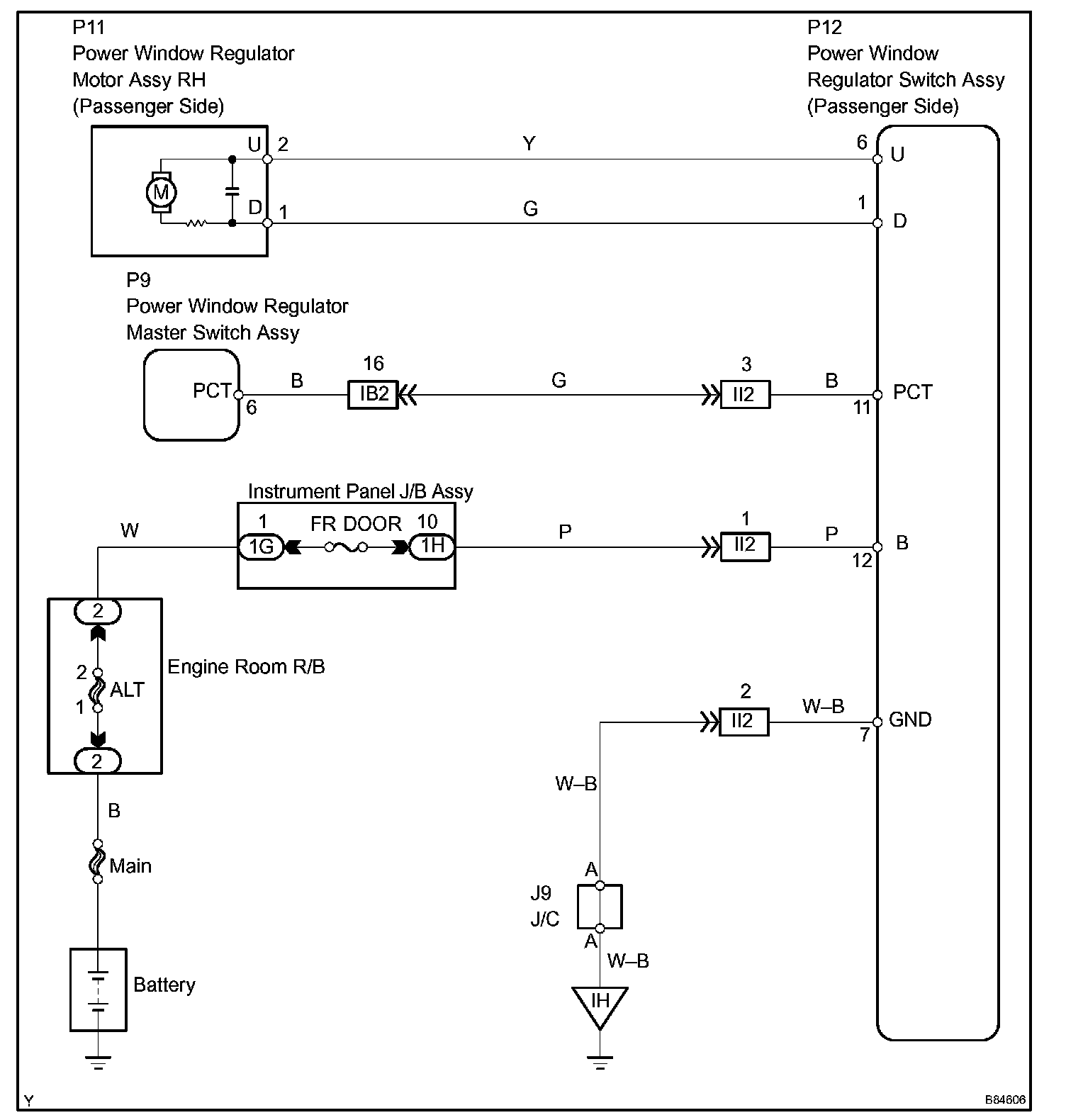

Wiring Diagram:

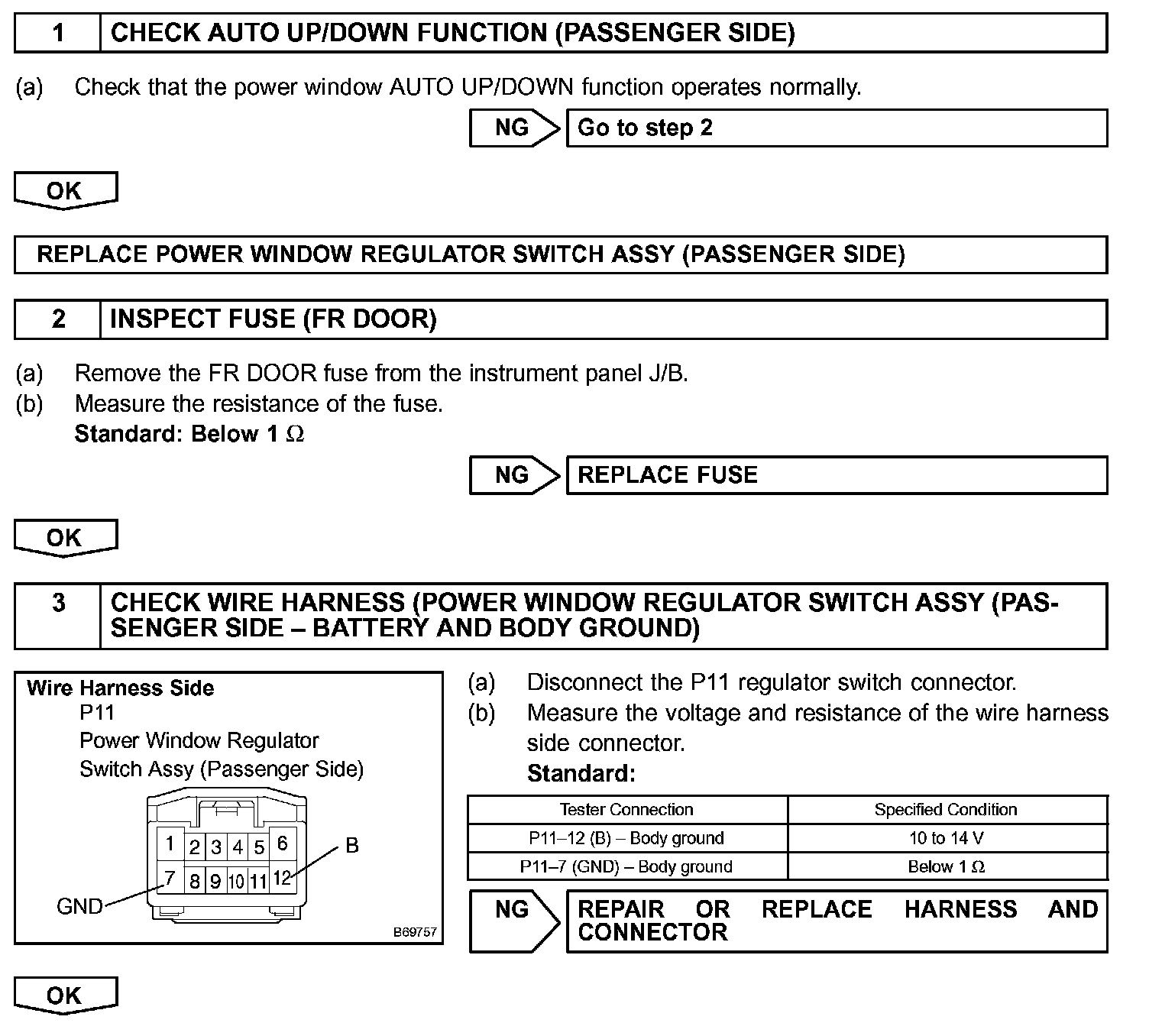

Step 1 - 3:

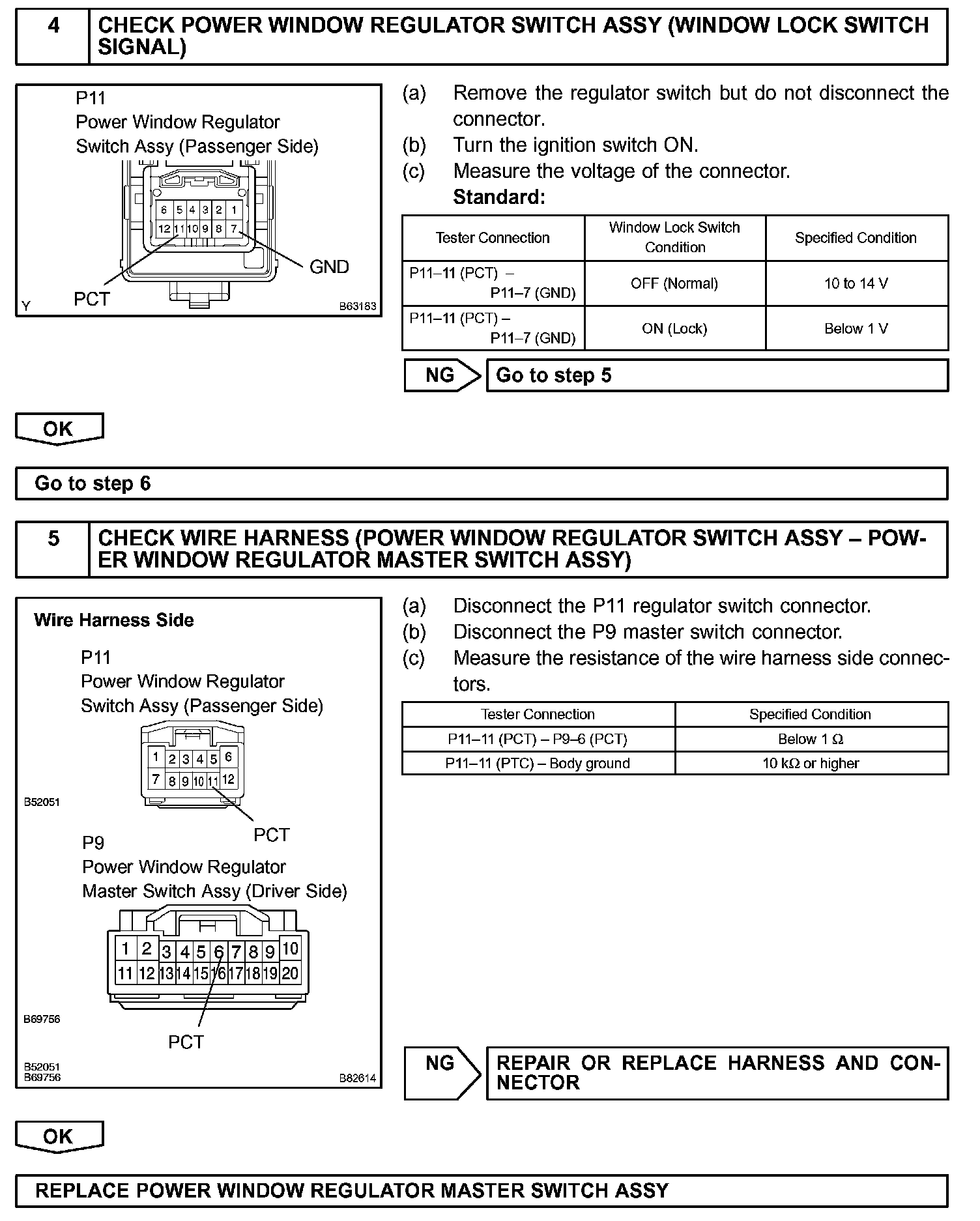

Step 4 - 5:

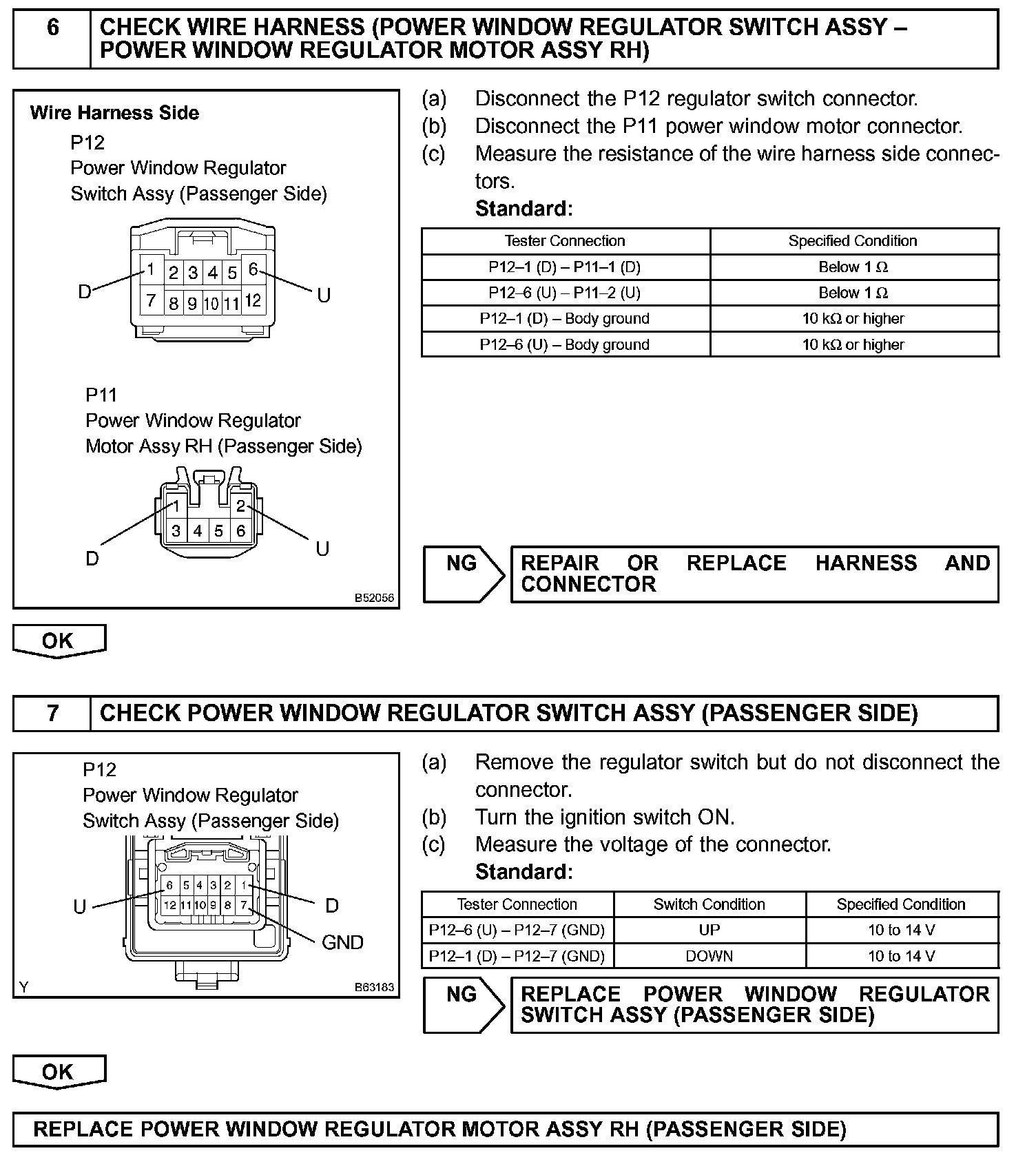

Step 6 - 7:
INSPECTION PROCEDURE
