Manual Up/Down Function Does Not Operate On Driver Side
MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON DRIVER SIDECIRCUIT DESCRIPTION
If the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor, the power window master switch or the wire harness.

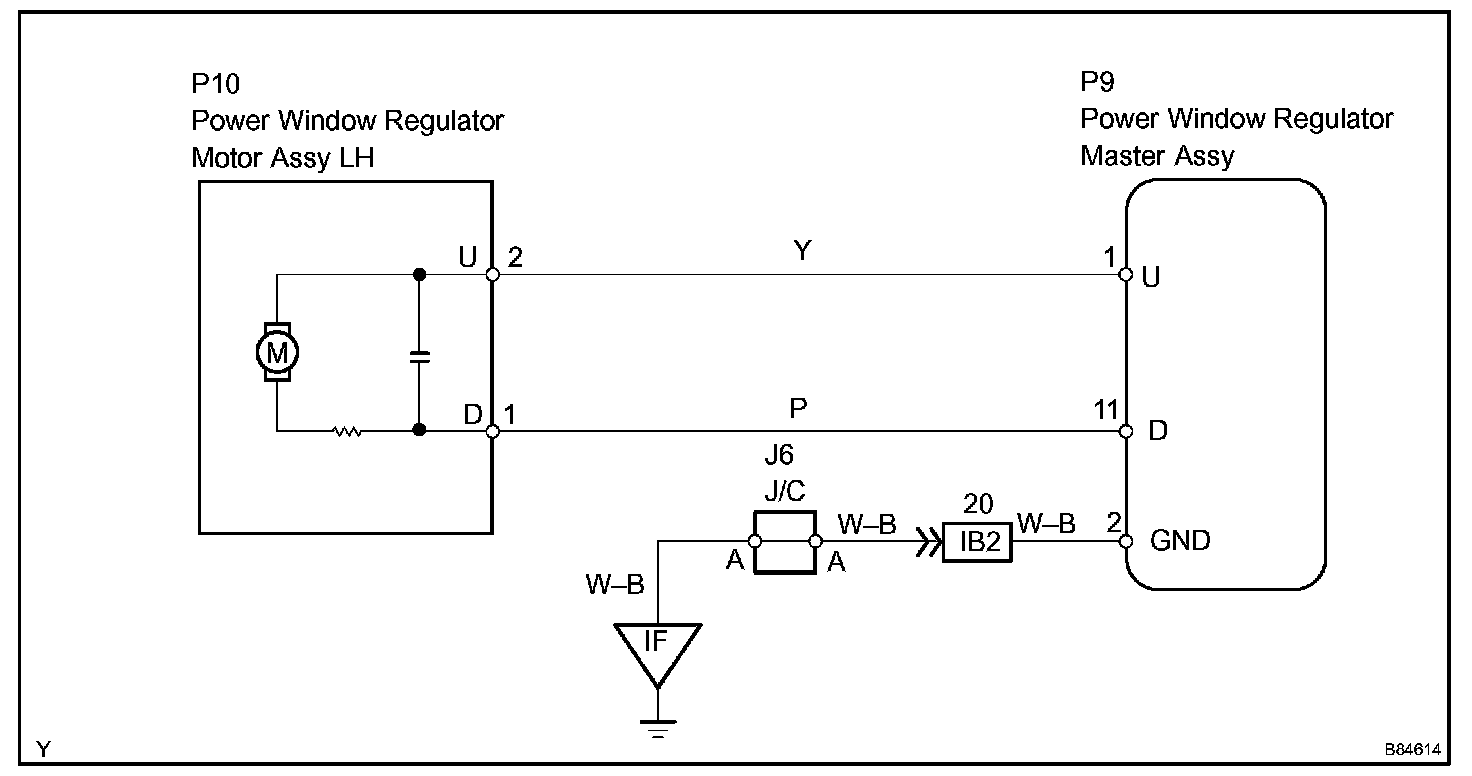

Wiring Diagram:

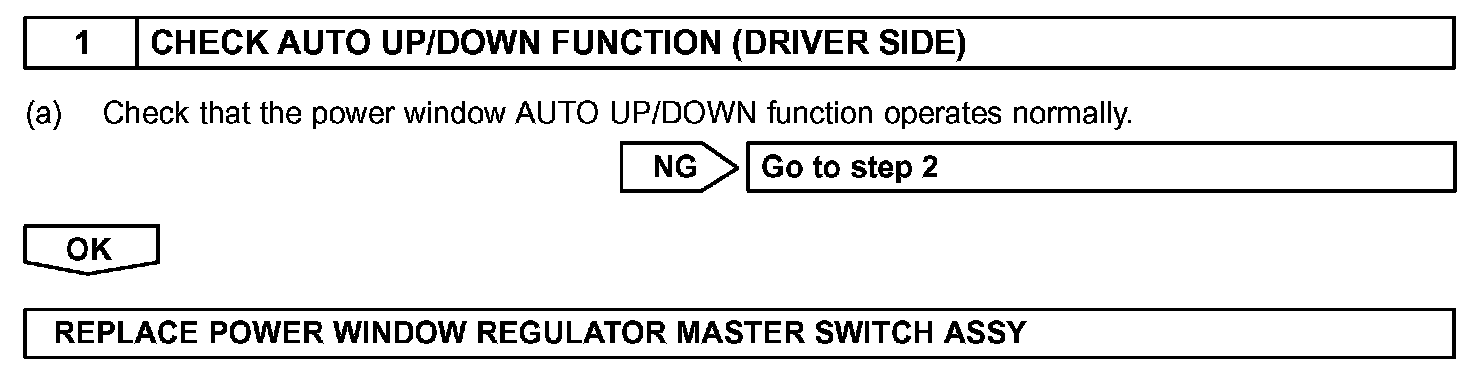

Step 1:

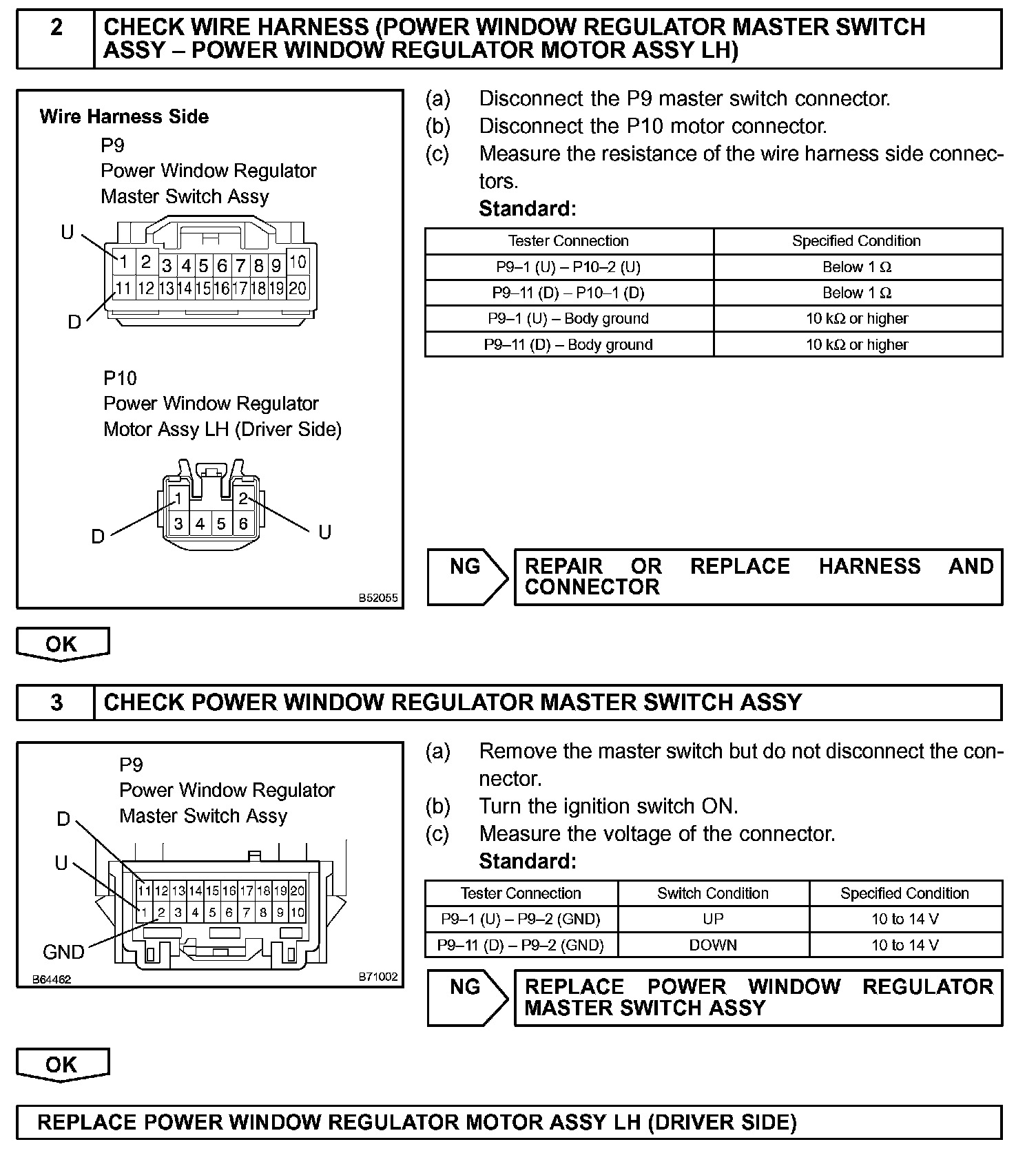

Step 2 - 3:
INSPECTION PROCEDURE
