Jam Protection Function Does Not Operate

JAM PROTECTION FUNCTION DOES NOT OPERATE

CIRCUIT DESCRIPTION

The power window regulator master switch controls the driver and passenger side power window regulator motors. The power window regulator switch controls the passenger side power window regulator motor. The jam protection function operates only within the specified range during AUTO UP operation.

HINT: The jam protection function is available on the driver side power window and passenger side power window.

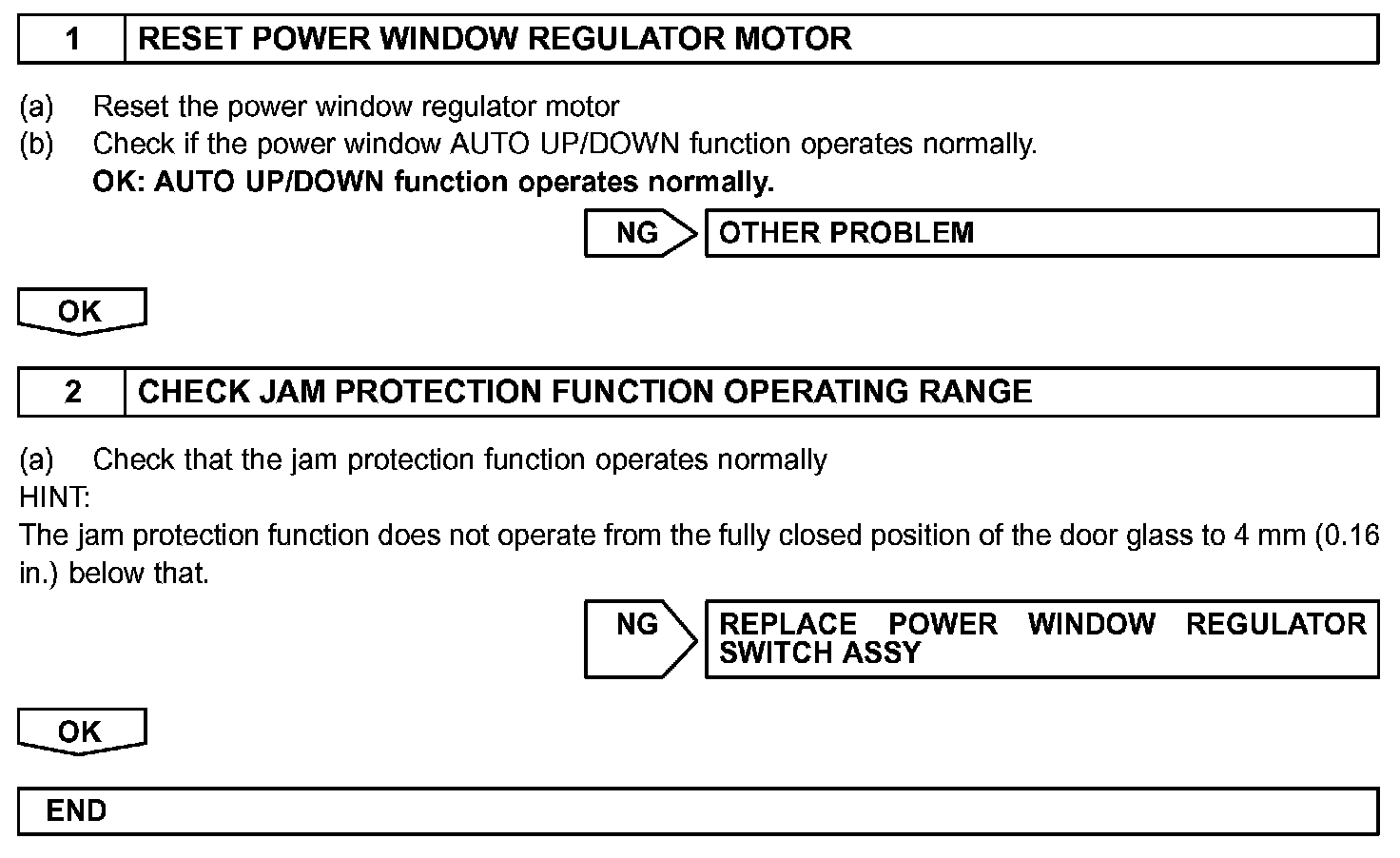

Step 1 - 2:

INSPECTION PROCEDURE
