Power Window Control System (w/ Jam Protection Function)

ON-VEHICLE INSPECTION

1. CHECK WINDOW LOCK SWITCH
a. Check that the passenger side power window operation is disabled when the window lock switch of the power window regulator master switch is pressed.
b. Check that the passenger side power window can be operated when the window lock switch is pressed again.

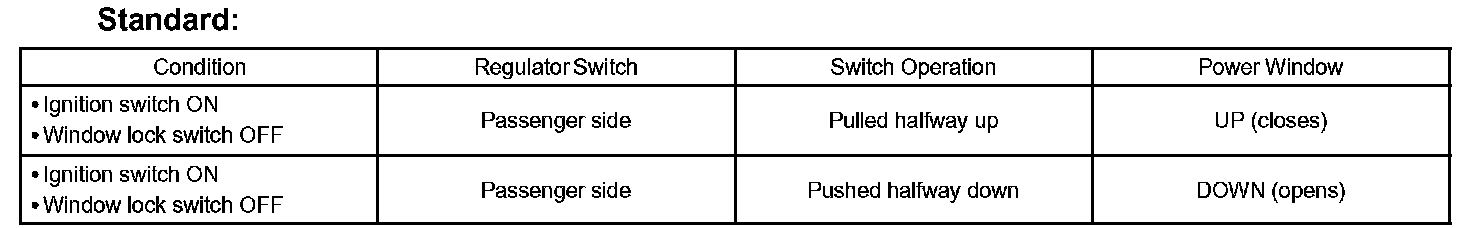

2. CHECK MANUAL UP/DOWN FUNCTION

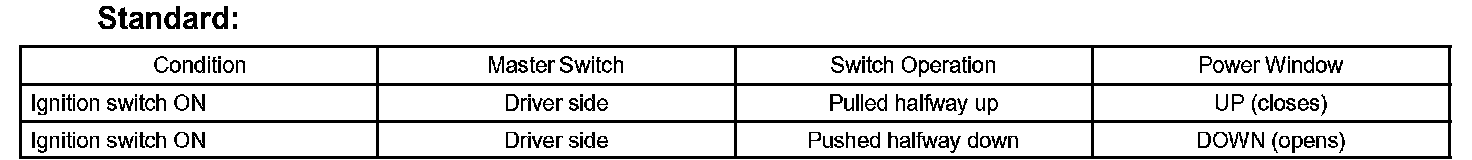

a. Check that the driver side power window operated.

b. Check that the passenger side power window operated.

3. CHECK AUTO UP/DOWN FUNCTION

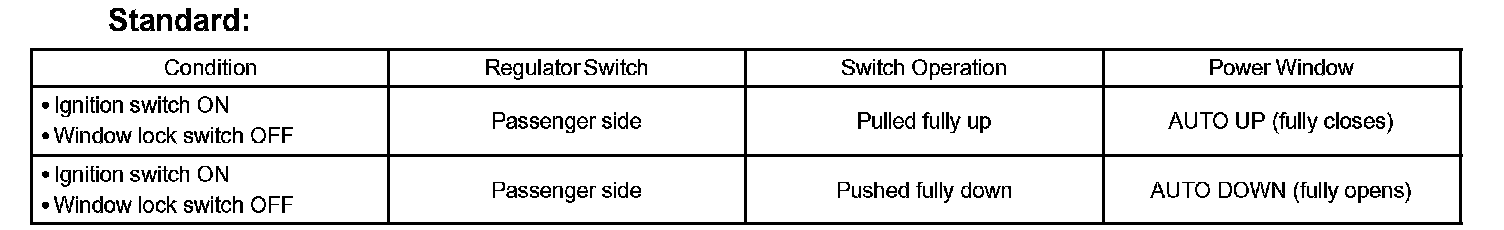

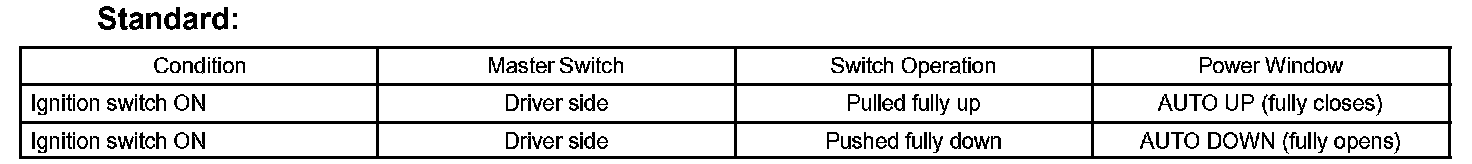

a. Check that the driver side power window operated.

b. Check that the passenger side power window operated.

4. CHECK REMOTE MANUAL UP/DOWN FUNCTION

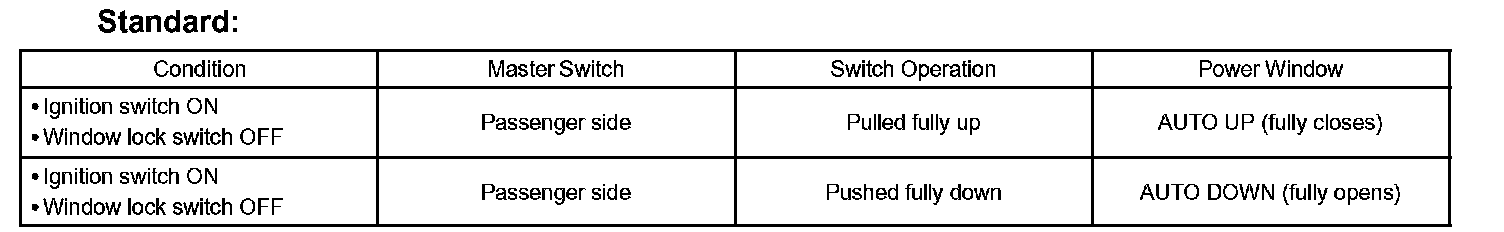

a. Check that the passenger side power window operated.

5. CHECK REMOTE AUTO UP/DOWN FUNCTION
a. Check that the passenger driver side power window operated.

6. CHECK JAM PROTECTION FUNCTION

HINT: The jam protection function prevents any part of your body from being caught by accident between the door frame and the door glass during power window operation.

NOTE: If the power window motor has just been reset, raise and lower the door glass several times using MANUAL function before performing the check.

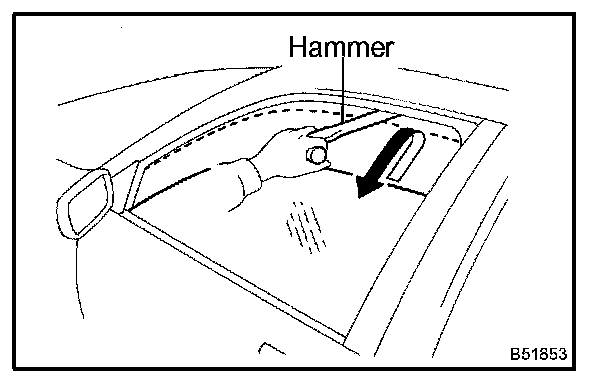

a. Check that the door glass moves down by approximately 50 mm (1.97 in.) right when something is caught between the door frame and door glass during power window operation. However, when opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to move down and does not stop until an opening of 200 mm (7.87 in.) is achieved.

Operative conditions:
- AUTO UP

7. CHECK POWER WINDOW FAIL-SAFE FUNCTION

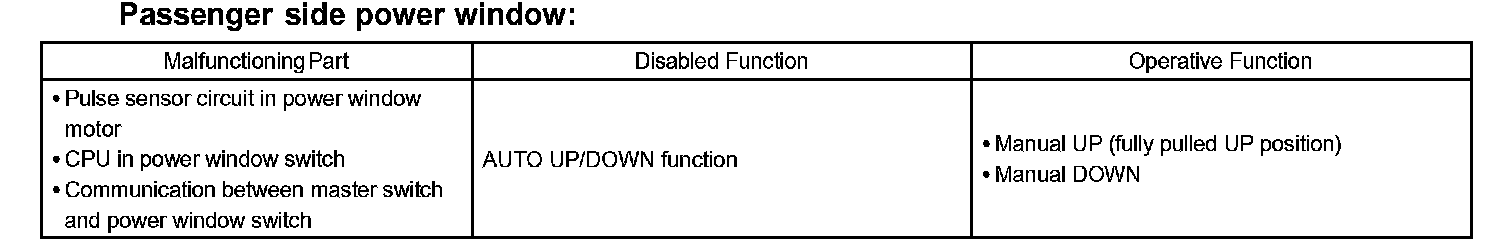

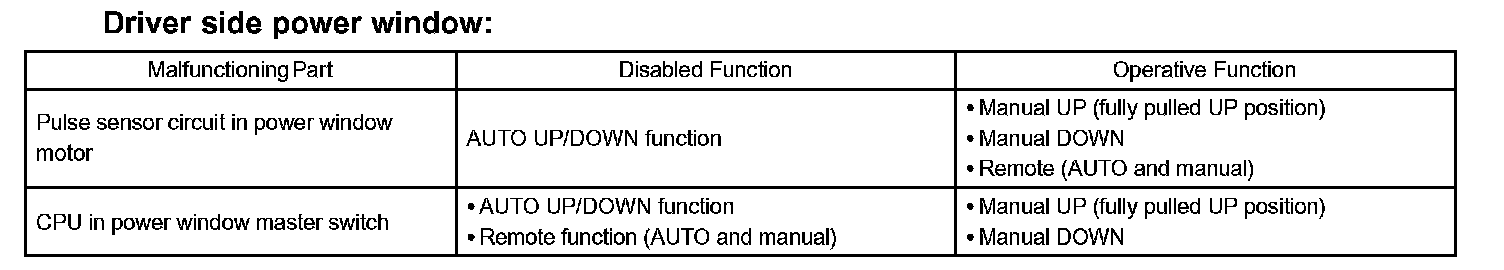

HINT: If there is a malfunction in the power window system, some of the power window functions will be disabled.

8. CHECK POWER WINDOW SWITCH'S LED OPERATION
a. Make sure of the power window lock switch on the power window regulator master switch is not pressed.
b. Turn the ignition switch ON. Then, check that all the LEDs on the power window switches illuminate.
