On-Vehicle Inspection

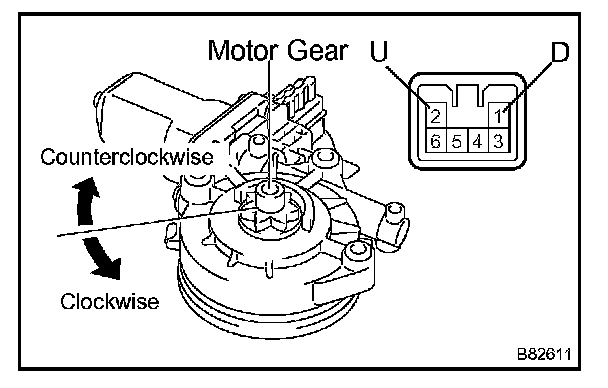

INSPECTION1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (DRIVER SIDE)
a. Check operation of the regulator motor.
NOTE: Do not apply battery voltage to any terminal except 1 and 2.

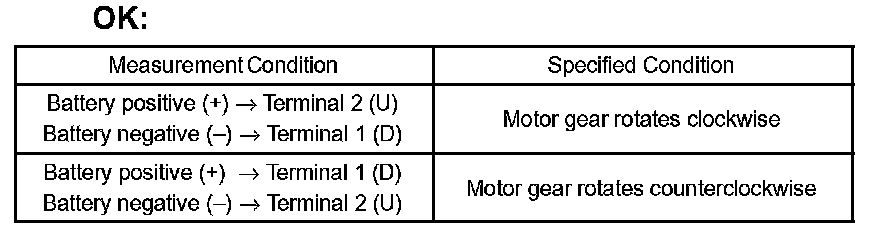

1. Apply battery voltage to the motor terminals.
2. Check that the motor rotates smoothly.
If the result is not as specified, replace the motor assembly.
b. Check operation of the PTC inside the regulator motor.
NOTE: The work must be performed with the power window regulator and door glass installed to the vehicle.
1. Set an electrical tester DC 400 A probe to the wire harness of terminal 2.
NOTE: Match the arrow mark of the probe with the current direction.
2. Fully close the door glass by operating the power window switch and keep the door glass there for approximately 60 seconds.
3. With the door glass fully closed, operate the power switch in the closing direction again. Check how long the current takes to change from a range of 16 to 34 A into less than 1 A.
Standard: 4 to 90 seconds
4. Check that the door glass moves down when the power window regulator switch is pushed DOWN.
If the result is not as specified, replace the motor assembly.

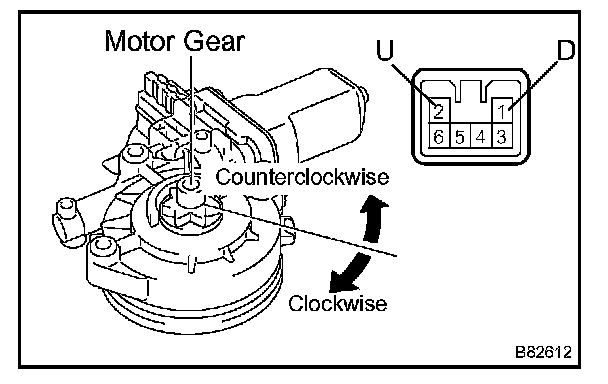

2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
a. Check operation of the regulator motor.
NOTE: Do not apply battery voltage to any terminal except 1 and 2.

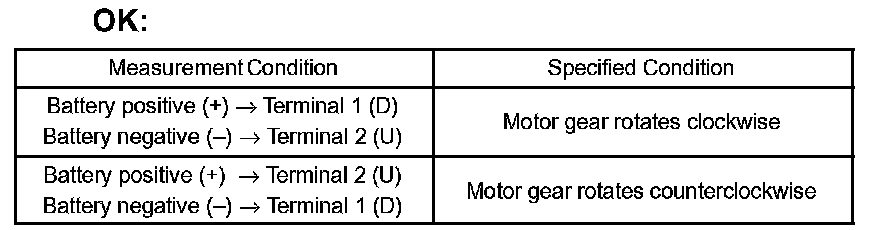

1. Apply battery voltage to the motor terminals.
2. Check that the motor rotates smoothly.
If the result is not as specified, replace the motor assembly.
b. Check operation of the PTC inside the regulator motor.
NOTE: The work must be performed with the power window regulator and door glass installed in the vehicle.
1. Set an electrical tester DC 400 A probe to the wire harness of terminal 2.
NOTE: Match the arrow mark of the probe with the current direction.
2. Fully close the door glass by operating the power window switch and keep the door glass there for approximately 60 seconds.
3. With the door glass fully closed, operate the power switch in the closing direction again. Check how long the current takes to change from a range of 16 to 34 A into less than 1 A.
Standard: 4 to 90 seconds
4. Check that the door glass moves down when the power window regulator switch is pushed DOWN.
If the result is not as specified, replace the motor assembly.

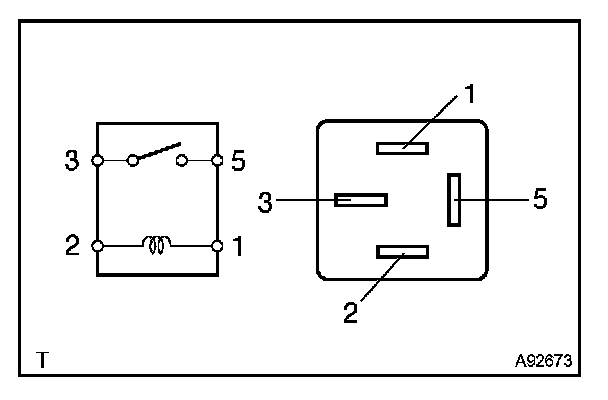

3. INSPECT RELAY (Marking: IG1)
a. Remove the IG1 relay from the instrument panel J/B.

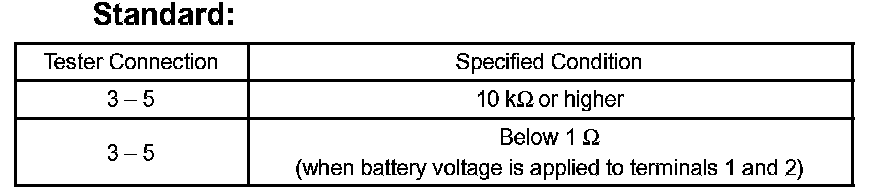

b. Measure the resistance of the relay.
If the result is not as specified, replace the relay.
