Body - Power Window Initialization Procedure

PRE-DELIVERY SERVICE
PD008-04

May 17, 2004

Title:
INITIALIZATION OF POWER WINDOW

Models:
'05 Scion tC

Introduction

As a result of the removal of the DCC fuse or battery disconnection, the "one-touch open and close" and "Jam protection" functions of the power windows will be inoperative due to loss of the door window position memory stored in the Body ECU.

Therefore, it is necessary to initialize each door's power window during Pre-Delivery Service (PDS) at the dealership.

Applicable Vehicles
^ 2005 model year Scion tC vehicles.

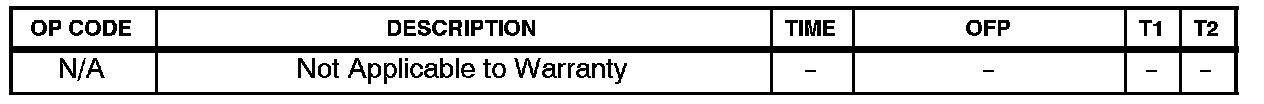

Warranty Information

Initialization Procedure

With ignition switch in the "ON" position, do the following:





NOTE:

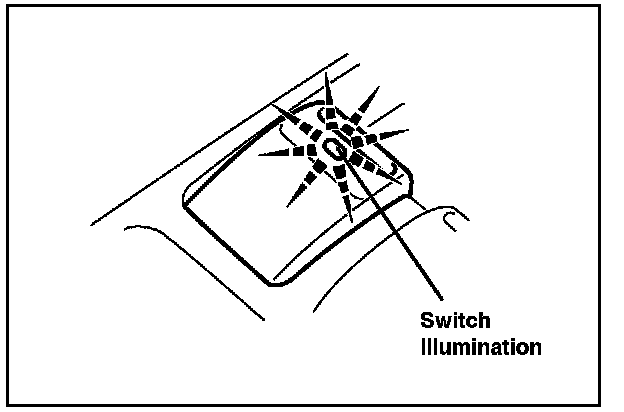

When the battery terminal has been disconnected, each door's power window switch blinks.

1. Push the driver's door power window switch to open the window.

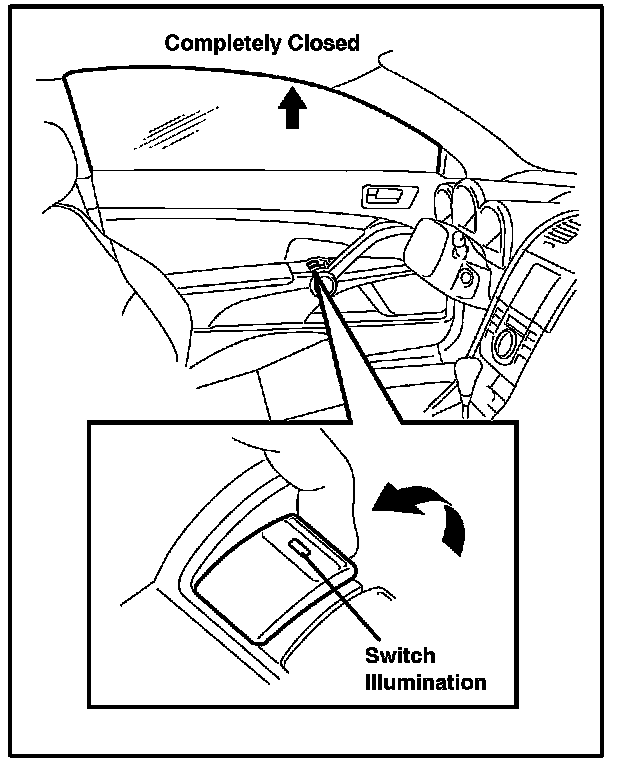

2. Pull up the driver's door power window switch until the window closes, and hold it for approximately one second.

NOTE:
At this time, the driver's door power window switch illumination changes from blinking to constant illumination.

3. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch UP" once.

NOTE:
Jam protection function is enabled through the above initialization procedure.

4. Repeat the above procedure on the passenger door window switch.
