Component Tests and General Diagnostics

MANUAL TRANSAXLE OIL (MTM)
ON-VEHICLE INSPECTION





1. INSPECT MANUAL TRANSAXLE OIL
a. Stop the vehicle on a level place.
b. Remove the filler plug and gasket.

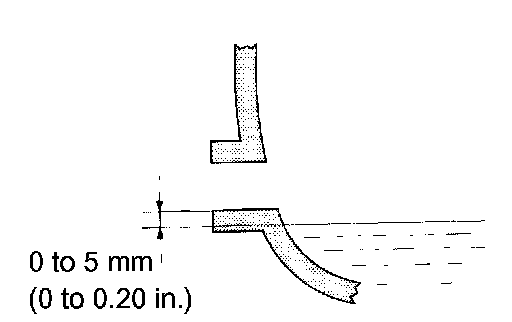

c. Check that the oil surface is within 5 mm (0.20 inch) from the lowest position of the inner surface of the filler plug opening.

NOTICE:
- An excessively large or small amount of oil may cause trouble.
- After replacing the oil, drive the vehicle and check the oil level.

d. Check for oil leakage when the oil level is low.
e. Install the filler plug and a new gasket.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
