Shifter M/T: Service and Repair

FLOOR SHIFT SHIFT LEVER ASSEMBLY (MTM)
REPLACEMENT
1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
2. REMOVE CONSOLE PANEL UPPER
3. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
4. REMOVE CONSOLE BOX ASSEMBLY REAR





5. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

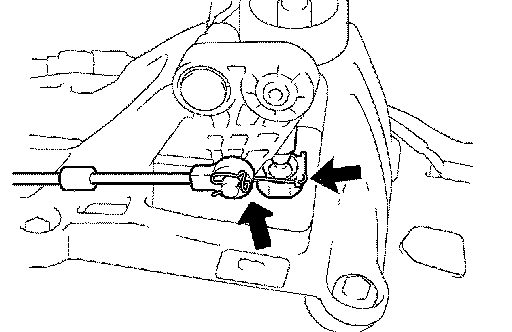

a. Remove the 2 clips, and separate the cable ends of the control cable assembly.

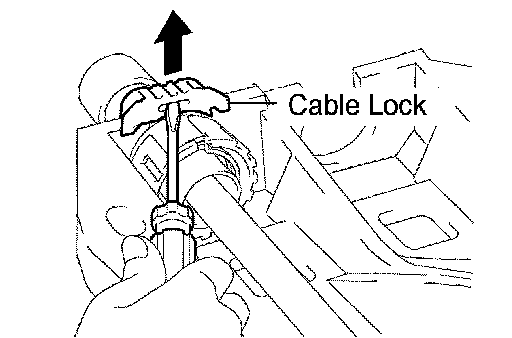

b. Release the cable locks of the shift cable and select cable using a screwdriver.

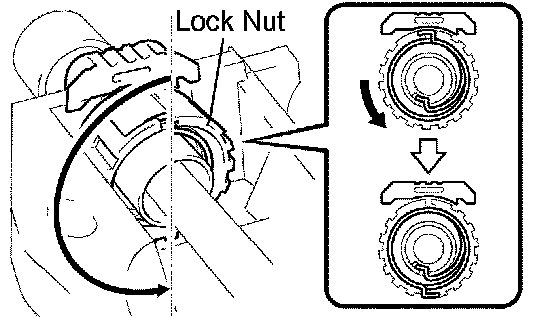

c. Turn the lock nuts 180 degrees counterclockwise, and hold them to remove the shift cable and select cable.

NOTICE: Do not push in the cable locks.





6. REMOVE FLOOR SHIFT SHIFT LEVER ASSEMBLY

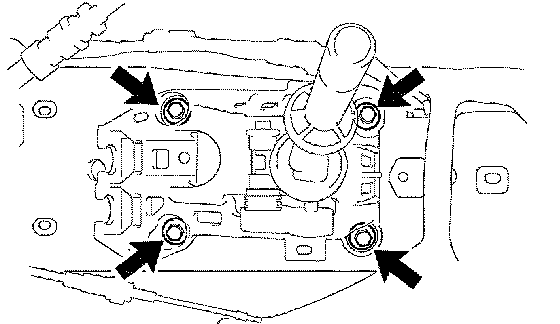

a. Remove the 4 bolts and shift lever assembly.





7. INSTALL FLOOR SHIFT SHIFT LEVER ASSEMBLY

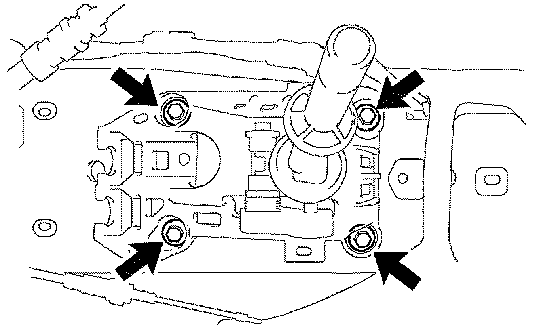

a. Install the shift lever assembly with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)





8. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

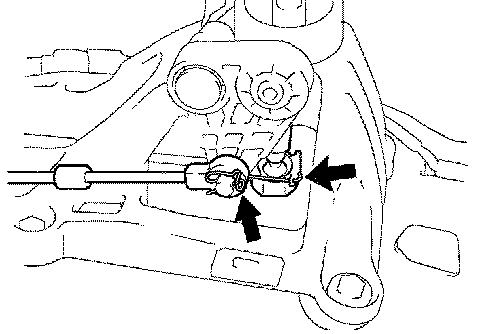

a. Connect the ends of the control cable assembly and install the 2 clips to the shift lever assembly.

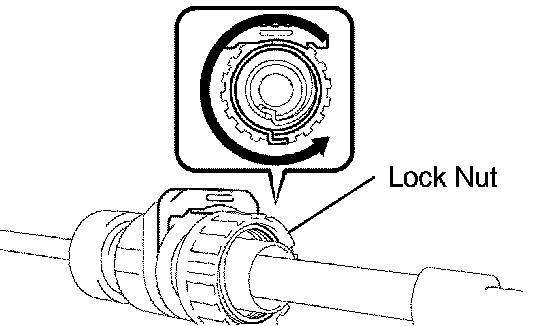

b. Turn the lock nuts of the shift cable 270 degrees counterclockwise, and hold them.
c. Install the shift cable and select cable while holding the lock nuts.
d. Check that the cables are installed securely.

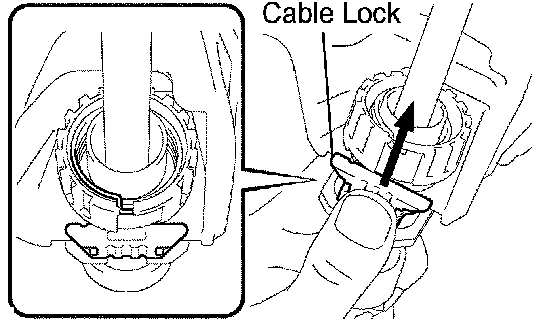

e. Push in the cable locks of the shift cable and select cable.
9. INSTALL CONSOLE BOX ASSEMBLY REAR
10. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
11. INSTALL CONSOLE PANEL UPPER
12. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
