Symptom Related Diagnostic Procedures

DRIVE SHAFT, PROPELLER SHAFT, AXLE

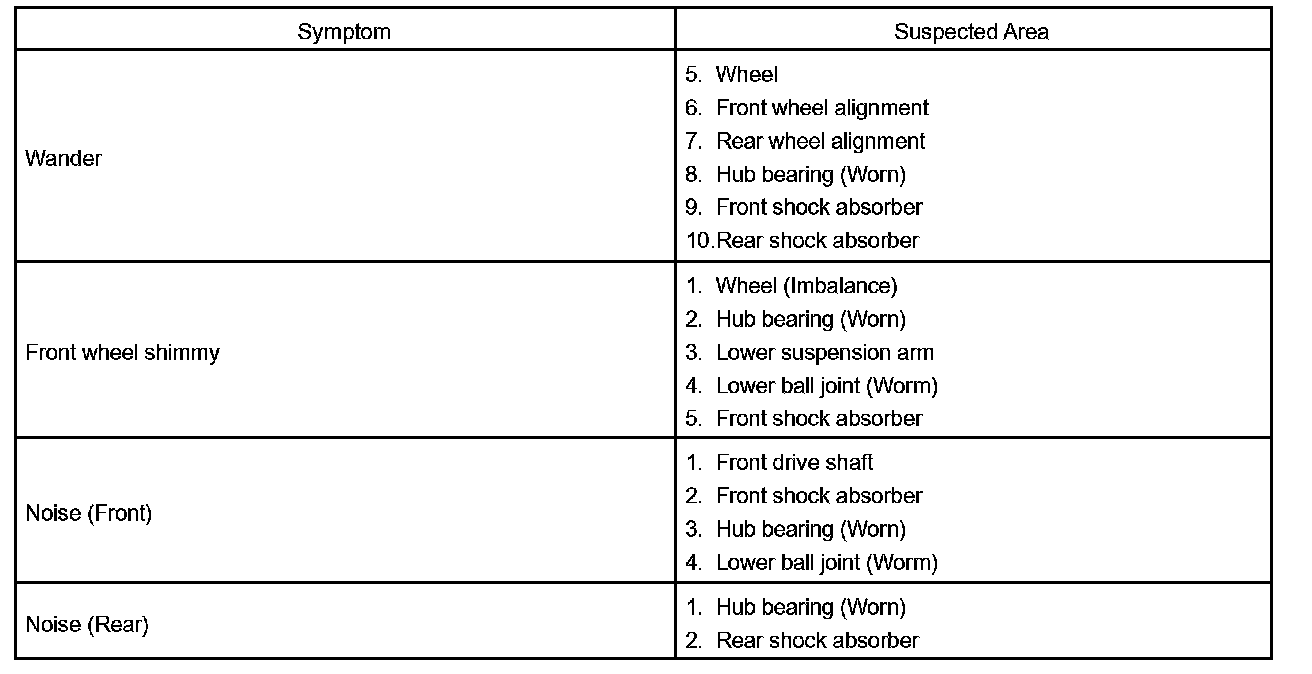

PROBLEM SYMPTOMS TABLE





Use the table to help determine the cause of the problem. The causes of problem are listed in order of probability in the "Suspected Area" column. Check each part in order. If necessary, replace these parts.
