Shift Cable: Service and Repair

TRANSMISSION CONTROL CABLE ASSEMBLY (ATM)
REPLACEMENT
1. REMOVE AIR CONDITIONING RADIATOR ASSEMBLY
2. REMOVE EXHAUST PIPE ASSEMBLY
3. REMOVE ENGINE UNDER COVER LH





4. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

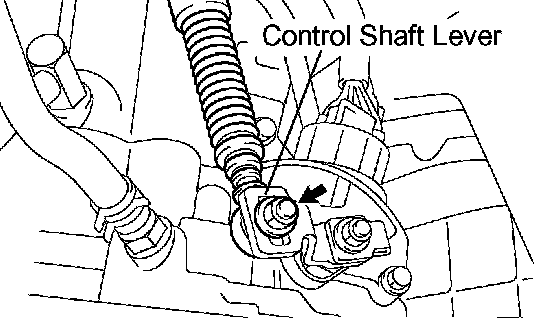

a. Remove the nut from the control shaft lever.
b. Disconnect the control cable from the control shaft lever.

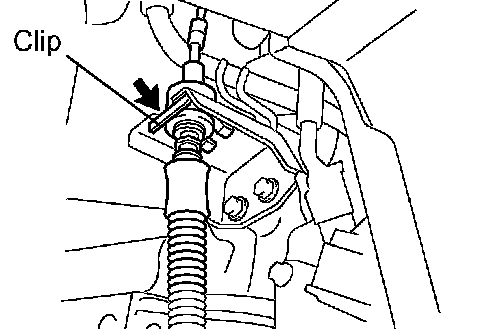

c. Remove the clip and disconnect the control cable from the control cable bracket.

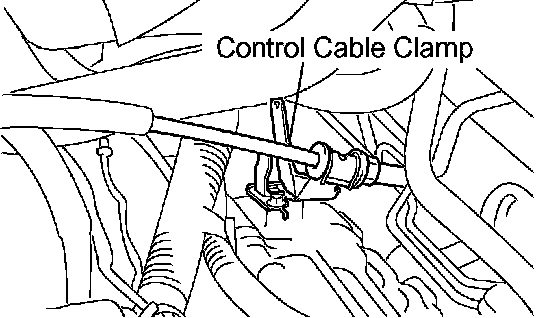

d. Disconnect the control cable from the control cable clamp.





5. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

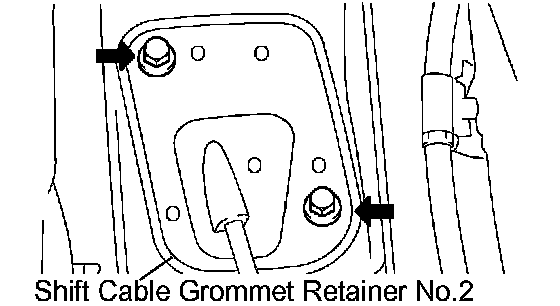

a. Remove the 2 bolts and disconnect the shift cable grommet retainer No.2.





b. Disconnect the floor shift cable from the transmission floor shift assembly.
c. Pull out the control cable from the body.
d. Remove the shift cable grommet retainer No.2.





6. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
a. Put in the control cable to the body.
b. Install the shift cable grommet retainer No.2 to the floor shift cable.

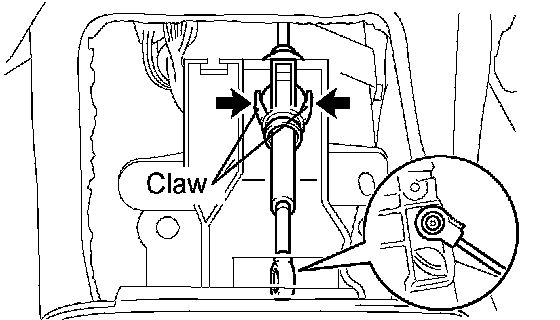

c. Install the floor shift cable as shown in the illustration.

HINT: Securely engage the claws.





d. Install the shift cable grommet retainer No.2 with the 2 bolts.
Torque: 5.0 Nm (50 kgf-cm, 43 inch lbs.)





7. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

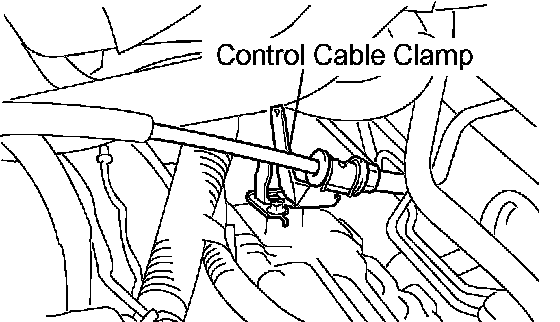

a. Connect the control cable to the control cable clamp.

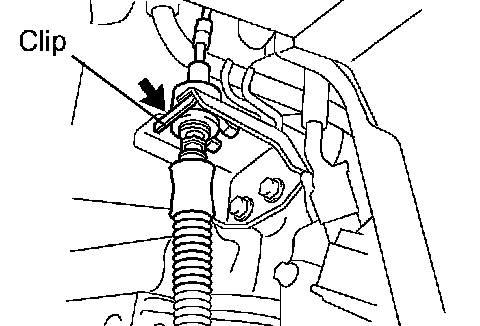

b. Connect the control cable with the clip to the bracket.

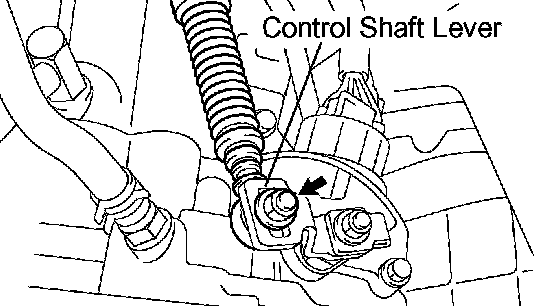

c. Temporarily install the control cable to the control shaft lever with the nut.
8. INSTALL AIR CONDITIONING RADIATOR ASSEMBLY
9. INSTALL EXHAUST PIPE ASSEMBLY
10. INSPECT SHIFT LEVER POSITION
11. ADJUST SHIFT LEVER POSITION
12. INSTALL ENGINE UNDER COVER LH
