Rear

REAR AXLE LH HUB BOLT
REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH
3. REMOVE REAR DISC





4. REMOVE REAR AXLE LH HUB BOLT

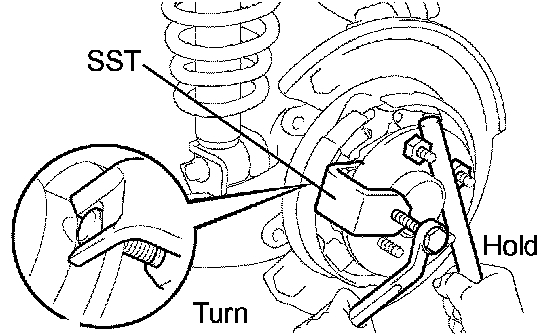

a. Turn the axle hub to move the LH hub bolt and SST that are to be removed, to the place shown in the illustration.

NOTICE: Do not replace the hub bolt at any places other than the one shown in the illustration.

b. Temporarily install the 2 hub nuts.
c. Using SST and a hammer handle or an equivalent to hold the axle hub, remove the LH hub bolt.
SST 09628-10011





5. INSTALL REAR AXLE LH HUB BOLT
a. Install a washer and nut to a new LH hub bolt as shown in the illustration.
b. Using a hammer handle or an equivalent to hold the axle hub, install the LH hub bolt by torquing the nut.
6. INSTALL REAR DISC
7. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH
8. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
