Front
STABILIZER BAR FRONT
REPLACEMENT
1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
2. REMOVE COLUMN HOLE COVER SILENCER SHEET
3. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY NO.2
4. SEPARATE STEERING COLUMN HOLE COVER SUB-ASSEMBLY NO.1
5. REMOVE FRONT WHEELS
6. REMOVE ENGINE UNDER COVER LH
7. REMOVE ENGINE UNDER COVER RH

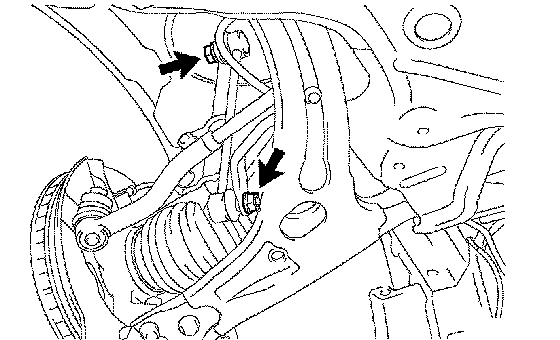

8. REMOVE FRONT STABILIZER LINK ASSEMBLY LH
a. Remove the 2 nuts and front stabilizer link assembly LH.
HINT: Use a hexagon wrench (6 mm) to hold the stud if the ball joint turns together with the nut.
9. REMOVE FRONT STABILIZER LINK ASSEMBLY RH
HINT: Remove the RH side following the same procedures as with the LH side.

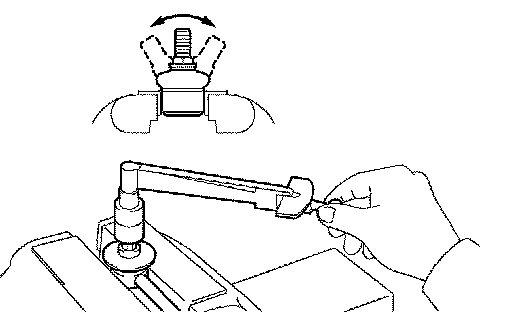

10. INSPECT FRONT STABILIZER LINK ASSEMBLY LH
a. Secure the front stabilizer link assembly LH with a vise.
b. Install the nut to the stud bolt.
c. Flip the ball joint back and forth 5 times or more.
d. Use a torque wrench to turn the nut continuously at a rate of 3 to 5 seconds per turn. Take the torque reading on the 5th turn.
Turning torque: 1.0 Nm (10 kgf-cm, 8.9 inch lbs.) or less
e. Check the dust boots for cracks or grease leakage.
If the value is not within the specified range, replace the front stabilizer link Say with new one.
11. SEPARATE TIE ROD END SUB-ASSEMBLY LH
SST 09628-00011
12. SEPARATE TIE ROD END SUB-ASSEMBLY RH
SST 09628-00011
HINT: Separate the RH side following the same procedures as with the LH side.
13. DISCONNECT PRESSURE FEED TUBE ASSEMBLY
14. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH
15. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 RH
HINT: Separate the RH side following the same procedures as with the LH side.
16. REMOVE FLOOR PANEL BRACE FRONT
17. REMOVE EXHAUST PIPE ASSEMBLY CENTER
18. REMOVE HOOD SUB-ASSEMBLY
19. REMOVE ENGINE COVER SUB-ASSEMBLY NO.1
20. SUSPEND ENGINE ASSEMBLY
21. REMOVE NO.1 HOOK
22. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

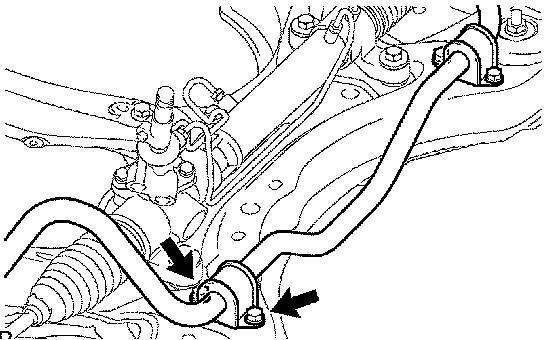

23. REMOVE FRONT STABILIZER BRACKET NO.1 LH
a. Remove the 2 bolts and the front stabilizer bracket No.1 LH from the suspension crossmember.
24. REMOVE FRONT STABILIZER BRACKET NO.1 RH
HINT: Remove the RH side following the same procedures as with the LH side.
25. REMOVE FRONT STABILIZER BAR BUSH NO.1
a. Remove the 2 front stabilizer bar bushes No.1 from the stabilizer bar.
26. REMOVE STABILIZER BAR FRONT
27. INSTALL STABILIZER BAR FRONT

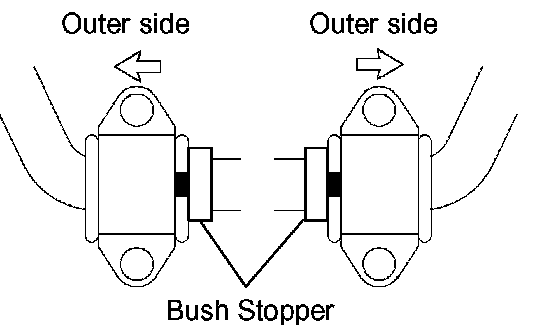

28. INSTALL FRONT STABILIZER BAR BUSH NO.1
a. Install the bushes to the outer side of the bush stopper on the stabilizer bar.
NOTICE: Place the cutout of the stabilizer bush facing the rear side.

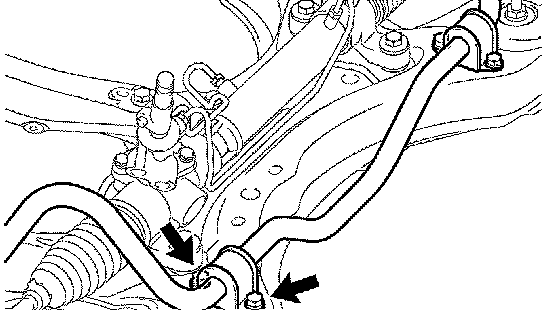

29. INSTALL FRONT STABILIZER BRACKET NO.1 LH
a. Install the stabilizer bracket No.1 LH to the front suspension crossmember sub-assembly with the 2 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft. lbs.)
30. INSTALL FRONT STABILIZER BRACKET NO.1 RH
HINT: Install the RH side following the same procedures as with the LH side.
31. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
32. INSTALL NO.1 HOOK
33. CONNECT FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH
34. CONNECT FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 RH
HINT: Connect the RH side following the same procedures as with the LH side.

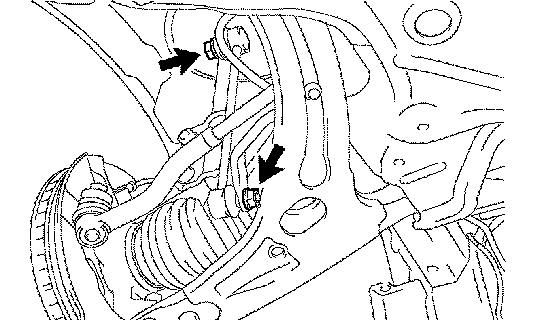

35. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
a. Install the front stabilizer link assembly LH with the 2 nuts.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)
HINT: Use a hexagon wrench (6 mm) to hold the stud if the ball joint turns together with the nut.
36. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: Install the RH side following the same procedures as with the LH side.
37. CONNECT PRESSURE FEED TUBE ASSEMBLY
SST 09023-12700
38. CONNECT TIE ROD END SUB-ASSEMBLY LH
39. CONNECT TIE ROD END SUB-ASSEMBLY RH
HINT: Connect the RH side following the same procedures as with the LH side.
40. INSTALL EXHAUST PIPE ASSEMBLY CENTER
41. INSTALL FLOOR PANEL BRACE FRONT
42. INSTALL FRONT WHEELS
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
43. CONNECT STEERING COLUMN HOLE COVER SUB-ASSEMBLY NO.1
44. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY NO.2
45. INSTALL COLUMN HOLE COVER SILENCER SHEET
46. INSTALL ENGINE COVER SUB-ASSEMBLY NO.1
47. ADD POWER STEERING FLUID
48. BLEED POWER STEERING FLUID
49. CHECK POWER STEERING FLUID LEVEL IN RESERVOIR
50. CHECK FOR FLUID LEAKS
51. INSPECT HOOD SUB-ASSEMBLY
52. ADJUST HOOD SUB-ASSEMBLY
53. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
54. INSTALL ENGINE UNDER COVER LH
55. INSTALL ENGINE UNDER COVER RH
