Replacement - Rear Suspension Arm Assembly No.1 LH

REAR SUSPENSION ARM ASSEMBLY NO.1 LH
REPLACEMENT
1. REMOVE REAR WHEEL

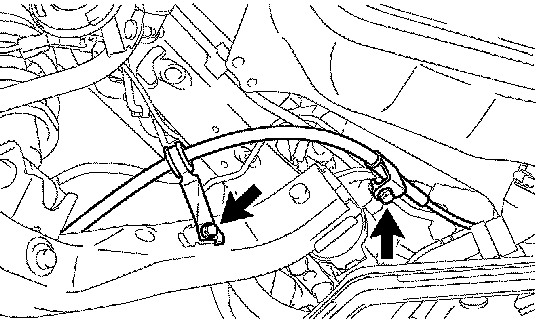

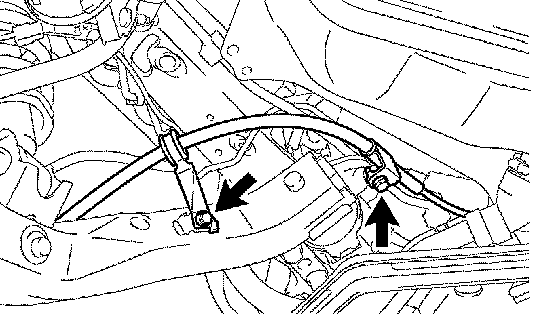

2. SEPARATE PARKING BRAKE CABLE ASSEMBLY NO.3
a. Remove the 2 bolts, and separate the parking brake cable assembly No.3.

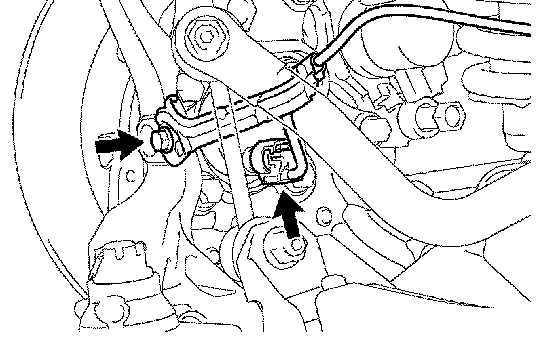

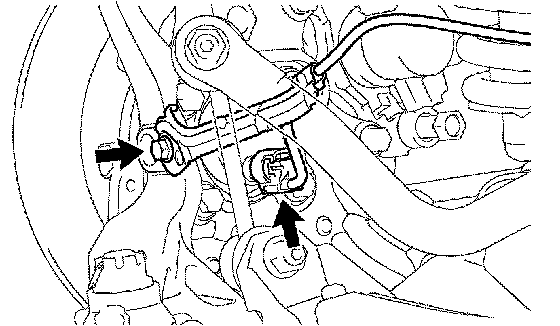

3. DISCONNECT SKID CONTROL SENSOR WIRE
a. Disconnect the skid control sensor connector.
b. Remove the bolt and wire bracket.

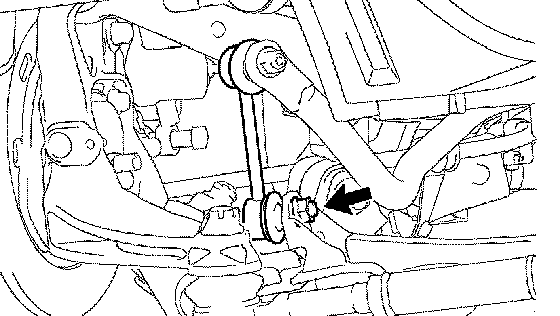

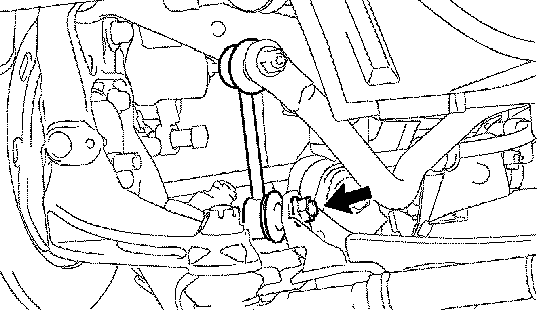

4. SEPARATE REAR STABILIZER LINK ASSEMBLY LH
a. Remove the nut, and separate the rear stabilizer link assembly LH.

HINT: If the ball joint turns together with the nut, use a hexagon (5 mm) wrench to hold the stud.





5. REMOVE LOWER CONTROL ARM ASSEMBLY LH

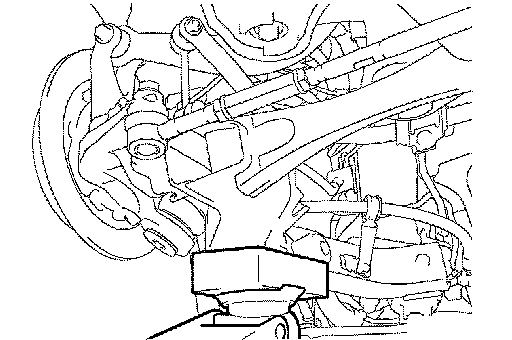

a. Support the rear suspension arm assembly No.1 LH.

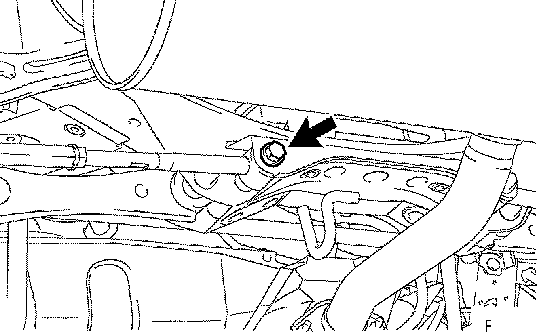

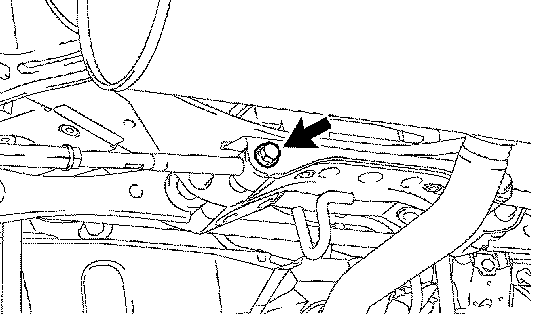

b. Remove the bolt, and separate the member side lower control arm assembly LH.

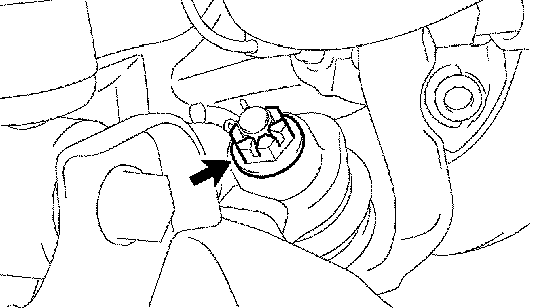

c. Remove the clip and nut.

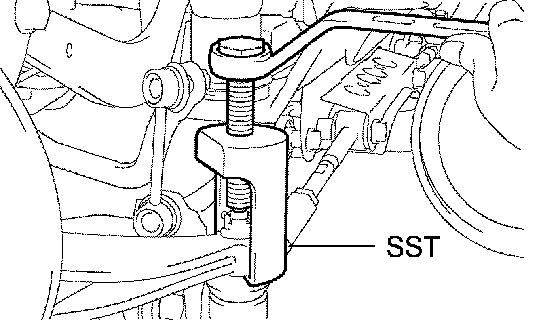

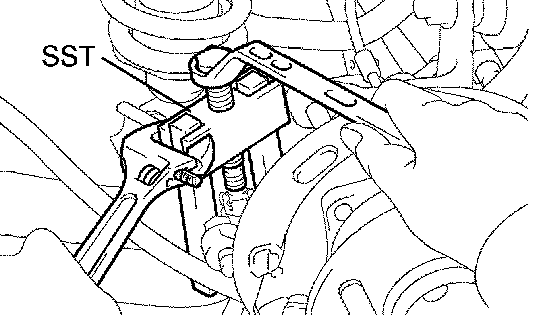

d. Using SST, remove the lower control arm assembly LH from the rear axle carrier sub-assembly LH.
SST 09610-20012

NOTICE: Do not damage the dust cover.

6. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH
7. REMOVE REAR DISC





8. REMOVE REAR SUSPENSION ARM ASSEMBLY NO.1 LH

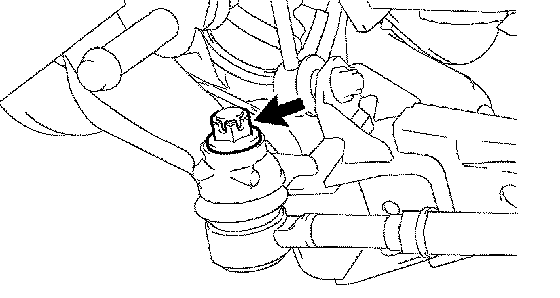

a. Remove the clip and nut.





b. Using SST, separate the rear axle carrier sub-assembly LH front side from the rear suspension arm assembly No.1 LH.
SST 09628-62011

NOTICE:
- Do not damage the dust cover.
- Hang the upper control arm assembly on the rear axle carrier sub-assembly LH side with a wire or equivalent.

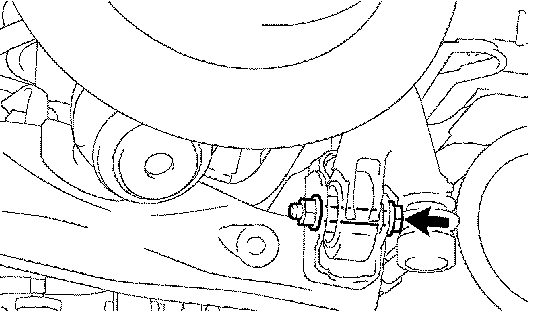

c. Remove the bolt and nut, and separate the rear axle carrier sub-assembly LH rear side from the rear suspension arm assembly No. 1 LH.

NOTICE: When removing the bolt, hold the nut not to rotate.

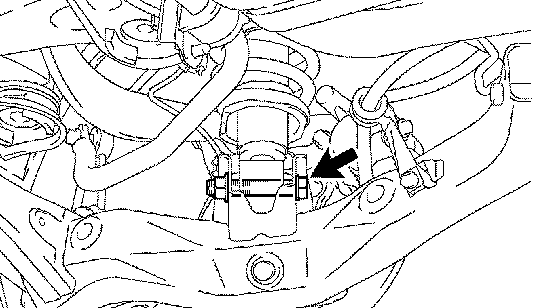

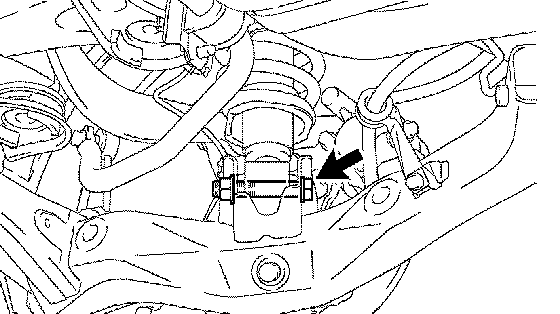

d. Remove the bolt and nut, and separate the rear shock absorber with coil spring.

NOTICE: When removing the bolt, hold the nut not to rotate.

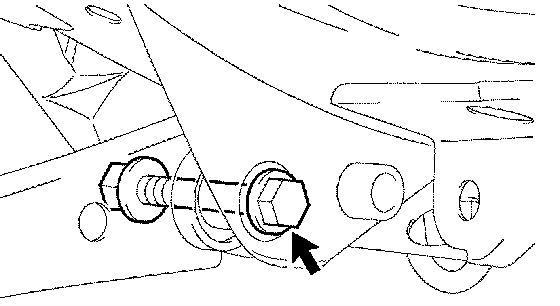

e. Remove the bolt and nut, and separate the rear side rear suspension arm assembly No.1 LH.

NOTICE: When removing the bolt, hold the nut not to rotate.

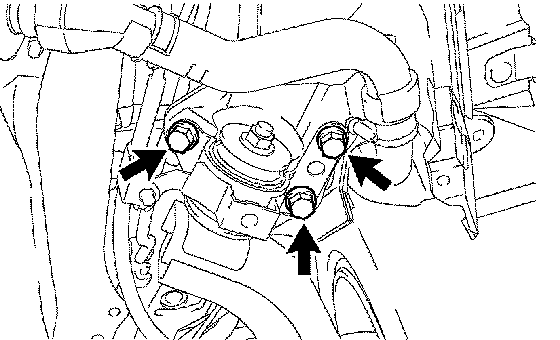

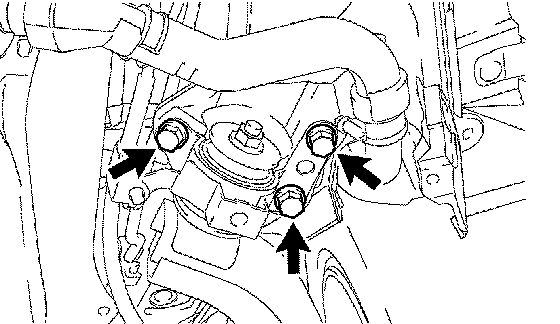

f. Remove the 3 bolts and rear suspension arm assembly No.1 LH.

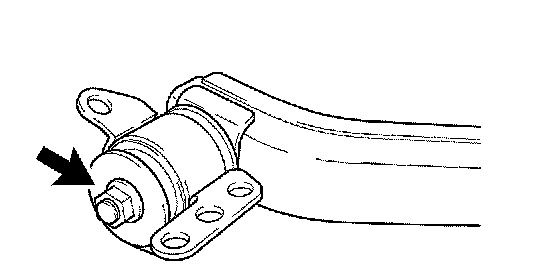

g. Remove the nut, rear suspension arm bracket assembly LH and rear suspension support stopper.





9. INSTALL REAR SUSPENSION ARM ASSEMBLY NO.1 LH
a. Install the rear suspension support stopper and rear suspension arm bracket assembly LH, and temporarily tighten the nut.





b. Install the rear side rear suspension arm assembly No.1 LH, and temporarily tighten the bolt and nut.

NOTICE: When installing the bolt, hold the nut not to rotate.





c. Install the 3 bolts.
Torque: 65 Nm (663 kgf-cm, 48 ft. lbs.)





d. Install the front side rear axle carrier sub-assembly LH to the rear suspension arm assembly No. 1 LH, and temporarily tighten the nut.





e. Install the axle carrier sub-assembly LH to the rear suspension arm assembly No.1 LH, and temporarily tighten the bolt and nut.





f. Install the rear shock absorber with coil spring to the rear suspension arm assembly No.1 LH, and temporarily tighten the bolt and nut.





10. INSTALL LOWER CONTROL ARM ASSEMBLY LH
a. Install the lower control arm assembly LH, and temporarily tighten the bolt.





b. Install the lower control arm assembly LH to the rear axle carrier LH, and temporarily tighten the nut.
11. INSTALL REAR DISC
12. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH





13. INSTALL REAR STABILIZER LINK ASSEMBLY LH
a. Install the rear stabilizer link assembly LH with the nut.
Torque: 44 Nm (449 kgf-cm, 32 ft. lbs.)

HINT: If the ball joint turns together with the nut, use a hexagon (5 mm) wrench to hold the stud.





14. CONNECT SKID CONTROL SENSOR WIRE
a. Install the wire bracket and bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
b. Connect the skid control sensor connector.





15. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3
a. Connect the parking brake cable assembly No.3 with the 2 bolts.
Torque: 6.0 Nm (61 kgf-cm, 53 inch lbs.)
16. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
17. STABILIZE SUSPENSION
a. Bounce the vehicle up and down several times to stabilize the suspension.





18. FULLY TIGHTEN REAR SUSPENSION ARM ASSEMBLY NO.1 LH

NOTICE: Be sure to empty the vehicle when fully tightening the bolt and nut.

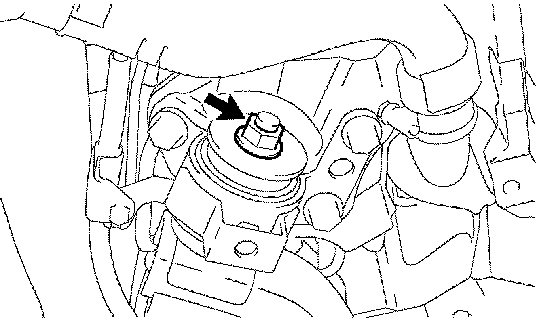

a. Fully tighten the nut.
Torque: 110 Nm (1,120 kgf-cm, 81 ft. lbs.)

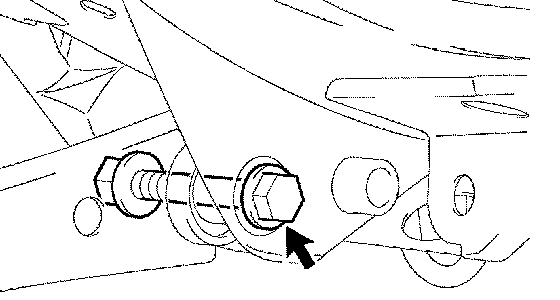

b. Fully tighten the bolt.
Torque: 115 Nm (1,170 kgf-cm, 85 ft. lbs.)

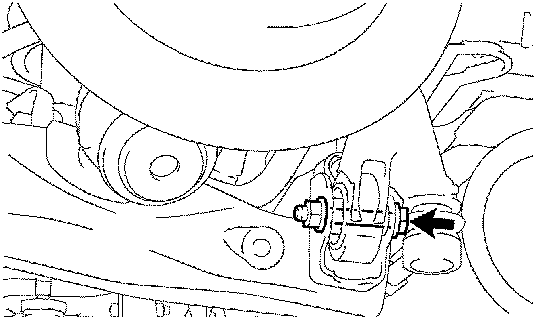

c. Fully tighten the bolt and nut.
Torque: 140 Nm (1,430 kgf-cm, 103 ft. lbs.)

NOTICE: When installing the bolt, hold the nut not to rotate.

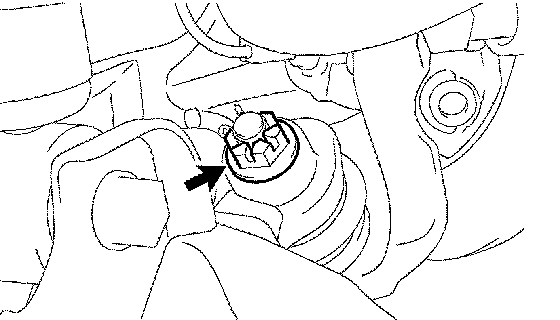

d. Fully tighten the nut.
Torque: 105 Nm (1,070 kgf-cm, 77 ft. lbs.)
e. Install the clip.

NOTICE:
- When the holes for the clip are not aligned, adjust them by tightening the nut. The tightening angle for the adjustment must be less than 60°.
- Insert the clip from the front side of the vehicle.

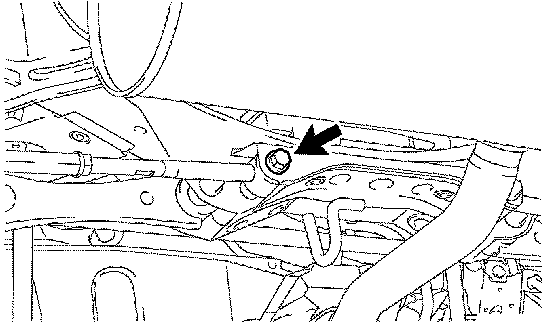

f. Fully tighten the bolt and nut.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)

NOTICE: When installing the bolt, hold the nut not to rotate.





19. FULLY TIGHTEN LOWER CONTROL ARM ASSEMBLY LH

NOTICE: Be sure to empty the vehicle when fully tightening the bolt and nut.

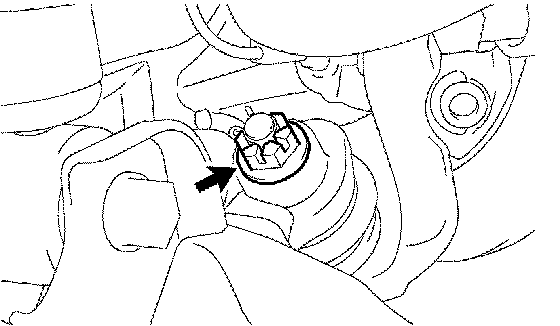

a. Fully tighten the nut.
Torque: 105 Nm (1,070 kgf-cm, 77 ft. lbs.)
b. Install the clip.

NOTICE:
- When the holes for the clip are not aligned, adjust them by tightening the nut. The tightening angle for the adjustment must be less than 60°.
- Insert the clip from the rear side of the vehicle.

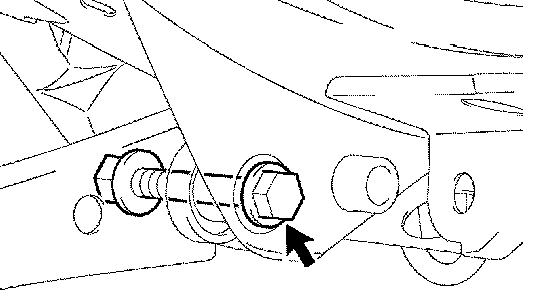

c. Fully tighten the bolt.
Torque: 115 Nm (1,170 kgf-cm, 85 ft. lbs.)
20. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
21. CHECK ABS SPEED SENSOR SIGNAL
